Tiptop Audio Mantis 2x104HP Eurorack Case User Manual

1. Уводзіны

The Tiptop Audio Mantis is a versatile Eurorack case designed to house and power your modular synthesizer modules. This manual provides essential information for setting up, operating, and maintaining your Mantis case, ensuring optimal performance and longevity.

2. Прадукт скончыўсяview і Асаблівасці

The Mantis case offers a total of 208HP (2 x 104HP) of space, providing ample room for a wide array of Eurorack modules. Its innovative design includes a sophisticated bracing system and 3-position folding legs, allowing for flexible placement options: flat on a surface, propped at a 45-degree angle, or standing upright.

Асноўныя функцыі ўключаюць у сябе:

• 208HP (2 x 104HP) module mounting space.
• глыбіня 50mm to accommodate various module sizes.
• Інтэграваны Zeus Universal Power Supply for reliable power distribution.
• Папярэдне ўсталяваны Z-Rails for secure module mounting.
• 3-position folding legs for ergonomic setup.

3. Змесціва ўпакоўкі

Калі ласка, пераканайцеся, што ўсе пералічаныя ніжэй прадметы прысутнічаюць у вашай упакоўцы:

• 1 x Tiptop Audio Mantis 2x104HP Eurorack Case
• 1 x Zeus Universal Power Supply (external power brick and cable)
• Z-Rails (pre-installed within the case)
• Folding Legs (pre-installed on the case)

4. Настройка

4.1 Распакаванне

Carefully remove the Mantis case and its components from the packaging. Retain the packaging for future transport or storage.

4.2 Падключэнне харчавання

1. Connect the external Zeus Universal Power Supply brick to the power input jack on the Mantis case.
2. Plug the power supply's AC cable into a suitable wall outlet. Ensure the outlet provides the correct voltage для вашага рэгіёну.
3. The Mantis case is now ready to power your Eurorack modules.

4.3 Устаноўка модуля

Before installing any modules, ensure the Mantis case is powered OFF.

1. Identify the Z-Rails within the case. These rails feature threaded strips for mounting modules.
2. Align your Eurorack module with the Z-Rails. Carefully connect the module's power ribbon cable to one of the power headers on the Zeus power board. Crucially, ensure the red stripe on the ribbon cable aligns with the -12V pin on the power header. Incorrect orientation can damage your module.
3. Once the power cable is connected, gently push the module into place, aligning its mounting holes with the threaded strips on the Z-Rails.
4. Secure the module using appropriate M3 screws (typically supplied with your Eurorack modules, not included with the Mantis case). Do not overtighten.

4.4 Positioning the Case

The Mantis case features adjustable folding legs for various ergonomic setups:

• Плоская пазіцыя: Fold all legs inward for a flat desktop setup.
• Вугал 45 градусаў: Extend the front legs to prop the case at a comfortable working angle.
• Вертыкальнае становішча: Extend both front and rear legs to stand the case vertically, ideal for a 'wall-of-synth' configuration.

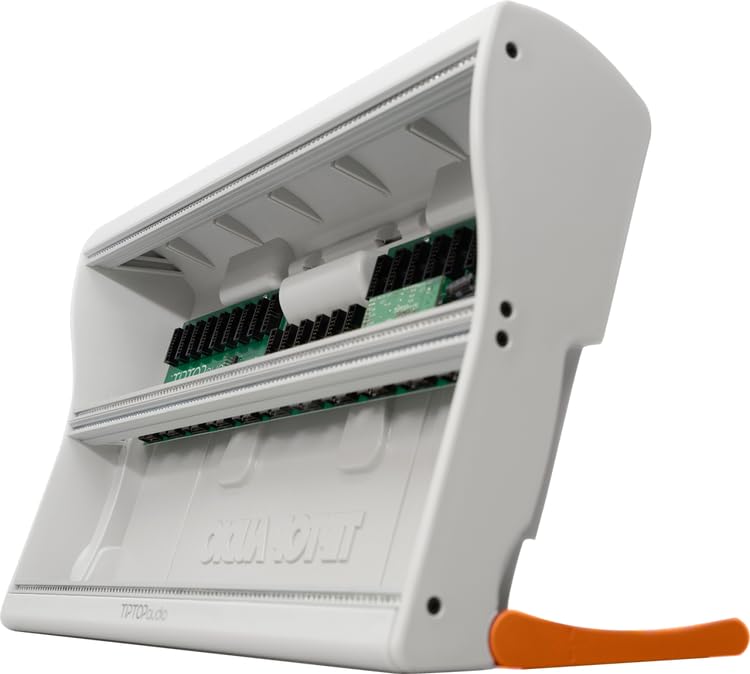

This image shows the Tiptop Audio Mantis Eurorack case, highlighting its compact design and the distinctive orange folding legs that allow for various ergonomic setups.

5. Інструкцыя па эксплуатацыі

The Tiptop Audio Mantis case provides the power and housing for your Eurorack modules. Its operation is primarily dependent on the modules installed.

1. After installing all desired modules and securing them, ensure all power ribbon cables are correctly connected.
2. Flip the power switch on the Mantis case to the 'ON' position. The power indicator light (if present) should illuminate.
3. Refer to the individual user manuals for each installed module for specific operating procedures, patching, and sound generation.
4. To power down, flip the power switch to the 'OFF' position. Always power down the case before installing, removing, or re-positioning modules.

6. Тэхнічнае абслугоўванне

Proper maintenance ensures the longevity and reliable operation of your Mantis case.

• Уборка: Use a soft, dry, lint-free cloth to clean the exterior of the case. Avoid abrasive cleaners or solvents.
• Асяроддзе: Keep the case in a dry environment, away from direct sunlight, extreme temperatures, and high humidity.
• Сувязі: Periodically check all power connections (AC cable, power brick to case, module ribbon cables) to ensure they are secure and free from damage.
• пыл: Prevent dust accumulation inside the case, especially around the power supply, as excessive dust can lead to overheating.

7. Выпраўленне непаладак

If you encounter issues with your Mantis case, refer to the following troubleshooting steps:

7.1 No Power to Case/Modules

• Праверце злучэнне харчавання: Ensure the AC cable is securely plugged into the wall outlet and the power brick. Verify the power brick is firmly connected to the Mantis case's power input.
• Выключальнік сілкавання: Confirm the power switch on the Mantis case is in the 'ON' position.
• Разетка: Праверце разетку з дапамогай іншай прылады, каб пераканацца ў яе правільнасці працы.

7.2 Module Not Functioning

• Power Ribbon Cable: Power off the case and carefully re-check the module's power ribbon cable connection. Ensure the red stripe on the cable aligns with the -12V pin on both the module and the power board.
• Выгнутыя штыфты: Inspect the power header pins on both the module and the power board for any bent or damaged pins.
• Module Manual: Consult the specific module's manual for any unique power requirements or troubleshooting steps.
• Test with another module: If possible, try installing a known working module in the same slot to isolate the issue.

7.3 Hum or Noise

• Зазямленне: Ensure all audio equipment connected to your Eurorack system is properly grounded.
• Якасць кабеля: Use high-quality, shielded audio cables.
• Ізаляцыя крыніцы харчавання: Try moving the Mantis case's power supply away from other sensitive audio equipment or power cables to reduce interference.
• Размяшчэнне модуля: Some modules are more sensitive to electromagnetic interference; try re-arranging modules within the case.

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

The Tiptop Audio Mantis 2x104HP Eurorack Case is covered by a Гарантыя 2 год з дня пакупкі. Гэтая гарантыя распаўсюджваецца на дэфекты матэрыялаў і вырабу пры звычайным выкарыстанні.

For technical support, warranty claims, or further assistance, please contact Tiptop Audio customer service or your authorized dealer. Please have your proof of purchase and the product's serial number available when contacting support.

Кантактная інфармацыя: Please refer to the official Tiptop Audio webсайт, каб знайсці найбольш актуальную кантактную інфармацыю і рэсурсы падтрымкі.
