Foppapedretti 4 Rubberized Wheels Instruction Manual

1. Уводзіны

Thank you for choosing Foppapedretti replacement wheels. This set of four rubberized nylon wheels is designed to provide smooth mobility and stability for your compatible Foppapedretti crib or changing table. Two of the wheels are equipped with a braking system for secure positioning. Please read this manual carefully before installation and use to ensure proper function and safety.

2. Асаблівасці прадукту

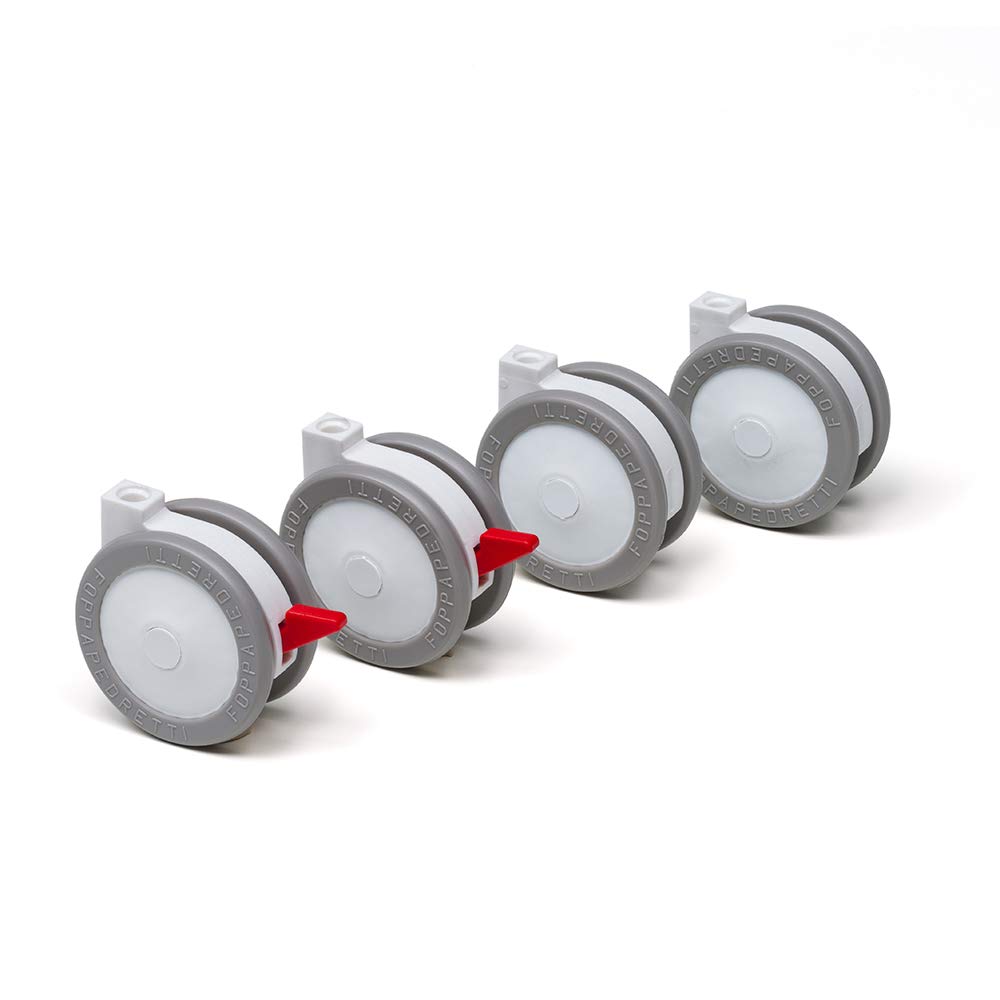

• колькасць: Set of 4 wheels.
• матэрыял: Durable nylon with a rubberized coating.
• Абарона паверхні: Designed to be scratch and tear-free on various floor surfaces.
• Тармазная сістэма: Two wheels include a brake lever for secure locking.
• Мабільнасць: Swivel type casters for easy movement.
• Грузападымальнасць: Each wheel supports up to 6 kg.

3. Сумяшчальнасць

These replacement wheels are compatible with various Foppapedretti cribs and changing tables. Please verify your furniture model before installation. Compatible models include, but are not limited to:

• Bunny & Co
• Mydog
• Tenerorso
• Birbante
• Паці
• Выдатна
• Sweetfamily
• Фелісіці
• Lief Hart
• Teddylove
• Sluitend
• Glinsterend
• Zacht Pluche
• піва

4. Настройка і ўстаноўка

Installation of the Foppapedretti wheels is designed to be straightforward. Follow these steps for proper attachment:

1. Prepare the Furniture: Ensure the crib or changing table is stable and on a flat surface. If replacing existing wheels, remove them carefully.
2. Вызначце кропкі мацавання: Locate the designated mounting points on the furniture legs. These wheels are designed for rod mounting.
3. Insert Wheels: Align the stem of each wheel with the corresponding hole in the furniture leg. Firmly push the wheel into place until it is securely seated.
4. Install Braked Wheels: It is recommended to install the two wheels with the brake system on the same side of the furniture (e.g., both on one short side or one long side) for optimal stability when locked.
5. Праверка бяспекі: After installing all four wheels, gently lift and lower the furniture to ensure all wheels are firmly attached and do not wobble.

Image 4.1: A single Foppapedretti rubberized wheel, showing the red brake lever in the engaged position.

Image 4.2: Close-up of a Foppapedretti wheel correctly installed on a white crib leg, with the brake engaged for stability.

5. Operating the Wheels

The Foppapedretti wheels are designed for easy maneuverability and secure positioning.

5.1 Moving the Furniture

To move the furniture, ensure that the brake levers on the two braked wheels are in the disengaged (unlocked) position. Gently push or pull the furniture to its desired location. The swivel design allows for smooth movement in any direction.

Image 5.1: A Foppapedretti wheel installed on a white crib leg, with the red brake lever in the disengaged position, allowing free movement.

5.2 Engaging the Brakes

To secure the furniture in place, push down the red brake lever on each of the two braked wheels until it clicks into position. This will prevent the wheels from rolling, ensuring the furniture remains stationary. Always engage both brakes when the furniture is in its final position to prevent accidental movement.

Image 5.2: Close-up of a Foppapedretti wheel with the red brake lever engaged, securing the furniture.

6. Тэхнічнае абслугоўванне

To ensure the longevity and optimal performance of your Foppapedretti wheels, follow these simple maintenance guidelines:

• Уборка: Wipe the wheels periodically with a damp тканінай, каб выдаліць пыл і смецце. Пазбягайце агрэсіўных хімічных рэчываў або абразіўных ачышчальнікаў.
• агляд: Regularly inspect the wheels for any signs of wear, damage, or loose connections. Ensure the rubber coating is intact and the brake mechanism functions smoothly.
• змазка: If the wheels become stiff or squeaky, a small amount of silicone-based lubricant can be applied to the swivel mechanism. Avoid oil-based lubricants that can attract dirt.
• Грузападымальнасць: Do not exceed the recommended load capacity of 6 kg per wheel (24 kg total for the set of four) to prevent damage.

7. Выпраўленне непаладак

If you encounter any issues with your Foppapedretti wheels, refer to the following common problems and solutions:

• Колы не круцяцца плаўна:
  • Check if the brakes are engaged. Disengage them if necessary.
  • Inspect for debris (hair, lint) caught in the wheel mechanism. Clean as needed.
  • Apply a silicone-based lubricant to the swivel mechanism if stiffness persists.
• Тормазы не трымаюць:
  • Ensure the brake lever is fully pushed down and clicked into place.
  • Check for any obstructions preventing the brake from engaging properly.
  • If the brake mechanism appears damaged, replacement may be necessary.
• Wheel detaches from furniture:
  • Re-insert the wheel firmly into the mounting point until it is securely seated.
  • If the mounting hole is damaged or enlarged, the furniture may require repair or the wheel may not be compatible.

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

Foppapedretti products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the documentation provided with your original Foppapedretti furniture or visit the official Foppapedretti webсайт.

For technical support, replacement parts, or further assistance, please contact Foppapedretti customer service through their official channels. When contacting support, please have your product model number (0090004010) and the model of your Foppapedretti furniture readily available.

вытворца: Foppapedretti S.P.A.

Webсайт: www.foppapedretti.it (Звярніце ўвагу: гэта агульная спасылка, якая можа не адпавядаць вашаму рэгіёну.) Пошук your local Foppapedretti website for region-specific support.)
