KFD 18V 3.5A 65W AC Adapter

KFD 18V AC Adapter User Manual

Model: 18V 3.5A 65W AC Adapter

Уводзіны

This manual provides important information for the safe and efficient use of your KFD 18V AC Adapter. Please read these instructions carefully before use and retain them for future reference. This adapter is designed to provide reliable power to a range of compatible audio devices.

KFD 18V AC Adapter connected to a speaker

Image: The KFD 18V AC Adapter connected to a speaker, providing power. This illustrates a typical use case for the adapter.

Змест пакета

Праверце наяўнасць усіх прадметаў у камплекце:

  • 1 x KFD 18V AC Adapter
  • 1 х амерыканскі кабель харчавання
  • 1 х Кіраўніцтва карыстальніка (гэты дакумент)
KFD 18V AC Adapter and US Power Cable

Image: The KFD 18V AC Adapter and its detachable US power cable, as included in the package.

Інфармацыя па бяспецы

Для забеспячэння бяспечнай працы выконвайце наступныя меры засцярогі:

  • Не падвяргайце адаптар уздзеянню вадкасцей, вільгаці або экстрэмальных тэмператур.
  • Не разбірайце і не спрабуйце рамантаваць адаптар. Звярніцеся па абслугоўванне да кваліфікаванага персаналу.
  • Пераканайцеся, што адаптар выкарыстоўваецца з прыладамі, якія адпавядаюць яго аб'ёмуtagе і бягучыя спецыфікацыі.
  • Пазбягайце размяшчэння цяжкіх прадметаў на шнуры сілкавання.
  • Адключайце адаптар ад сеткі падчас навальніцы або калі ён не выкарыстоўваецца працяглы час.
Diagram showing internal safety protections of the KFD AC Adapter

Image: A diagram illustrating the internal components and multiple safety protections (Over Voltage, Over Current, Short Circuit Protection) built into the KFD AC Adapter.

Настройка

  1. Праверце сумяшчальнасць: Before connecting, ensure your device requires an 18V DC input and that the adapter's output current (3.5A) meets or exceeds your device's requirements. Check your device's original power adapter or specifications.
  2. Падключыце кабель сілкавання: Insert the US power cable into the AC input port of the KFD 18V AC Adapter.
  3. Падключэнне да прылады: Plug the DC output connector of the adapter into the power input port of your compatible audio device.
  4. Падключыце да разеткі: Plug the US power cable into a standard 100-240V AC wall outlet.

The adapter is compatible with various devices, including but not limited to:

  • Gemini Sound GLS-550, GLS-880 Speakers
  • Braven BRV-XXL Speaker
  • Superstar Monster Blaster
  • Brookstone Big Blue Party, Big Blue Party Studio
  • The Singing Machine SDL9035, SDL9037
  • Bose Companion 20, Bose Solo TV Soundbar (18V version)
  • Harman / Kardon Go + Play (18V version)
  • Philips Fidelio AS851, DS8530/79
  • Pioneer STZ-D10Z-R

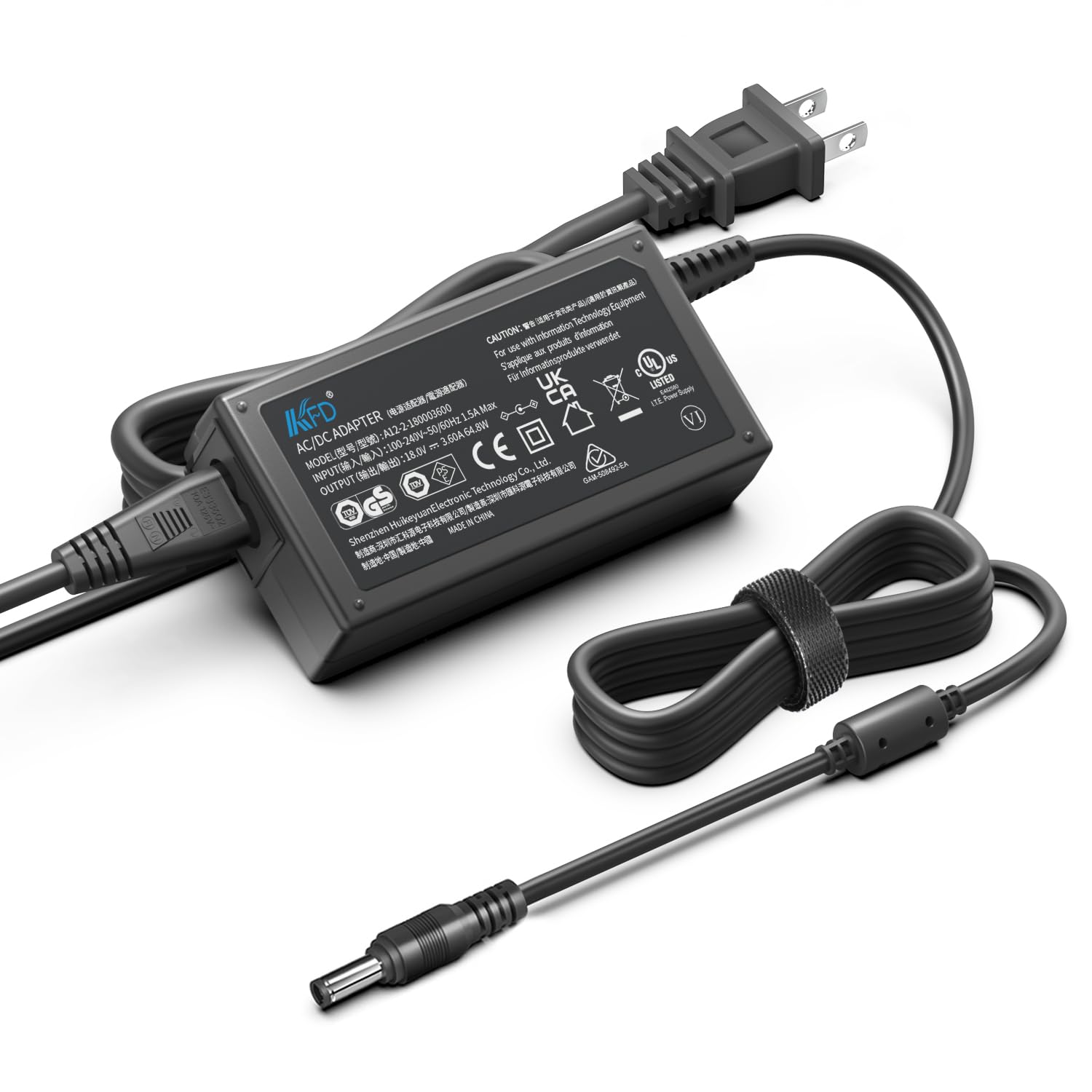

KFD 18V AC Adapter with its power cord coiled and secured

Image: The KFD 18V AC Adapter with its power cord neatly coiled and secured, ready for connection.

Інструкцыя па эксплуатацыі

Once properly connected, the KFD 18V AC Adapter will supply power to your device. Most devices will indicate charging or power status through an LED indicator on the device itself.

  • Перад уключэннем прылады пераканайцеся, што ўсе злучэнні надзейныя.
  • The adapter is designed for continuous operation within its specified limits.
  • If your device has a battery, the adapter will charge it while simultaneously powering the device.

Тэхнічнае абслугоўванне

  • Уборка: Disconnect the adapter from the power outlet and your device before cleaning. Use a soft, dry cloth to wipe the surface. Do not use liquid cleaners or solvents.
  • захоўванне: Калі адаптар не выкарыстоўваецца, захоўвайце яго ў прахалодным, сухім месцы, удалечыні ад прамых сонечных прамянёў і вільгаці. Не змотвайце кабель туга, каб пазбегнуць пашкоджанняў.
  • агляд: Перыядычна правярайце адаптар і кабелі на наяўнасць пашкоджанняў, такіх як зношаныя правады або трэшчыны на корпусе.asing. If damage is found, discontinue use and replace the adapter.

Ліквідацыю непаладак

праблемаМагчымая прычынаРашэнне
Device not powering on/charging.
  • Няшчыльнае злучэнне.
  • Incorrect adapter specifications.
  • Няспраўнасць разеткі.
  • Пашкоджаны адаптар або кабель.
  • Пераканайцеся, што ўсе кабелі надзейна падключаны.
  • Verify the adapter's voltage and current match your device's requirements.
  • Праверце разетку з іншай прыладай.
  • Праверце адаптар і кабель на наяўнасць бачных пашкоджанняў. Калі яны пашкоджаны, заменіце адаптар.
Адаптар награваецца падчас выкарыстання.Нармальная праца.A slight warmth is normal. If the adapter becomes excessively hot to touch, disconnect it immediately and contact support. Ensure adequate ventilation around the adapter.

Тэхнічныя характарыстыкі

АсаблівасцьДэталь
Уваходны кнtage100-240 В пераменнага току, 50/60 Гц
Выхад Voltage18 В пастаяннага току
Выхадны ток3.5А
Выхадная магутнасць65 Вт
СертыфікатыCE, FCC, RoHS
Ахова бяспекіНад Voltagабарона ад электроннай напругі (OVP), абарона ад перагрузкі па току (OCP), абарона ад кароткага замыкання (SCP)
Вага прадмета10.3 унцыі
Памеры ўпакоўкі5.91 х 4.45 х 1.73 цалі
Close-up of the KFD 18V AC Adapter showing UL Listed certification

Выява: буйны план view of the KFD 18V AC Adapter, highlighting the UL Listed certification mark, indicating compliance with safety standards.

Гарантыя і падтрымка

Гарантыя: This KFD product comes with a 30-day free exchange policy and a 36-month warranty from the date of purchase. This warranty covers manufacturing defects and ensures the product meets specified performance standards.

падтрымка: For any questions, technical assistance, or warranty claims, please contact KFD customer support through the retailer's platform or the official KFD website. Please have your product model and purchase information ready.

Image depicting a customer support representative

Image: A graphic representing customer support, indicating assistance is available for product inquiries.
