WARSUN zj889-led

WARSUN zj889-led Rechargeable LED Work Light Instruction Manual

Model: zj889-led

Марка: WARSUN

Увядзенне і большview

Thank you for choosing the WARSUN zj889-led Rechargeable LED Work Light. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read it thoroughly before use.

The WARSUN zj889-led is a versatile and durable lighting solution designed for various applications, including car repair, camping, hiking, and general tasks. It features a high-brightness LED light source, a robust aluminum alloy and ABS hard shell construction, and convenient mounting options.

Асноўныя характарыстыкі:

  • Высокая яркасць: Up to 1200 Lumens with 30W power output.
  • Падвойныя рэжымы асвятлення: High and medium brightness settings.
  • Трывалая канструкцыя: Crafted from aluminum alloy and ABS material, designed to withstand drops up to 4.9ft (1.5m).
  • Акумулятарная батарэя: Built-in 1800 mAh batteries with a USB port for charging other devices.
  • Універсальны мантаж: Features a strong magnetic base and a 360° rotating hook for hands-free operation.
  • Воданепранікальнасць: Daily waterproof design for use in various environments.

Кампаненты прадукту

Familiarize yourself with the main components of your WARSUN LED Work Light:

Diagram showing LED Lamp, Power Switch, Strong Magnet, Non-slip Handle, and Charging Input/Output on the work light.
Figure 1: Key components of the WARSUN zj889-led Work Light, including the LED lamp, power switch, strong magnet, non-slip handle, and charging input/output ports.
  • Святлодыёд Lamp: Забяспечвае падсвятленне.
  • Выключальнік сілкавання: Controls power and brightness modes.
  • Моцны магніт: Located on the base for attachment to metal surfaces.
  • Неслізгальная ручка: Эрганамічны дызайн для зручнага захопу.
  • Charging Input/Output: Micro USB input for charging the device and USB output for charging external devices.
  • 360° Rotate Hook: Foldable hook for hanging the light.

Настройка

Першапачатковая плата:

  1. Before first use, fully charge the work light.
  2. Locate the charging input port at the bottom of the handle.
  3. Connect the provided USB charging cable to the input port and a suitable USB power adapter (not included).
  4. The battery indicator will show charging status (e.g., red for charging, green for completed).
The WARSUN work light connected via USB cable to a laptop, charging a smartphone, illustrating its power bank function.
Figure 2: The work light's USB output port can be used to charge other devices like smartphones.

Інструкцыя па эксплуатацыі

Уключэнне/выключэнне і рэгуляванне яркасці:

  1. Press the red power switch button located on the handle to turn on the light.
  2. Press the button again to cycle through the brightness modes: High Brightness → Medium Brightness → Off.
Image showing the WARSUN work light in both high and low brightness modes, demonstrating the two available settings.
Figure 3: The work light offers both high and medium brightness modes for various lighting needs.

Выкарыстанне магнітнай асновы:

The strong magnetic base allows for hands-free operation by attaching the light to any ferrous metal surface. This is ideal for working under car hoods, on metal shelving, or other metallic work areas.

Close-up image of the strong magnetic base and the foldable hook on the WARSUN work light, highlighting its versatile mounting options.
Figure 4: The strong magnetic base provides secure attachment to metal surfaces.

Using the 360° Rotating Hook:

Extend the integrated hook from the top of the light to hang it from tents, pipes, or other suitable structures. The 360° rotation allows for precise light positioning.

The WARSUN work light hanging by its hook in a car engine bay, providing illumination for repair work.
Figure 5: The 360° rotating hook allows the light to be hung for overhead illumination.

Функцыя Power Bank:

The work light can also serve as a power bank. Connect your external device (e.g., smartphone) to the USB output port using a compatible cable to charge it.

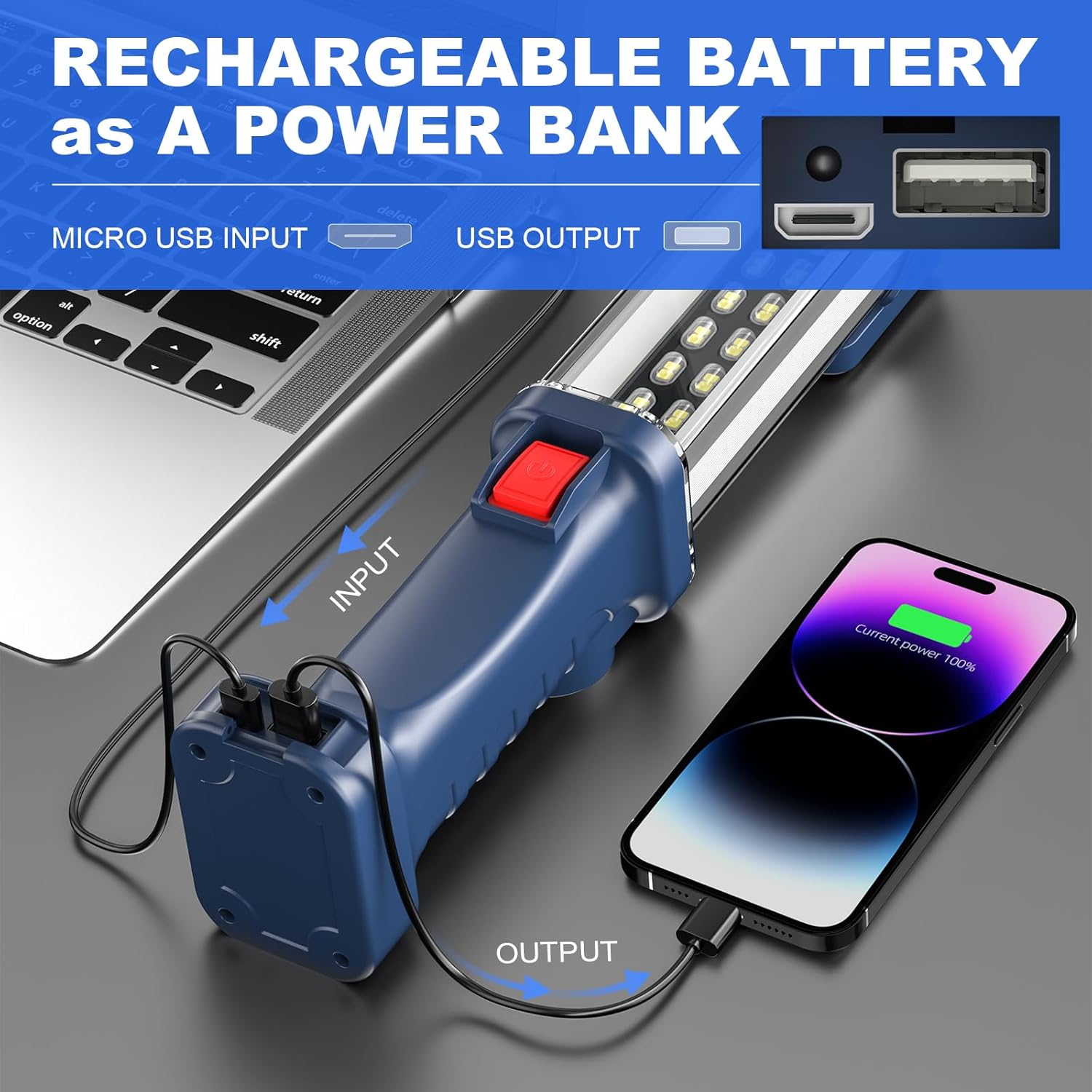

Image showing the Micro USB input and USB output ports on the WARSUN work light, highlighting its rechargeable and power bank capabilities.
Figure 6: The Micro USB input and USB output ports for charging the light and external devices.

Афіцыйнае відэа прадукту:

Video 1: Official WARSUN demonstration of the Portable COB Rechargeable Handheld Light, showcasing its magnetic base, hanging hook, and 30W 1200 Lumens super brightness.

Тэхнічнае абслугоўванне

  • Уборка: Працярыце святло мяккай, damp тканіна. Не выкарыстоўвайце абразіўныя ачышчальнікі або растваральнікі.
  • захоўванне: Store the work light in a cool, dry place away from direct sunlight when not in use for extended periods.
  • Сыход за батарэяй: To prolong battery life, avoid fully discharging the battery frequently. Recharge the device regularly, even if not in active use.
  • Устойлівасць да падзення: While designed to withstand drops up to 4.9ft (1.5m), repeated impacts may compromise its integrity. Handle with care.

Ліквідацыю непаладак

  • Святло не загараецца:
    • Пераканайцеся, што акумулятар зараджаны. Падключыце яго да крыніцы харчавання і праверце індыкатар зарадкі.
    • Press the power switch firmly.
  • Кароткі тэрмін службы батарэі:
    • Перад выкарыстаннем пераканайцеся, што акумулятар цалкам зараджаны.
    • Operating in high brightness mode consumes more power. Switch to medium brightness for longer runtime.
    • Battery performance may degrade over time with repeated charge cycles.
  • External Device Not Charging:
    • Verify the work light has sufficient charge.
    • Ensure the USB cable is correctly connected to both the work light's output port and the external device.
    • Check if the external device's charging port is clean and functional.

Тэхнічныя характарыстыкі

Асаблівасць Дэталь
Нумар мадэлі zj889-led
Тып крыніцы святла Святлодыёд (LED)
Крыніца святла Ватtage 30 ват
Люмен 1200 люмен
Крыніца харчавання Працуе ад батарэі (акумулятарная)
Колькасць батарэек 2 літый-палімерная батарэя (у камплекце)
тtage 4.7 вольт
Матэрыял Акрыланітрылбутадыенстырол (АБС)
Тып мацавання Магнітная гара
Асаблівасці Adjustable Brightness, Multiple Modes, Magnetic Base, Hook Design, Power Bank Function
Устойлівасць да падзення Да 4.9 футаў (1.5 м)
Воданепранікальнасць Daily Waterproof

Гарантыя і падтрымка

The WARSUN zj889-led Rechargeable LED Work Light comes with a 1-year manufacturer's warranty from the date of purchase, covering defects in materials and workmanship under normal use. This warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.

For warranty claims, technical support, or product inquiries, please contact WARSUN customer service through the retailer where the product was purchased or visit the official WARSUN store on Amazon: WARSUN Store.

Калі ласка, захавайце пацвярджэнне пакупкі для пацверджання гарантыі.
