1. Уводзіны
Thank you for choosing the Stihl RME 235 Electric Lawn Mower. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new lawn mower. Please read these instructions thoroughly before first use and keep them for future reference. Proper use and maintenance will ensure the longevity and optimal performance of your Stihl RME 235.

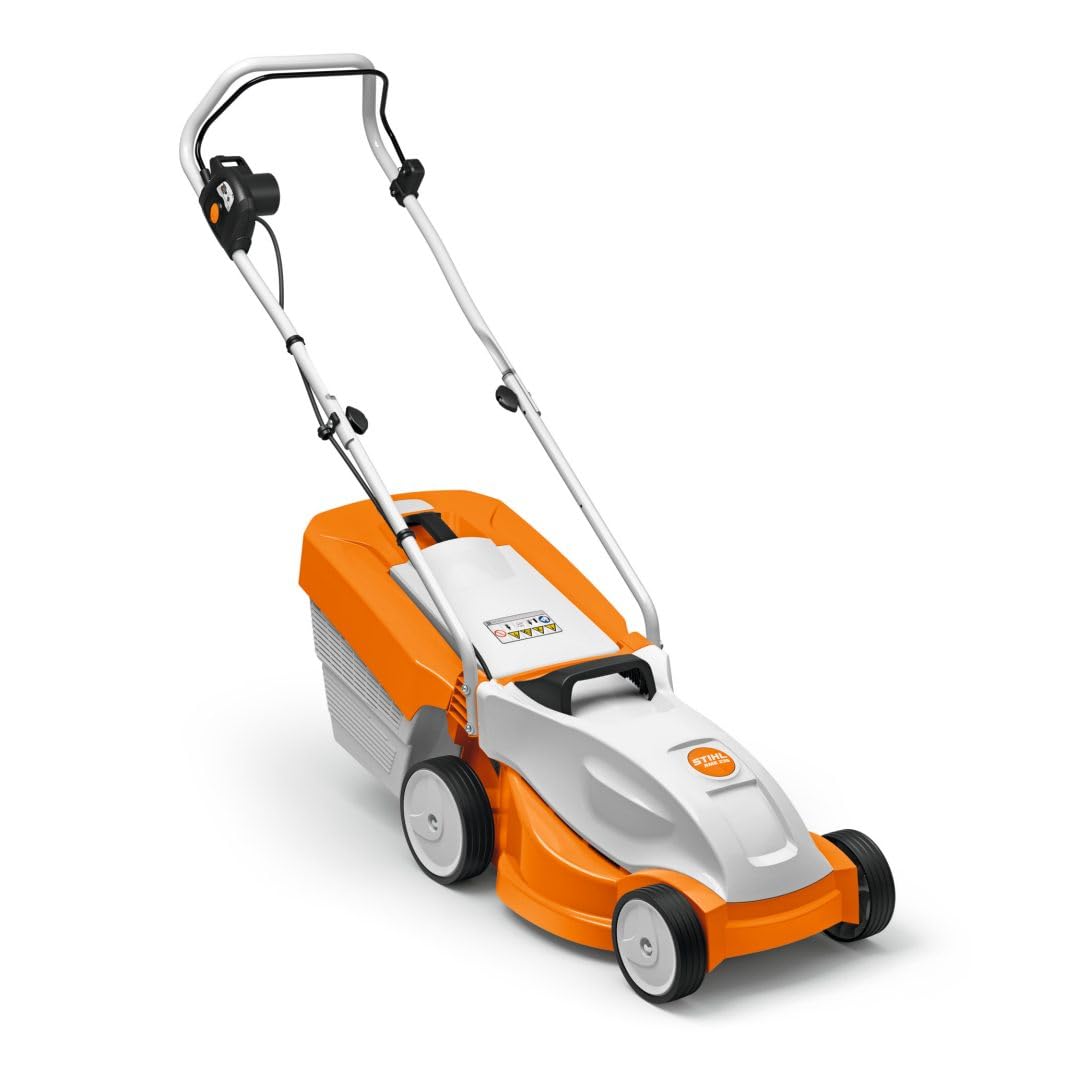

Figure 1: Stihl RME 235 Electric Lawn Mower. This image shows the complete lawn mower with its orange and white casing, handle, and grass collection box.
2. Інструкцыі па тэхніцы бяспекі
Заўсёды выконвайце наступныя меры бяспекі, каб пазбегнуць траўмаў або пашкоджанняў:
- Прачытайце Інструкцыю: Familiarize yourself with all controls and proper use of the machine.
- Сродкі індывідуальнай абароны: Always wear sturdy footwear and long trousers. Do not operate the machine barefoot or in open sandals.
- Ачысціць вобласць: Before mowing, clear the area of stones, sticks, wires, bones, and other foreign objects that could be thrown by the blade.
- Inspect the Mower: Before each use, check the power cord for damage. If damaged, have it replaced by a qualified technician.
- Трымайце пабочных асоб далей: Keep children, pets, and other people away from the mowing area.
- Avoid Wet Grass: Do not mow in wet conditions, as this can be hazardous and reduce cutting efficiency.
- Захоўвайце бяспечную дыстанцыю: Always keep hands and feet away from the cutting blade.
- Адключыць харчаванне: Always disconnect the power supply before cleaning, adjusting, or performing maintenance on the mower.
- Эксплуатацыя нахілу: Будзьце надзвычай асцярожныя пры касьбе на схілах. Касіце папярок схілаў, ніколі не ўверх і ўніз.
- захоўванне: Захоўвайце газонакасілку ў сухім, бяспечным месцы, недаступным для дзяцей.
3. Настройка
3.1 Распакоўка і зборка
Carefully remove all components from the packaging. Ensure all parts listed in the package contents are present.
3.1.1 Ручка ў зборы
- Unfold the upper handle section and align it with the lower handle section.
- Secure the handle sections using the provided quick-release levers or bolts. Ensure they are tightened firmly.
- Attach the power cable to the handle using the cable clips to prevent it from interfering with operation.
3.1.2 Зборка травазборніка
Assemble the grass collection box according to the diagrams in the separate assembly guide (if provided). Once assembled, hook the grass box onto the rear of the mower chassis.
Figure 2: Stihl RME 235 with key features. This image illustrates the mower's compact frame, cable strain relief system, central cutting height adjustment lever, and 30L foldable grass catcher box.
3.2 Падключэнне да сілкавання
Connect the mower's power cable to a suitable outdoor extension cord. Ensure the extension cord is rated for outdoor use and has sufficient current capacity for the mower's 1200W motor. Always use a residual current device (RCD) for added safety.
4. Інструкцыя па эксплуатацыі
4.1 Рэгуляванне вышыні скосу
The Stihl RME 235 features a 5-level central cutting height adjustment, ranging from 25 mm to 65 mm. To adjust the cutting height:
- Пераканайцеся, што газонакасілка выключана і адключана ад крыніцы харчавання.
- Locate the central cutting height adjustment lever on the side of the mower chassis.
- Pull the lever outwards and move it to the desired height setting. Release the lever to lock it into position.
- Always ensure all wheels are set to the same height.
4.2 Запуск і прыпынак газонакасілкі
To start the mower, press and hold the safety button, then pull the switch lever towards the handle. To stop, release the switch lever.
4.3 Тэхніка скошвання
- Mow in overlapping strips to ensure an even cut.
- Для дасягнення найлепшых вынікаў касіце, калі трава сухая.
- Do not overload the motor by attempting to cut excessively long or wet grass in one pass. Adjust cutting height or make multiple passes if necessary.
- Always walk behind the mower; do not run.
Figure 3: Operating the Stihl RME 235. This image shows a person using the electric lawn mower in a garden, demonstrating typical operation.
4.4 Emptying the Grass Collection Box
The 30-liter grass collection box includes a level indicator. When the indicator signals that the box is full, switch off the mower and disconnect it from the power supply. Carefully remove the grass box and empty its contents. Reattach the box securely before resuming operation.
5. Тэхнічнае абслугоўванне
Рэгулярнае тэхнічнае абслугоўванне забяспечвае даўгавечнасць і бяспечную працу вашай газонакасілкі.
5.1 Чыстка газонакасілкі
- Перад чысткай заўсёды адключайце электрасілкаванне.
- After each use, clean the underside of the mower deck and the grass collection box to prevent grass buildup. Use a brush or scraper; avoid using water jets directly on electrical components.
- Працярыце вонкавыя паверхні damp тканіна.
5.2 Сыход за лязом
A sharp blade is crucial for a clean cut and efficient operation. Inspect the blade regularly for wear, damage, or dullness. If the blade is damaged or excessively dull, it should be sharpened or replaced by a Stihl authorized service center. Never attempt to sharpen or replace the blade without disconnecting the power and wearing appropriate protective gloves.
Figure 4: Underside of the mower. This image displays the cutting blade and deck, highlighting areas that require regular cleaning and inspection.
5.3 Захоўванне
When not in use, store the mower in a dry, well-ventilated area. The handle can be folded for compact storage. Ensure the mower is clean and dry before storing for extended periods.
6. Выпраўленне непаладак
This section addresses common issues you might encounter with your Stihl RME 235.
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Касілка не запускаецца | No power supply; safety switch not engaged; damaged cable. | Check power connection and RCD. Ensure safety button and switch lever are fully engaged. Inspect cable for damage. |
| Дрэнная прадукцыйнасць рэзкі | Dull or damaged blade; grass box full; cutting height too low for grass condition. | Have blade sharpened or replaced. Empty grass box. Increase cutting height. |
| Празмерная вібрацыя | Unbalanced or damaged blade; debris caught in blade area. | Адключыце харчаванне. Inspect blade for damage or debris. Have blade balanced or replaced by a service center. |
| Матор падчас працы спыняецца | Спрацавала абарона ад перагрузкі; перапыненне харчавання. | Reduce load (e.g., raise cutting height). Check power supply. Allow motor to cool if it overheated. |
If you encounter problems not listed here or if solutions do not resolve the issue, please contact a Stihl authorized service center.
7. Тэхнічныя характарыстыкі
Key technical specifications for the Stihl RME 235 Electric Lawn Mower:
| Асаблівасць | Дэталь |
|---|---|
| мадэль | RME 235 |
| Крыніца харчавання | Правадная электрычная |
| Намінальная магутнасць | 1200 Вт |
| Шырыня рэзкі | 33 см (13 цалі) |
| Рэгуляванне вышыні рэзкі | 5-level, 25 mm - 65 mm |
| Grass Collection Box Volume | 30 літра |
| Вага прадмета | 13 кг (28.6 фунтаў) |
| Матэрыял | Alloy Steel (blade), Durable Polymer (chassis) |
| Узровень гукавой магутнасці | 93 дБ(А) |
| Узровень вібрацыі | 1.40 м/с² |
Figure 5: Technical specifications overview. This image provides a visual summary of the mower's key features and technical data, including power, cutting width, and grass collection capacity.
8. Гарантыя і падтрымка
8.1 Інфармацыя аб гарантыі
Your Stihl RME 235 Electric Lawn Mower is covered by a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region. Please refer to the warranty card included with your product or visit the official Stihl webпадрабязную інфармацыю глядзіце на сайце. Захоўвайце пацвярджэнне пакупкі для прэтэнзій па гарантыі.
8.2 Падтрымка кліентаў
For technical assistance, spare parts, or service, please contact your authorized Stihl dealer or visit the official Stihl website. When contacting support, please have your model number (RME 235) and serial number ready.
Official Stihl Webсайт: www.stihl.com
