John Timberland Arrington Outdoor Wall Light Fixture Instruction Manual

Уводзіны

Thank you for choosing the John Timberland Arrington Outdoor Wall Light Fixture. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions thoroughly before beginning installation and retain them for future reference.

Важныя інструкцыі па бяспецы

WARNING: Risk of Electric Shock. Disconnect power at the circuit breaker or fuse box before installation or servicing.

• Усе электрычныя падключэнні павінны адпавядаць мясцовым нормам і пастановам, Нацыянальнаму электрычнаму кодэксу (NEC) і ANSI/NFPA 70-1999.
• Consult a qualified electrician if you are unsure about proper installation.
• Use only UL or ETL listed wire connectors.
• Не перавышайце максімальную ватtagпазначана для лямпачкі.
• Пераканайцеся, што прыстасаванне надзейна замацавана да канструктыўнага элемента.
• Падчас усталёўкі апранайце ахоўныя акуляры і пальчаткі.

Змест пакета

Verify that all components are present before discarding packaging materials.

• Arrington Outdoor Wall Light Fixture (2 units)
• Мантажныя элементы (шрубы, гайкі)
• Кіраўніцтва па эксплуатацыі

Note: Light bulbs are not included and must be purchased separately.

Тэхнічныя характарыстыкі

This diagram provides key measurements for the Arrington wall light, including its height (13 inches), width (8 inches), and how far it extends from the wall (8.75 inches). The backplate dimensions are also indicated.

Настройка і ўстаноўка

Professional installation is recommended for electrical fixtures. If you are performing the installation yourself, ensure you follow all safety guidelines and local electrical codes.

1. Выключыць харчаванне: Before starting, turn off the electricity at the main fuse box or circuit breaker to prevent electrical shock.
2. Падрыхтуйце мантажную паверхню: Ensure the wall surface is clean, dry, and structurally sound to support the fixture's weight.
3. Прымацаваць мантажную пласціну: Secure the mounting plate (usually pre-attached to the fixture or included separately) to the electrical junction box using the provided screws.
4. Зрабіце электрычныя злучэнні:
   • Падключыце чорны провад свяцільні да чорнага (гарачага) провада дома.
   • Падключыце белы провад свяцільні да белага (нейтральнага) провада дома.
   • Connect the fixture's ground wire to the house's ground wire (or to the mounting plate if no house ground is available).
   • Замацуйце ўсе злучэнні дроцянымі гайкамі і абматайце ізаляцыйнай стужкай для дадатковай бяспекі.
5. Устанавіце свяцільня: Carefully align the fixture with the mounting plate and secure it using the provided screws. Ensure the fixture is installed vertically as shown in product images.
6. Усталяваць лямпы: Insert two standard-medium base (E26) bulbs, up to 60 watts each (not included), into the sockets. Edison-style filament bulbs are recommended for aesthetic appeal.
7. Аднавіць сілу: Once installation is complete and all connections are secure, turn the electricity back on at the circuit breaker.

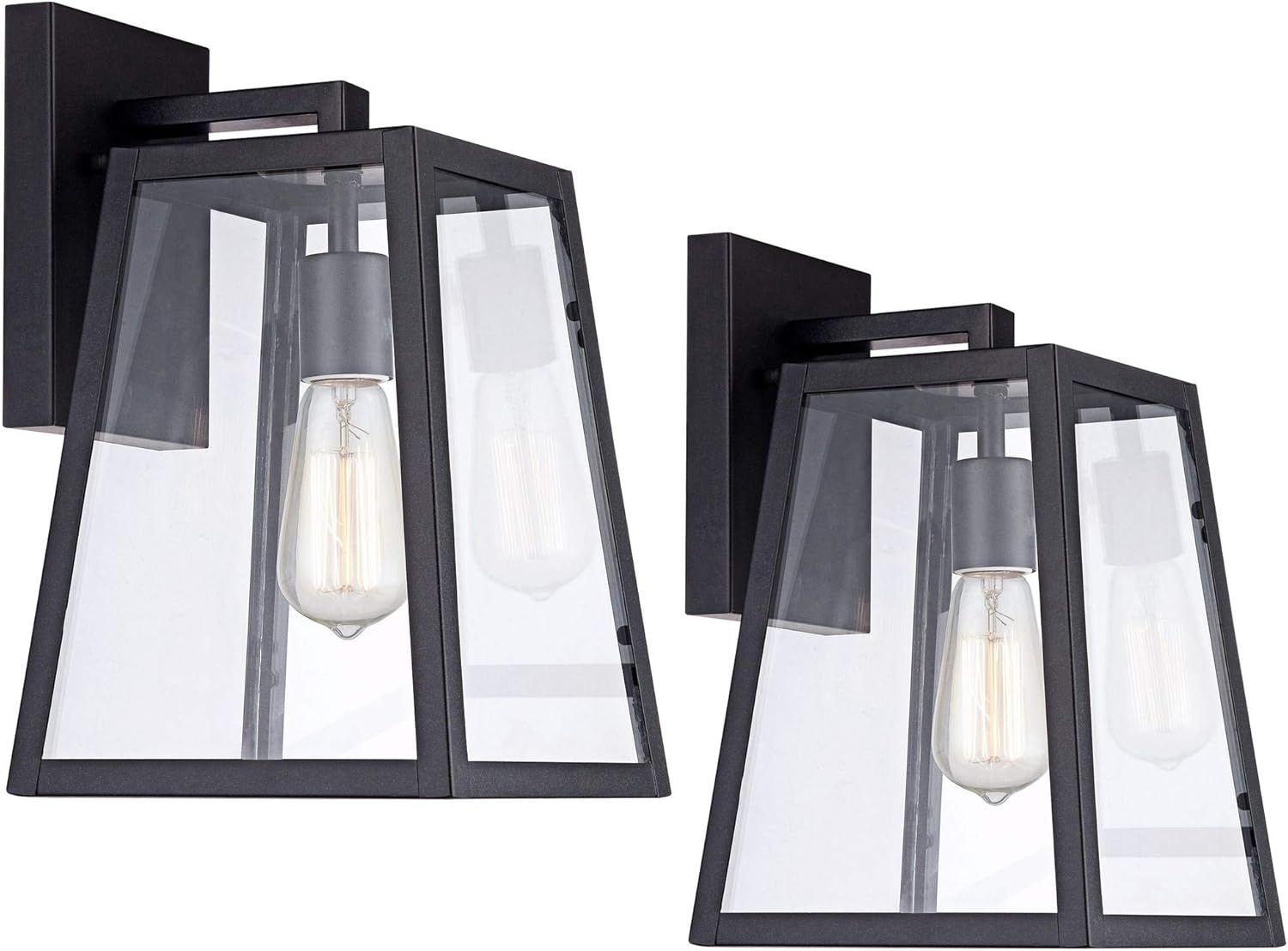

This image displays two Arrington outdoor wall light fixtures, showcasing their rustic modern design with clear glass panels and a mystic black finish. The fixtures are designed for exterior wall mounting.

Пабочны прафесіяналfile of the Arrington wall light, showing its depth and the sturdy black metal frame, ready for vertical installation.

Інструкцыя па эксплуатацыі

The John Timberland Arrington Outdoor Wall Light Fixture operates via your home's standard wall switch. Once installed and powered, simply use the connected wall switch to turn the lights on or off.

• Замена лямпачкі: To replace a bulb, ensure the power is turned off at the circuit breaker. Allow the old bulb to cool completely before unscrewing it. Insert a new E26 base bulb (up to 60 watts) into the socket.

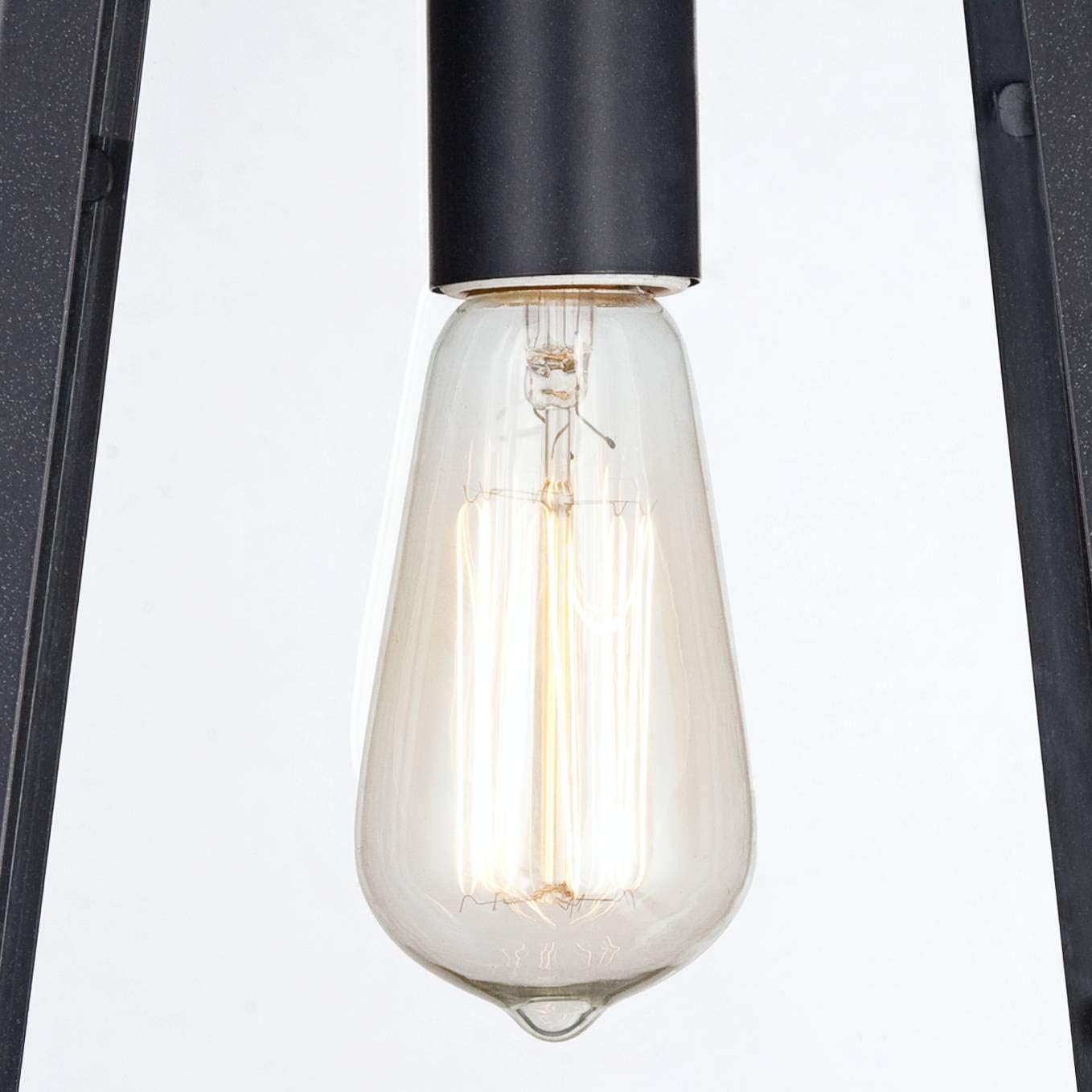

Падрабязны view of the Edison-style filament bulb (not included) within the Arrington fixture, highlighting the clear glass shade and the bulb's warm glow.

Тэхнічнае абслугоўванне

Regular maintenance will help preserve the appearance and functionality of your outdoor wall light.

• Уборка: Ачысціце прыстасаванне мяккай, damp тканінай. Не выкарыстоўвайце абразіўныя ачышчальнікі або растваральнікі, бо яны могуць пашкодзіць пакрыццё або шкло.
• агляд: Перыядычна правярайце прыстасаванне на наяўнасць зносу, пашкоджанняў або няшчыльных злучэнняў. Неадкладна вырашайце любыя праблемы.
• Ўстойлівасць да надвор'я: While the fixture is water-resistant, extreme weather conditions may require additional inspection.

Ліквідацыю непаладак

Гарантыя і падтрымка

This John Timberland Arrington Outdoor Wall Light Fixture comes with a Абмежаваная 1-гадовая гарантыя from the manufacturer, Lamps Plus. This warranty covers defects in materials and workmanship under normal use.

For warranty claims, technical support, or any questions regarding your product, please contact Lamps Plus customer service directly. Please have your model number (77M05) and proof of purchase available.
