AL-KO Easy 4.60 SP-S Highline Self-Propelled Petrol Lawn Mower

Уводзіны

This manual provides essential information for the safe and efficient operation, maintenance, and care of your AL-KO Easy 4.60 SP-S Highline self-propelled petrol lawn mower. Please read these instructions carefully before using the appliance for the first time and keep them for future reference. This lawn mower is designed for easy and maneuverable mowing of lawns up to 1400 square meters, featuring a 46 cm cutting width and a powerful 2 kW engine.

Key features include central cutting height adjustment, an aerodynamic deck for optimal collection, an ergonomic handle for comfortable use, and XL drive wheels for enhanced maneuverability and comfort, especially on slopes.

Фронт view of the AL-KO Easy 4.60 SP-S Highline Self-Propelled Petrol Lawn Mower.

Інструкцыі па тэхніцы бяспекі

Always prioritize safety when operating the lawn mower. Failure to follow safety instructions can result in serious injury or damage to the equipment.

• Перад пачаткам працы прачытайце ўсю інструкцыю.
• Wear appropriate personal protective equipment (PPE), including sturdy footwear, long trousers, and hearing protection.
• Never operate the mower when people, especially children, or pets are nearby.
• Агледзьце тэрыторыю, якую трэба скосіць, і выдаліце ​​​​любыя прадметы, якія могуць быць выкінутыя лязамі.
• Не выкарыстоўвайце газонакасілку ў мокрай траве або пад дажджом.
• Always turn off the engine and disconnect the spark plug before performing any maintenance, cleaning, or when clearing blockages.
• Refuel outdoors and do not smoke while refueling.
• Be extra careful when mowing on slopes. Mow across the face of slopes, never up and down.

Настройка

1. Распакаванне і зборка

Your AL-KO lawn mower requires some assembly before first use. Carefully remove all components from the packaging. Ensure all parts are present according to the packing list.

• Мацаванне руля: Attach the handlebar to the main unit using the provided bolts and knobs. Ensure it is securely fastened and comfortable for operation.
• Зборка травазборніка: Assemble the fabric grass collector according to the instructions. Once assembled, hook it onto the rear of the mower.

2. Adding Oil and Fuel

This is a petrol-powered lawn mower. It is crucial to add engine oil and fuel before starting for the first time.

• Маторны алей: Fill the engine with the recommended type and amount of engine oil (refer to the engine manual for specifics). Do not overfill.
• Паліва: Fill the fuel tank with fresh, unleaded petrol. Do not use E85 or other alternative fuels. Ensure the fuel cap is securely tightened after filling.

3. Рэгуляванне вышыні стрыжкі

The cutting height can be centrally adjusted in 7 steps, ranging from 30 mm to 75 mm.

• Locate the central height adjustment lever, typically near one of the rear wheels.
• Pull the lever outwards and move it to the desired position. The numbers or markings indicate the cutting height.
• Ensure all wheels are set to the same height for an even cut.

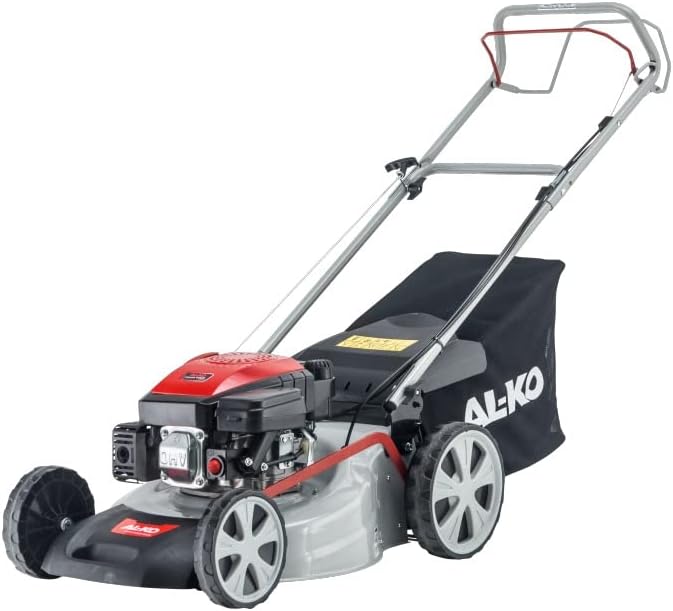

Збоку view of the AL-KO Easy 4.60 SP-S Highline Lawn Mower, showing the grass collector.

Аперацыйная

1. Запуск рухавіка

• Пераканайцеся, што паліўны бак запоўнены, а ўзровень алею правільны.
• Press the primer bulb (if equipped) several times until fuel is visible in the bulb.
• Перамясціце рычаг дросельнай засланкі ў становішча «ПУСК» або «ДРОССЕЛЬ».
• Трымайце рычаг тормазу рухавіка ля руля.
• Pull the starter cord firmly until the engine starts. Once started, release the starter cord and move the throttle to the 'RUN' position.

2. Тэхніка касьбы

The AL-KO Easy 4.60 SP-S Highline is self-propelled, making mowing less strenuous.

• Engage the drive lever on the handlebar to activate the self-propulsion.
• Walk at a steady pace, allowing the mower to do the work.
• Overlap each pass slightly to ensure an even cut.
• Для дасягнення найлепшых вынікаў не скошвайце больш за адну траціну даўжыні травы за раз.

A user operating the AL-KO Easy 4.60 SP-S Highline Lawn Mower on a well-maintained lawn.

3. Прыпынак рухавіка

To stop the engine, simply release the engine brake lever on the handlebar. The engine will shut off automatically.

4. Emptying the Grass Collector

The large 60-liter grass collector reduces the frequency of emptying.

• Always stop the engine before removing the grass collector.
• Lift the rear flap and unhook the grass collector.
• Empty the grass clippings into a suitable receptacle.
• Reattach the collector securely before resuming operation.

A user removing and emptying the grass collector from the AL-KO Easy 4.60 SP-S Highline Lawn Mower.

Тэхнічнае абслугоўванне

Рэгулярнае тэхнічнае абслугоўванне забяспечвае даўгавечнасць і аптымальную прадукцыйнасць вашай газонакасілкі.

1. Уборка

• After each use, clean the underside of the mower deck to prevent grass buildup, which can affect cutting performance.
• Use a brush or scraper; avoid using high-pressure water directly on the engine or electrical components.
• Ачысціце вонкавыя паверхні адamp тканіна.

2. Сыход за лязом

• Regularly inspect the cutting blade for sharpness and damage. A dull blade tears grass, leading to an unhealthy lawn.
• Have the blade sharpened or replaced by a qualified service technician if it is dull or damaged.
• Заўсёды апранайце шчыльныя пальчаткі пры працы з лязом.

3. Тэхнічнае абслугоўванне рухавіка

• Замена алею: Change the engine oil after the first 5 hours of operation, then every 25-50 hours or annually, whichever comes first.
• Свечка запальвання: Inspect and clean the spark plug annually. Replace if worn or fouled.
• Паветраны фільтр: Рэгулярна чысціце або мяняйце паветраны фільтр, асабліва ў запыленых умовах, каб забяспечыць належную працу рухавіка.

4. Захоўванне

• Before storing for extended periods, drain the fuel or add a fuel stabilizer to prevent fuel degradation.
• Старанна ачысціце газонакасілку.
• Захоўваць у сухім, добра вентыляваным месцы, удалечыні ад прамых сонечных прамянёў і экстрэмальных тэмператур.

A user performing an inspection or adjustment on the AL-KO Easy 4.60 SP-S Highline Lawn Mower.

Ліквідацыю непаладак

У гэтым раздзеле разглядаюцца распаўсюджаныя праблемы, з якімі вы можаце сутыкнуцца пры выкарыстанні газонакасілкі.

Тэхнічныя характарыстыкі

Гарантыя і падтрымка

Your AL-KO Easy 4.60 SP-S Highline lawn mower is covered by a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions, including warranty period and coverage details. AL-KO also offers a warranty extension upon online registration.

For technical support, spare parts, or warranty claims, please contact AL-KO customer service or an authorized service center. Contact information can typically be found on the AL-KO official webна сайце або ў дакументацыі, якая пастаўляецца з вашым прадуктам.

AL-KO offers a 2+2 years warranty extension upon online registration.
