TOOLPORT Hardtop Gazebo 10x13 ft

1. Важная інфармацыя па бяспецы

Калі ласка, прачытайце і зразумейце ўсе інструкцыі перад зборкай і выкарыстаннем. Невыкананне гэтых інструкцый можа прывесці да траўмаў або пашкоджання вырабу.

• Заўсёды выконвайце інструкцыі па зборцы, якія прыкладаюцца на ўпакоўцы.
• Use the included ground anchors to secure the gazebo to a stable foundation. Proper anchoring is crucial for stability, especially in windy conditions.
• Be cautious during assembly and disassembly to avoid potential hazards such as pinching or falling parts. It is recommended that two people assemble this gazebo.
• Do not use the gazebo in extreme weather conditions, such as heavy winds, snow, or thunderstorms. Disassemble or secure the gazebo appropriately during such conditions.
• Рэгулярна правярайце ўсе злучэнні і кампаненты на наяўнасць герметычнасці і зносу.

2. Прадукт скончыўсяview

The TOOLPORT Hardtop Gazebo provides a robust and stylish outdoor shelter. It features a durable aluminum frame and an 8mm polycarbonate roof designed for all-season use.

Малюнак 2.1: У цэлым view of the TOOLPORT Hardtop Gazebo.

Асноўныя характарыстыкі:

• Robust Aluminum Frame: Corrosion-resistant, weather-resistant, and UV-resistant.
• Durable Polycarbonate Roof: Approximately 8mm thick, offering reliable protection against rain, snow, and sun (UV Protection Factor 50+).
• Sturdy Posts: Features 3.5 x 3.5-inch posts for excellent stability.
• Лёгкая зборка: Pre-drilled profiles and a high-quality connection system facilitate straightforward setup.

Figure 2.2: Dimensional diagram of the 10x13 ft gazebo. Dimensions are approximately 4.0 m (13.12 ft) length, 3.0 m (9.84 ft) width, 2.70 m (8.86 ft) total height, and 1.90 m (6.23 ft) entry height.

3. Інструкцыі па ўсталёўцы

Assembly typically requires two people and takes approximately 3 hours. Ensure you have sufficient space and all components before beginning.

3.1 Распакоўка і праверка кампанентаў

• Carefully unpack all boxes and lay out the components.
• Verify that all parts listed in the included parts list are present and undamaged.
• The package includes the aluminum frame, polycarbonate roof panels, 8 concrete anchors, assembly tools, and detailed instructions.

Figure 3.1: Included assembly tools.

3.2 Зборка рамы

• Begin by assembling the main support posts and horizontal beams according to the detailed diagrams in your printed manual.
• Utilize the pre-drilled profiles and the provided connection system for secure fastening.

Figure 3.2: Detail of a post and beam connection point.

3.3 Roof Panel Installation

• Once the frame is stable, proceed with installing the polycarbonate roof panels. Ensure panels are oriented correctly to allow for water runoff.
• Secure each panel firmly to the frame using the designated fasteners.

Figure 3.3: Polycarbonate roof panel detail.

Малюнак 3.4: ніжні бок view of the roof support structure.

3.4 Anchoring the Gazebo

• After complete assembly, use the 8 concrete anchors to firmly secure the gazebo posts to your chosen foundation (e.g., concrete patio, wooden deck).
• Ensure all posts are level and plumb before final anchoring.

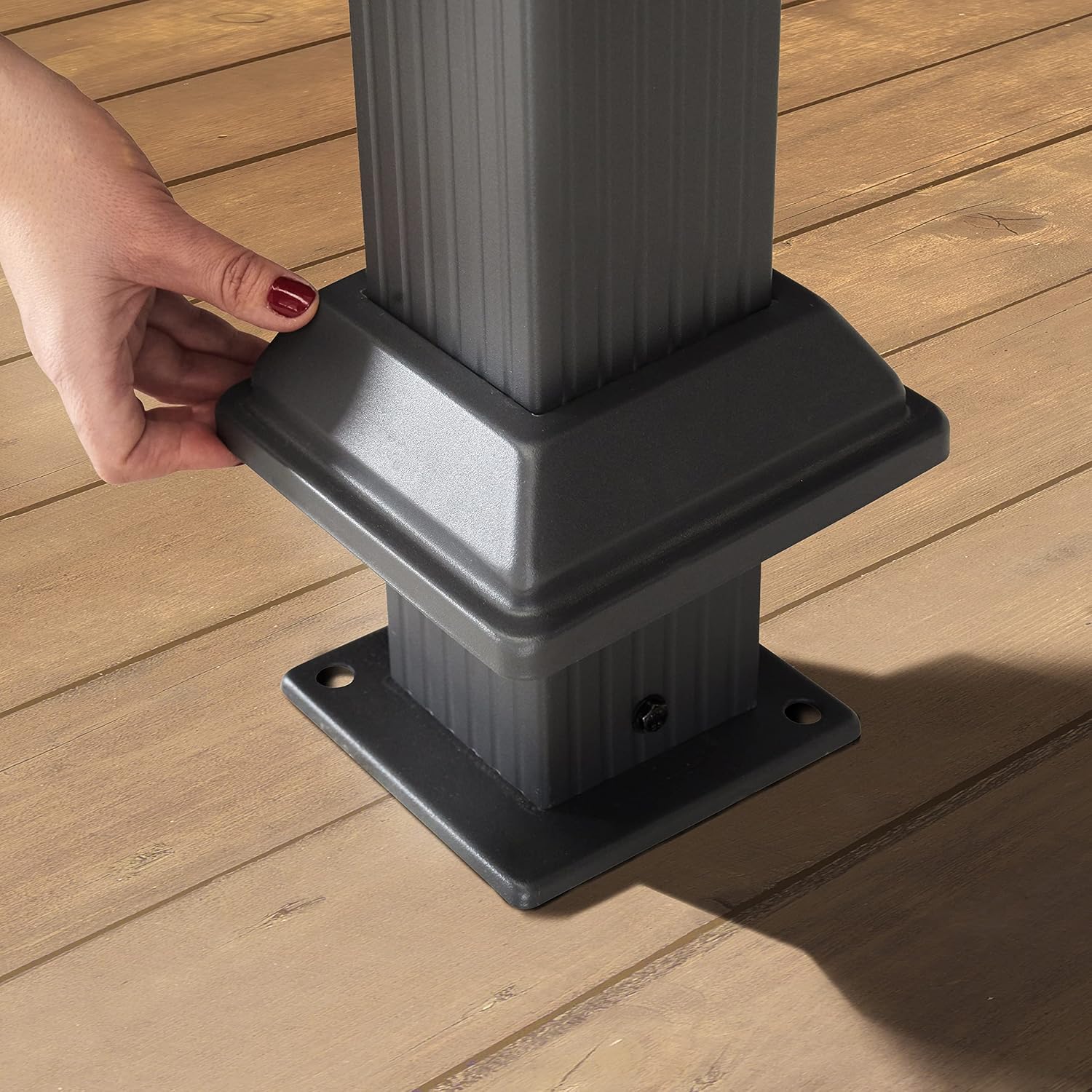

Figure 3.5: Gazebo post base with anchoring points.

4. Інструкцыя па эксплуатацыі

The TOOLPORT Hardtop Gazebo is designed for year-round use, providing a comfortable and protected outdoor space.

4.1 Абарона ад надвор'я

• The 8mm polycarbonate roof offers protection from rain, snow, and harmful UV rays (UV Protection Factor 50+).
• While designed for all seasons, it is advisable to monitor weather conditions and take precautions during severe weather.

4.2 Usage Considerations

• Ensure the area around the gazebo is clear of obstructions.
• Не вешайце цяжкія прадметы на каркас альтанкі.
• If using outdoor heaters or cooking equipment, ensure adequate ventilation and maintain safe distances from the gazebo structure and roof.

5. Тэхнічнае абслугоўванне

Рэгулярны догляд падоўжыць тэрмін службы і знешні выгляд вашай альтанкі.

• Ачыстка рамы: Clean the aluminum frame with a mild soap solution and water. Rinse thoroughly and dry with a soft cloth. Avoid abrasive cleaners or harsh chemicals.
• Ачыстка панэляў даху: The polycarbonate panels can be cleaned with a soft cloth or sponge and mild soapy water. Do not use brushes or abrasive materials that could scratch the surface.
• Сезонны агляд: Periodically check all bolts, screws, and anchors to ensure they are tight and secure. Tighten any loose fasteners.
• Уборка снегу: In areas with heavy snowfall, it is recommended to gently remove accumulated snow from the roof to prevent excessive weight and potential damage.

6. Выпраўленне непаладак

У гэтым раздзеле разглядаюцца распаўсюджаныя праблемы, з якімі вы можаце сутыкнуцца.

6.1 Gazebo Instability

• Праблема: Gazebo feels wobbly or unstable.
  рашэнне: Ensure all frame connections are securely tightened. Verify that the ground anchors are properly installed and holding firmly to the foundation. Check if the ground surface is level.

6.2 Water Leakage from Roof

• Праблема: Water drips from the roof.
  рашэнне: Inspect the polycarbonate panels for any gaps or improper seating. Ensure all sealing strips (if applicable) are correctly positioned. Check for any cracks or damage to the panels that might require replacement.

6.3 Difficulty During Assembly

• Праблема: Parts do not fit together easily.
  рашэнне: Double-check the assembly diagrams in your manual to ensure you are using the correct parts and orientation. Do not force components; slight adjustments may be needed. Ensure all protective films are removed from parts where necessary.

7. Тэхнічныя характарыстыкі

8. Інфармацыя аб гарантыі

Specific warranty details for your TOOLPORT Hardtop Gazebo are typically provided with your purchase documentation. Please refer to the warranty card or contact TOOLPORT customer support for comprehensive information regarding coverage and terms.

9. Падтрымка кліентаў

For further assistance, missing parts, or technical inquiries, please contact TOOLPORT customer support. You can often find contact information on the manufacturer's webна сайце або праз месца першапачатковай пакупкі.

Інтэрнэт-рэсурсы: Visit the official TOOLPORT webсайт для атрымання дадатковай інфармацыі аб прадукце, часта задаваных пытанняў і рэсурсаў падтрымкі.

Кантакты: Refer to your purchase invoice or the TOOLPORT brand store on Amazon for current contact details.
