Odoland Ceiling Hook with Strap, Battle Rope Anchor Kit Instruction Manual

1. Прадукт скончыўсяview

The Odoland Ceiling Hook with Strap and Battle Rope Anchor Kit provides a secure anchoring point for various fitness equipment. This durable, discrete mount is designed for use with suspension straps, battle ropes, resistance bands, gymnastic rings, yoga swings, and boxing equipment, allowing for a professional-quality training station in almost any location.

The kit includes a rugged steel wall/ceiling mount bracket and an anchor strap kit, designed to support up to 700 pounds (approximately 317 kg).

Image 1.1: Key features of the Odoland Ceiling Hook, highlighting its robust construction and high weight capacity.

2. Інфармацыя па бяспецы

• Ёмістасць вагі: Do not exceed the maximum weight capacity of 700 pounds (317 kg). Overloading can lead to product failure and injury.
• Ўстаноўка: Ensure the mount is installed correctly into a structurally sound surface (e.g., concrete, solid wood studs, or overhead beams) using appropriate hardware. Improper installation can result in the mount detaching.
• агляд: Before each use, inspect the mount, straps, and all connections for signs of wear, damage, or loose components. Discontinue use if any damage is observed.
• выкарыстанне: Use the product only for its intended purpose as an anchoring point for fitness equipment.

3. Змесціва ўпакоўкі

Калі ласка, пераканайцеся, што ўсе кампаненты прысутнічаюць у вашай упакоўцы:

• 1 x Battle Rope Anchor Hook (Wall/Ceiling Mount Bracket)
• 4 x Expansion Screws (for installation)
• 1 pair Anchor Straps (with snap hook)

Image 3.1: The Battle Rope Anchor Hook and included expansion screws.

4. Настройка і ўстаноўка

The Odoland mount can be installed vertically on overhead beams or studs, or horizontally into walls. Ensure the chosen surface is capable of supporting the intended load.

4.1 Мантаж

1. Step 1: Mark and Drill Holes. Position the mount on your desired surface. Use a pencil to mark the locations for the four screw holes. Drill holes in the wall that are the same length and diameter as the expansion screws.
2. Step 2: Insert Expansion Screws. Устаўце распорныя шрубы ў прасвідраваныя адтуліны.
3. Step 3: Secure the Mount. Align the mount with the inserted screws and tighten them with a wrench until the mount is firmly secured to the surface. Ensure there is no wobble.

Image 4.1: Visual guide for installing the anchor hook.

4.2 Памеры

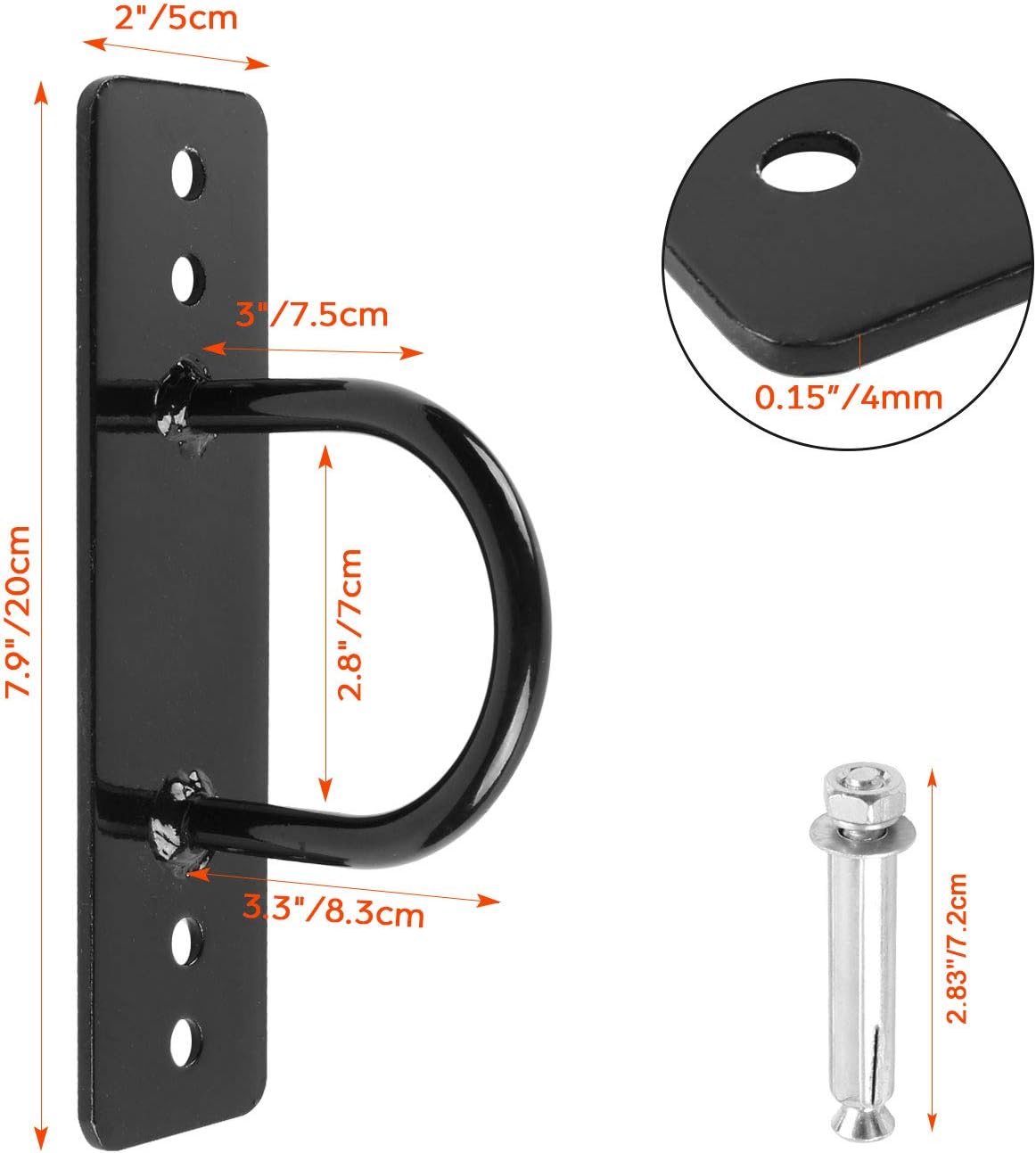

Image 4.2: Detailed dimensions of the anchor hook and expansion screws.

5. Інструкцыя па эксплуатацыі

Once the anchor hook is securely installed, you can attach your fitness equipment using the provided anchor straps.

5.1 Using the Anchor Straps

1. Step 1: Attach to Equipment. Simply wrap one anchor strap around the middle of your battle rope or other equipment. Loop the strap through itself to create a secure connection.
2. Step 2: Connect to Anchor Hook. Attach the snap hook of the first strap to the anchor hook on the wall/ceiling mount.
3. Step 3: Secure to Anchor Point (Optional). If using a second strap for additional anchoring or specific exercises, wrap it around a heavy anchor point (e.g., a sturdy pole or another anchor hook) and attach the snap hook through the ends of the second strap.

Малюнак 5.1: Прыкладample of a battle rope securely attached to the anchor hook.

Image 5.2: The Odoland Anchor Kit in use for battle rope training.

6. Тэхнічнае абслугоўванне

• Уборка: Wipe the metal components with a damp cloth to remove dust or sweat. Avoid abrasive cleaners.
• агляд: Regularly check all screws and connections to ensure they remain tight. Inspect the anchor hook and straps for any signs of wear, rust, or damage. Replace components if significant wear is observed.
• захоўванне: If not in use for extended periods, ensure the equipment is clean and stored in a dry environment.

7. Выпраўленне непаладак

• Мацаванне адчуваецца свабодным: Re-tighten all expansion screws. If the issue persists, the installation surface may not be adequate, or the screws may be damaged. Consult a professional for structural assessment.
• Equipment slipping from straps: Ensure the straps are correctly looped and the snap hook is fully closed. Verify that the equipment (e.g., rope) diameter is compatible with the strap and hook.
• Незвычайныя гукі падчас выкарыстання: Stop exercising immediately. Inspect the mount and connections for any signs of stress or damage.

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

For warranty information or product support, please refer to the retailer's return policy or contact Odoland customer service directly through their official website or the platform where the product was purchased. Please have your model number (SP0714) and ASIN (B0886CPFXX) available when contacting support.
