AREBOS AR-HE-AB1700

AREBOS Inflatable Hot Tub Ø 208 cm - Instruction Manual

Model: AR-HE-AB1700 | Brand: AREBOS

1. Важная інфармацыя па бяспецы

Please read this entire manual carefully before installing and using your AREBOS Inflatable Hot Tub. Failure to follow these instructions could result in serious injury or property damage. Keep this manual for future reference.

  • Электрабяспека: Always connect the hot tub to a grounded power outlet. Do not use extension cords. Ensure all electrical connections are dry and protected from water.
  • Хімічны склад вады: Maintain proper water chemistry (pH, sanitizer levels) to ensure safe and hygienic water conditions. Improper chemistry can lead to health issues and damage to the hot tub.
  • тэмпература: The water temperature should not exceed 40°C (104°F). Pregnant women, young children, and individuals with health conditions should consult a physician before use.
  • Кантроль: Children should always be supervised by an adult when in or near the hot tub.
  • Размяшчэнне: Place the hot tub on a flat, stable, and level surface capable of supporting the weight of the filled hot tub and its occupants. Ensure adequate drainage.

2. Настройка і ўстаноўка

Follow these steps for proper setup of your AREBOS Inflatable Hot Tub.

  1. Распакаванне: Асцярожна выміце ўсе кампаненты з упакоўкі. Пераканайцеся, што ўсе дэталі, пералічаныя ў пакавальным лісце, ёсць у наяўнасці.
  2. Выбар сайта: Choose a suitable location for your hot tub. The surface must be flat, stable, and free of sharp objects. Consider proximity to a power outlet and a water source.
  3. Аўтаматычнае надзіманне: Connect the hot tub to a power source. The hot tub features an automatic inflation function. Simply press the inflation button on the control panel, and the spa will inflate itself. Ensure the air valve is securely closed after inflation.
  4. Напаўненне вадой: Once inflated, fill the hot tub with water using a garden hose. Fill to the recommended water level indicated on the inner wall of the spa (between MIN and MAX lines).
  5. Ўстаноўка фільтра: Install the filter cartridge into the designated filter housing inside the hot tub. Ensure it is securely fastened.
AREBOS Inflatable Hot Tub set up on a patio
Image: The AREBOS Inflatable Hot Tub placed on a stable outdoor patio surface, ready for use.
AREBOS Inflatable Hot Tub in an outdoor setting with mountains in the background
Image: The AREBOS Inflatable Hot Tub positioned on a deck, showcasing its suitability for various outdoor environments.

Дэманстрацыйнае відэа па ўсталёўцы

Video: This video demonstrates the automatic inflation process, filling the hot tub with water, and activating the massage jets. It provides a visual guide to the initial setup and basic operation of the AREBOS Inflatable Hot Tub.

3. Інструкцыя па эксплуатацыі

Азнаёмцеся з панэллю кіравання, каб эфектыўна кіраваць гідрамасажнай ваннай.

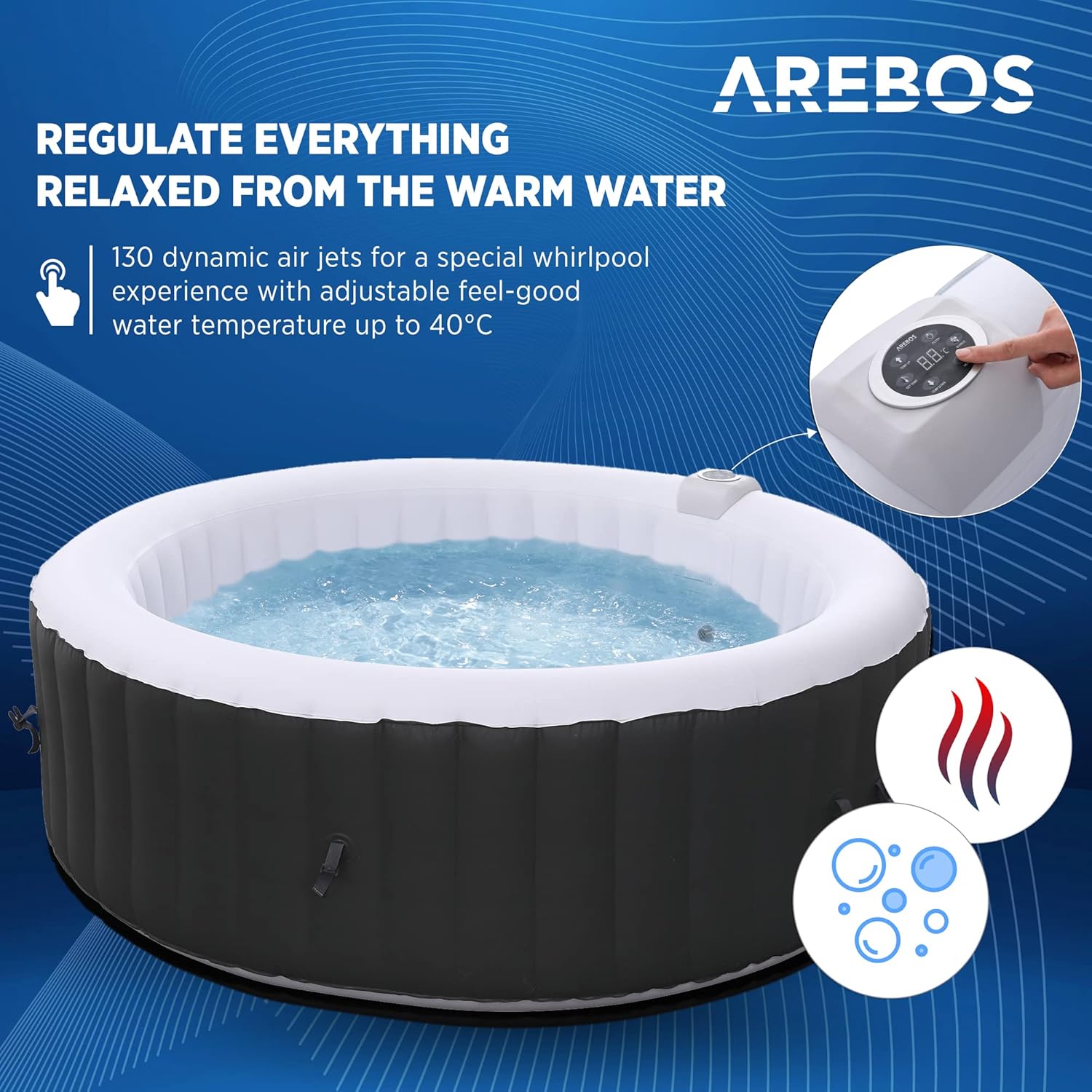

Close-up of the AREBOS Hot Tub control panel
Выява: Падрабязная view of the AREBOS Hot Tub control panel, showing buttons for temperature, filter, bubbles, and heater.
  • Уключэнне/выключэнне харчавання: Press the power button to turn the hot tub system on or off.
  • Рэгуляванне тэмпературы: Use the 'Temp Up' and 'Temp Down' buttons to set your desired water temperature, up to 40°C. The display will show the current water temperature.
  • Функцыя награвальніка: Activate the heater by pressing the 'Heater' button. The heater will automatically turn off once the set temperature is reached and reactivate if the temperature drops.
  • Massage Jets (Bubbles): Press the 'Bubble' button to activate the 130 powerful air jets for a relaxing massage experience. Press again to turn off.
  • Сістэма фільтраў: The 'Filter' button controls the filtration system. It is recommended to run the filter regularly to maintain water clarity. The system includes an alarm function for filter maintenance.
  • Automatic Shut-off/Standby: The hot tub features automatic shut-off and standby modes for safety and energy efficiency.

4. Тэхнічнае абслугоўванне

Regular maintenance is crucial for the longevity and hygienic operation of your hot tub.

AREBOS Hot Tub with cover, showing filter and control panel details
Image: The AREBOS Hot Tub with its protective cover, highlighting the filter housing and control panel for maintenance access.
  • Ачыстка/замена фільтруючага картрыджа: The high-performance filter with 80 slits should be cleaned regularly (e.g., weekly) and replaced every few months, depending on usage. A filter alarm will indicate when attention is needed.
  • Ачыстка вады: Regularly test the water pH and sanitizer levels (e.g., chlorine or bromine). Adjust as necessary using appropriate hot tub chemicals to prevent algae growth and ensure water quality.
  • Cleaning the Hot Tub: Periodically drain the hot tub and clean the interior surfaces with a soft cloth and mild, non-abrasive cleaner. Rinse thoroughly before refilling.
  • Сыход за вокладкай: Keep the hot tub cover clean and free of debris. This helps maintain water temperature and prevents contamination.
  • Winterization (for outdoor use): If using outdoors in cold climates, follow proper winterization procedures to prevent freezing and damage to the hot tub and its components. This typically involves draining, cleaning, drying, and storing in a protected area.

5. Выпраўленне непаладак

This section addresses common issues you might encounter with your AREBOS Inflatable Hot Tub.

праблемаМагчымая прычынаРашэнне
Hot tub not inflatingPower not connected; air valve open; inflation button not pressed.Ensure power is connected. Close air valve. Press the automatic inflation button.
Вада не награваеццаHeater not activated; filter dirty; ambient temperature too low; cover not on.Activate heater. Clean or replace filter. Ensure hot tub is covered to retain heat.
Massage jets not workingBubble function not activated; power issue.Press the 'Bubble' button. Check power connection.
Filter alarm / Dirty waterFilter cartridge clogged; improper water chemistry.Clean or replace the filter cartridge. Test and adjust water chemistry (pH, sanitizer).
Уцечка вадыLoose connections; small puncture.Check all connections for tightness. Use the provided repair kit for small punctures.

6. Тэхнічныя характарыстыкі

Key technical specifications for the AREBOS Inflatable Hot Tub, Model AR-HE-AB1700.

Diagram showing dimensions of the AREBOS Inflatable Hot Tub
Image: A diagram illustrating the dimensions of the AREBOS Inflatable Hot Tub, including its 208 cm diameter and 68 cm height.
АсаблівасцьСпецыфікацыя
МаркаАрэба
Назва мадэліAR-HE-AB1700
КолерЧорны
МатэрыялПолівінілхларыд (ПВХ)
Памеры прадукту (Д х Ш х У)2.08L x 2.08W x 0.68H meters
Вага прадмета25 кілаграма
Ёмістасць вады1000 літра
Колькасць месцаў6 чалавек
тtage240 вольт
Колькасць самалётаў130
Крыніца харчаванняПравадная электрычная
ФормаКруглая
Патрабуецца зборкаNo (Automatic Inflation)

7. Гарантыя і падтрымка

For warranty claims or technical support, please refer to the following information:

  • Гарантыя: This product is covered by the manufacturer's standard warranty. Please retain your proof of purchase for any warranty claims. Specific warranty terms and duration may vary by region.
  • Тэхнічная падтрымка: For assistance with setup, operation, troubleshooting, or parts, please contact AREBOS customer service. You can often find contact information on the manufacturer's official webна сайце або праз прадаўца, у якога вы набылі тавар.
  • Інтэрнэт-рэсурсы: Наведайце ст AREBOS Store on Amazon для атрымання дадатковай інфармацыі аб прадукце і падтрымкі.
