Lifelong LLPCM17

Lifelong LLPCM17 Ace Pro Rechargeable Hair Clipper User Manual

Model: LLPCM17

1. Уводзіны

Thank you for choosing the Lifelong LLPCM17 Ace Pro Rechargeable Hair Clipper. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your new grooming device. Please read it thoroughly before first use and retain it for future reference.

2. Прадукт скончыўсяview & Што ў скрынцы

The Lifelong LLPCM17 Ace Pro is designed for precise hair and beard trimming. Its ergonomic design and advanced features ensure a comfortable and efficient grooming experience.

Lifelong LLPCM17 Ace Pro Hair Clipper with digital display

Figure 1: Lifelong LLPCM17 Ace Pro Hair Clipper

Змест пакета:

  • 1 x Lifelong LLPCM17 Ace Pro Hair Clipper Unit
  • 6 x Guide Combs (3mm, 6mm, 9mm, 12mm, Left Precision, Right Precision)
  • 1 х USB-кабель для зарадкі
  • 1 х шчотка для чысткі
  • 1 х бутэлька са змазачным алеем
  • 1 х Кіраўніцтва карыстальніка
Lifelong LLPCM17 Ace Pro Hair Clipper and all included accessories

Figure 2: Hair Clipper with all accessories

3. Асноўныя магчымасці

  • Лічбавы святлодыёдны дысплей: Shows battery status (low, empty, full, or charging) for convenient monitoring.
  • Доўгі час выканання: Provides up to 3 hours of cordless operation after a 5-hour charge.
  • IPX7 воданепранікальны: Забяспечвае хуткую і лёгкую чыстку пад праточнай вадой.
  • Некалькі варыянтаў хуткасці: Offers complete control over hair styling with adjustable speed settings.
  • Тытанавыя керамічныя ляза: Durable and sharp blades for efficient and precise cutting.
  • Precision Adjuster: Integrated dial for fine-tuning blade length without guide combs.
  • Эрганамічны дызайн: Lightweight and comfortable to hold for extended grooming sessions.
Lifelong LLPCM17 Ace Pro Hair Clipper highlighting LED display and speed options

Figure 3: Digital LED Display and Speed Options

4. Настройка

4.1 Зарадка машынкі для стрыжкі

  1. Ensure the clipper is switched off before charging.
  2. Connect the small end of the USB charging cable to the charging port at the bottom of the clipper.
  3. Падключыце другі канец USB-кабеля да сумяшчальнага адаптара харчавання USB (не ўваходзіць у камплект) або да USB-порта кампутара.
  4. The digital LED display will show the charging status. A full charge typically takes 5 hours, providing approximately 3 hours of runtime.

4.2 Усталёўка накіроўвалых грэбняў

The clipper comes with 6 guide combs for various hair lengths:

  • 3 мм, 6 мм, 9 мм, 12 мм
  • Left Precision Comb
  • Right Precision Comb

To attach a comb, align the comb with the clipper blade and slide it on until it clicks into place. To remove, gently push the comb upwards from the back of the clipper.

Illustration of the 6 guide combs included with the hair clipper

Figure 4: Included Guide Combs

4.3 Blade Adjustment

The clipper features a precision adjuster dial located below the blade. Rotate this dial to fine-tune the cutting length of the blade when not using a guide comb. This allows for precise trimming and detailing.

5. Інструкцыя па эксплуатацыі

5.1 Уключэнне/выключэнне

Press the power button once to turn the clipper on. Press it again to cycle through speed settings. To turn off, press and hold the power button for a few seconds.

5.2 Настройкі хуткасці

The clipper offers multiple speed settings. Press the power button repeatedly to switch between the available speeds. The digital display will indicate the current speed level.

5.3 Hair & Beard Trimming

  1. Select the appropriate guide comb based on your desired hair length.
  2. For a closer trim or detailing, use the precision adjuster without a guide comb.
  3. Hold the clipper with the blade flat against the skin and move it against the direction of hair growth.
  4. Use smooth, even strokes for consistent results.
  5. Regularly clean the blades during use to prevent hair buildup.
Man using the Lifelong LLPCM17 Ace Pro Hair Clipper to trim his beard

Figure 5: Using the Hair Clipper for beard trimming

Official Product Video: Features & Usage

Відэа 1: Кароткі аверview of the Lifelong LLPCM17 Ace Pro Hair Clipper's key features and usage.

Video 2: Another brief demonstration of the Lifelong LLPCM17 Ace Pro Hair Clipper's features.

Video 3: Detailed presentation of the Lifelong LLPCM17 Ace Pro Hair Clipper, showcasing its design, features, and practical application.

6. Тэхнічнае абслугоўванне

6.1 Ачыстка

The Lifelong LLPCM17 Ace Pro is IPX7 waterproof, allowing for easy cleaning.

  1. After each use, switch off the clipper and detach any guide comb.
  2. Use the provided cleaning brush to remove loose hairs from the blades and the clipper body.
  3. Rinse the blade head under running water. Ensure the clipper is completely dry before storage or next use.

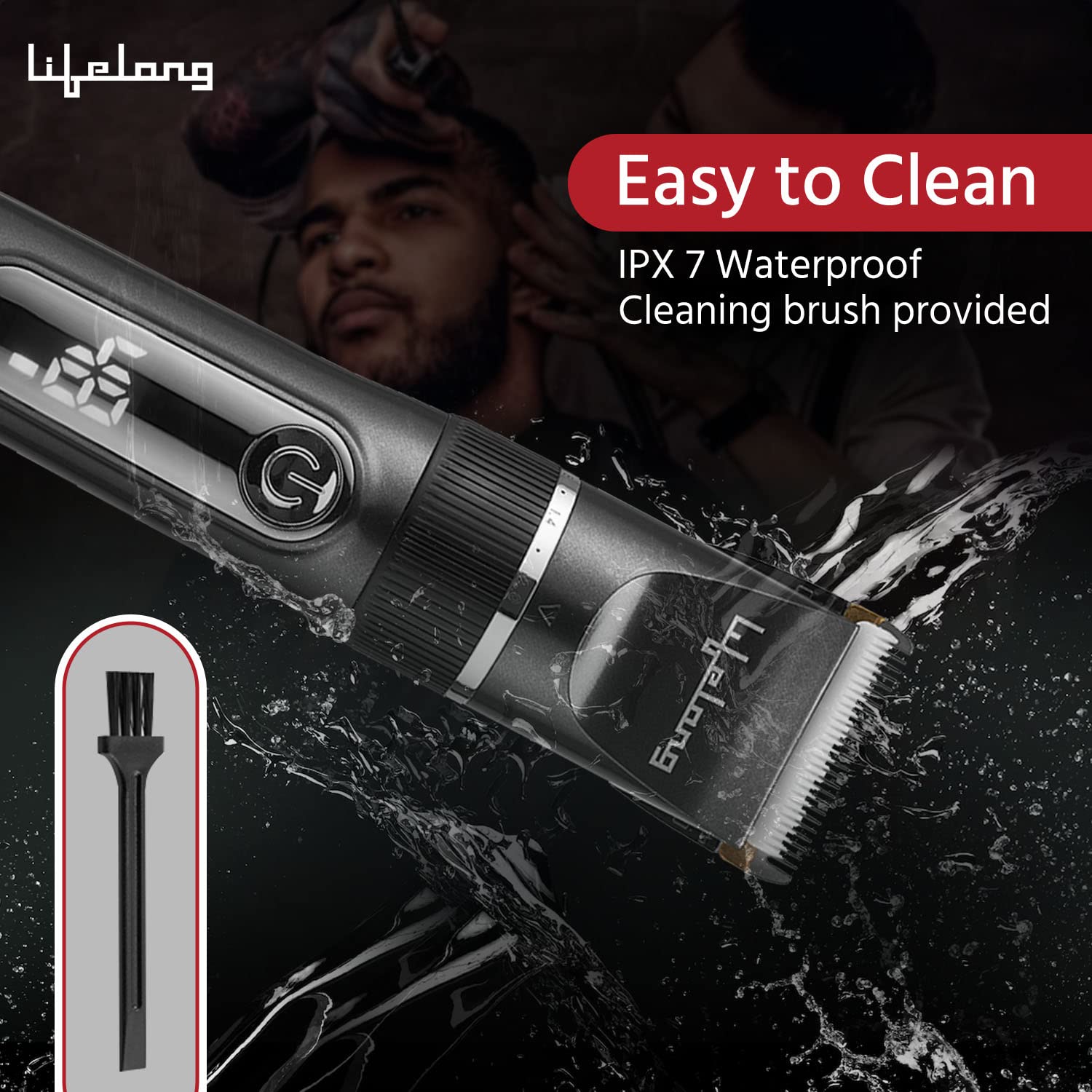

Lifelong LLPCM17 Ace Pro Hair Clipper being rinsed under water, demonstrating its IPX7 waterproof feature

Figure 6: IPX7 Waterproof for easy cleaning

6.2 Змазка

To maintain optimal performance and blade longevity, regular lubrication is essential.

  1. Apply a few drops of the provided lubricating oil onto the blades after cleaning and drying.
  2. Turn on the clipper for a few seconds to distribute the oil evenly.
  3. Вытрыце лішкі алею мяккай тканінай.

7. Выпраўленне непаладак

праблемаМагчымая прычынаРашэнне
Кліпер не ўключаецца.Нізкі зарад батарэі або адсутнасць зарада.Charge the clipper fully (approx. 5 hours).
Дрэнная прадукцыйнасць рэзкі.Ляза тупыя, брудныя або не змазаныя.Clean blades thoroughly and apply lubricating oil. Consider replacing blades if dull.
Clipper stops during use.Battery is depleted or motor is overloaded.Recharge the clipper. Ensure blades are clean and free of tangled hair.
Празмерны шум або вібрацыя.Ляза няправільна выраўнаваны або змазаны.Check blade alignment and lubricate. If problem persists, contact customer support.

8. Тэхнічныя характарыстыкі

  • мадэль: LLPCM17
  • Матэрыял ляза: Тытан-кераміка
  • Крыніца харчавання: Электрычны (акумулятарны)
  • Тып батарэі: 1 літый-іённы (у камплекце)
  • Час зарадкі: Прыкладна 5 гадзіны
  • Час працы: Прыкладна 3 гадзіны
  • Рэйтынг воданепранікальнасці: IPX7
  • Памеры прадукту (ДxШxВ): 17.9 х 4.5 х 4.5 см
  • Вага прадмета: 191 г
  • Накіроўвалыя расчоскі: 3mm, 6mm, 9mm, 12mm, Left Precision, Right Precision
  • Мэтавая аўдыторыя: Мужчыны
  • Тып валасоў: Усе

9. Гарантыя і падтрымка

9.1 Інфармацыя аб гарантыі

The Lifelong LLPCM17 Ace Pro Rechargeable Hair Clipper comes with a 1 Year Brand Warranty з даты пакупкі. Калі ласка, захавайце чэк аб куплі як пацверджанне гарантыі.

9.2 Падтрымка кліентаў

For any queries, assistance, or warranty claims, please contact Lifelong customer support:
