Sorand 8L Manual Garden Sprayer User Manual

1. Уводзіны

This manual provides detailed instructions for the safe and effective use of your Sorand 8L Manual Garden Sprayer. Designed for household use, this plastic atomizer is suitable for watering plants, fruit trees, and other garden applications. Please read this manual thoroughly before initial use and retain it for future reference.

Асноўныя характарыстыкі:

• Comfortable handle for easy pumping.
• Constructed from durable, odorless, and non-toxic plastic (PP).
• Integrated safety valve for automatic air deflation, ensuring safe operation.
• Wide 13cm top opening to prevent spills during filling.
• Simple press-and-forward switch for easy operation.

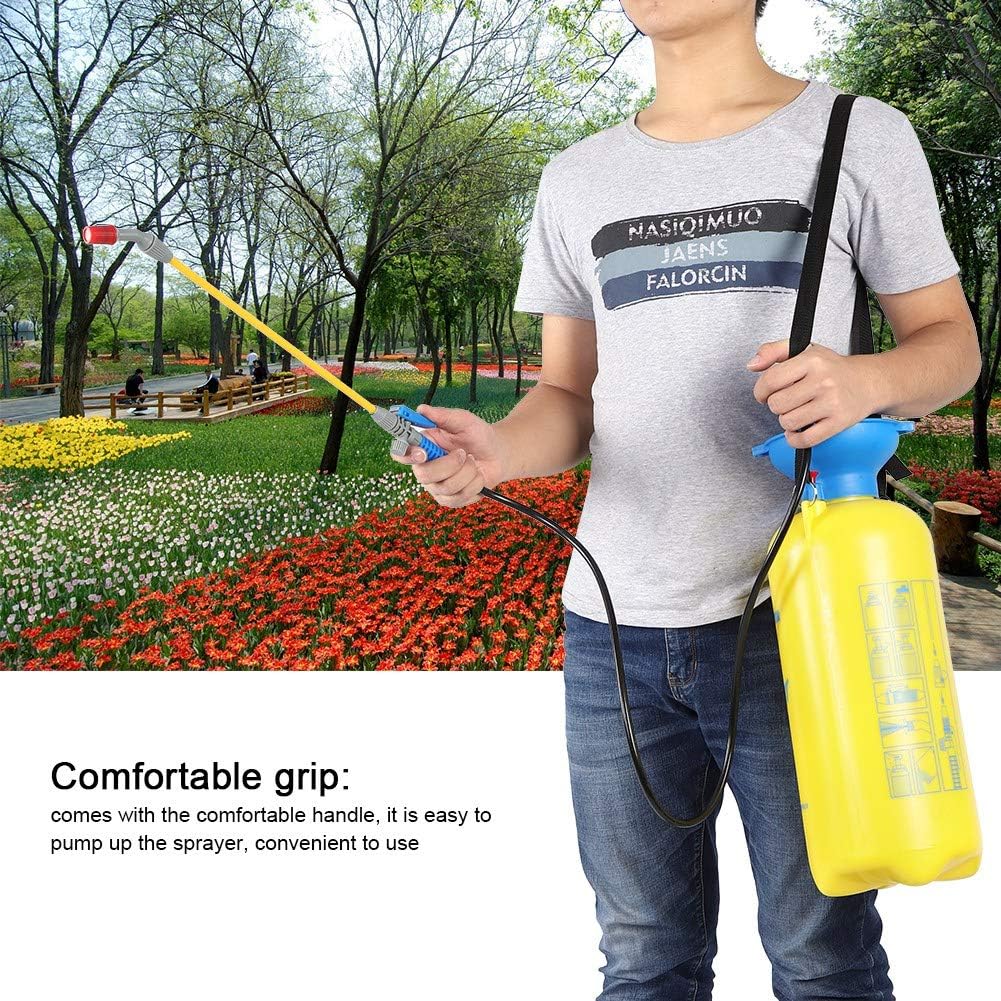

Малюнак 1.1: A user holding the sprayer, illustrating the comfortable grip of the pump handle designed for ease of use.

2. Кампаненты прадукту

Familiarize yourself with the various parts of your Sorand 8L Manual Garden Sprayer.

Малюнак 2.1: У цэлым view of the Sorand 8L Manual Garden Sprayer, showing the main tank, pump assembly, hose, and spray wand.

Малюнак 2.2: Detail of the blue pump handle and the wide opening for filling the tank, designed to minimize spills and facilitate easy access.

Малюнак 2.3: The spray wand's blue trigger mechanism, which can be pressed for spraying and pushed forward to lock for continuous operation, along with the adjustable nozzle for spray pattern control.

3. Інструкцыі па ўсталёўцы

1. Распакуйце кампаненты: Асцярожна выміце ўсе дэталі з упакоўкі. Пераканайцеся, што ўсе кампаненты наяўныя.
2. Assemble Spray Wand: Connect the spray wand to the hose. Ensure a secure, leak-free connection by tightening the fitting.
3. Attach Shoulder Strap (if applicable): If your model includes a shoulder strap, attach it to the designated points on the sprayer tank for comfortable carrying during use.
4. Падрыхтуйце да запаўнення: Unscrew the pump assembly from the top of the tank by turning it counter-clockwise.
5. Запоўніце бак: Pour the desired liquid (e.g., water, non-corrosive fertilizer, or pesticide solution) into the tank. Do not exceed the 8L capacity mark. The wide opening helps prevent spills.
6. Secure Pump Assembly: Carefully reinsert the pump assembly into the tank and screw it clockwise until it is tightly sealed. Ensure the seal is firm to prevent leaks and allow pressure to build effectively.

4. Інструкцыя па эксплуатацыі

1. Стварайце ціск: With the pump assembly securely in place, grasp the pump handle and pump it up and down repeatedly. Continue pumping until you feel significant resistance, indicating sufficient pressure has built up inside the tank. The integrated safety valve will automatically deflate air if pressure becomes excessive.
2. Адрэгулюйце сопла: Twist the nozzle at the end of the spray wand to adjust the spray pattern from a fine mist to a direct stream, according to your application needs.
3. Пачаць распыленне: Point the spray wand towards the target area. Press the blue trigger on the spray wand to release the liquid.
4. Бесперапыннае распыленне: For continuous spraying, press the trigger and then push it forward to lock it in the open position. To stop, pull the trigger back.
5. Падтрымлівайце ціск: If the spray pressure decreases during use, pump the handle again to re-pressurize the tank.
6. Зніжэнне ціску пасля выкарыстання: After completing your task, always depressurize the sprayer. This can be done by holding the trigger until all pressure is released, or by carefully activating the safety valve if your model allows manual release.

5. Тэхнічнае абслугоўванне

• Уборка: After each use, especially when using chemicals, thoroughly rinse the tank, hose, and spray wand with clean water. Pump clean water through the sprayer to flush out any residue from the internal components and nozzle.
• захоўванне: Store the sprayer in a cool, dry place, away from direct sunlight and freezing temperatures. Ensure the tank is empty and depressurized before storage.
• Праверце пломбы: Periodically inspect all seals and O-rings for wear or damage. Replace them if necessary to maintain proper pressure and prevent leaks.
• Сыход за асадкамі: If the nozzle becomes clogged, remove it and clean it with a soft brush or by rinsing it thoroughly. Do not use sharp objects to clear the nozzle, as this may damage it.

6. Выпраўленне непаладак

7. Тэхнічныя характарыстыкі

• Марка: Sorand
• мадэль: 8L Manual Sprayer
• Ёмістасць: 8 літра
• матэрыял: Пластык (ПП)
• колер: Жоўты
• Даўжыня трубы: Прыкладна 130 см (51.18 цаляў)
• Pole Length (Spray Wand): Прыкладна 37 см (14.56 цаляў)
• Вага прадмета: Прыблізна 1917 грамы (4.23 фунта)
• Крыніца харчавання: Manual, Air Powered
• UPC: 738683041750

Малюнак 7.1: Dimensions of the Sorand 8L Manual Garden Sprayer, showing the approximate pipe length and spray wand (pole) length.

8. Інфармацыя па бяспецы

Always observe the following safety precautions when using your sprayer:

• Прачытайце і зразумейце ўсе інструкцыі перад выкарыстаннем.
• Карыстайцеся адпаведнымі сродкамі індывідуальнай абароны (СІА), такімі як пальчаткі, ахоўныя акуляры і маска, асабліва пры распыленні хімікатаў.
• Do not use the sprayer with flammable, corrosive, or hot liquids.
• Keep children and pets away from the spraying area.
• Ніколі не накіроўвайце фарсунку на людзей або жывёл.
• Do not modify the sprayer in any way.
• Depressurize the sprayer before attempting to open the tank or perform any maintenance.
• Dispose of any unused chemicals and rinse water according to local regulations.
