GIM KB-23 RGB Case Fan 120mm User Manual

1. Уводзіны

This manual provides instructions for the installation, operation, and maintenance of your GIM KB-23 RGB Case Fan. Please read this manual thoroughly before installation and use to ensure proper function and safety.

The GIM KB-23 is a 120mm case fan designed to enhance airflow within your computer chassis while providing customizable RGB lighting effects.

2. Інфармацыя па бяспецы

Заўсёды выконвайце наступныя меры бяспекі:

• Ensure your computer is powered off and unplugged from the wall outlet before installation or maintenance.
• Discharge any static electricity from your body by touching a grounded metal object before handling components.
• Do not force connectors. Ensure proper alignment before connecting.
• Keep small parts, such as screws, away from children.
• Пазбягайце дакранацца да лапатак вентылятара падчас яго працы.

3. Змесціва ўпакоўкі

Праверце, ці ёсць усе прадметы ў вашай упакоўцы:

• 1 x GIM KB-23 120mm RGB Case Fan
• 4 х крапежных шруб

4. Настройка і ўстаноўка

Follow these steps to install your GIM KB-23 RGB Case Fan:

4.1 Падрыхтоўка

• Power off your computer and unplug the power cable from the wall outlet.
• Адкрыйце корпус кампутара, каб атрымаць доступ да месцаў мацавання вентылятараў.
• Identify an appropriate 120mm fan mounting position within your case. Consider airflow direction (intake or exhaust).

4.2 Мантаж вентылятара

Position the fan in the desired mounting location. Use the four included mounting screws to secure the fan to the case. Ensure the screws are tightened firmly but do not overtighten to avoid damaging the fan frame or case.

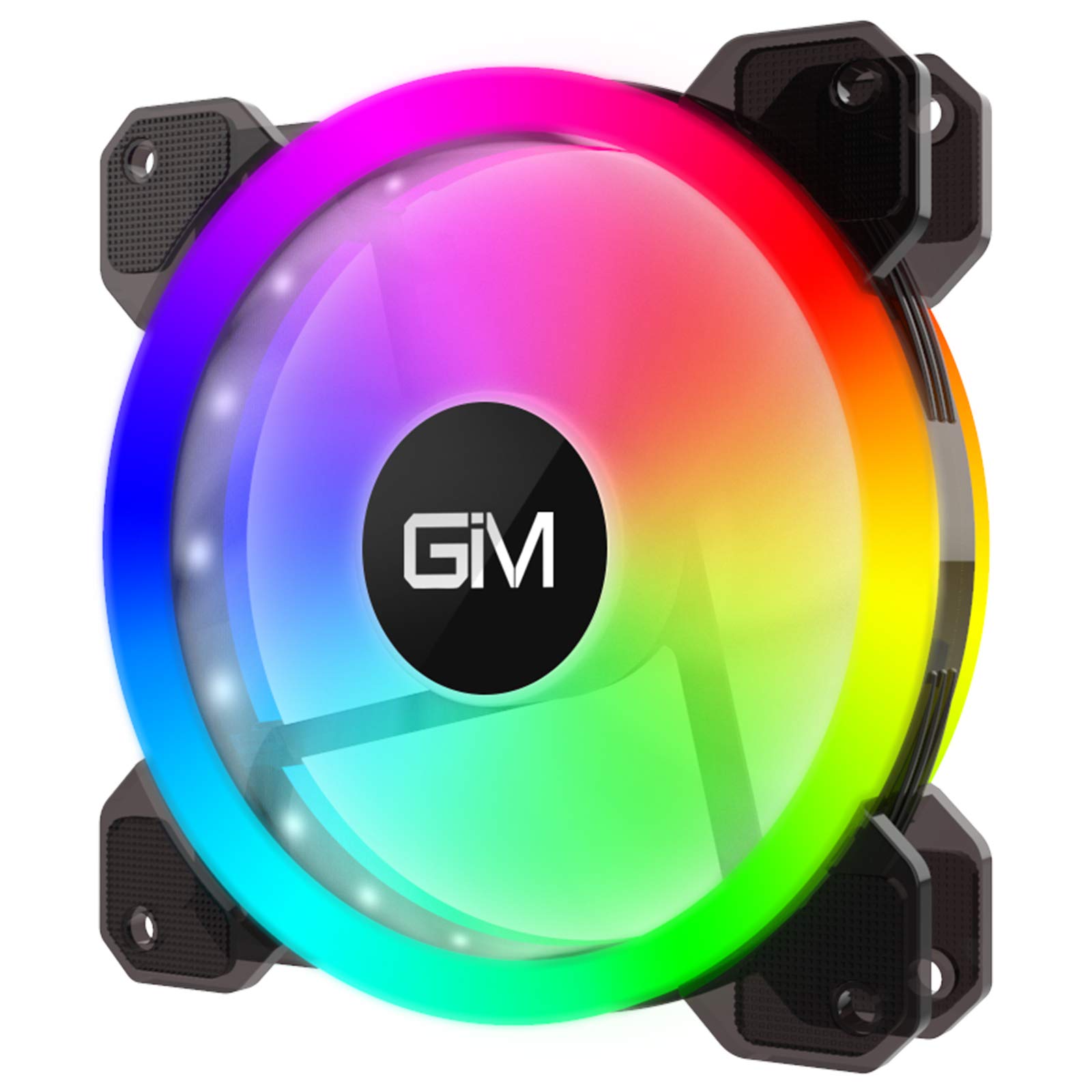

Image 1: GIM KB-23 RGB Case Fan. This image shows the fan's design and typical appearance when installed.

4.3 Падключэнне вентылятара

Locate the 6-pin power connector on the GIM KB-23 fan cable. Connect this cable to a compatible GIM RGB fan controller (sold separately or included with multi-pack fan kits). The fan will not function or light up without a compatible controller.

Ensure the connector is fully seated. Route the cables neatly to maintain good airflow and aesthetics within your case.

5. Інструкцыя па эксплуатацыі

Once installed and connected to a compatible GIM RGB fan controller, the fan will begin operating when your computer is powered on.

• Хуткасць вентылятара: The fan speed is typically controlled by the GIM RGB fan controller or motherboard software, depending on the controller's capabilities and how it's connected to your system.
• RGB асвятленне: The RGB lighting effects are managed through the GIM RGB fan controller. Refer to your GIM controller's manual for specific instructions on changing lighting modes, colors, and brightness.

6. Тэхнічнае абслугоўванне

Regular maintenance helps ensure optimal performance and longevity of your fan.

• Уборка: Periodically clean the fan blades and frame to remove dust buildup. Use a can of compressed air or a soft, dry cloth. Ensure the computer is powered off and unplugged before cleaning.
• агляд: Check cables for any signs of wear or damage. Ensure all connections remain secure.

7. Выпраўленне непаладак

If you encounter issues with your GIM KB-23 RGB Case Fan, refer to the following common problems and solutions:

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

For warranty information or technical support, please contact GIM customer service through their official webсайт або прадаўца, дзе быў набыты прадукт. Захоўвайце пацвярджэнне пакупкі для прэтэнзій па гарантыі.
