1. Уводзіны
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Bosch GHP 5-13 C Professional High Pressure Washer. Please read this manual thoroughly before using the appliance for the first time and keep it for future reference. Proper use and maintenance will ensure optimal performance and extend the lifespan of your unit.
2. Інструкцыі па тэхніцы бяспекі
Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Failure to follow these instructions may result in serious injury or damage to the unit.
- Электрабяспека: Пераканайцеся, што крыніца харчавання адпавядае аб'ёмуtage specified on the unit. Always use a properly grounded outlet and avoid using extension cords unless absolutely necessary and rated for outdoor use. Do not operate the unit with damaged cords or plugs.
- Water Pressure Safety: The high-pressure jet can be dangerous if misused. Never direct the jet at people, pets, or electrical equipment. Wear appropriate personal protective equipment, including safety glasses and protective clothing.
- Агульныя аперацыі: Keep the work area clear of bystanders, especially children and pets. Do not operate the unit while fatigued or under the influence of alcohol or drugs. Ensure all connections are secure before starting.
- Тэхнічнае абслугоўванне: Перад выкананнем любога тэхнічнага абслугоўвання або чысткі адключыце электрасілкаванне.
3. Прадукт скончыўсяview
The Bosch GHP 5-13 C is a compact and powerful high-pressure washer designed for professional cleaning tasks. It features a crankshaft-driven brass pump with ceramic-coated pistons for durability and variable pressure for optimal flexibility.
Малюнак 1: У цэлым view of the Bosch GHP 5-13 C High Pressure Washer with included accessories.
Ключавыя кампаненты:
- Помпа высокага ціску: Durable brass pump with ceramic-coated pistons.
- Матор: 2.300W motor providing excellent power-to-weight ratio.
- Манометр: Indicates current operating pressure.
- Уваход вады: Месца падлучэння шланга падачы вады.
- High-Pressure Outlet: Месца падлучэння шланга высокага ціску.
- Выключальнік сілкавання: For turning the unit ON/OFF.
- Ручка: Для зручнай транспарціроўкі.
Малюнак 2: падрабязна view of the pump assembly, pressure gauge, and power switch.
4. Настройка
Follow these steps to prepare your high-pressure washer for operation:
- Распакаванне і праверка: Carefully remove the unit and all accessories from the packaging. Inspect for any signs of damage. Do not operate if damaged.
- Падключэнне водазабеспячэння: Attach a garden hose (not supplied) to the water inlet connection on the unit. Ensure the water supply has sufficient flow and pressure. It is recommended to use a water filter at the inlet to prevent debris from entering the pump.
- Connect High-Pressure Hose and Spray Gun: Connect one end of the high-pressure hose to the high-pressure outlet on the unit and the other end to the spray gun. Ensure all connections are tightened securely to prevent leaks.
- Падключыце крыніцу сілкавання: Plug the power cord into a suitable, grounded electrical outlet. Ensure the power switch on the unit is in the 'OFF' position before plugging in.
- Запраўка помпы: Before starting the motor, turn on the water supply completely. Squeeze the trigger on the spray gun to allow water to flow through the system and expel any trapped air. Continue until a steady stream of water emerges from the nozzle. This primes the pump and prevents damage from dry running.

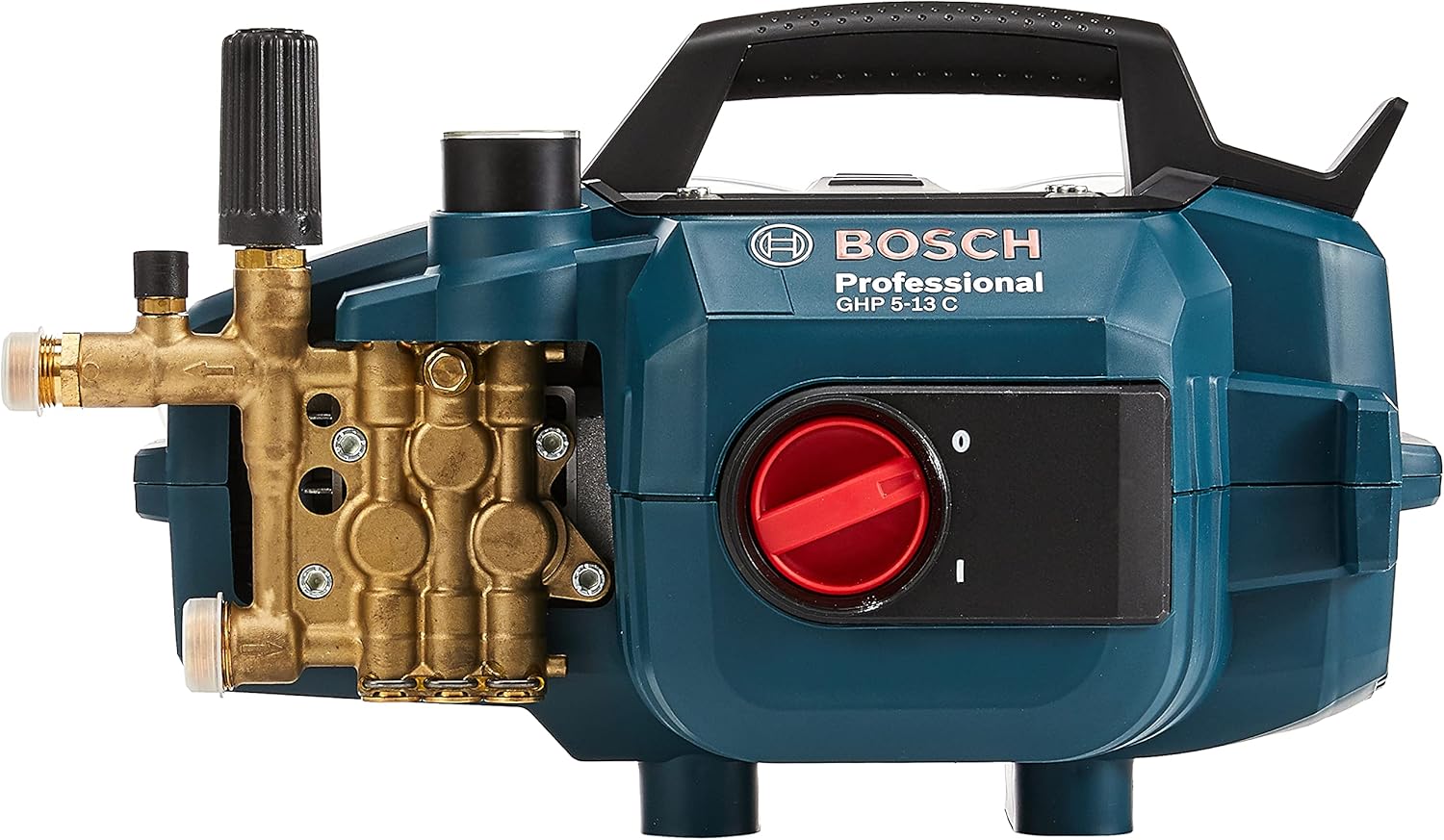

Малюнак 3: бок view illustrating the water inlet and high-pressure outlet connections.
Малюнак 4: Задняя частка view showing the power cord and the water inlet connection.
5. Інструкцыя па эксплуатацыі
Пасля таго, як прылада будзе настроена і падрыхтавана, можна пачынаць яе эксплуатацыю:
- Запуск прылады: Ensure the water supply is fully open. Point the spray gun in a safe direction, then turn the power switch to the 'ON' position. The motor will start.
- Рэгуляванне ціску: The Bosch GHP 5-13 C offers variable pressure for different cleaning tasks. Adjust the pressure as needed using the controls on the unit or the spray lance, if applicable. Start with lower pressure on sensitive surfaces.
- Выкарыстанне распыляльніка: Squeeze the trigger on the spray gun to activate the high-pressure jet. Release the trigger to stop the flow. Always maintain a firm grip on the spray gun due to recoil force.
- Спыненне агрэгата: To stop operation, release the spray gun trigger, then turn the power switch to the 'OFF' position. Turn off the water supply. Squeeze the trigger again to release any residual pressure in the system before disconnecting hoses.
6. Тэхнічнае абслугоўванне
Regular maintenance ensures the longevity and optimal performance of your high-pressure washer.
- Фільтр уваходнай адтуліны чыстай вады: Regularly check and clean the water inlet filter to prevent debris from clogging the pump. Remove the filter, rinse it under running water, and reinsert.
- Draining and Winter Storage: Before storing the unit for extended periods, especially in freezing temperatures, completely drain all water from the pump, hoses, and spray gun. Run the unit for a few seconds with the water supply off and the trigger squeezed to expel remaining water. Store in a dry, frost-free location.
- Генеральная ўборка: Ачысціце знешнюю частку прылады з дапамогай рэкламыamp тканінай. Не выкарыстоўвайце агрэсіўныя мыйныя сродкі або растваральнікі.
- Праверце шлангі і злучэнні: Periodically inspect high-pressure hoses for kinks, cuts, or wear. Ensure all connections are tight and free from leaks. Replace damaged components immediately.
7. Выпраўленне непаладак
If you encounter issues with your high-pressure washer, refer to the following common problems and solutions:
- Агрэгат не запускаецца:
- Праверце, ці надзейна падключаны шнур харчавання да спраўнай разеткі.
- Пераканайцеся, што выключальнік харчавання знаходзіцца ў становішчы «ON».
- Пераканайцеся, што аўтаматычны выключальнік не спрацаваў.
- No Pressure or Low Pressure:
- Ensure the water supply is fully open and has adequate flow.
- Check the water inlet filter for clogs and clean if necessary.
- Inspect all hose connections for leaks.
- Ensure the pump is properly primed (refer to Section 4).
- Уцечкі вады:
- Зацягніце ўсе злучэнні шлангаў і аксесуараў.
- Праверце ўшчыльняльныя кольцы і ўшчыльняльнікі на наяўнасць пашкоджанняў і пры неабходнасці заменіце іх.
- Motor Stops During Operation:
- The unit may have overheated. Turn off and allow it to cool down.
- Праверце нізкі ўзровень аб'ёмуtage or an overloaded circuit.
Калі пасля спробы гэтых рашэнняў праблемы не знікнуць, звярніцеся ў службу падтрымкі кліентаў.
8. Тэхнічныя характарыстыкі
The following table details the technical specifications of the Bosch GHP 5-13 C Professional High Pressure Washer:
| Спецыфікацыя | Каштоўнасць |
|---|---|
| Марка | Bosch |
| Крыніца харчавання | Правадная электрычная |
| Колер | Сіні |
| Спецыфікацыя выканана | CE, CSA |
| Памеры прадукту (Д х Ш х У) | 51.5 Д х 34 Ш х 27.9 У сантыметраў |
Figure 5: Visual representation of the product dimensions.
9. Гарантыя і падтрымка
For warranty information, please refer to the documentation provided with your purchase or contact your retailer. Bosch provides comprehensive customer support for its products.
If you require technical assistance, spare parts, or have questions regarding the operation or maintenance of your Bosch GHP 5-13 C High Pressure Washer, please contact Bosch customer service or an authorized service center. Contact details can typically be found on the official Bosch webна сайце або ў дакументах па куплі.
