WAYXIN R9 6-Way Motorcycle Intercom User Manual

Уводзіны

Thank you for choosing the WAYXIN R9 6-Way Motorcycle Intercom. This device is designed to enhance your riding experience by providing seamless communication, music playback, and navigation audio directly to your helmet. Featuring advanced DSP & CVC noise reduction technology, a long-range intercom system, and a durable, waterproof design, the R9 ensures clear audio and reliable performance in various conditions. Please read this manual carefully to ensure proper installation and optimal use of your intercom system.

Што ў скрынцы

Upon unpacking your WAYXIN R9 intercom system, please verify that all the following components are included:

• 2x R9 Intercom Units (Host-R9)
• 2x дынамікі
• 2x Hardcore Microphones
• 2x Button Microphones
• 2x зарадныя кабелі
• 2x Metal Mounting Sheets
• 4 -х крапежныя шрубы
• 1x ключ Allen
• 1x Кіраўніцтва карыстальніка

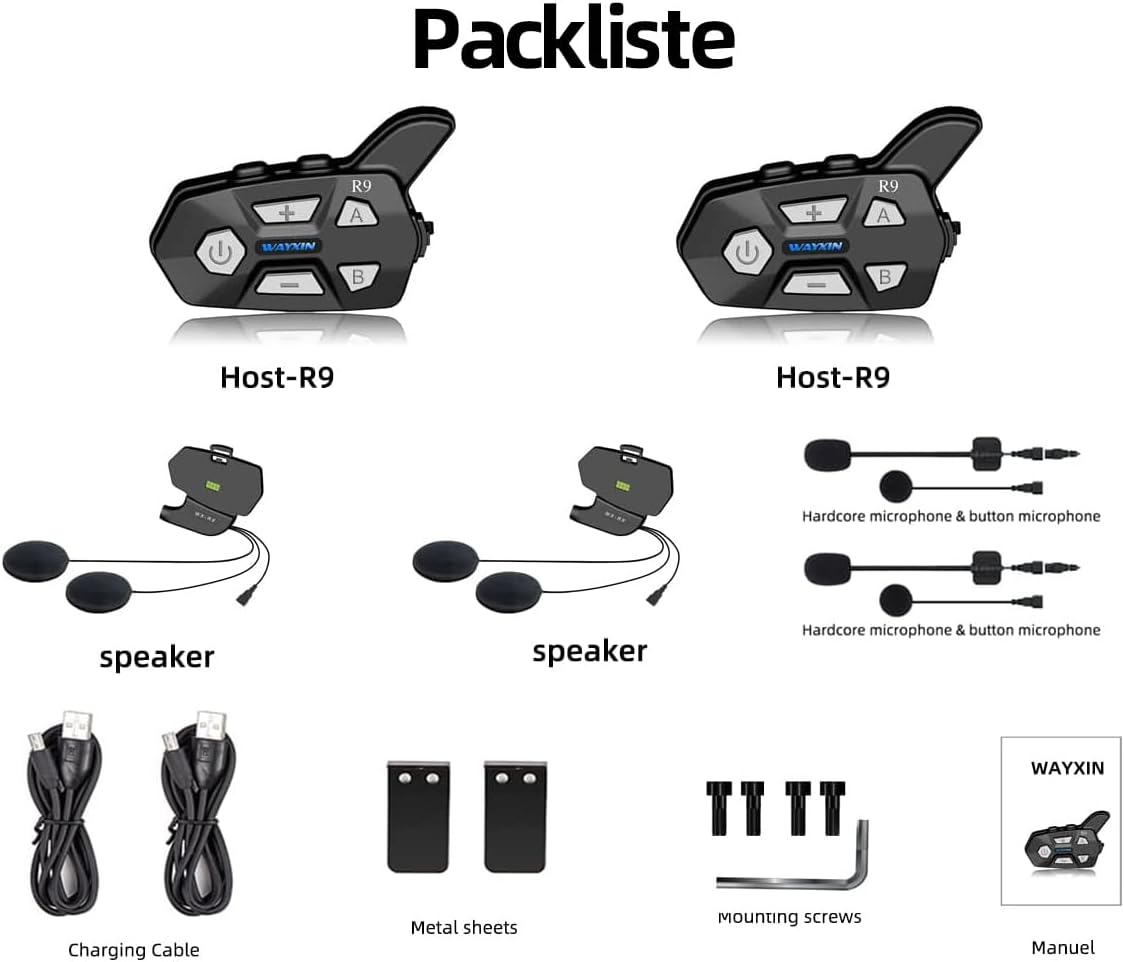

Выява: Падрабязная view of all components included in the WAYXIN R9 package.

Прадукт скончаныview

The WAYXIN R9 intercom system offers a robust set of features designed for motorcycle riders:

• 6-Way Intercom Communication: Connect with up to 6 riders simultaneously over a range of up to 1500 meters (theoretical value).
• Палепшанае шумапрыглушэнне: Integrated DSP (Digital Signal Processing) and CVC (Clear Voice Capture) technology effectively reduce wind noise and other background sounds for clear conversations, even at speeds up to 90-100 km/h.
• Bluetooth 5.0: Ensures stable and efficient wireless connectivity with your mobile phone, GPS, and other Bluetooth devices.
• Доўгі тэрмін службы батарэі: Equipped with an 850 mAh battery, providing up to 15 hours of continuous talk time, 380 hours of standby time, and a quick 3-hour charging time.
• Канфігурацыя падвойнага мікрафона: Includes both a button microphone and a hardcore microphone for versatile use and improved comfort.
• FM-радыё: Built-in full-band FM radio (76 MHz-108 MHz) for entertainment on the go.
• Універсальнае спалучэнне: Compatible with intercom systems from other manufacturers.
• Падтрымка галасавога памочніка: Easily activate your smartphone's voice assistant (e.g., Siri, Google Assistant).
• Воданепранікальны дызайн: Constructed with waterproof materials suitable for various outdoor sports and weather conditions.

Image: Key features of the WAYXIN R9 intercom system.

Image: WAYXIN R9 intercom in use on a motorcycle helmet.

Image: DSP & CVC noise reduction technology for clear audio.

Настройка

1. Усталёўка на шлем

The WAYXIN R9 intercom unit can be easily mounted on most helmet types.

1. Choose a suitable location on the side of your helmet for the intercom unit.
2. Use the provided mounting screws and metal sheets to securely attach the intercom bracket to the helmet. Ensure it is firm and does not obstruct your vision or helmet functionality.
3. Insert the speakers into the helmet's ear pockets. Ensure they are positioned directly over your ears for optimal sound quality.
4. Attach the microphone (either hardcore or button type) to a position inside the helmet where it is close to your mouth but not interfering with your breathing or helmet closure.
5. Connect the speaker and microphone cables to the corresponding ports on the intercom unit.

2. Пачатковая зарадка

Before first use, fully charge the intercom unit.

• Connect the charging cable to the charging port on the R9 unit and to a USB power source.
• Поўная зарадка звычайна займае каля 3 гадзін.

Image: Battery specifications for the WAYXIN R9.

Інструкцыя па эксплуатацыі

1. Уключэнне/выключэнне харчавання

• Уключэнне: Press and hold the Power button for approximately 3 seconds until the blue LED lights up.
• Выключэнне: Press and hold the Power button for approximately 1 second until the red LED lights up.

2. Спалучэнне з мабільным тэлефонам праз Bluetooth

1. With the R9 unit powered off, press and hold the Power button for about 5-7 seconds until the LED indicator flashes red and blue alternately, indicating pairing mode.
2. На мабільным тэлефоне ўключыце Bluetooth і знайдзіце даступныя прылады.
3. Select "WAYXIN R9" from the list of devices. Once connected, the LED will flash blue slowly.

3. Спалучэнне інтэркома (Multi-Rider)

The R9 supports communication with up to 6 riders. For optimal performance, pair units one by one.

1. Ensure both R9 units are powered off.
2. On the first unit, press and hold the Power button until it enters pairing mode (red and blue flashing).
3. On the second unit, press and hold the "A" button until it enters pairing mode.
4. Once paired, the LEDs on both units will flash blue slowly. Repeat this process for additional units, using buttons "B", "C", etc., as per the full manual.
5. To initiate intercom communication, briefly press the "A" or "B" button corresponding to the desired rider.

Image: WAYXIN R9 supporting 6-way intercom communication up to 1500m.

4. Прайграванне і сумеснае выкарыстанне музыкі

• Once paired with your phone, music will play automatically or can be controlled via your phone.
• To share music with another paired R9 unit (valid for two persons), refer to the specific instructions in the full user manual for the music sharing function.

Image: Music sharing feature between two WAYXIN R9 units.

5. FM-радыё

• To activate FM radio, briefly press the FM button (usually indicated by a radio icon).
• Use the Volume Up/Down buttons to change stations.

Image: WAYXIN R9 with FM radio capability.

6. Галасавы памочнік

• Double-tap the Power button to activate your smartphone's voice assistant (e.g., Siri, Google Assistant).

7. Рэгулятар гучнасці

• Use the '+' and '-' buttons on the intercom unit to adjust the volume.

Image: Detailed button layout and functions of the WAYXIN R9 intercom.

Тэхнічнае абслугоўванне

To ensure the longevity and optimal performance of your WAYXIN R9 intercom, follow these maintenance guidelines:

• Уборка: Працярыце прыладу мяккай дamp тканіна. Не выкарыстоўвайце агрэсіўныя хімікаты або абразіўныя ачышчальнікі.
• Воданепранікальнасць: While the R9 is waterproof, avoid submerging it in water for extended periods. Ensure the charging port cover is securely closed when not charging.
• Сыход за батарэяй: For best battery life, avoid fully discharging the unit frequently. Charge it regularly, especially if storing it for a long time. Store in a cool, dry place.
• захоўванне: When not in use, store the intercom in a dry environment at room temperature.

Ліквідацыю непаладак

If you encounter issues with your WAYXIN R9 intercom, refer to the following common solutions:

Тэхнічныя характарыстыкі

Гарантыя і падтрымка

For warranty information and customer support, please refer to the documentation included with your product or visit the official WAYXIN webсайт. Захоўвайце чэк аб куплі як пацверджанне пакупкі.
