Cornat Tarox Plus Toilet Seat

1. Уводзіны

This manual provides instructions for the proper installation, operation, and maintenance of your Cornat Tarox Plus KSTASC100 toilet seat. Please read these instructions carefully before installation and retain them for future reference.

The Cornat Tarox Plus toilet seat is designed for comfort and hygiene, featuring durable Duroplast material, a soft-close mechanism, and a Quick Up & Clean function for easy removal and cleaning.

2. Інфармацыя па бяспецы

• Ensure all components are present and undamaged before installation.
• Do not stand on the toilet seat or lid. This product is designed for sitting only.
• Avoid using abrasive cleaners or harsh chemicals, as these can damage the Duroplast material and hinges.
• Keep small children supervised around the toilet to prevent injury. The soft-close mechanism reduces slamming but is not a substitute for supervision.
• Maximum load capacity: 150 kg. Do not exceed this weight.

3. Змесціва ўпакоўкі

Пераканайцеся, што ў камплекце ёсць усе наступныя прадметы:

• 1 x Cornat Tarox Plus Toilet Seat
• Mounting accessories (hinges, screws, washers, nuts)

4. Асаблівасці прадукту

• Durable Duroplast Material: Provides a robust, scratch-resistant, and shatterproof surface.
• Антыбактэрыйная паверхня: Promotes hygiene by preventing germ accumulation.
• Механізм мяккага закрыцця: Ensures a gentle and quiet closing of both the seat and lid, preventing slamming.
• Quick Up & Clean Function: Allows for easy removal of the entire toilet seat with a push of a button for thorough cleaning.
• Top Mounting System: Facilitates convenient installation from above the toilet bowl.
• Хімічная ўстойлівасць: Withstands common disinfectants and cleaning agents.

5. Настройка і ўстаноўка

The Cornat Tarox Plus toilet seat features a convenient top-mounting system, suitable for most standard wall-mounted and freestanding toilets.

Этапы ўстаноўкі:

1. Падрыхтуйце туалет: Пераканайцеся, што ўнітаз чысты і сухі. Зніміце старое сядзенне ўнітаза і фурнітуру.
2. Insert Mounting Bolts: Place the rubber expansion bolts (part of the mounting accessories) into the mounting holes on the toilet bowl.
3. Пазіцыйныя завесы: Place the hinge bases over the expansion bolts. Adjust their position to align with the mounting points on the toilet seat.
4. Надзейныя завесы: Insert the screws through the hinge bases and into the expansion bolts. Tighten the screws from above using a screwdriver until the hinges are firmly secured. Do not overtighten.
5. Attach Toilet Seat: Align the toilet seat's attachment points with the hinge pins. Press down firmly until the seat clicks into place. Ensure it is securely fastened.

Выява: Ніжні бок view of the Cornat Tarox Plus toilet seat, illustrating the hinge attachment points for top mounting.

Выява: Збоку view of the Cornat Tarox Plus toilet seat with the lid open, demonstrating the hinge mechanism.

6. Інструкцыя па эксплуатацыі

Функцыя мяккага закрыцця:

To engage the soft-close function, simply push the toilet seat and/or lid downwards gently. The integrated mechanism will automatically lower them slowly and quietly until they rest on the toilet bowl. Do not force the seat or lid down, as this can damage the soft-close mechanism.

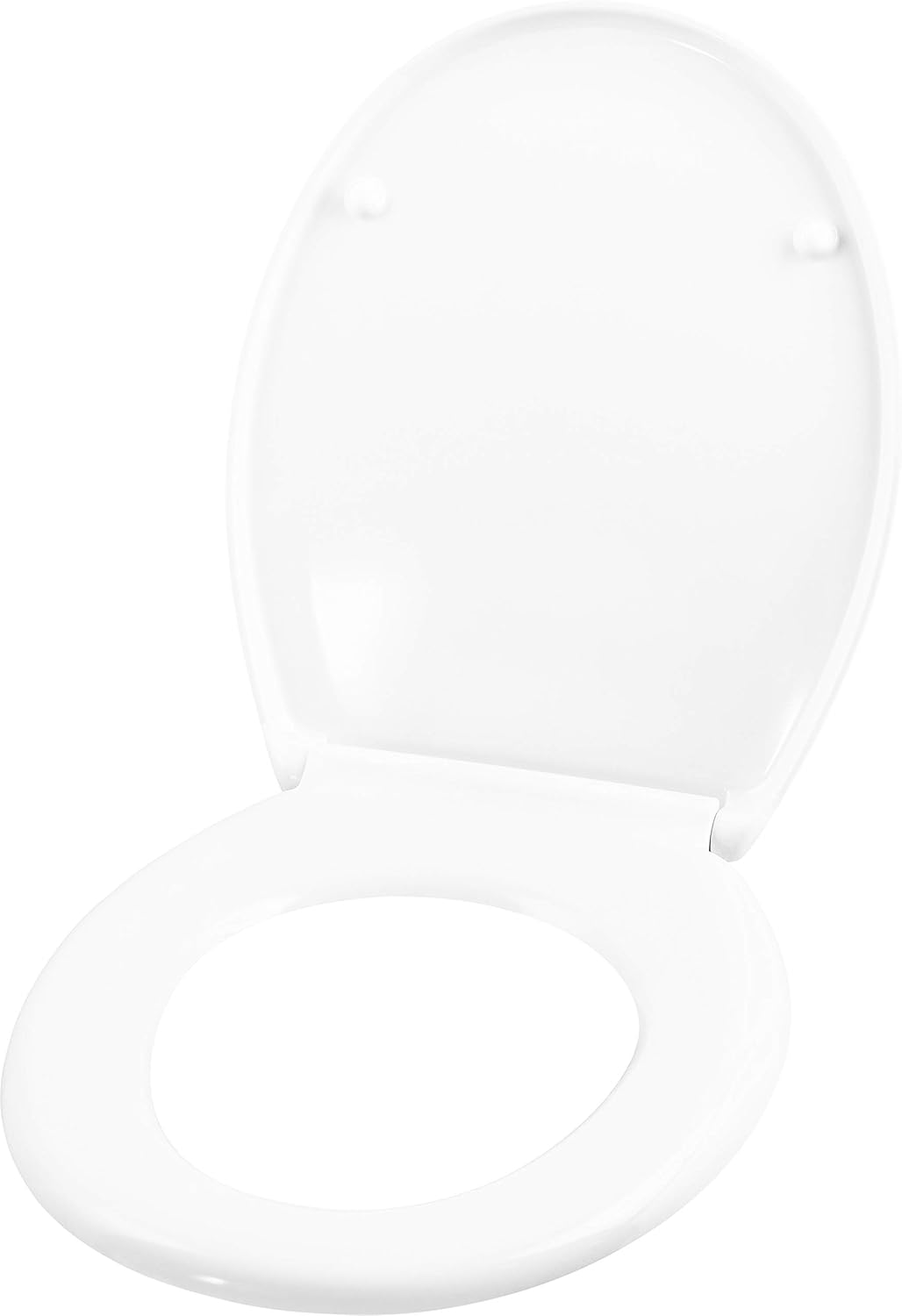

Выява: Уверсе view of the Cornat Tarox Plus toilet seat with the lid open, ready for use, highlighting the smooth design.

Quick Up & Clean Function:

For thorough cleaning of the toilet bowl and seat, the Quick Up & Clean function allows for easy removal of the entire seat. Locate the release buttons (usually near the hinges) and press them simultaneously. Gently lift the toilet seat straight up from the hinges. To reattach, align the seat with the hinge pins and press down until it clicks securely into place.

7. Тэхнічнае абслугоўванне і ачыстка

Regular cleaning will maintain the hygiene and appearance of your toilet seat.

• Штодзённая ўборка: Use a soft cloth with mild soap and water. Wipe the entire surface of the seat and lid.
• Глыбокая ачыстка: Utilize the Quick Up & Clean function to remove the seat. Clean the hinges and the area around the mounting holes on the toilet bowl.
• Зацверджаныя ачышчальнікі: The Duroplast material is resistant to many common disinfectants and detergents. However, avoid abrasive cleaners, scouring pads, or strong acid/alkaline solutions, as these can damage the surface finish.
• Сушка: Always dry the seat and hinges thoroughly after cleaning to prevent water spots and maintain hinge integrity.

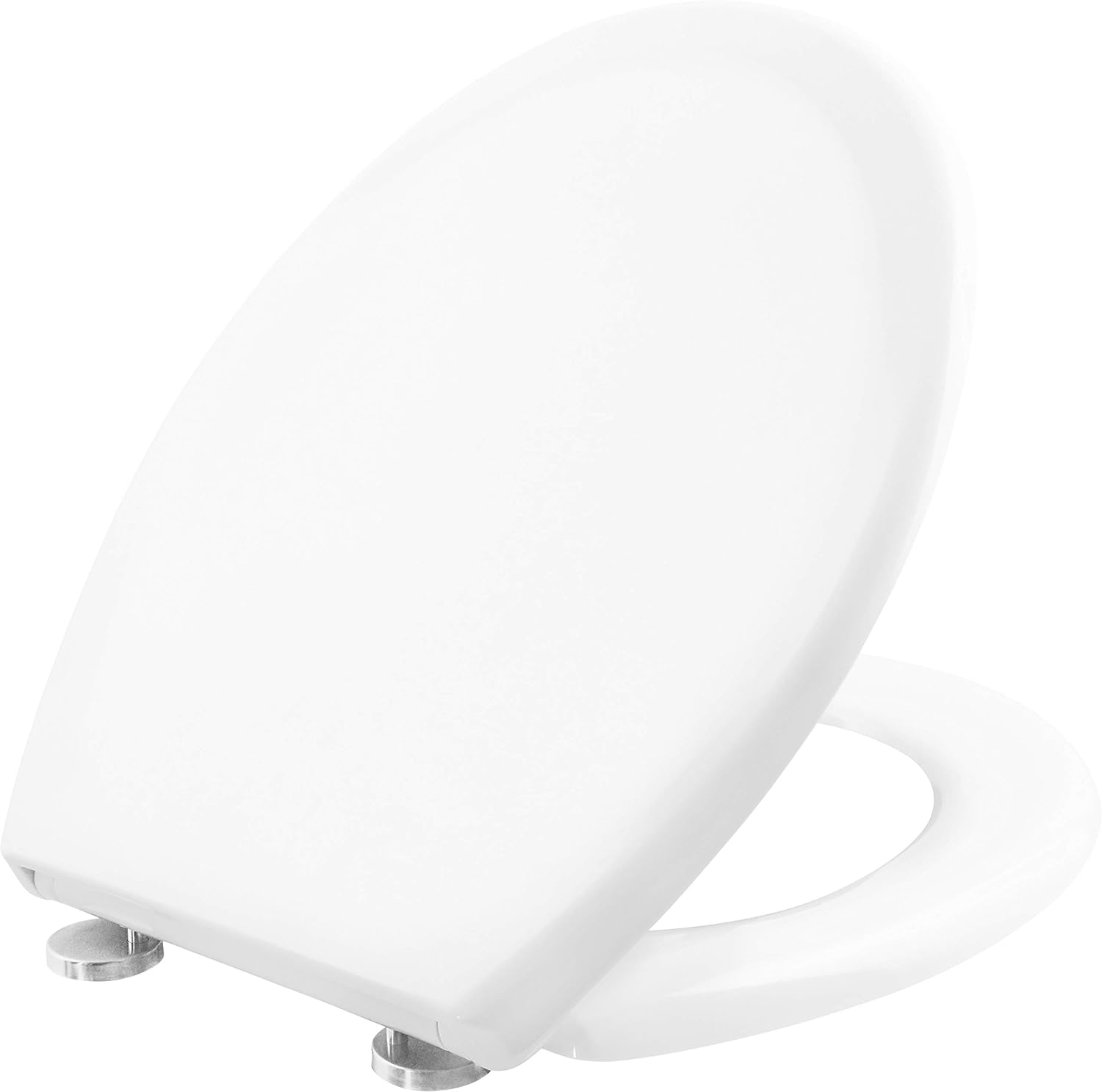

Выява: Уверсе view of the Cornat Tarox Plus toilet seat with the lid closed, showcasing its classic white design.

8. Выпраўленне непаладак

If you encounter any issues with your Cornat Tarox Plus toilet seat, refer to the following common solutions:

9. Тэхнічныя характарыстыкі

10. Гарантыя і падтрымка

For warranty information or technical support, please refer to the purchase documentation or contact Cornat customer service directly. Keep your proof of purchase for any warranty claims.

Вытворца: Conmetall Meister GmbH
