HDWR HD6600 Pocket 1D/2D Barcode Scanner User Manual

1. Прадукт скончыўсяview

The HDWR HD6600 is a compact, portable 1D/2D barcode scanner designed for efficiency and convenience. Its ergonomic design, resembling a car key, makes it easy to carry and use in various environments. This device supports both 1D and 2D barcode types, including QR codes, and offers flexible connectivity options.

Асноўныя характарыстыкі:

• Кампактны і партатыўны: Designed for easy handling and pocket storage, optimizing space in any workplace.
• Dual Wireless Communication: Connects via radio using the included USB micro-receiver or via Bluetooth.
• Integrated Memory: Stores up to 5000 standard codes for later transmission, enhancing operational flexibility.
• Універсальнае сканаванне: Capable of high-quality reading for 1D and 2D barcodes, including QR codes, even if they are difficult to read or damaged.
• Простае кіраванне: Features an illuminated scan button and an on/off button for straightforward use.

Малюнак 1: Спераду view of the HDWR HD6600 barcode scanner, showing the scan and function buttons.

2. Змесціва ўпакоўкі

Праверце, ці ёсць усе прадметы ў вашай упакоўцы:

• HDWR HD6600 Barcode Scanner
• USB-кабель для зарадкі
• USB Micro-Receiver (for radio communication)
• Кіраўніцтва карыстальніка (гэты дакумент)

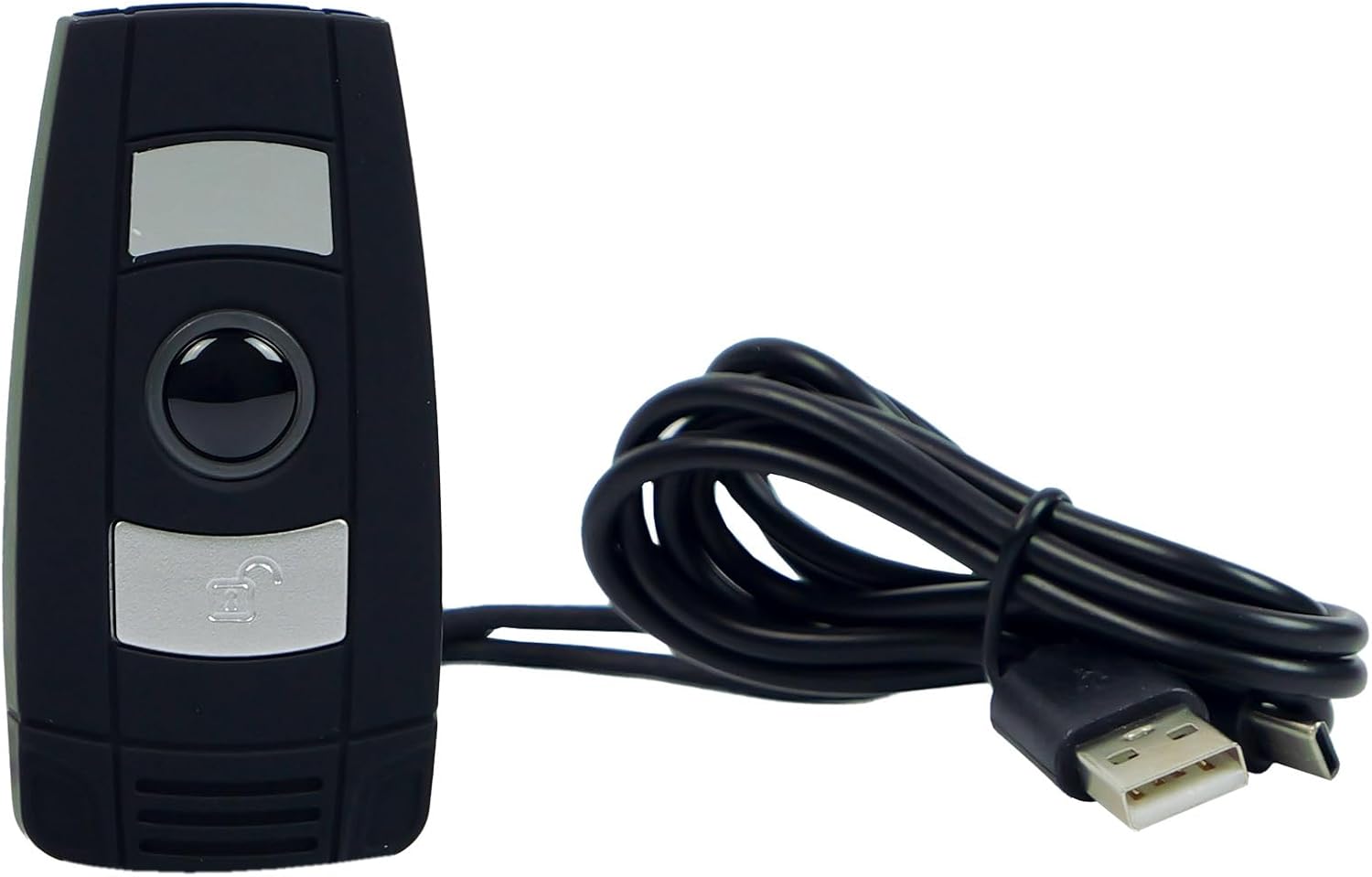

Figure 2: The HDWR HD6600 barcode scanner shown with its USB charging cable.

3. Пачатковая налада

3.1 Зарадка прылады

Before first use, fully charge the scanner. Connect the provided USB charging cable to the scanner's USB-C port and to a power source (e.g., computer USB port or USB wall adapter). The charging indicator light will show the charging status.

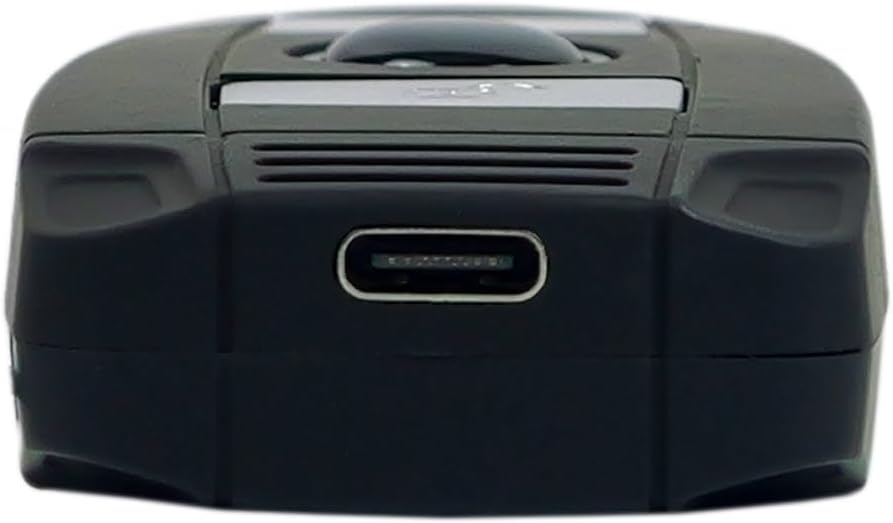

Figure 3: The USB-C charging port located at the bottom of the scanner.

3.2 Уключэнне/выключэнне

To power on the scanner, press and hold the On/Off button until the indicator light illuminates. To power off, press and hold the On/Off button again until the indicator light turns off.

3.3 Падключэнне да прылады

The HD6600 offers two primary connection methods:

3.3.1 USB Micro-Receiver (Radio Communication)

1. Plug the USB micro-receiver into an available USB port on your computer or host device.
2. The scanner will automatically attempt to pair with the receiver. A successful connection is indicated by a specific sound or light pattern (refer to device indicators).

3.3.2 Сувязь Bluetooth

1. Пераканайцеся, што сканер уключаны.
2. To switch to Bluetooth mode, press and hold the scan button for 8 seconds. The scanner will emit a sound or show a light pattern indicating it is in Bluetooth pairing mode.
3. On your host device (computer, tablet, smartphone), enable Bluetooth and search for available devices.
4. Select "HD6600" from the list of found devices to pair.
5. Пасля спалучэння сканер гатовы да выкарыстання.

4. Інструкцыя па эксплуатацыі

4.1 Сканіраванне штрых-кодаў

Каб сканаваць штрых-код:

1. Point the scanner's lens at the barcode you wish to read.
2. Press the illuminated scan button.
3. A successful scan will be indicated by a beep and/or a green light. The scanned data will be transmitted to your connected device.

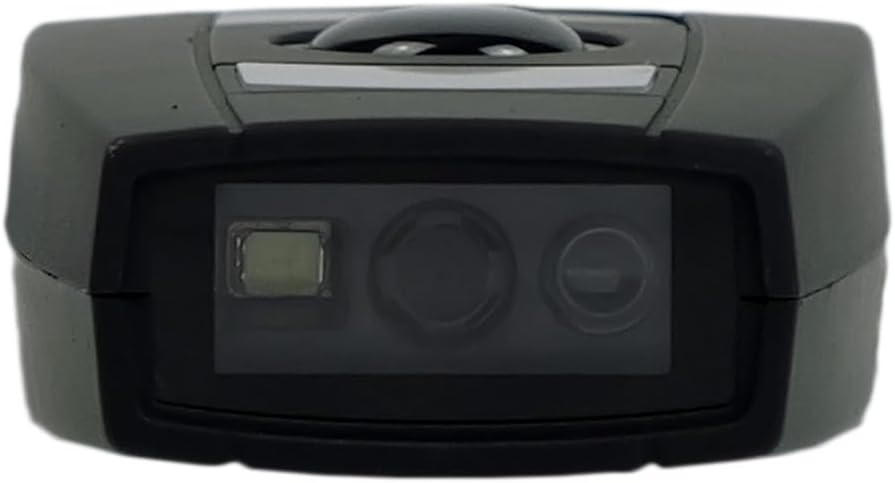

Figure 4: The scanning lens of the HDWR HD6600 barcode scanner.

4.2 Using Integrated Memory

The HD6600 can store up to 5000 standard barcodes when not connected or when operating in inventory mode. To retrieve stored data, connect the scanner to your host device and follow the instructions for data transfer (usually by scanning a specific function code or entering a data upload mode).

4.3 Switching Communication Modes

To switch between radio (USB micro-receiver) and Bluetooth communication modes, press and hold the scan button for 8 seconds. The scanner will confirm the mode change with an audible alert or indicator light change.

5. Догляд і абслугоўванне

• Уборка: Use a soft, dry cloth to clean the scanner's exterior. For the scanning lens, use a lens cleaning cloth and solution. Avoid abrasive cleaners or solvents.
• захоўванне: Store the scanner in a cool, dry place away from direct sunlight and extreme temperatures. The maximum storage temperature is 60 degrees Celsius.
• акумулятар: The device contains a Lithium-ion battery. Do not attempt to replace the battery yourself. Dispose of the device according to local regulations for electronic waste.
• Абарона: While durable, avoid dropping the scanner or exposing it to excessive moisture or dust.

6. Выпраўленне непаладак

7. Тэхнічныя характарыстыкі

8. Інфармацыя аб гарантыі

The HDWR HD6600 barcode scanner comes with a Гарантыя 2 год from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper maintenance. Please retain your proof of purchase for warranty claims.

9. Падтрымка кліентаў

For further assistance, technical support, or warranty inquiries, please contact HDWR customer service. Refer to the product packaging or the official HDWR webсайт для атрымання самай актуальнай кантактнай інфармацыі.

Інтэрнэт-рэсурсы: Visit the official HDWR website for FAQs, updated drivers, and additional support materials.
