XtremepowerUS All-Terrain Track Barrow Instruction Manual

1. Уводзіны

This manual provides detailed instructions for the safe and efficient operation, maintenance, and troubleshooting of your XtremepowerUS All-Terrain Track Barrow. This gas-powered utility cart is designed for moving various materials across challenging terrains, offering superior maneuverability and stability. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage.

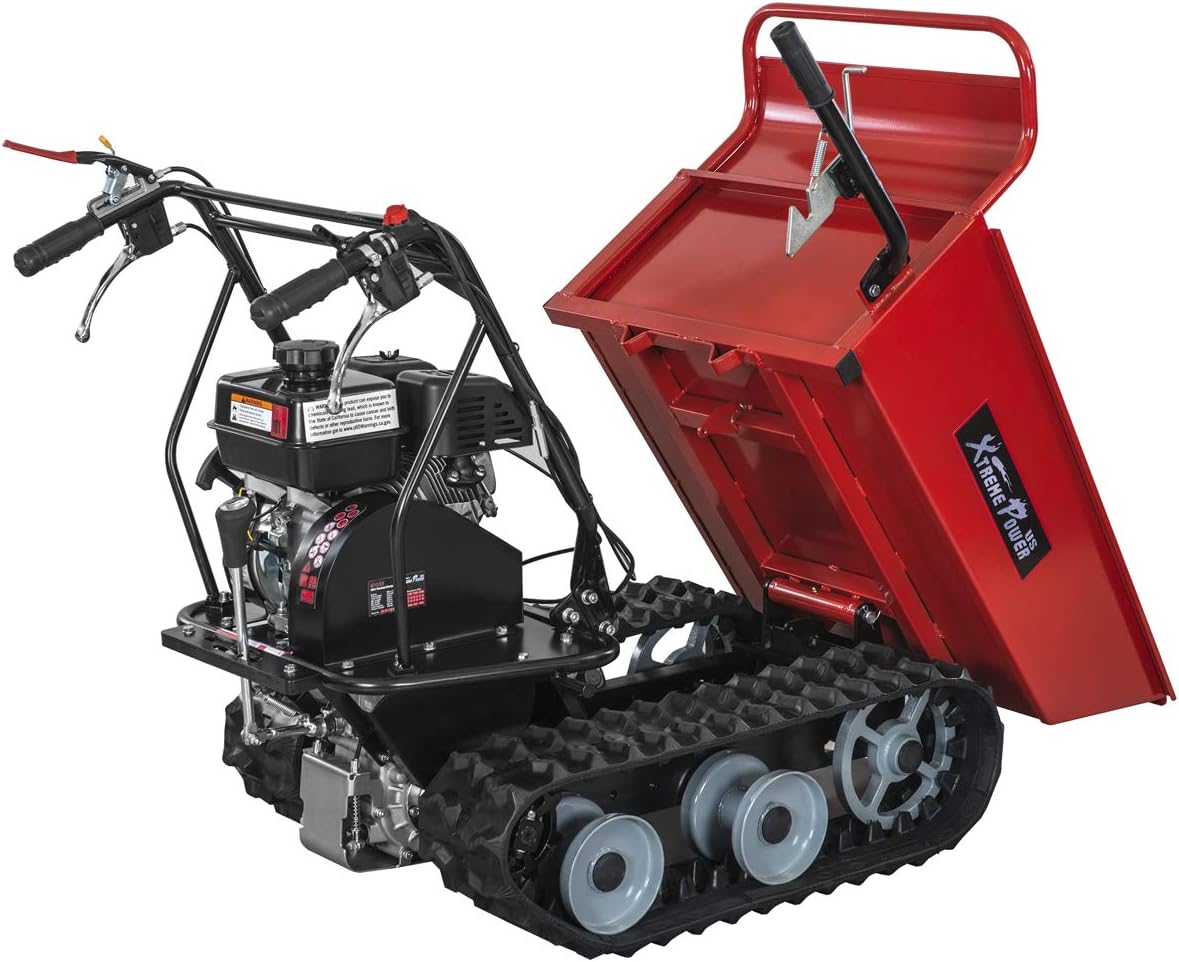

Малюнак 1.1: Пярэдні бок view of the XtremepowerUS All-Terrain Track Barrow, showcasing its robust design and track system.

2. Інфармацыя па бяспецы

Your safety and the safety of others are paramount. Always follow these safety guidelines to reduce the risk of injury or property damage.

Агульныя меры бяспекі

• Прачытайце ўсю інструкцыю: Understand all instructions and warnings before operating the track barrow.
• Сродкі індывідуальнай абароны (СІЗ): Always wear appropriate safety gear, including safety glasses, hearing protection, sturdy footwear, and gloves.
• Працоўная зона: Operate the machine in a well-lit, clear area. Keep bystanders, children, and pets away from the operating zone.
• Бяспека паліва: Handle gasoline with extreme care. Store fuel in approved containers in a well-ventilated area away from ignition sources. Never refuel a hot or running engine.
• Выхлапныя газы: The engine produces carbon monoxide, a colorless, odorless, poisonous gas. Operate only in well-ventilated outdoor areas.
• Рухомыя часткі: Keep hands, feet, and clothing away from all moving parts, especially the tracks and engine components.
• Грузападымальнасць: Do not exceed the maximum weight capacity of 660 lbs (300 kg). Overloading can lead to loss of control and damage.
• Схілы: Exercise extreme caution when operating on slopes. Always operate across slopes when possible, and avoid steep inclines that could cause tipping.
• Аварыйная прыпынак: Familiarize yourself with the location and operation of the engine kill switch and the instant stop feature (release of drive handle).

3. Усталёўка і перадпрацоўная праверка

The XtremepowerUS All-Terrain Track Barrow (Model 61035) requires no assembly. However, before each use, perform the following checks to ensure safe and optimal performance.

Першапачатковы агляд

• Распакаванне: Carefully remove the track barrow from its packaging. Inspect for any shipping damage.
• Зашпількі: Праверце ўсе гайкі, балты і шрубы на шчыльнасць зацягвання. Падцягніце ўсе аслабленыя крапежныя элементы.
• элементы кіравання: Ensure all control levers and cables operate smoothly and return to their neutral positions.

Узроўні вадкасці

• Маторны алей: Check the engine oil level using the dipstick. Add recommended engine oil if necessary. Refer to the Kohler engine manual for specific oil type and capacity.
• Паліва: Fill the fuel tank with fresh, unleaded gasoline. Do not overfill. Ensure the fuel cap is securely tightened.

4. Інструкцыя па эксплуатацыі

Перад запускам рухавіка азнаёмцеся з элементамі кіравання і працэдурамі эксплуатацыі.

Кантроль надview

Малюнак 4.1: Верх view of the control panel, highlighting the engine switch, throttle lever, choke, fuel valve lever, and recoil starter.

• Выключальнік рухавіка: ON/OFF switch for the engine.
• Рычаг дросельнай засланкі: Кантралюе абароты рухавіка.
• дросель: Выкарыстоўваецца для запуску халоднага рухавіка.
• Рычаг паліўнага клапана: Рэгулюе падачу паліва ў рухавік.
• Адкатны стартар: Manual pull-start for the engine.
• Drive Handles: Engage the tracks for movement. Releasing them activates an instant stop.
• Пераключальнік перадач: Allows selection of 3 forward speeds and 1 reverse speed.
• Hopper Release Lever: Engages the dumping mechanism for the hopper.

Engine Starting Procedure

Image 4.2: Engine starting instructions for cold and warm engines.

1. Move the fuel valve lever to the ON становішча.
2. To start a ХАЛОД engine, move the choke to the ЗАКРЫЦЬ position. To restart a ЦЁПЛЫ engine, leave the choke lever in the АДКРЫТАЯ становішча.
3. Move the throttle lever away from the ПАВОЛЬНА position, approximately 1/3 of the way toward the ХУТКА становішча.
4. Павярніце перамыкач рухавіка ў становішча ON становішча.
5. Pull the recoil starter firmly until the engine starts.
6. Once the engine starts, gradually move the choke to the АДКРЫТАЯ position (if started cold).

Driving and Maneuvering

• Engaging Drive: With the engine running, select the desired gear (1, 2, 3 for forward, or R for reverse) using the gear selector. Gently squeeze the drive handles to engage the tracks.
• Кантроль хуткасці: Adjust the throttle lever to control the engine speed and thus the travel speed.
• Паварот: The track barrow features a zero-turn radius. To turn, apply pressure to one drive handle while releasing the other slightly, or use the steering levers if equipped. Practice in an open area.
• Прыпынак: Release both drive handles to engage the instant stop mechanism. For complete shutdown, turn the engine switch to ВЫКЛ and move the fuel valve lever to ВЫКЛ.

Пагрузка і разгрузка

• Загрузка: Ensure the track barrow is on stable, level ground before loading materials into the hopper. Distribute the load evenly.
• Выгрузка: Position the track barrow at the desired dump location. Engage the hopper release lever to tilt the hopper and unload the material.

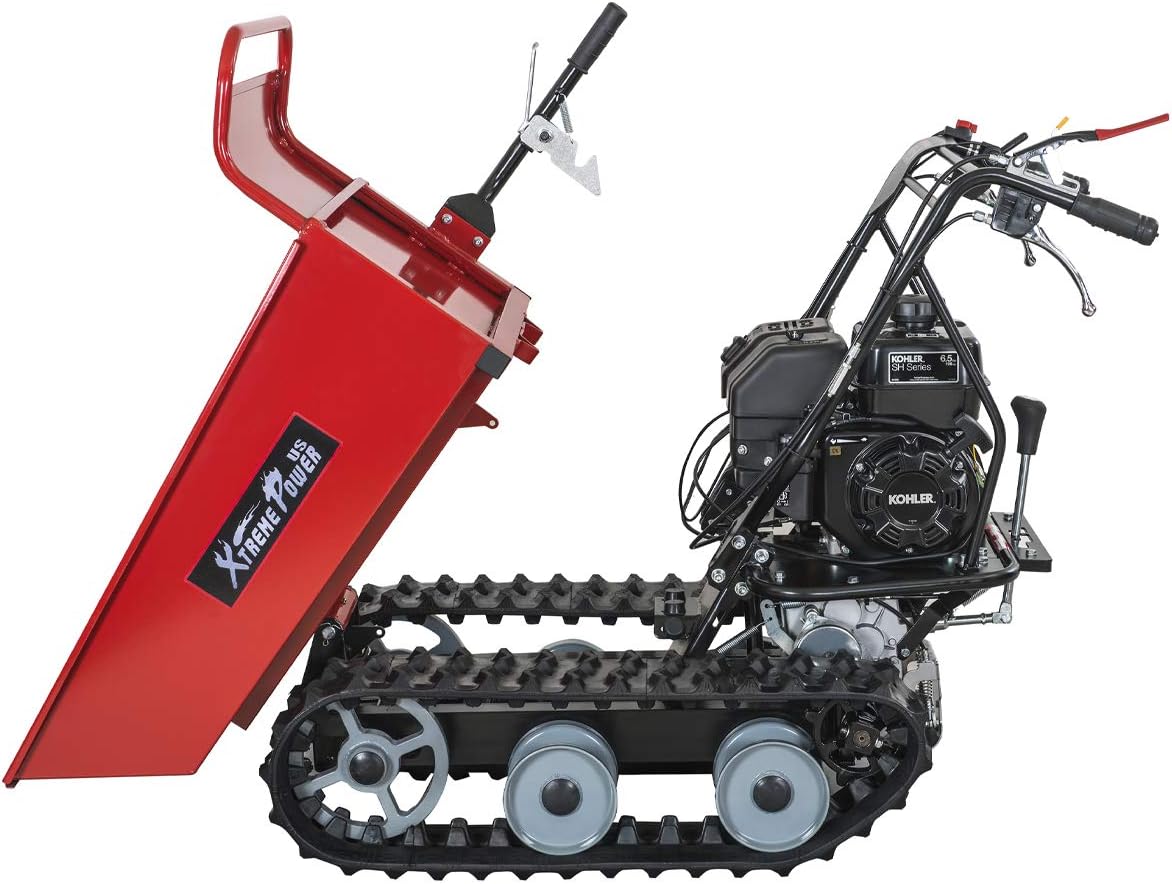

Image 4.3: The track barrow with its hopper in the raised, dumping position.

5. Тэхнічнае абслугоўванне

Regular maintenance is crucial for the longevity and safe operation of your track barrow. Always perform maintenance with the engine off and cool, and the fuel valve in the OFF position.

Планавыя праверкі

• Перад кожным выкарыстаннем: Check engine oil and fuel levels. Inspect tracks for damage or excessive wear. Verify all controls operate freely.
• Пасля кожнага выкарыстання: Clean the machine, especially the tracks and hopper, to remove dirt, debris, and corrosive materials.
• Перыядычна: Check all fasteners (nuts, bolts, screws) for tightness. Tighten as needed. Inspect cables and linkages for wear or damage.

Тэхнічнае абслугоўванне рухавікоў

Refer to the separate Kohler engine owner's manual for detailed maintenance schedules and procedures, including:

• Замена алею
• Ачыстка/замена паветранага фільтра
• Spark plug inspection/replacement
• Абслугоўванне паліўнай сістэмы

Малюнак 5.1: ззаду view of the track barrow, showing the Kohler engine.

Тэхнічнае абслугоўванне дарожкі

• Inspect tracks for cuts, tears, or excessive wear.
• Ensure track tension is correct. Refer to the service section for adjustment procedures if available.
• Clean debris from around the tracks and rollers regularly.

Малюнак 5.2: Ніжні бок view of the track system.

Захоўванне

When storing the track barrow for extended periods:

• Старанна ачысціце ўсю машыну.
• Drain the fuel tank or add a fuel stabilizer.
• Замяніць маторнае масла.
• Захоўваць у сухім, абароненым месцы, удалечыні ад прамых сонечных прамянёў і экстрэмальных тэмператур.

6. Выпраўленне непаладак

This section provides solutions to common operational issues. For problems not listed here or if solutions do not resolve the issue, contact customer support.

7. Тэхнічныя характарыстыкі

Key technical specifications for the XtremepowerUS All-Terrain Track Barrow, Model 61035.

Image 7.1: Product specifications chart for Model 61035.

8. Гарантыя і падтрымка

For warranty information, technical assistance, or to inquire about replacement parts, please contact XtremepowerUS customer support. Keep your purchase receipt and model number (61035) readily available when contacting support.

Падтрымка кліентаў: Refer to the XtremepowerUS official webна сайце або ў дакументацыі па куплі, каб атрымаць найноўшую кантактную інфармацыю.
