Profi-Care PC-BS 3085 Cordless Vacuum Cleaner User Manual

Уводзіны

Thank you for choosing the Profi-Care PC-BS 3085 Cordless Handheld and Stick Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read these instructions thoroughly before first use and keep them for future reference.

Інструкцыі па тэхніцы бяспекі

Заўсёды выконвайце асноўныя меры бяспекі пры выкарыстанні электрапрыбораў, каб знізіць рызыку пажару, паражэння электрычным токам або траўмаў. Гэты прыбор прызначаны толькі для хатняга выкарыстання.

• Не выкарыстоўвайце пыласос на вуліцы або на мокрых паверхнях.
• Do not allow children to operate the appliance. Close supervision is necessary when used near children.
• Не збірайце лёгкаўзгаральныя або гаручыя вадкасці, такія як бензін, і не выкарыстоўвайце іх у месцах, дзе яны могуць прысутнічаць.
• Не падбірайце нічога, што гарыць або дыміцца, напрыклад, цыгарэты, запалкі або гарачы попел.
• Не выкарыстоўвайце без пылазборніка і фільтра на месцы.
• Turn off the appliance before connecting or disconnecting the motorized brush, attachments, or charging.
• Use only the charger supplied by the manufacturer to recharge the appliance.
• Захоўвайце прыладу ў сухім памяшканні.

Прадукт скончаныview і змест пакета

The Profi-Care PC-BS 3085 is a versatile 2-in-1 cordless vacuum cleaner, functioning as both a stick vacuum and a handheld unit. It features a powerful lithium-ion battery for flexible cleaning.

Малюнак 1: The Profi-Care PC-BS 3085 in its full stick vacuum configuration, ready for floor cleaning. It features a gray and blue design with a transparent dustbin.

Малюнак 2: Надview of the Profi-Care PC-BS 3085 components and key features. It highlights the 2-in-1 functionality (handheld and stick), Turbo Rotation for extra suction with the electric rotating floor brush, flexible/extendable suction hose, LED lighting for dark areas, and an extra-long crevice nozzle.

Змест пакета:

• Main unit (handheld vacuum)
• Падаўжальная трубка
• Electric rotating floor brush with LED lighting
• 2-in-1 upholstery/brush nozzle
• Вельмі доўгая шчылінная насадка
• Flexible/extendable suction hose (approx. 40-150 cm)
• Wall mount with integrated charging function
• Адаптар харчавання
• Кіраўніцтва па эксплуатацыі

Малюнак 3: Close-up of the 2-in-1 upholstery/brush nozzle and the extra-long crevice nozzle, essential accessories for detailed cleaning.

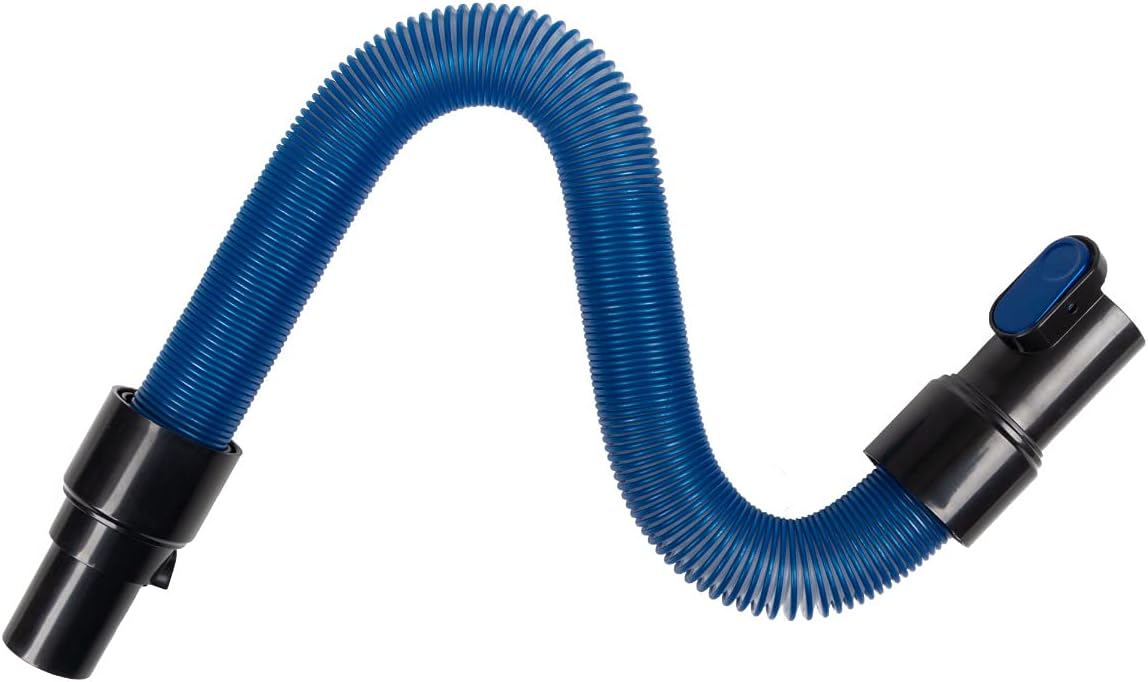

Малюнак 4: The flexible and extendable suction hose, designed for reaching difficult areas and enhancing versatility.

Настройка

зборка:

1. Прымацуйце падаўжальную трубку: Align the extension tube with the main handheld unit and push until it clicks securely into place.
2. Прымацуеце шчотку для падлогі: Connect the electric rotating floor brush to the other end of the extension tube, ensuring it locks firmly.
3. Усталяваць насценнае мацаванне: Choose a suitable location for the wall mount. Ensure it is near a power outlet. Secure the wall mount to the wall using appropriate screws and anchors (not included).

Зарадка акумулятара:

Before first use, fully charge the vacuum cleaner for approximately 4-5 hours. The appliance uses a 25.9 V (2200 mAh) lithium-ion battery.

1. Connect the power adapter to the wall mount's charging port.
2. Place the assembled vacuum cleaner onto the wall mount. Ensure the charging contacts align.
3. 4-яtage LED charging indicator on the main unit will illuminate to show the charging status. All LEDs will be lit when fully charged.

Малюнак 5: The charging base and power adapter, used to recharge the vacuum cleaner's battery.

Малюнак 6: This image illustrates the practical wall mount with integrated charging function, the integrated ECO mode for extended battery life, and the 4-stage LED charging status indicator.

Інструкцыя па эксплуатацыі

Powering On/Off and Suction Control:

1. Press the power button once to turn on the vacuum cleaner. It will start in standard suction mode.
2. Press the power button a second time to switch to the higher power mode.
3. Press the power button a third time to turn off the vacuum cleaner.
4. Рэжым ECO: For longer battery life, activate the ECO mode. Refer to the specific button on your unit for this function (as shown in Image 6).

Выкарыстанне ў якасці пыласоса:

With the extension tube and electric rotating floor brush attached, the PC-BS 3085 is ideal for cleaning floors.

• The electric rotating floor brush provides deep cleaning for various floor types.
• The integrated LED lighting on the floor brush illuminates darker areas, making dust and debris more visible.
• The double 180° swivel joint allows for optimal maneuverability around furniture and obstacles.

Выкарыстанне ў якасці ручнога пыласоса:

Detach the extension tube and floor brush to use the main unit as a handheld vacuum for versatile cleaning.

Малюнак 7: The Profi-Care PC-BS 3085 configured as a handheld vacuum, shown with the crevice tool attached, ideal for tight spaces.

• Укладанні: Use the 2-in-1 upholstery/brush nozzle for furniture, upholstery, and curtains. The extra-long crevice nozzle is perfect for narrow gaps and corners.
• Гнуткі ўсмоктвальны шланг: Attach the flexible hose to the handheld unit for extended reach and cleaning awkward spaces, such as car interiors.

Малюнак 8: A user cleaning a car interior with the Profi-Care PC-BS 3085 handheld vacuum and the flexible suction hose, demonstrating its versatility for automotive cleaning.

Тэхнічнае абслугоўванне

Рэгулярнае тэхнічнае абслугоўванне забяспечвае аптымальную прадукцыйнасць і падаўжае тэрмін службы вашага пыласоса.

Ачыстка сметніцы:

The PC-BS 3085 features bagless stainless steel filter technology. Empty the dustbin regularly, especially when it reaches the MAX fill line.

1. Пераканайцеся, што пыласос выключаны.
2. Press the dustbin release button (usually located near the dustbin) to detach it from the main unit.
3. Hold the dustbin over a trash can and press the bottom release button to open the flap and empty the contents.
4. Close the flap and reattach the dustbin to the main unit, ensuring it clicks securely.

Ачыстка фільтра:

The stainless steel filter should be cleaned periodically to maintain suction power.

1. With the dustbin detached, carefully remove the filter assembly.
2. Акуратна пастукайце фільтрам па смеццевым вядры, каб выдаліць пыл.
3. Пры неабходнасці прамыйце фільтр пад халоднай праточнай вадой. Перад зборкай пераканайцеся, што ён цалкам высах. Не выкарыстоўвайце мыйныя сродкі або гарачую ваду.
4. Reinsert the dry filter into the dustbin and reattach the dustbin to the main unit.

Cleaning the Floor Brush:

Hair and debris can get tangled in the rotating brush. Clean it regularly.

1. Turn off the vacuum cleaner and detach the floor brush from the extension tube.
2. Use scissors or a brush to carefully remove any tangled hair or fibers from the brush roll.
3. Працярыце корпус шчоткі рэкламайamp тканіна, калі гэта неабходна.

Сыход за батарэяй:

• Пазбягайце поўнай разрадкі акумулятара перад зарадкай.
• Захоўвайце пыласос у прахалодным сухім месцы, калі ён не выкарыстоўваецца.
• If storing for an extended period, charge the battery to about 50% and recharge every few months to prevent deep discharge.

Ліквідацыю непаладак

If you encounter issues with your Profi-Care PC-BS 3085, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Profi-Care customer support.

Тэхнічныя характарыстыкі

Малюнак 9: Detailed dimensions of the Profi-Care PC-BS 3085 main unit, showing measurements of 400mm in height, 120mm in depth, and 240mm in width.

Гарантыя і падтрымка

PROFI CARE products are manufactured with care and undergo strict quality controls. This product is covered by a manufacturer's warranty in accordance with local regulations. Please retain your proof of purchase for any warranty claims.

For technical support, spare parts, or warranty inquiries, please contact your retailer or the official PROFI CARE customer service. Contact details can typically be found on the product packaging or the official PROFI CARE webсайт.

Please note that the warranty may not cover damage caused by improper use, neglect, unauthorized repairs, or normal wear and tear.
