Vividia VS-749 All-in-One Pipe Sewer Drain Tube Video Inspection Camera User Manual

1. Прадукт скончыўсяview

The Vividia VS-749 is a comprehensive video inspection system designed for examining pipes, drains, sewers, ducts, chimneys, and other enclosed spaces. Its all-in-one compact design ensures portability and durability for various professional applications.

Figure 1: Vividia VS-749 All-in-One Pipe Inspection Camera system.

Асноўныя характарыстыкі:

• All-in-One Compact Design: Portable and robust for demanding environments.
• Long Push-Rod Cable: 40 meters (131 feet) fiberglass cable for extended reach.
• Waterproof Camera Head: 23mm diameter camera with Sony CCD sensor and 480P resolution.
• 7-цалевы ВК-манітор: Для ясна viewing of inspections.
• Магчымасць запісу: Capture pictures and videos, saved to an SD card.
• Яркае святлодыёднае асвятленне: Adjustable LED lights on the camera head.
• Meter Counter: Built-in counter to track cable insertion distance.

2. Змесціва ўпакоўкі

Перад тым, як працягнуць усталёўку, пераканайцеся, што ўсе прадметы ёсць у камплекце.

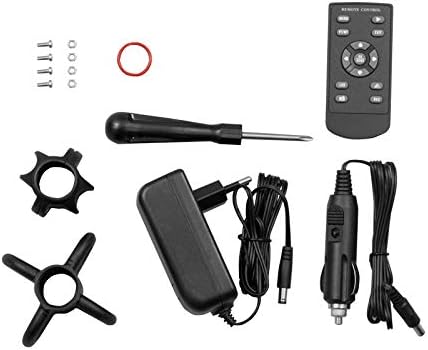

Figure 2: Included accessories for the Vividia VS-749 system.

• VS-749 Control Box with 7" LCD Monitor and Keyboard
• Fiberglass Push-Rod Cable Reel with 23mm Camera Head
• Адаптар сілкавання
• Аўтамабільная зарадная прылада
• Пульт дыстанцыйнага кіравання
• Адвёртка
• Skids (various sizes)
• Злучальны кабель
• Кіраўніцтва карыстальніка (гэты дакумент)

3. Інструкцыі па ўсталёўцы

Follow these steps to set up your Vividia VS-749 inspection camera.

3.1 Пачатковая зборка

1. Распакуйце кампаненты: Акуратна дастаньце ўсе кампаненты з упакоўкі.
2. Мантаж блока кіравання: Place the control box securely onto the cable reel frame. Ensure it clicks into place or is fastened according to the design.


   Figure 3: Control box mounted on the cable reel frame.

3. Connect Camera Cable: Connect the camera cable from the reel to the designated port on the control box. Ensure a secure connection.
4. Уключэнне: Connect the power adapter or car charger to the control box and a power source. Press the power button to turn on the system.
5. Устаўце SD-карту: Locate the SD card slot on the control box and insert a compatible SD card for recording.

3.2 Attaching Skids (Optional)

Skids can be attached to the camera head to protect it and help center it within larger pipes, improving visibility and maneuverability.

1. Select the appropriate skid size for the pipe diameter.
2. Carefully attach the skid to the camera head by screwing it on or snapping it into place, ensuring it is firm and secure.


   Figure 4: Various skids for the camera head.

4. Інструкцыя па эксплуатацыі

This section details the operation of the Vividia VS-749 inspection camera.

4.1 Асноўныя аперацыі

1. Уключэнне: Press the green power button on the control panel to turn on the monitor.
2. Дысплей манітора: The 7-inch LCD monitor will display the live feed from the camera.
3. Cable Deployment: Slowly push the fiberglass cable into the pipe or area to be inspected. The built-in meter counter will display the inserted distance.
4. Адрэгулюйце святлодыёдныя ліхтары: Use the LED brightness control buttons on the control panel to adjust the illumination level of the camera head. Increase brightness in dark environments and decrease to avoid glare.

4.2 Recording Photos and Videos

The system supports one-touch video/audio recording and image capture, saving files to the inserted SD card.

1. Зрабіць фота: Press the "Photo" button (usually indicated by a camera icon) to capture a still image.
2. Пачаць/спыніць відэазапіс: Press the "Record" button (usually indicated by a red dot or REC icon) to start video recording. Press it again to stop.
3. Прайграванне: Адкрыйце меню прайгравання, каб перазагрузіцьview зробленыя фота і відэа.

4.3 Функцыя маштабавання

The system features an 8-level digital zoom function to magnify the live image or recorded media.

1. Use the "Zoom In" and "Zoom Out" buttons on the control panel to adjust the magnification.

4.4 Self-Leveling Camera Head

The 23mm camera head features a self-leveling function, ensuring the image remains upright regardless of the camera's rotation within the pipe.

4.5 Sonde Transmitter (Optional)

If equipped with the optional 512Hz Sonde transmitter, a compatible locator (sold separately) can be used to pinpoint the camera's exact location underground or within walls.

5. Тэхнічнае абслугоўванне

Proper maintenance ensures the longevity and optimal performance of your Vividia VS-749.

5.1 Ачыстка

• Галоўка камеры: After each use, gently clean the camera lens and housing with a soft, damp тканіна. Пазбягайце абразіўных матэрыялаў або агрэсіўных хімічных рэчываў.
• Кабель: Wipe down the fiberglass cable with a damp cloth to remove dirt and debris before coiling it back onto the reel.
• Monitor and Control Box: Use a soft, dry cloth to clean the monitor screen and control panel.

5.2 Replacing Camera Covers

The camera covers are replaceable to maintain optimal image clarity and protection.

1. Unscrew the old camera cover from the camera head.
2. Carefully place a new, clean camera cover onto the camera head and screw it on until secure. Do not overtighten.


   Figure 5: Replacing the protective camera cover.

5.3 Захоўванне

Store the system in its original waterproof carrying case in a cool, dry place when not in use.

6. Выпраўленне непаладак

Звярніцеся да гэтага раздзела, каб даведацца пра распаўсюджаныя праблемы і іх рашэнні.

7. Тэхнічныя характарыстыкі

8. Гарантыя і падтрымка

For warranty information, please refer to the documentation provided with your purchase or contact the seller directly. For technical support or inquiries, please contact Oasis Scientific Inc.

• Прадавец: Кампанія Oasis Scientific Inc.
• Крама Amazon: VIVIDIA Store on Amazon
