1. Уводзіны
This manual provides comprehensive instructions for the installation, operation, and maintenance of the FTVOGUE A2-8015 Variable Frequency Drive (VFD). The A2-8015 is a high-performance inverter designed for precise motor speed control, offering high torque, accuracy, and a wide speed regulation range. It is suitable for various industrial applications requiring efficient and reliable motor management.
2. Інфармацыя па бяспецы
ПАПЯРЭДЖАННЕ: Improper installation or operation can result in serious injury or equipment damage. Read this manual thoroughly before installation and operation.
- Перад тым, як праводзіць якія-небудзь работы па падключэнні электраправодкі або тэхнічным абслугоўваннем, пераканайцеся, што ўсё электразабеспячэнне адключана.
- Толькі кваліфікаваны персанал павінен усталёўваць, эксплуатаваць і абслугоўваць гэтую прыладу.
- Праверце ўвод тtage and current ratings match the VFD specifications.
- Ground the VFD properly to prevent electrical shock.
- Не дакранайцеся да ўнутраных кампанентаў адразу пасля выключэння харчавання, бо рэшткавая тэмператураtage можа прысутнічаць.
- Protect the VFD from moisture, dust, corrosive gases, and direct sunlight.
3. Прадукт скончыўсяview
3.1 Асаблівасці
- Constructed from industrial ABS plastic, offering heat resistance, flame retardancy, and impact safety.
- User-friendly design with a humanized keyboard and clear display for ease of operation.
- Efficient heat dissipation system featuring a large aluminum base and a powerful fan for strong airflow.
- Simple wiring and operation, ensuring quick start and stop responses.
- High precision and strong anti-interference capabilities for enhanced stability.
- Suitable for a wide range of applications including spindle motors, lathes, milling machines, pumps, treadmills, conveyors, winding machines, mixers, extruders, separators, compressors, fans, elevators, centrifuges, and other machinery.
3.2 Прадукт Views і Памеры
Figure 1: FTVOGUE A2-8015 VFD showing approximate dimensions (140mm x 115mm x 80mm).

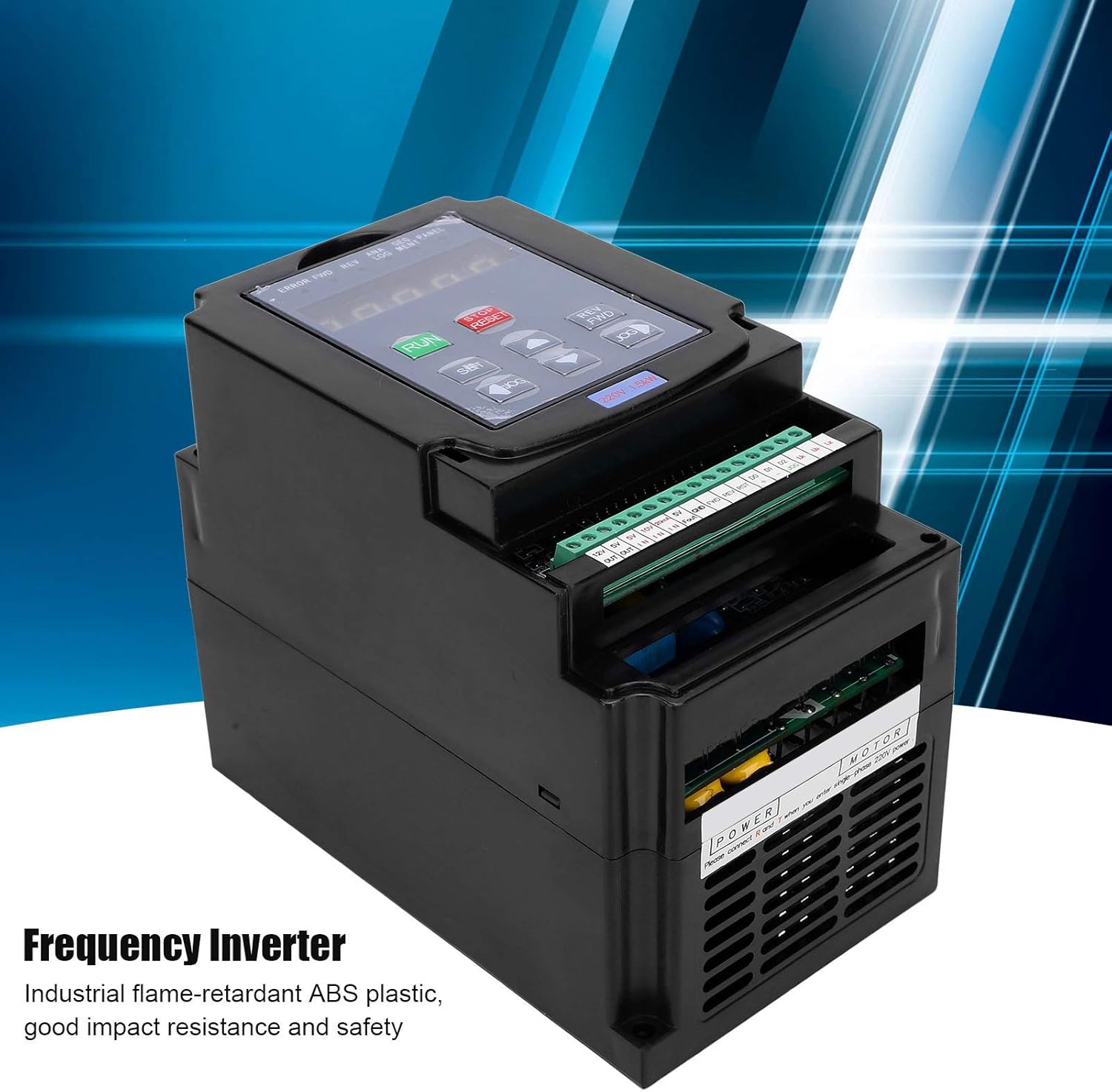

Малюнак 2: Спераду view of the FTVOGUE A2-8015 Variable Frequency Drive, highlighting its industrial design and control panel.
4. Тэхнічныя характарыстыкі
| Параметр | Каштоўнасць |
|---|---|
| мадэль | А2-8015 |
| Матэрыял | Industrial ABS Plastic Shell |
| Уваходны кнtage | 1-Phase / 3-Phase AC 180-250V |
| Уваходны ток | 7.5 А |
| Уваходная частата | 40-60 Гц |
| Выхад Voltage | 3-фазны 220 В |
| Выхадны ток | 10 А |
| Дыяпазон выхадны частоты | 0-400 Гц |
| Магутнасць | 1.5 кВт |
| Applicable Motor Voltage | 180-250 В |
| Прыблізныя памеры (Д х Ш х В) | 140 мм x 115 мм x 80 мм (5.5 x 4.5 x 3.1 цалі) |
| Вага прадмета | 1017 грам |
| Вытворца | FTVOGUE |
| Краіна паходжання | Кітай |
5. Настройка
5.1 Асяроддзе ўстаноўкі
- Install the VFD in a well-ventilated area, free from direct sunlight, excessive dust, moisture, and corrosive gases.
- Ensure adequate clearance around the unit for proper heat dissipation.
- Mount the VFD vertically on a stable, non-flammable surface.
- Дыяпазон працоўных тэмператур: ад -10°C да 40°C.
- Humidity: Less than 90% RH (non-condensing).
5.2 Інструкцыі па падключэнні
Refer to the wiring diagram below for proper electrical connections. Ensure all connections are secure and comply with local electrical codes.
Figure 3: Detailed wiring diagram for the FTVOGUE A2-8015 VFD, showing main power, motor output, and control signal connections.
Апісанні тэрміналаў:
| Назва порта | Апісанне |
|---|---|
| Р, С, Т | Three-phase 220V power input. For single-phase 220V input, connect to R and T. |
| U, V, W | Three-phase AC output ports. Connect only to pure resistance or inductance loads such as motors or electric heaters. |
| БЕГАЦЬ | Run command input. |
| РЭВ | Reverse command input. |
| СТОП | Stop command input. |
| Д0-Д2 | Multi-speed digital inputs. |
| ПРАЦЫ | Jogging command input. |
| GND | Common control signal ground. |
| 5V_IN, 10V_IN, 0-20mA_IN | External analog signal inputs (0-5V, 0-10V, 0-20mA). |
| 5V_OUT, 12V_OUT | 5V and 12V power outputs for external control components. |
| Relay Output (Normally Open/Closed) | Programmable relay output for status indication or control. |
6. Інструкцыя па эксплуатацыі
The FTVOGUE A2-8015 VFD features a user-friendly control panel for easy operation. Specific parameter settings may vary based on application requirements. Refer to the detailed programming manual (if available) for advanced configurations.
6.1 Панэль кіравання скончанаview
Малюнак 4: Зверху ўніз view of the FTVOGUE A2-8015 VFD, showing the control panel with buttons and display.
6.2 Асноўныя аперацыі
- Уключэнне: After ensuring all wiring is correct and secure, apply power to the VFD. The display will illuminate.
- Запуск рухавіка: Націсніце БЕГАЦЬ button on the control panel to start the motor.
- Адрэгуляваць хуткасць: Выкарыстоўвайце UP і УНІЗ arrow buttons to adjust the output frequency and thus the motor speed.
- Спыніць рухавік: Націсніце СТОП/СКІД кнопку, каб спыніць рухавік.
- Reverse Direction: If configured, use the РЭВ button or corresponding digital input to change the motor's rotation direction.
- Налада параметраў: Націсніце НАБОР button to enter the parameter setting mode. Use the arrow keys to navigate and adjust parameters. Press НАБОР again to confirm changes.
7. Тэхнічнае абслугоўванне
Regular maintenance ensures optimal performance and extends the lifespan of your VFD.
- Штодзённы агляд: Check for any unusual noises, vibrations, or odors. Monitor the display for error codes.
- Штотыднёвая ўборка: Keep the VFD clean and free from dust and debris. Use a soft, dry cloth. Ensure ventilation openings are clear.
- Штомесячная праверка: Inspect all wiring connections for tightness. Check for any signs of overheating or discoloration on terminals.
- Штогадовая праверка: Have a qualified technician inspect the internal components, including capacitors and cooling fans, for wear and tear.
- Кантроль навакольнага асяроддзя: Maintain the recommended operating environment to prevent premature component failure.
8. Выпраўленне непаладак
У гэтым раздзеле прыведзены рашэнні распаўсюджаных праблем. Па праблемах, якія тут не пералічаны, звярніцеся ў службу тэхнічнай падтрымкі.
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Матор не заводзіцца | No power, incorrect wiring, emergency stop active, parameter error. | Check power supply, verify wiring, release emergency stop, check motor parameters. |
| Частотны прывад адлюстроўвае код памылкі | Перагрузка па току, перагрузкаtagе, undervoltage, overheating, motor overload. | Refer to the VFD's specific error code list (not provided in this manual) for diagnosis and corrective actions. Address the underlying cause (e.g., reduce load, check input voltagе). |
| Motor speed is unstable | Poor grounding, motor parameters incorrect, external interference. | Ensure proper grounding, verify motor parameters (e.g., rated frequency, voltage), check for sources of electromagnetic interference. |
| VFD overheats | Insufficient ventilation, ambient temperature too high, VFD overloaded. | Improve ventilation, reduce ambient temperature, check motor load and VFD capacity. Clean cooling fins. |
9. Гарантыя і падтрымка
FTVOGUE products undergo strict quality control and assurance processes to ensure high safety and reliability. Specific warranty terms and conditions are typically provided at the point of purchase or with the product packaging.
For technical support, service, or warranty claims, please contact your retailer or the manufacturer directly. Ensure you have your product model number (A2-8015) and purchase details available when seeking assistance.
