LUTEC LED Wall Light with Seeded Glass, Dusk to Dawn

1. Уводзіны

This manual provides essential information for the safe installation, operation, and maintenance of your LUTEC LED Wall Light. Please read these instructions thoroughly before installation and retain them for future reference. This product is designed for both indoor and outdoor use, featuring a dusk-to-dawn sensor and seeded glass for a warm, inviting light.

2. Інфармацыя па бяспецы

• ПАПЯРЭДЖАННЕ: Рызыка паражэння электрычным токам. Адключыце сілкаванне з дапамогай засцерагальніка або аўтаматычнага выключальніка перад устаноўкай або абслугоўваннем.
• All electrical connections must be in accordance with local and National Electrical Code (NEC) standards. If you are unfamiliar with proper electrical wiring connections, consult a qualified electrician.
• Не ўсталёўвайце гэтую прыладу на паверхнях, якія лёгка ўзгараюцца.
• Пераканайцеся, што прыстасаванне надзейна замацавана да канструктыўнага элемента.
• Не спрабуйце мадыфікаваць прыстасаванне. Любыя мадыфікацыі могуць ануляваць гарантыю і стварыць пагрозу бяспецы.
• This fixture contains an integrated LED light source. Do not attempt to replace the LED bulbs.

3. Змесціва ўпакоўкі

Асцярожна распакуйце новы свяцільнік і раскладзеце ўсе дэталі на вольнай паверхні. Перад тым, як выкінуць упаковачныя матэрыялы, пераканайцеся, што ўсе пералічаныя ніжэй кампаненты наяўныя.

• LED Wall Light Fixture (x1 or x2, depending on pack)
• Мантажная пласціна
• Мацавальныя шрубы і гайкі
• Кіраўніцтва па эксплуатацыі

Image: The main product image of the LUTEC LED Wall Light, showcasing its design and seeded glass panels.

4. Тэхнічныя характарыстыкі

Image: Diagram showing the dimensions of the LUTEC LED Wall Light: 4.72 inches length, 4.25 inches width, and 8.67 inches height.

5. Настройка і ўстаноўка

Follow these steps to install your LUTEC LED Wall Light. Professional installation is recommended if you are not experienced with electrical wiring.

1. Выключыць харчаванне: Before starting any electrical work, ensure the power supply to the junction box is turned off at the circuit breaker or fuse box.
2. Падрыхтуйце мантажную паверхню: Пераканайцеся, што паверхня для мантажу чыстая, сухая і мае трывалую канструкцыю.
3. Прымацаваць мантажную пласціну: Замацуйце мантажную пласціну да размеркавальнай скрынкі з дапамогай прадугледжаных шруб. Пераканайцеся, што пласціна роўная і надзейна прымацаваная.
4. Падключэнне правадоў: Carefully connect the electrical wires from the fixture to the corresponding wires in the junction box using wire nuts.
   • Connect the black wire (Live) from the fixture to the black wire (Live) from the junction box.
   • Connect the white wire (Neutral) from the fixture to the white wire (Neutral) from the junction box.
   • Connect the green or bare copper wire (Ground) from the fixture to the green or bare copper wire (Ground) from the junction box.
5. Бяспечнае прыстасаванне: Carefully tuck all wires into the junction box. Align the fixture with the mounting plate and secure it using the provided screws. Ensure there are no exposed wires.
6. Seal (Optional for Wet Locations): For wet locations, apply a bead of weather-resistant silicone sealant around the perimeter of the fixture where it meets the mounting surface to prevent water intrusion.
7. Аднавіць сілу: Once the installation is complete and secure, restore power at the circuit breaker.

Image: Two LUTEC LED Wall Lights installed on the exterior of a house, illuminating the entryway and pathway.

6. Інструкцыя па эксплуатацыі

The LUTEC LED Wall Light features an integrated dusk-to-dawn photocell sensor for automatic operation.

• Аўтаматычнае ўключэнне/выключэнне: The light will automatically turn on at dusk when ambient light levels fall below a certain threshold. It will remain illuminated throughout the night.
• Аўтаматычнае выключэнне: The light will automatically turn off at dawn when sufficient ambient light is detected.
• Размяшчэнне датчыка: Ensure the photocell sensor (typically located on the fixture) is not obstructed by objects, dirt, or other light sources (e.g., other bright lights, reflective surfaces) as this may interfere with its proper operation.

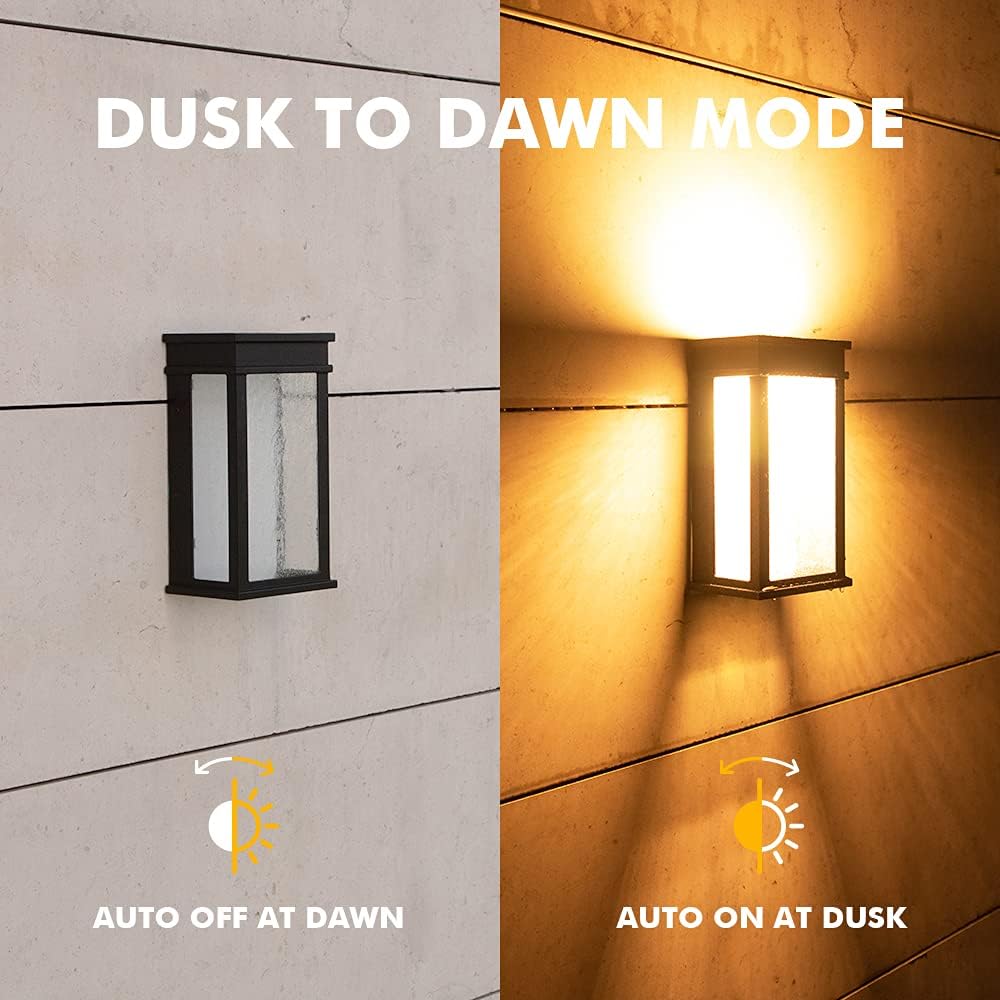

Image: An illustration demonstrating the dusk-to-dawn functionality, showing the light off during the day and on at night.

7. Тэхнічнае абслугоўванне

Regular maintenance will help ensure the longevity and optimal performance of your LED wall light.

• Уборка: To clean the fixture, first ensure the power is turned off. Use a soft, damp cloth to wipe down the exterior. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or glass.
• Убудаваны святлодыёд: This fixture uses an integrated LED light source that is designed for long life and does not require bulb replacement. If the LED fails, the entire fixture may need to be replaced.
• агляд: Перыядычна правярайце прыбор на наяўнасць пашкоджанняў, няшчыльнага падключэння правадоў або зносу. Неадкладна вырашайце любыя праблемы.

Image: The LUTEC LED Wall Light shown with simulated rain, indicating its suitability for wet outdoor locations.

8. Выпраўленне непаладак

If you encounter issues with your LUTEC LED Wall Light, refer to the following common problems and solutions:

9. Гарантыя і падтрымка

LUTEC provides a warranty for this product. Please refer to the manufacturer's official warranty statement for specific terms and conditions. Generally, the lighting element has a 5-year warranty, and the aluminum housing has a lifetime warranty.

For technical assistance, warranty claims, or any other inquiries, please contact LUTEC customer service. They offer 24/7 after-sales support.

Кантактная інфармацыя:

• Visit the official LUTEC webсайт з рэсурсамі падтрымкі: LUTEC Store on Amazon
• Глядзіце дакументацыю па куплі, каб атрымаць непасрэдную кантактную інфармацыю.
