Cornat T3174211 Push-Open Drain Valve for Washbasins - Інструкцыя па эксплуатацыі

Уводзіны

This manual provides detailed instructions for the installation, operation, and maintenance of your Cornat T3174211 Push-Open Drain Valve. This drain valve is designed for washbasins, featuring a 1 1/4 inch external thread and a 66 mm diameter, with a convenient push-open function for controlled water drainage. Please read these instructions carefully before installation and retain them for future reference.

Змест пакета

Перад пачаткам усталёўкі пераканайцеся, што ўсе кампаненты наяўныя:

• 1 x Pressure Plug
• 1 х зліўная корак
• 1 x Siphon Connector
• Mounting Accessories (gaskets, nuts, etc.)

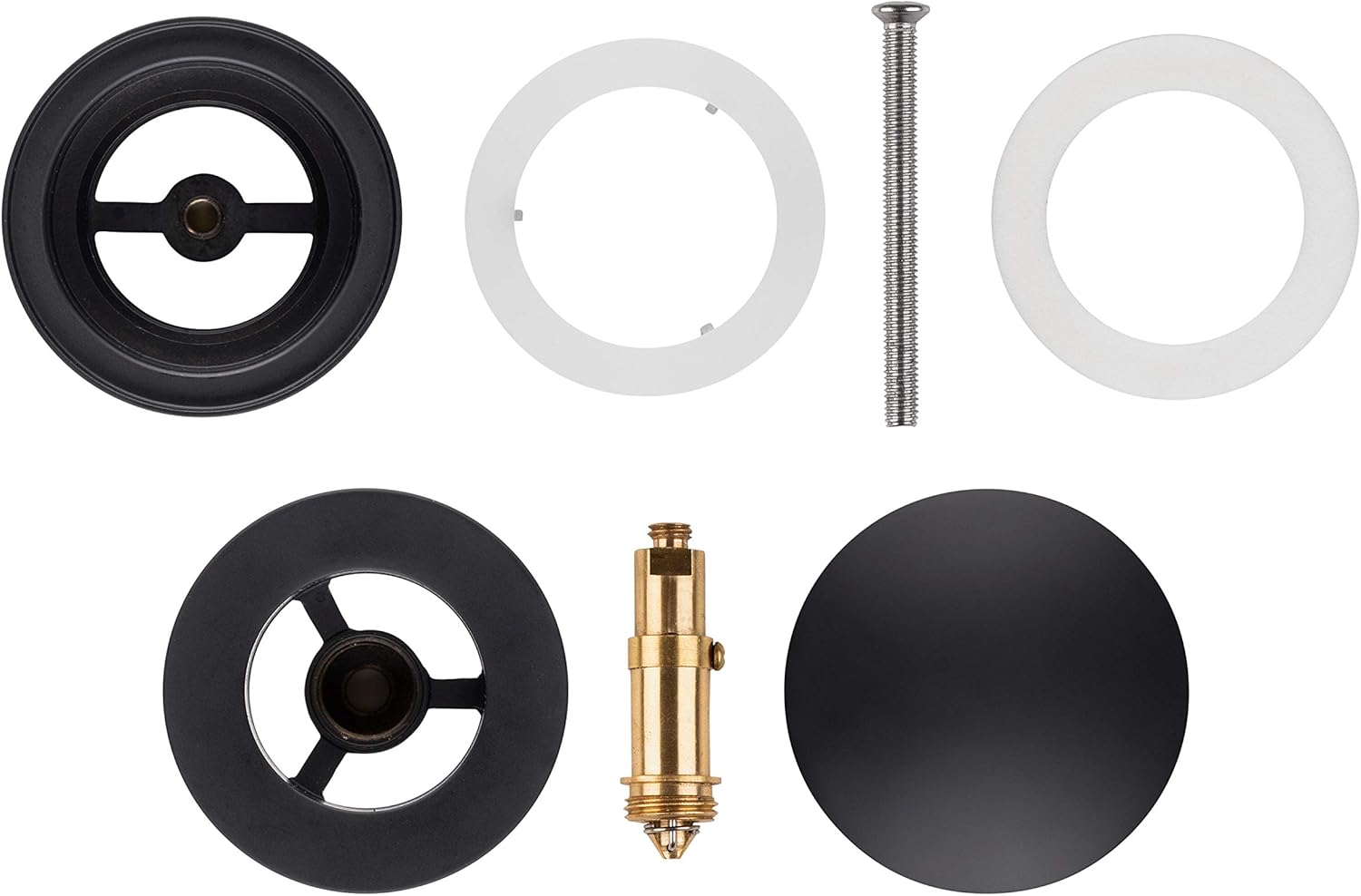

Малюнак 1: Разарваны view of the Cornat T3174211 drain valve components.

Тэхнічныя характарыстыкі

• Нумар мадэлі: Т3174211
• матэрыял: Метал
• Колер: Мэт Блэк
• падключэнне: 1 1/4 inch male thread
• дыяметр: 66 мм
• Вага прадмета: 0.28 кілаграма
• функцыя: Push-Open
• вытворца: Conmetall Meister GmbH

Figure 2: Product dimensions of the drain valve.

Настройка і ўстаноўка

This drain valve is designed for straightforward installation in standard washbasins. Basic plumbing tools may be required.

1. Падрыхтоўка: Ensure the water supply to the washbasin is turned off. Remove any existing drain assembly from the sink. Clean the drain opening thoroughly.
2. Assemble Drain Plug: Place the appropriate gasket(s) onto the drain plug assembly according to the manufacturer's instructions for your specific sink type.
3. Insert into Sink: Insert the drain plug assembly through the drain opening from the top of the washbasin.
4. Бяспека знізу: From underneath the sink, attach the remaining gasket(s) and the securing nut(s) to the drain plug's threaded shaft. Hand-tighten first, then use a wrench to gently tighten, ensuring a watertight seal without overtightening.
5. Connect Siphon: Attach your siphon connector to the 1 1/4 inch male thread of the drain valve. Ensure all connections are secure and watertight.
6. Тэст на ўцечкі: Turn on the water supply and fill the washbasin. Check all connections for any leaks. Tighten connections further if necessary.

Figure 3: Installed drain valve in a washbasin.

Інструкцыя па эксплуатацыі

The Cornat T3174211 drain valve features a simple push-open mechanism for ease of use.

• Каб закрыць каналізацыю: Gently press down on the center of the matt black pressure plug until it clicks into the lowered position. This will seal the drain, allowing water to accumulate in the washbasin.
• Каб адкрыць каналізацыю: Press down on the center of the pressure plug again. It will release and rise to the open position, allowing water to drain freely from the washbasin.

Figure 4: Closing the drain valve.

Figure 5: Opening the drain valve.

Тэхнічнае абслугоўванне

Regular cleaning will ensure the longevity and proper function of your drain valve.

• The valve top (pressure plug) is easily removable for convenient cleaning. Simply pull it upwards to detach it from the drain body.
• Regularly remove the valve top and clean any accumulated hair, soap scum, or debris from both the plug and the drain body.
• Use a mild soap and water solution for cleaning. Avoid abrasive cleaners or harsh chemicals, as these can damage the matt black finish.
• Rinse thoroughly and reinsert the valve top by aligning it and pressing down until it clicks securely into place.

Ліквідацыю непаладак

Гарантыя і падтрымка

For warranty information, technical assistance, or to inquire about replacement parts, please contact your retailer or the manufacturer, Conmetall Meister GmbH. Please have your model number (T3174211) available when contacting support.
