Coleman Power Steel Oval Pool Set User Manual

1. Уводзіны

Welcome to the Coleman Power Steel Oval Pool Set user manual. This guide provides comprehensive instructions for the safe and efficient setup, operation, and maintenance of your new above-ground pool. Please read all instructions carefully before installation and use to ensure a long-lasting and enjoyable experience.

Figure 1: The Coleman Power Steel Oval Pool Set, ready for use.

2. Інфармацыя па бяспецы

Ваша бяспека і бяспека іншых — найважнейшая. Заўсёды выконвайце наступныя асноўныя меры бяспекі:

• Нагляд дарослых: Ніколі не пакідайце дзяцей без нагляду ў басейне або каля яго.
• Без дайвінга: This pool is not designed for diving. Serious injury or death can result.
• Бяспечны доступ: Always use the provided ladder for entry and exit. Remove the ladder or secure access when the pool is not in use to prevent unsupervised entry.
• Апрацоўка хімічных рэчываў: Handle pool chemicals according to manufacturer's instructions. Store them safely away from children and pets.
• Электрабяспека: Ensure all electrical components (pump, filter) are connected to a Ground Fault Circuit Interrupter (GFCI) protected outlet. Do not use extension cords.
• Чыстая зона: Трымайце тэрыторыю вакол басейна свабоднай ад перашкод і небяспечных месцаў для спатыкнення.

3. Змесціва ўпакоўкі

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact Coleman customer support.

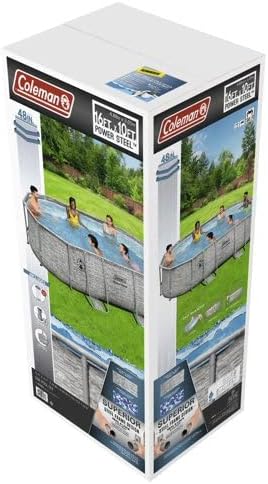

Figure 2: Typical packaging for the Coleman Power Steel Oval Pool Set.

• 1 x Oval Pool Liner (Tritech enhanced 3-ply)
• 1 x Corrosion-Resistant Steel Frame Set (with Seal & Lock System)
• 1 x Filter Pump (1,000 gal. / 3,785 L capacity, compatible with Type III cartridge)
• 1 x Ladder
• Necessary Hoses and Connectors for Filter Pump
• Патч для рамонту
• Інструкцыя па эксплуатацыі (гэты дакумент)

4. Настройка

4.1 Падрыхтоўка пляцоўкі

Proper site preparation is crucial for the stability and longevity of your pool. Choose a flat, level surface free of sharp objects, rocks, or debris. The ground must be firm enough to support the weight of the filled pool (approximately 3,612 gallons or 13,672 liters of water, plus the weight of occupants and the pool structure).

• Ensure the chosen area is clear of overhead power lines and underground utilities.
• Avoid placing the pool on slopes or uneven ground, as this can cause structural stress and potential collapse.
• Consider proximity to a water source for filling and a suitable drainage area.

4.2 Этапы зборкі

The Coleman Power Steel Oval Pool Set features an easy, no-tool setup process. It is recommended that at least two people are involved in the assembly for ease and safety.

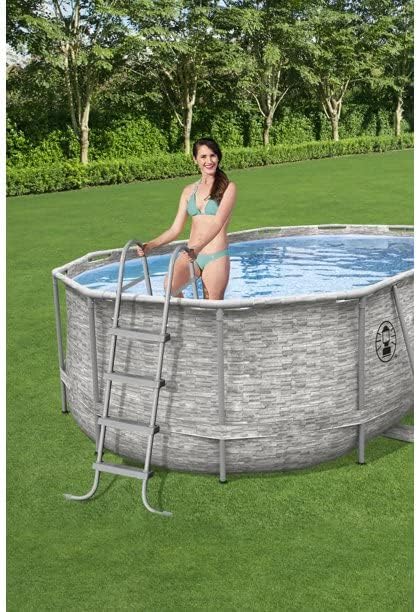

Figure 3: The included ladder provides safe entry and exit from the pool.

1. Unpack all components and lay them out on the prepared site.
2. Spread the pool liner evenly on the ground, ensuring it is free of wrinkles.
3. Assemble the steel frame according to the diagrams in the quick setup guide (included in the box). The Seal & Lock System ensures a secure and strong connection of the frame components.
4. Attach the liner to the frame as instructed, ensuring all connections are tight and secure.
5. Connect the filter pump to the designated ports on the pool liner. Ensure all hoses are securely fastened to prevent leaks.
6. Assemble the ladder and place it securely against the pool wall.

5. Аперацыйная

5.1 Напаўненне басейна

Once the pool structure is fully assembled and stable, you can begin filling it with water. It is recommended to fill the pool slowly at first to allow the liner to settle and to check for any leaks. The pool has a water capacity of approximately 3,612 gallons (13,672 liters) at 90% full.

5.2 Праца фільтруючага помпы

The included 1,000 gal. (3,785 L) filter pump is essential for maintaining water clarity and hygiene. Ensure the pump is properly connected and primed before operation.

Figure 4: The filter pump is crucial for maintaining water quality.

• Operate the filter pump daily for several hours, depending on pool usage and water conditions, to circulate and filter the water.
• Refer to the separate filter pump manual for detailed operating instructions, including priming and backwashing (if applicable).

5.3 Хімія вады

Maintaining proper water chemistry is vital for safe and clean swimming. Regularly test your pool water using a reliable test kit and adjust chemical levels as needed. Consult a pool supply professional for specific chemical recommendations for your region.

Figure 5: Enjoying your Coleman Power Steel Oval Pool.

6. Тэхнічнае абслугоўванне

Regular maintenance will extend the life of your pool and ensure a healthy swimming environment.

6.1 Штодзённае тэхнічнае абслугоўванне

• Skim the surface of the water daily to remove leaves, insects, and other debris.
• Check and adjust water chemical levels (pH, chlorine, alkalinity) as necessary.

6.2 Штотыднёвае тэхнічнае абслугоўванне

• Vacuum the pool bottom to remove settled debris.
• Clean or replace the filter cartridge (Type III) as needed. A dirty filter reduces pump efficiency.

Figure 6: The Type III filter cartridge requires regular cleaning or replacement.

6.3 Падрыхтоўка да зімы і захоўванне

For regions with freezing temperatures, it is essential to properly winterize and store your pool to prevent damage. It is recommended to take down the pool yearly.

• Цалкам зліце ваду з басейна.
• Disassemble the frame and liner according to the reverse of the setup instructions.
• Clean and thoroughly dry all components before storing them in a cool, dry place, protected from pests and extreme temperatures.

7. Выпраўленне непаладак

This section addresses common issues you might encounter with your pool. For problems not listed here, contact Coleman customer support.

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

For warranty information, please refer to the warranty card included with your product or visit the official Coleman webсайт. Захоўвайце пацвярджэнне пакупкі для любых гарантыйных прэтэнзій.

If you require further assistance, have questions about your product, or need to order replacement parts, please contact Coleman customer support through their official webсайт або кантактную інфармацыю, указаную на ўпакоўцы прадукту.
