RedThunder K61 Rechargeable Wireless 60% Mechanical Keyboard User Manual

Уводзіны

The RedThunder K61 is a versatile 60% mechanical keyboard designed for compact efficiency and enhanced gaming and typing experiences. It features dual-mode connectivity (2.4G wireless and wired USB-C), true RGB backlighting with multiple effects, and durable blue mechanical switches. This manual provides comprehensive instructions for setting up, operating, and maintaining your K61 keyboard.

Асноўныя характарыстыкі

This image highlights the main features of the RedThunder K61 keyboard, including its 2.4G wireless connectivity, USB receiver, extended battery life, water resistance, RGB backlighting, auto standby function, ergonomic design, and overall high quality.

• Двухрэжымнае падключэнне: Supports stable 2.4G wireless connection via a USB receiver and wired connection via USB-C. This allows for flexible use and ensures continuous operation even if the battery is depleted.
• 60% кампактная кампаноўка: With only 61 keys, the keyboard offers a minimalist design, saving desk space and providing more room for mouse movement, ideal for gamers and users preferring a streamlined setup.
• Blue Switch Mechanical Keys: Provides excellent tactile feedback and a clear, clicky sound, suitable for both gaming and typing. Switches are rated for 50 million keypresses for long-lasting durability.
• Працяглая батарэя: Equipped with an 1850mAh battery, offering approximately 20 hours of continuous use with the lightest backlight setting. Features a smart power-saving function that puts the keyboard to sleep after 60 seconds of inactivity, extending standby time up to 500 hours.
• True RGB Illumination: Features 16.8 million colors and 20 dynamic preset lighting modes. Brightness and breathing speed are adjustable, enhancing the visual experience and allowing use in low-light conditions.

Кіраўніцтва па ўстаноўцы

1. Распакаванне і першапачатковы агляд

Carefully remove the keyboard and its accessories from the packaging. Ensure all components are present: the K61 keyboard, USB-C cable, and 2.4G USB receiver.

This image displays the RedThunder K61 keyboard alongside its essential accessories: the USB-C charging/data cable and the 2.4G wireless USB receiver, which are included in the package.

2. Падключэнне клавіятуры

2.1. Wireless Mode (2.4G)

1. Locate the 2.4G USB receiver. It is typically stored in a compartment on the underside of the keyboard.
2. Plug the USB receiver into an available USB port on your computer (Laptop, PC, Gaming Console).
3. Turn on the keyboard. The keyboard should automatically connect to the receiver. The connection is plug-and-play, requiring no additional drivers.
4. For optimal wireless performance, ensure the keyboard is within 10 meters (approximately 33 feet) of the USB receiver and minimize obstructions.

This image illustrates the dual-mode connectivity of the RedThunder K61 keyboard, showing both the 2.4G wireless USB receiver and the 1.5-meter USB Type-C cable for wired connection, emphasizing its versatility.

2.2. Правадны рэжым

1. Connect one end of the provided USB-C cable to the USB-C port on the keyboard.
2. Падключыце другі канец кабеля USB-C да даступнага порта USB на вашым кампутары.
3. The keyboard will automatically switch to wired mode and begin charging if necessary.

3. Зарадка клавіятуры

To charge the keyboard, connect it to your computer or a USB power adapter using the provided USB-C cable. The keyboard can be used normally in wired mode while charging.

Інструкцыя па эксплуатацыі

1. Асноўныя функцыі клавіш

The K61 keyboard features a 60% layout, meaning some functions are accessed via combination keys using the Fn ключ.

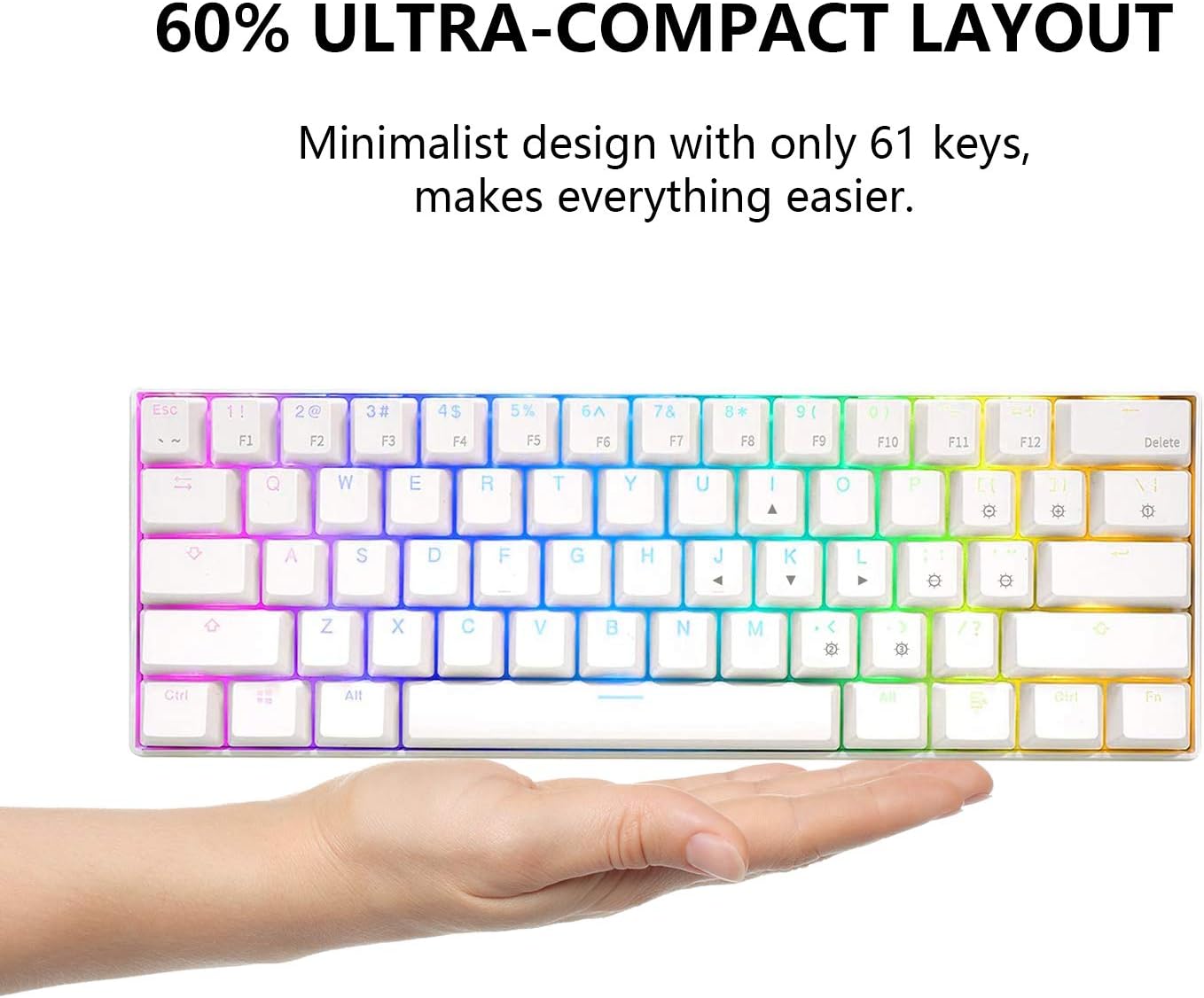

This image showcases the RedThunder K61 keyboard's 60% ultra-compact layout, highlighting its small size and minimalist design with only 61 keys, making it easy to handle and transport.

• Клавішы са стрэлкамі: To use arrow keys, press Fn + I. This toggles the I, J, K, L keys to function as Up, Left, Down, Right arrows respectively. Press Fn + I again to revert to standard character input.
• Функцыянальныя клавішы (F1-F12): Access by holding the Fn key and pressing the corresponding number key (e.g., fn+1 для F1).
• Other Secondary Functions: Many keys have secondary functions printed on them. These are activated by holding the Fn key and pressing the desired key. Refer to the keycaps for specific combinations.

2. Кіраванне RGB-падсветкай

The K61 keyboard features true RGB backlighting with 20 dynamic presets.

This image highlights the RGB lighting capabilities of the RedThunder K61 keyboard, showing its vibrant 16.8 million color effects and indicating 20 light modes, 15 hours of continuous use, and 500 hours of standby time.

• Змяніць рэжым асвятлення: Прэса Fn + \ | to cycle through the 20 different RGB lighting modes.
• Наладзіць яркасць: Прэса Fn + ] } для павелічэння яркасці і Fn + [{ каб паменшыць яркасць.
• Adjust Breathing/Effect Speed: Прэса Fn + ; : павялічыць хуткасць і Fn + '" каб знізіць хуткасць.
• Уключэнне/выключэнне падсветкі: Прэса fn+alt (right Alt key) to toggle the backlight.

3. Power Saving Features

The keyboard is designed with smart power management to conserve battery life.

• Аўтаматычны рэжым сну: The keyboard will automatically enter sleep mode after 60 seconds of inactivity to save power. Press any key to wake it up.
• Тэрмін службы батарэі: With the lightest backlight, the keyboard can operate continuously for approximately 20 hours. Standby time can reach up to 500 hours.

Тэхнічнае абслугоўванне

1. Чыстка клавіятуры

• Генеральная ўборка: Выкарыстоўвайце мяккую безворсовую тканіну, злёгку dampПрацірайце клавішы і паверхню клавіятуры вадой або мяккім ачышчальным растворам. Пазбягайце празмернай вільгаці.
• Выдаленне пылу: Выкарыстоўвайце сціснутае паветра, каб выдаліць пыл і смецце паміж клавішамі.
• Глыбокая чыстка (клавіятуры): Keycaps can be carefully removed for deeper cleaning. Use a keycap puller (not included) if available. Clean keycaps with mild soap and water, then ensure they are completely dry before reattaching.

2. Сыход за батарэяй

• Пазбягайце частай поўнай разрадкі акумулятара.
• Калі клавіятура не выкарыстоўваецца працяглы час, захоўвайце яе ў прахалодным сухім месцы.
• Выкарыстоўвайце для зарадкі толькі кабель USB-C, які ўваходзіць у камплект, або сертыфікаваны эквівалент.

Ліквідацыю непаладак

Тэхнічныя характарыстыкі

This image provides a visual comparison of different mechanical switch types: Blue (clear paragraph sense, clicky sound), Brown (slight paragraph sense, comfortable sound), and Red (linear, no paragraph sense, quiet sound). The K61 model uses Blue switches.

На гэтым малюнку паказаны бакавы прафесіяналfile of the RedThunder K61 keyboard, illustrating its ergonomic design with an 8-degree angle for comfortable typing.

Афіцыйнае відэа пра прадукт

Гарантыя і падтрымка

RedThunder products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the contact information provided with your product packaging or visit the official RedThunder webсайт. Захоўвайце чэк аб пакупцы на выпадак прэтэнзій па гарантыі.

Вы таксама можаце наведаць в RedThunder Store on Amazon для атрымання дадатковай інфармацыі і абнаўленняў прадуктаў.
