hOmeLabs Portable Air Scrubber User Manual

1. Уводзіны

This manual provides instructions for the safe and efficient operation and maintenance of your hOmeLabs Portable Air Scrubber. This heavy-duty air cleaner is designed for industrial and commercial use, featuring a 3-stage filtration system to improve air quality in various environments.

2. Інфармацыя па бяспецы

Please read all safety instructions before operating the unit to prevent injury or damage. Keep this manual for future reference.

• Заўсёды пераканайцеся, што прылада размешчана на ўстойлівай, роўнай паверхні.
• Не выкарыстоўвайце прыладу з пашкоджаным сеткавым шнуром або вілкай.
• Keep the air intake and exhaust clear of obstructions.
• Не апускайце прыладу ў ваду ці іншыя вадкасці.
• Unplug the unit before performing any maintenance or filter changes.
• This appliance is equipped with Auxiliary GFCI Outlets. Do not exceed the maximum amperage ratings for these outlets (12 Amps max with the unit OFF, 9 Amps max with the unit ON).
• The unit is ETL Listed and CARB Certified, indicating compliance with safety and air quality standards.

Image: ETL Listed and CARB Certified logos, indicating product compliance with safety and air quality standards.

3. Прадукт скончыўсяview

The hOmeLabs Portable Air Scrubber is designed to capture airborne particles and odors using a multi-stage filtration system. Its robust construction and portable design make it suitable for various demanding environments.

Асноўныя характарыстыкі:

• 3-Сtagэлектронная сістэма фільтрацыі: Includes a Pre-filter, Activated Carbon Filter, and HEPA Filter.
• Цяжкая канструкцыя: Rotomolded Polyethylene (LLDPE) housing for durability.
• Высокі паток паветра: Filters up to 750 sq. ft. with a maximum airflow of 500 CFM.
• Назапашвальны дызайн: Can be stacked horizontally or vertically, allowing up to 3 units to be daisy-chained for a combined 1500 CFM.
• Пераноснасць: Equipped with a convenient handle and 360° swivel lockable casters for easy transport.
• Убудаваная панэль кіравання: Features variable speed control, time and amps tracker, HEPA filter change reminder, resettable circuit breaker, and auxiliary GFCI outlets.

Image: The hOmeLabs Portable Air Scrubber, showcasinг яго кампактная і трывалая канструкцыя.

Выява: Падрабязная дыяграма, якая ілюструе тры stages of filtration: Pre-filter for large particles, Carbon filter for odors, and HEPA filter for fine particles.

4. Настройка

Follow these steps for initial setup of your air scrubber.

4.1 Распакаванне і праверка

1. Carefully remove the air scrubber from its packaging.
2. Inspect the unit for any signs of damage during transit. If damage is found, do not operate and contact customer support.
3. Ensure all filters are present and correctly installed. The unit comes with a complete set of filters.
4. Remove the foam cap from the filter compartment before use.

Image: The unit includes a MERV-9 Pre-filter, Activated Carbon Filter, and HEPA Filter. It also shows the optional 14-inch inlet for ducting (ducting not included).

4.2 Размяшчэнне

• Place the air scrubber in the desired location, ensuring adequate clearance around the air intake and exhaust vents.
• The unit can be used horizontally or vertically.
• For enhanced air purification in larger areas, multiple units can be daisy-chained and stacked. Up to 3 units can be connected, providing a combined airflow of 1500 CFM.

Image: Two air scrubbers are shown stacked, demonstrating the daisy-chain capability for increased air processing capacity.

4.3 Партатыўнасць

• The unit features 360° swivel casters for easy movement. To lock the casters, press down on the lock plate on each wheel. To unlock, lift the lock plate.
• Use the integrated handle for single-handed relocation.

Выява: буйны план view highlighting the lockable casters for stability and the ergonomic handle for easy transport.

5. Інструкцыя па эксплуатацыі

Азнаёмцеся з панэллю кіравання для эфектыўнай працы.

5.1 Функцыі панэлі кіравання

Image: The control panel features a variable speed dial, a resettable circuit breaker, a HEPA filter change indicator, and auxiliary GFCI outlets.

• Пераменная хуткасць набору: Turn the dial to adjust the fan speed from OFF to MAX.
• Выключальнік: Resettable circuit breaker protects the unit from electrical overload. If the unit stops working, check and reset the breaker.
• час і Amps Tracker: Displays operational time and current ampэра нічыя.
• HEPA Change Reminder: An indicator light will illuminate when it is time to inspect or change the HEPA filter.
• Auxiliary GFCI Outlets: Two 115V AC outlets are provided. Maximum load is 12 Amps when the air scrubber is OFF, and 9 Amps when the air scrubber is ON.

5.2 Запуск прылады

1. Падключыце шнур сілкавання да заземленай электрычнай разеткі.
2. Turn the Variable Speed Dial from OFF to the desired speed setting.
3. The unit will begin drawing air through its filtration system.

6. Тэхнічнае абслугоўванне

Regular maintenance ensures optimal performance and extends the lifespan of your air scrubber.

6.1 Замена фільтра

The HEPA filter change reminder light indicates when the HEPA filter may need inspection or replacement. The pre-filter and carbon filter should also be checked regularly.

1. Unplug the air scrubber from the power outlet.
2. Locate the filter access panel.
3. Remove the old filters, starting with the pre-filter, then the carbon filter, and finally the HEPA filter. Dispose of used filters responsibly.
4. Insert new filters in the reverse order: HEPA filter first, then the carbon filter, and finally the pre-filter. Ensure they are seated correctly.
5. Надзейна зачыніце панэль доступу да фільтра.
6. Plug the unit back in and resume operation.

6.2 Чыстка прылады

• Працярыце знешні бок прылады з аб'явайamp тканіна. Не выкарыстоўвайце абразіўныя ачышчальнікі або растваральнікі.
• Сачыце за тым, каб вада не трапляла ў панэль кіравання або электрычныя кампаненты.

7. Выпраўленне непаладак

If you encounter issues with your air scrubber, refer to the following common problems and solutions.

8. Тэхнічныя характарыстыкі

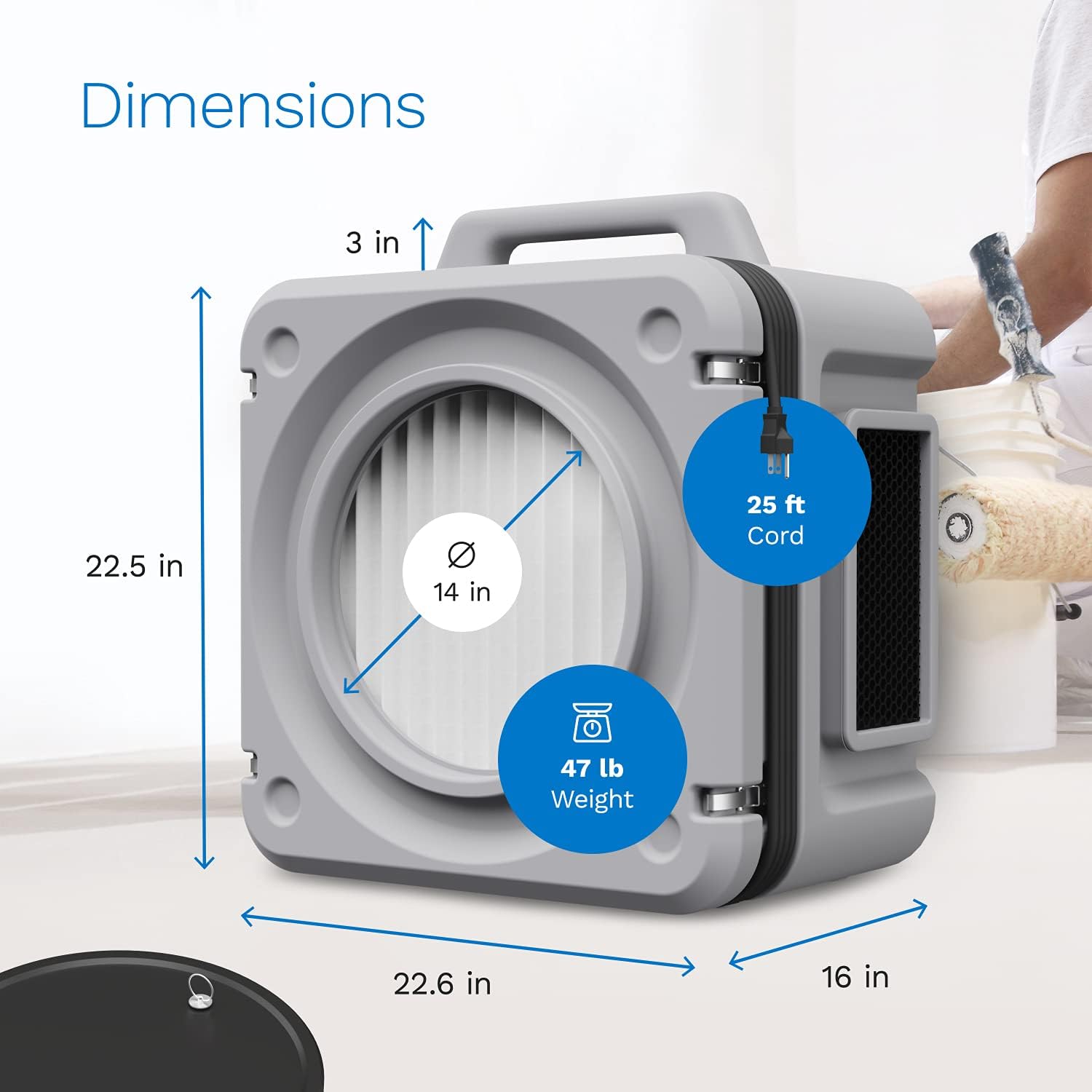

Image: The air scrubber's dimensions are 22.5 inches high, 22.6 inches wide, and 16 inches deep, with a weight of 47 lbs. It also shows a 25 ft power cord.

9. Гарантыя і падтрымка

For warranty information or technical support, please refer to the hOmeLabs official webсайт або звярніцеся непасрэдна ў службу падтрымкі кліентаў. Захоўвайце чэк аб куплі для прэтэнзій па гарантыі.

For additional information or to purchase replacement filters, visit the hOmeLabs Store.
