Уводзіны
Thank you for choosing the Ingco CDLI2002 20V Cordless Lithium-Ion Drill Kit. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new tool. Please read these instructions carefully before use and keep them for future reference.
Агульныя інструкцыі па тэхніцы бяспекі
Заўсёды выконвайце асноўныя меры бяспекі, каб знізіць рызыку пажару, паражэння электрычным токам і траўмаў пры выкарыстанні электраінструментаў.
- Сродкі індывідуальнай абароны: Заўсёды апранайце адпаведныя сродкі індывідуальнай абароны (СІЗ), такія як ахоўныя акуляры, сродкі абароны слыху і пальчаткі.
- Бяспека ў рабочай зоне: Ensure your work area is clean, well-lit, and free from clutter. Keep children and bystanders away while operating the tool.
- Электрабяспека: Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Avoid accidental starting; ensure the switch is in the off-position before connecting to a battery pack, picking up, or carrying the tool.
- Апрацоўка інструментаў: Use brushes or vacuum cleaners to remove metal chips, wood shavings, and debris from the workbench. Do not use your hands to remove debris from drilling operations.
- Accessory Condition: Do not use damaged, cracked, or twisted drill bits or accessories.
- Бяспека дэталі: Замацаваць нарыхтоўку з дапамогай клamps або ціскі, каб прадухіліць рух падчас працы.
- Падтрымлівайце баланс: Do not overreach. Keep proper footing and balance at all times to maintain control of the tool.
Прадукт скончаныview
Familiarize yourself with the components of your Ingco CDLI2002 cordless drill.

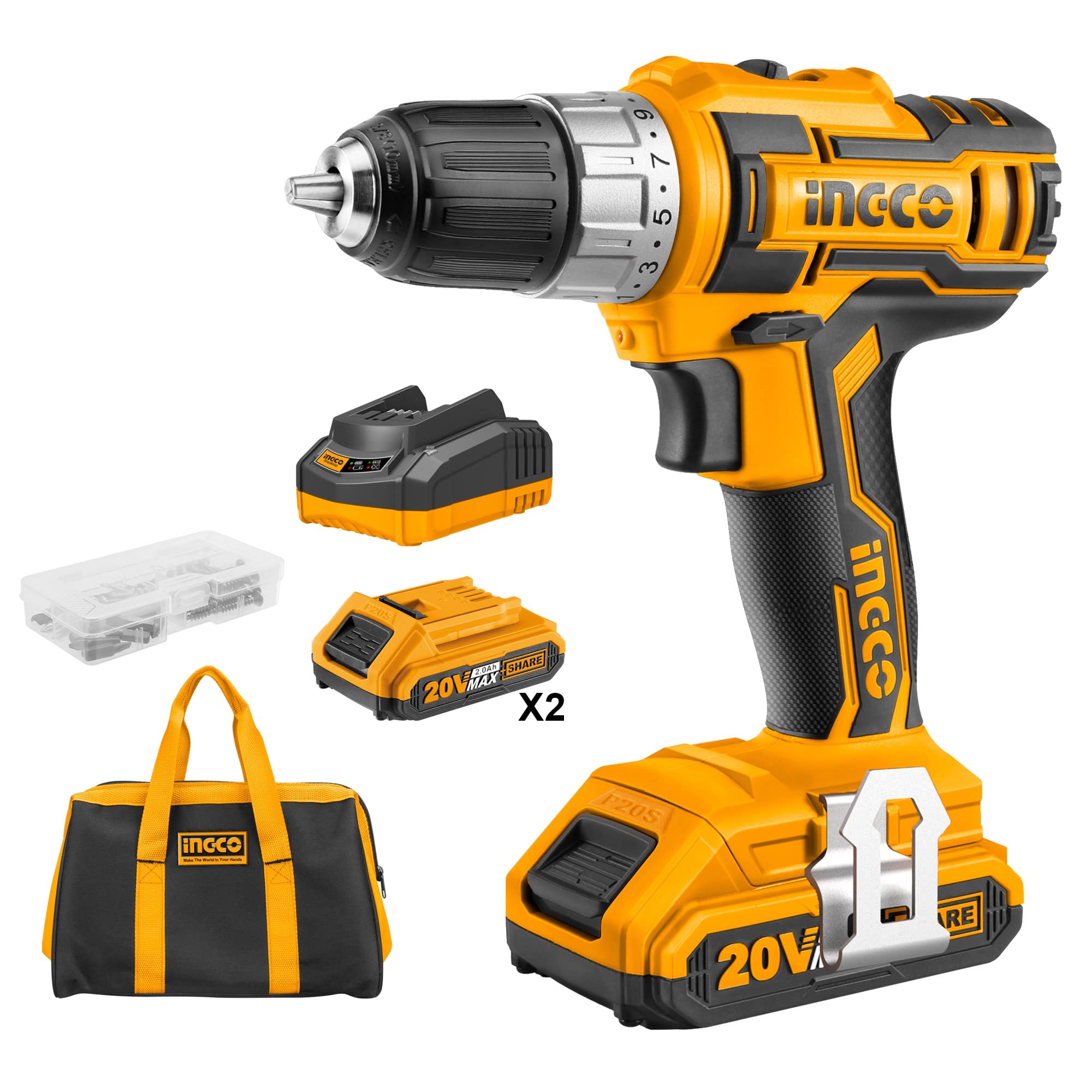

выява: Ingco CDLI2002 Cordless Drill with key components labeled. Labels include High quality gearbox, Single sleeve chuck, Mechanical double speed, 655 high torque motor, Ventilation holes, Comfortable grip handle, LED work light, Stepless speed switch, Metal hook, Charge display, and High quality 2.0Ah Lithium-Ion battery.
- High Quality Gearbox: Ensures durability and efficient power transmission.
- Single Sleeve Chuck: Для хуткай і лёгкай змены біт.
- Mechanical Double Speed: Allows selection between high torque and high speed.
- 655 High Torque Motor: Provides robust power for various tasks.
- Вентыляцыйныя адтуліны: Designed for motor cooling during operation.
- Зручная ручка: Ergonomically designed for user comfort and control.
- Святлодыёдны працоўны свяцільня: Асвятляе рабочую зону для паляпшэння бачнасці.
- Бесступеньчаты перамыкач хуткасці: Забяспечвае зменную хуткасць рэгулявання ў залежнасці ад ціску спускавога кручка.
- Металічны кручок: Convenient for hanging the tool when not in use.
- Дысплей зарадкі: Indicates the battery's current charge level.
- High Quality 2.0Ah Lithium-Ion Battery: Provides reliable and long-lasting power.
Настройка
1. Зарадка акумулятара
The Ingco CDLI2002 uses a 20V Lithium-Ion battery. Before first use, and after each use, ensure the battery is fully charged.
- Падключыце зарадную прыладу да стандартнай разеткі.
- Slide the battery pack onto the charger. Ensure it is seated correctly.
- The charge display on the battery or charger will indicate the charging status. Refer to the charger's specific instructions for LED indicators.
- Пасля поўнай зарадкі адключыце акумулятар ад зараднай прылады і адключыце зарадную прыладу ад разеткі.
2. Устаноўка і выдаленне батарэі
Proper installation and removal of the battery pack are crucial for safe operation.
- Ўстаноўка: Align the battery pack with the slot in the base of the drill handle. Slide the battery pack firmly into place until it clicks, indicating it is securely locked.
- Выдаленне: Press the battery release button, usually located on the side or front of the battery pack. While holding the button, slide the battery pack out of the drill handle.
3. Chuck Operation and Accessory Installation
The drill features a single sleeve keyless chuck for quick and easy changes of drill bits and other accessories.
выява: Буйны план view of the drill's keyless chuck and the two-speed selector switch.
- Адкрыццё патрона: Hold the rear part of the chuck (the body of the drill) and rotate the front part of the chuck counter-clockwise until the jaws are wide enough to accept the accessory.
- Inserting the Accessory: Ensure the drill bit or accessory shank is clean and free of debris. Insert the shank fully into the chuck jaws.
- Зацягванне патрона: Hold the rear part of the chuck and rotate the front part clockwise until the jaws firmly grip the accessory. Hand-tighten as much as possible to prevent slippage during operation.
Інструкцыя па эксплуатацыі
1. Уключэнне/выключэнне і кіраванне зменнай хуткасцю
The drill is equipped with a stepless speed switch for precise control.
- Круціць свердзел ON, press the stepless speed switch (trigger). The speed will increase as you press the trigger further.
- Круціць свердзел ВЫКЛ, адпусціце курок.
- The integrated LED work light will illuminate the work area when the trigger is pressed.
2. Speed Selection (Mechanical Double Speed)
Choose between two mechanical speed settings based on your application.
- Locate the speed selector switch on top of the drill.
- Пазіцыя «1» (нізкая хуткасць): Provides higher torque (0-400 RPM) for driving screws or drilling larger holes in tough materials.
- Пазіцыя «2» (высокая хуткасць): Provides faster rotation (0-1500 RPM) for quick drilling in softer materials or smaller holes.
- Always ensure the drill is stopped before changing the speed setting to prevent gear damage.
3. Рэгуляванне крутоўнага моманту
The torque adjustment ring allows you to control the amount of rotational force applied.
- Rotate the torque adjustment ring, located behind the chuck, to select one of the 15 torque settings or the drill mode.
- Налады крутоўнага моманту (1-15): Use lower settings for driving small screws into soft materials to prevent overtightening or stripping. Use higher settings for larger screws or harder materials.
- Drill Mode (Drill Bit Symbol): Select this mode for drilling applications where maximum torque is desired and the clutch will not engage.
4. Кручэнне наперад/назад
The reversing switch controls the direction of the drill's rotation and also acts as a trigger lock.
выява: View of the drill highlighting the reversing switch and the battery pack.
- Кручэнне наперад: Push the reversing switch to the left (when viewed from the operating position) for drilling and driving screws.
- Зваротнае кручэнне: Push the reversing switch to the right for removing screws or backing out drill bits.
- Блакаванне трыгера: When the switch is in the center position, the trigger is locked, preventing accidental starting. Always engage the trigger lock when not using the tool or when changing accessories.
5. Тэхніка свідравання
For optimal results and safety, follow these general drilling guidelines.
выява: A user demonstrating the Ingco cordless drill in various drilling applications, including wood and metal.
- Заўсёды фіксуйце апрацоўваную дэталь.
- Start drilling at a low speed to create a pilot hole, then increase speed as needed.
- Раўнамерна цісніце. Не перашчыруйце.
- Для глыбокіх адтулін перыядычна вымайце свердло, каб выдаліць стружку, і дайце яму астыць.
- When drilling metal, use a cutting lubricant and appropriate metal drill bits.
Тэхнічнае абслугоўванне
Рэгулярнае тэхнічнае абслугоўванне забяспечвае даўгавечнасць і аптымальную прадукцыйнасць вашага інструмента.
- Уборка: Рэгулярна чысціце вонкавы бок дрыля мяккай губкайamp cloth. Use a brush or compressed air to clear dust and debris from the ventilation holes. Не выкарыстоўвайце агрэсіўныя хімікаты, растваральнікі або абразіўныя ачышчальнікі.
- Абслугоўванне патрона: Keep the chuck jaws clean and free of debris to ensure proper gripping of bits. Periodically apply a small amount of light machine oil to the chuck jaws if they become stiff.
- Сыход за батарэяй: Store batteries in a cool, dry place, away from direct sunlight and extreme temperatures. Charge batteries fully before long-term storage and recharge them every few months to maintain battery health.
- агляд: Before each use, inspect the tool for any signs of damage, loose parts, or worn components. Do not use the tool if it is damaged.
Ліквідацыю непаладак
У гэтым раздзеле разглядаюцца распаўсюджаныя праблемы, з якімі вы можаце сутыкнуцца.
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Дрыль не запускаецца | Battery not charged or improperly installed; Forward/reverse switch in center (locked) position. | Ensure battery is fully charged and correctly installed. Move forward/reverse switch to forward or reverse position. |
| Зніжэнне магутнасці або хуткасці | Battery low on charge; Ventilation holes obstructed; Overloading the tool. | Recharge battery. Clean ventilation holes. Reduce pressure or use a lower speed setting. |
| Свердзел праслізгвае ў патроне | Chuck not tightened securely; Drill bit shank is dirty or oily; Worn or damaged drill bit. | Re-tighten chuck firmly. Clean drill bit shank. Replace with a new, undamaged drill bit. |
| Перагрэў | Blocked ventilation holes; Continuous heavy use. | Clean ventilation holes. Allow the tool to cool down during prolonged use. |
Тэхнічныя характарыстыкі
Technical specifications for the Ingco CDLI2002 Cordless Lithium-Ion Drill Kit.
выява: Detailed parameter information for the Ingco CDLI2002 drill.
| Асаблівасць | Спецыфікацыя |
|---|---|
| тtage | 20В |
| Хуткасць без нагрузкі | 0-400 / 0-1500 абаротаў у хвіліну |
| Макс. Крутоўны момант | 45 Нм |
| Налады крутоўнага моманту | 15+1 |
| Ёмістасць патрона | 0.8-10 мм |
| Тып патрона | Auto-lock keyless chuck |
| Сістэма перадач | Mechanical 2-speed gear |
| Spindle Lock Function | так |
| Тып батарэі | 20V Lithium-Ion 2.0Ah |
| Батарэі ў камплекце | 1 pc battery pack |
| Зарадная прылада | 1 pc 1Hr fast charger |
| Charge Volts | 110В-240В~50/60Гц |
| Праца Святло | Убудаваны святлодыёдны працоўны свяцільня |
| Індыкатар батарэі | Святлодыёдны індыкатар харчавання |
| Аксэсуары | 47 шт. аксесуараў |
| Ўпакоўка | Палатняны мяшок |
| Памеры прадукту | 10 х 20 х 37 см |
| Вага прадмета | 3 кг |
Інфармацыя аб гарантыі
Specific warranty details for the Ingco CDLI2002 are typically provided with your purchase documentation. Please refer to the warranty card or contact your retailer for information regarding warranty coverage, terms, and conditions.
Падтрымка кліентаў
If you have any questions, require technical assistance, or need to order replacement parts, please contact Ingco customer service or your authorized dealer. Contact information can usually be found on the product packaging or the official Ingco webсайт.
