T.I.P. Maxima 350 IPX DUO 30274
T.I.P. Maxima 350 IPX DUO 30274 Dirty Water Pump Instruction Manual
Model: Maxima 350 IPX DUO 30274 | Brand: T.I.P.
1. Уводзіны
The T.I.P. Maxima 350 IPX DUO is a powerful and versatile combination submersible pump designed for various water drainage tasks. Its extendable pump base allows for quick conversion between a high-performance dirty water pump and a clean water pump with ultra-flat suction. This manual provides essential information for safe and efficient operation, setup, and maintenance of your pump.
Image: The T.I.P. Maxima 350 IPX DUO pump, showcasinяго трывалая канструкцыя і кампаненты.
2. Інструкцыі па тэхніцы бяспекі
Калі ласка, прачытайце і зразумейце ўсе інструкцыі па тэхніцы бяспекі перад эксплуатацыяй помпы. Невыкананне гэтых інструкцый можа прывесці да паражэння электрычным токам, пажару, сур'ёзных траўмаў або пашкоджання маёмасці.
- Заўсёды адключайце помпу ад электрасеткі перад выкананнем любога тэхнічнага абслугоўвання або чысткі.
- Ensure the power cable and plug are in perfect condition. Do not use if damaged.
- The pump is designed for pumping water only. Do not use it for flammable, corrosive, or explosive liquids.
- Do not operate the pump in swimming pools or areas where people are in the water.
- Трымайце дзяцей і старонніх асоб далей ад зоны эксплуатацыі.
- Ensure proper ventilation when operating in enclosed spaces.
- The maximum liquid temperature for operation is 35 °C.
3. Змесціва ўпакоўкі
Праверце наяўнасць усіх прадметаў у камплекце:
- T.I.P. Maxima 350 IPX DUO Submersible Pump with connection cable
- Connection elbow with union nut
- Multi-dimensional connection piece
- Кіраўніцтва па эксплуатацыі
4. Настройка
4.1 Падключэнне выпускнога шланга
The pump features a 47.80 mm (1.5 inch external thread) pressure connection. Use the provided connection elbow and multi-dimensional connection piece to attach your discharge hose.
- Варыянт 1: Hose with Ø 40 mm. Secure with a hose clamp.
- Варыянт 2: Hose with 1 1/4" internal thread. Remove the upper part of the connector.
- Варыянт 3: Hose with Ø 32 mm. Secure with a hose clamp.
- Варыянт 4: Hose with 1" internal thread. Remove the upper part of the connector.
- Варыянт 5: Hose with 1 1/2" internal thread. Use the supplied connection elbow.
Image: Diagram showing various hose connection options and sizes for the pump.
Image: The supplied connection elbow for attaching a 1 1/2" internal thread hose.
An optional C-Storz coupling can also be used for the discharge hose (not included).
4.2 Adjusting the Pump Base for Water Type
The Maxima 350 IPX DUO features an extendable pump base to switch between dirty water and clean water modes.
- Dirty Water Mode: For water with particle sizes up to 30 mm. The pump base is extended, allowing for a residual water level of 35 mm.
- Clean Water Mode (Flat Suction): For clear water with particle sizes up to 1 mm. The pump base is retracted, enabling an ultra-flat suction down to 1 mm residual water level.
Image: The T.I.P. Maxima 350 IPX DUO pump, highlighting its extendable pump base for different water types.
Image: The pump operating in dirty water, showing the water level at 125 mm for activation.
Image: The pump after draining dirty water, showing a residual water level of 35 mm.
Image: The pump operating in clean water, showing the water level at 100 mm for activation.

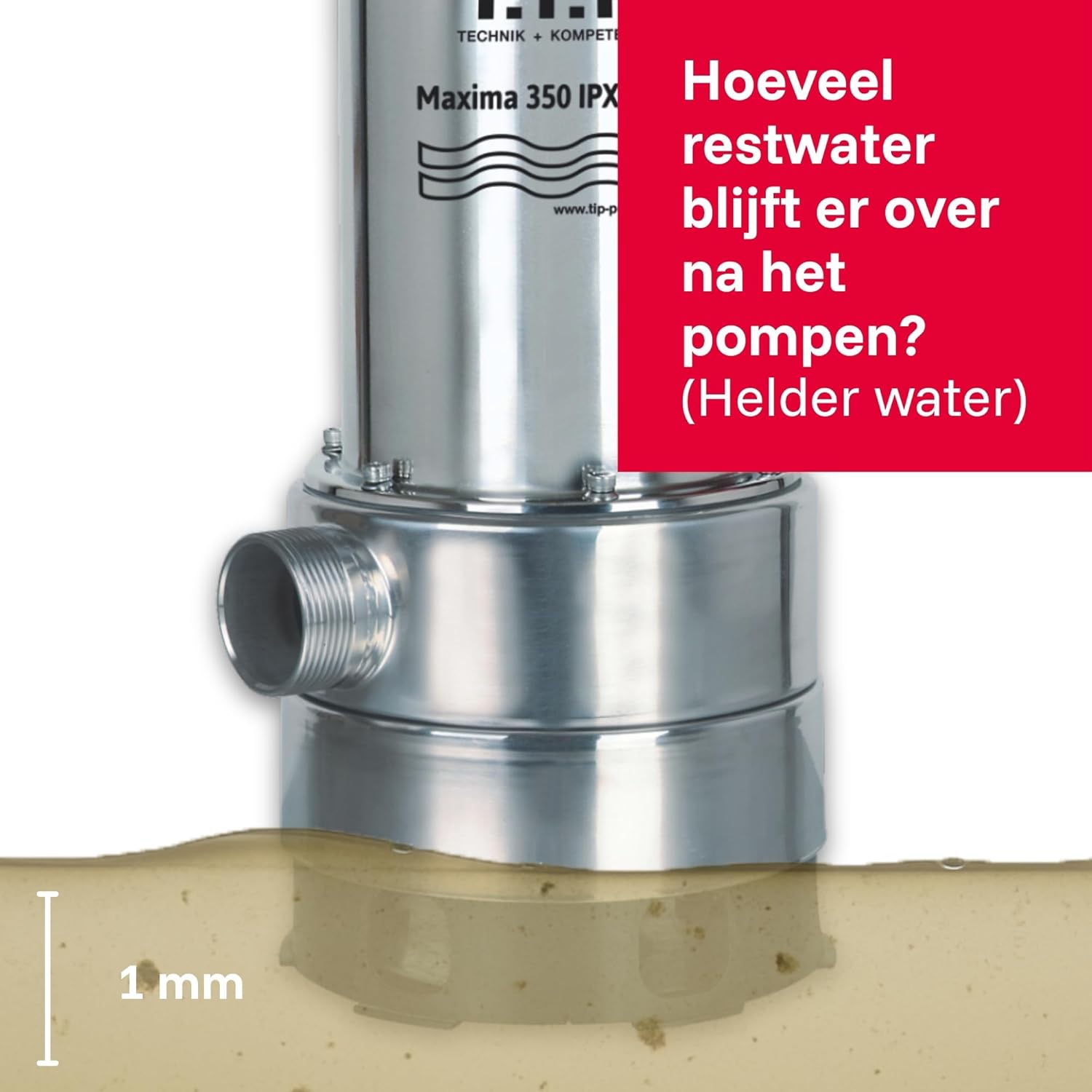

Image: The pump after draining clean water, showing an ultra-flat residual water level of 1 mm.
Image: Illustration of the maximum particle sizes the pump can handle: 1 mm for clear water and 30 mm for dirty water.
4.3 Рэгуляванне паплаўка
The pump is equipped with a variable adjustable float switch for automatic operation. The switch points depend on whether the pump is configured for clean or dirty water.
- Clean Water Mode: Switch-on point at 24 cm, switch-off point at 14 cm.
- Dirty Water Mode: Switch-on point at 27.5 cm, switch-off point at 17.5 cm.
Image: Diagram illustrating the float switch activation and deactivation points for clean water pumping.
Image: Diagram illustrating the float switch activation and deactivation points for dirty water pumping.
5. Эксплуатацыя помпы
Once the pump is set up with the correct hose and pump base configuration for your application, plug it into a suitable power outlet (230V). The float switch will automatically activate the pump when the water level reaches the switch-on point and deactivate it when it drops to the switch-off point.
Помпа падыходзіць для:
- Pumping and draining clear water.
- Pumping dirty water with particle sizes up to 30 mm.
- Dry drainage down to 1 mm.
- Emergency dewatering during floods.
Image: The pump being used in a construction pit and for draining a flooded basement, demonstrating its versatility.
5.1 Крывая прадукцыйнасці
The transport curve illustrates the relationship between the delivery head (Opvoerhoogte [m]) and the flow rate (Stroomsnelheid Q [m³/u]). This helps in understanding the pump's performance under different conditions.
Image: Graph showing the pump's performance curve, detailing flow rate versus head height.
5.2 Vortex Impeller
The pump is equipped with a vortex impeller, which helps prevent clogging and ensures low-maintenance operation, especially when handling dirty water.
Выява: Падрабязная view of the pump's components, including the vortex impeller designed to prevent clogging.
6. Тэхнічнае абслугоўванне
Regular maintenance ensures the longevity and optimal performance of your T.I.P. Maxima 350 IPX DUO pump.
- Уборка: After each use, especially with dirty water, rinse the pump with clean water to remove any debris.
- агляд: Periodically check the power cable, plug, and float switch for any signs of damage.
- захоўванне: Захоўвайце помпу ў сухім, абароненым ад марозу месцы, калі яна не выкарыстоўваецца працяглы час.
- Праверка крыльчаткі: If performance drops, check the impeller for blockages or wear.
7. Выпраўленне непаладак
Калі ў вас узніклі праблемы з помпай, звярніцеся да наступных распаўсюджаных крокаў па ліквідацыі непаладак:
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Помпа не запускаецца | No power supply; Float switch not activated; Impeller blocked. | Check power connection; Ensure water level is above switch-on point; Clean impeller. |
| Reduced pumping capacity | Hose kinked or blocked; Impeller partially blocked; Pump base clogged. | Check and clear hose; Clean impeller and pump base. |
| Помпа працуе бесперапынна | Float switch stuck or faulty; Water level not dropping below switch-off point. | Check float switch for obstructions; Ensure proper water drainage. |
If the problem persists, contact T.I.P. customer support or a qualified technician.
8. Тэхнічныя характарыстыкі
| Асаблівасць | Каштоўнасць |
|---|---|
| Вытворца | T.I.P. |
| Нумар мадэлі | 30274 |
| Памеры прадукту | 16.9 х 19.8 х 39.1 см |
| Вага | 7 кг |
| Матэрыял | Stainless Steel (Acier inoxydable) |
| Крыніца харчавання | Правадная электрычная |
| тtage | 230 Вольт |
| Ватtage | 800 ват |
| Максімальны расход | 20,000 літраў у гадзіну |
| Максімальная вышыня галавы | 8 м |
| Максімальная глыбіня апускання | 7 м |
| Максімальны памер часціц | 30 mm (dirty water) / 1 mm (clean water) |
| Minimum Suction Height | 35 mm (dirty water) / 1 mm (clean water) |
| Максімальная сярэдняя тэмпература | 35 °C |
| Даўжыня злучальнага кабеля | 10 m, H07RN8-F |
| Падключэнне ціску | 47.80 mm (1.5 inch external thread) |
9. Афіцыйныя відэа пра прадукт
Watch these official videos for additional guidance on using your T.I.P. pump.
T.I.P. Extrema 300/10 Pro Waste Water Submersible Pump
Video: This video demonstrates the features and operation of the T.I.P. Extrema 300/10 Pro, a similar waste water submersible pump, providing a visual guide to handling and usage.
10. Гарантыя і падтрымка
T.I.P. provides high-quality and durable products. For any issues or questions regarding your Maxima 350 IPX DUO pump, please refer to the warranty information provided with your purchase or contact T.I.P. customer support.
T.I.P. offers a 10-year guarantee on the availability of spare parts, ensuring long-term support for your product.
Image: T.I.P. guarantees 10 years of spare parts availability for their products.
