EnergyCell Pilot 4GS
EnergyCell Pilot 4GS 12000mAh Portable Charger User Manual
Model: Pilot 4GS | Brand: EnergyCell
1. Уводзіны
Thank you for choosing the EnergyCell Pilot 4GS Portable Charger. This 12000mAh power bank is designed to provide reliable and fast charging for your electronic devices, especially iOS devices. Its compact design and dual output ports make it an ideal companion for daily use and travel. This manual provides essential information on how to set up, operate, and maintain your portable charger.
Image 1.1: The EnergyCell Pilot 4GS 12000mAh Portable Charger in silver, showcasing its sleek design and port layout.
2. Змесціва ўпакоўкі
Калі ласка, пераканайцеся, што ўсе прадметы прысутнічаюць у вашай упакоўцы:
- 1 x EnergyCell Pilot 4GS 12000mAh Portable Charger
- 1 x Lightning Charging Cable
- 1 х Кіраўніцтва карыстальніка (гэты дакумент)
3. Прадукт скончыўсяview
Familiarize yourself with the components of your Pilot 4GS portable charger:
- Кнопка харчавання: Актывуе знешні акумулятар і правярае ўзровень зарада батарэі.
- Святлодыёдныя індыкатары: Паказвае пакінуты зарад батарэі.
- Lightning Input Port: Used to recharge the power bank.
- Dual USB-A Output Ports: Used to charge external devices.
Выява 3.1: Канецview of the power bank's ports and charging capabilities, illustrating simultaneous charging of multiple devices.
4. Настройка
4.1 Пачатковая зарадка знешніх акумулятараў
Before using your Pilot 4GS for the first time, it is recommended to fully charge it.
- Connect the included Lightning charging cable to the Lightning input port on the power bank.
- Connect the other end of the Lightning cable to a USB power adapter (not included) and plug it into a wall outlet.
- The LED indicators will illuminate to show the charging progress. Once all LEDs are solid, the power bank is fully charged.
Image 4.1: The power bank connected to a device, demonstrating its fast charging capability. The input port for charging the power bank is similar in appearance to the output ports.
5. Інструкцыя па эксплуатацыі
5.1 Зарадка вашых прылад
The Pilot 4GS features dual USB-A output ports, allowing you to charge two devices simultaneously.
- Connect your device's charging cable (USB-A end) to one of the output ports on the power bank.
- Падключыце іншы канец кабеля да прылады.
- The power bank will automatically detect the device and begin charging. If charging does not start, press the power button once.
- Заўвага аб сумяшчальнасці: The included Lightning cable is for charging the power bank and compatible with iPhone 11, 12, 13, and 14 series phones. For iPhone 15 and 16 series, a USB-C cable (not included) is required to charge your phone from the power bank.
5.2 Праверка ўзроўню зарада батарэі
Націсніце кнопку харчавання адзін раз, каб view the remaining battery capacity indicated by the LED lights.

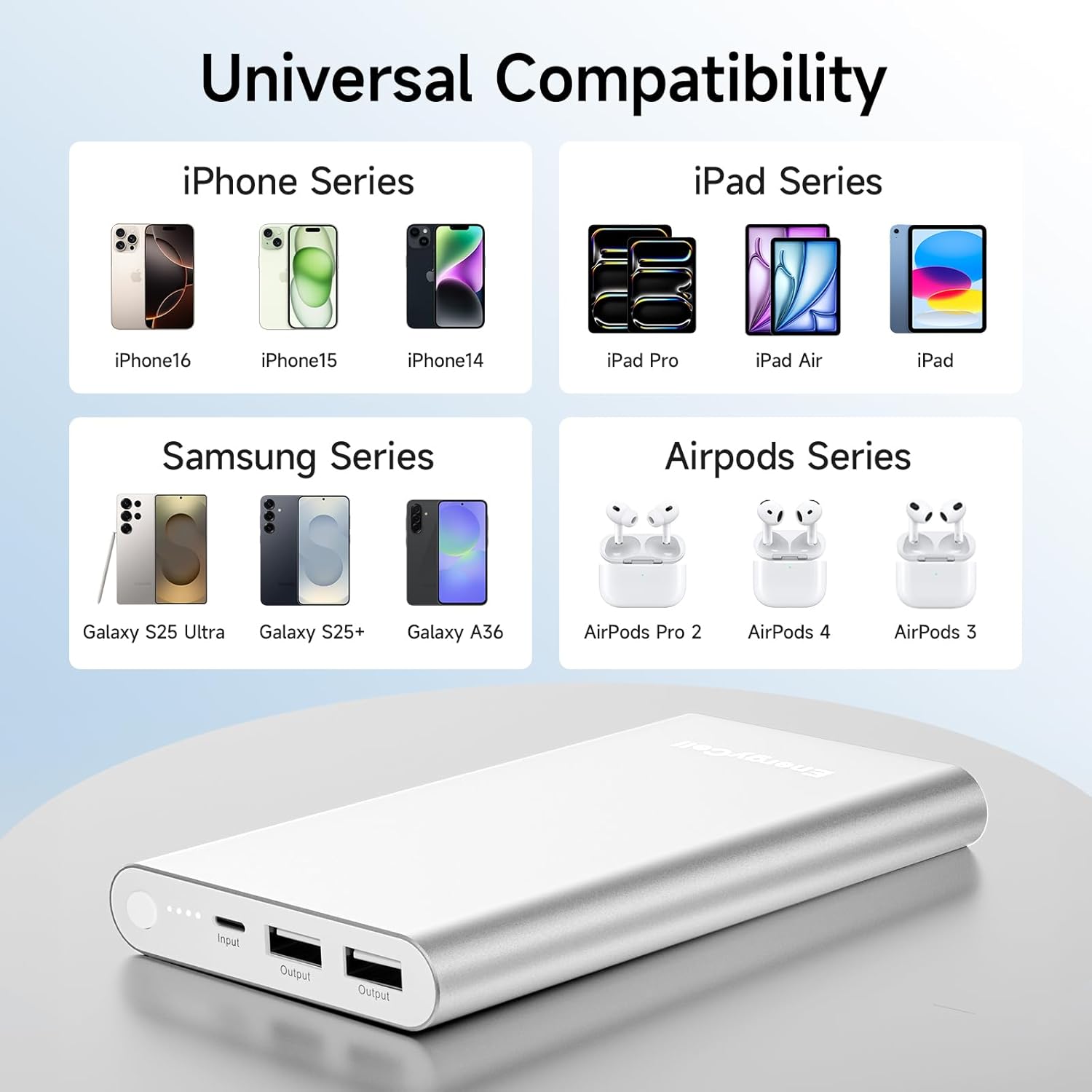

Image 5.1: The power bank is compatible with a wide range of devices, including various iPhone, iPad, Samsung, and AirPod models.
6. Тэхнічнае абслугоўванне
- Трымайце знешні акумулятар сухім і далей ад вільгаці.
- Пазбягайце ўздзеяння экстрэмальных тэмператур (высокіх або нізкіх).
- Працірайце паверхню мяккай сухой тканінай. Не выкарыстоўвайце агрэсіўныя хімікаты або абразіўныя матэрыялы.
- Захоўвайце павербанк у прахалодным сухім месцы, калі ён не выкарыстоўваецца.
Image 6.1: The aluminum body design offers durability and resistance to minor spills, though it is recommended to keep the device dry.
7. Выпраўленне непаладак
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Power bank не зараджаецца | Loose cable connection; Faulty cable/adapter; Power outlet issue. | Ensure cables are securely connected. Try a different cable or power adapter. Test the power outlet. |
| Прылада не зараджаецца ад Power Bank | Power bank battery low; Loose cable connection; Incompatible cable; Device issue. | Recharge the power bank. Ensure cables are secure. Use a compatible charging cable for your device. Press the power button on the power bank. |
| Павольная зарадка | Non-fast charging cable/adapter; Device charging limitations. | Use high-quality, fast-charging compatible cables. Ensure your device supports faster charging rates. |
8. Тэхнічныя характарыстыкі
| Асаблівасць | Дэталь |
|---|---|
| мадэль | Пілот 4GS |
| Ёмістасць батарэі | 12000 мАг |
| Увод | Lightning (8-pin) |
| Выхад | Dual USB-A, 5V/3A (max per port) |
| Памеры | 5.6 х 2.9 х 0.58 цалі |
| Вага | 10.2 унцыі |
| Матэрыял | Matte Metal Shell |
| Функцыі бяспекі | Overload, Overcurrent, Overcharging, Over Pressure, Short Circuit Protection |
9. Інфармацыя па бяспецы
- Не разбірайце, не мадыфікуйце і не рамантуйце прыладу.
- Не падвяргайце знешні акумулятар уздзеянню вады, агню або экстрэмальных тэмператур.
- Не кідайце прыладу і не падвяргайце яе моцным ударам.
- Выкарыстоўвайце толькі сертыфікаваныя зарадныя кабелі і адаптары.
- Захоўваць у месцах, недаступных дзецям.
- The Pilot 4GS is designed to be airline-approved for carry-on luggage. Always check with your airline for specific regulations before traveling.
Image 9.1: The Pilot 4GS portable charger is approved for air travel, making it a convenient accessory for flights.
10. Гарантыя і падтрымка
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official EnergyCell website. If you encounter any issues not covered in this manual, please contact EnergyCell customer service for assistance.
