VIGO Ruxton VG03033BN 12-inch Single Handle Bathroom Vessel Faucet

1. Уводзіны

Thank you for choosing the VIGO Ruxton VG03033BN 12-inch Single Handle Bathroom Vessel Faucet. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new faucet. Please read all instructions carefully before beginning installation and retain this manual for future reference.

The VIGO Ruxton faucet features a contemporary design with a hexagon-shaped single wheel handle and a high arc spout, ideal for vessel bathroom sinks. Constructed from solid brass with a durable brushed nickel finish, it offers both style and longevity. This faucet is WaterSense certified, providing an eco-friendly 1.2 GPM flow rate.

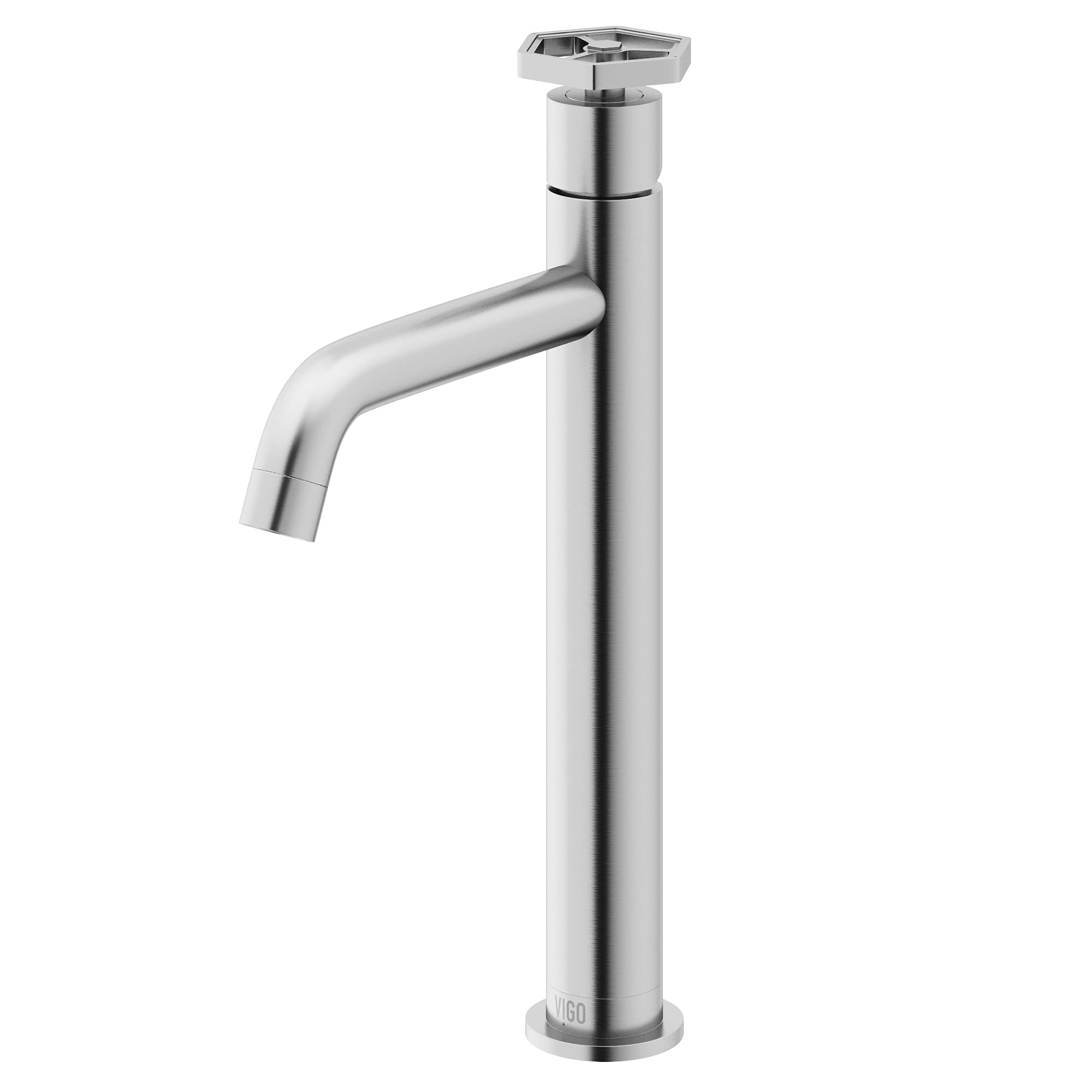

Image 1.1: The VIGO Ruxton VG03033BN 12-inch Single Handle Bathroom Vessel Faucet in Brushed Nickel.

2. Інфармацыя па бяспецы

WARNING: Important Safety Instructions. Read and understand all instructions before installation.

• Заўсёды перакрывайце асноўную падачу вады перад устаноўкай або выкананнем любога тэхнічнага абслугоўвання крана.
• Падчас усталёўкі выкарыстоўвайце адпаведныя сродкі індывідуальнай абароны (СІА), такія як ахоўныя акуляры і пальчаткі.
• Пераканайцеся, што выкананы ўсе мясцовыя сантэхнічныя і будаўнічыя нормы.
• Калі вы не ўпэўненыя ў якім-небудзь этапе працэсу ўстаноўкі, звярніцеся да кваліфікаванага сантэхніка.
• Гэты прадукт утрымлівае хімічныя рэчывы, якія, як вядома ў штаце Каліфорнія, выклікаюць рак і прыроджаныя дэфекты або іншыя парушэнні рэпрадуктыўнай функцыі (папярэджанне Прапановы 65).

3. Змесціва ўпакоўкі

Перад пачаткам усталёўкі пераканайцеся, што ўсе кампаненты наяўныя:

• Vessel Faucet Body
• Mounting Hardware (gaskets, washers, mounting nut)
• Hot and Cold Water Supply Lines (PEX lines)
• Кіраўніцтва па ўстаноўцы

Image 3.1: Typical components included with the VIGO Ruxton faucet. Actual contents may vary slightly.

4. Усталёўка і налада

The VIGO Ruxton faucet is designed for easy, single-hole deck-mounted installation. Follow these steps for a secure setup:

1. Падрыхтуйце месца ўстаноўкі: Turn off the main water supply. Clear the area under the sink and ensure the mounting surface is clean and dry. The maximum deck thickness supported is 2-1/2 inches, and the required faucet hole size is 1-3/8 inches.
2. Усталюйце корпус крана: Insert the faucet body through the mounting hole on the sink or countertop. Ensure the base gasket is properly seated between the faucet and the mounting surface.
3. Замацуйце кран: From underneath the sink, slide the rubber washer, metal washer, and mounting nut onto the threaded shank of the faucet. Tighten the mounting nut securely by hand, then use a basin wrench to fully tighten, ensuring the faucet is stable and aligned.
4. Падключэнне ліній водазабеспячэння: Attach the hot and cold water supply lines to the corresponding inlets on the faucet body (typically marked with red for hot and blue for cold). Connect the other ends of the supply lines to your hot and cold water shut-off valves. Hand-tighten, then use a wrench for a quarter turn. Do not overtighten.
5. Тэст на ўцечкі: Once all connections are made, slowly turn on the main water supply. Check all connections for leaks. If leaks are detected, gently tighten the connections until they stop.

Image 4.1: Key dimensions for the VIGO Ruxton faucet, showing height and spout reach.

5. Інструкцыя па эксплуатацыі

The VIGO Ruxton faucet features a single hexagon-shaped handle for controlling both water temperature and flow rate.

• Уключыць/выключыць: Rotate the handle to the left or right to turn the water on or off.
• Наладзіць паток вады: The further you rotate the handle, the greater the water flow.
• Рэгуляванне тэмпературы вады: The handle typically rotates to provide cold water in one direction and hot water in the other. Adjust the handle position to achieve your desired temperature.

Малюнак 5.1: Верх view of the hexagon-shaped handle, indicating hot and cold water markings.

6. Тэхнічнае абслугоўванне

Proper care and maintenance will ensure the longevity and appearance of your VIGO Ruxton faucet.

• Ачыстка аздаблення: Clean the faucet regularly with a soft cloth and warm, soapy water. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the brushed nickel finish. Rinse thoroughly and dry with a soft cloth to prevent water spots.
• Абслугоўванне аэратара: The faucet features a replaceable and easy-to-clean aerator. If water flow decreases or becomes irregular, unscrew the aerator from the spout, clean any debris or mineral deposits, and rinse thoroughly before reattaching.
• Керамічны дыскавы клапан: The faucet is equipped with a durable Sedal ceramic disc valve, tested for 500,000 uses, which typically requires no maintenance.

Image 6.1: Close-up of the faucet spout, showing the removable aerator for cleaning.

7. Выпраўленне непаладак

If you encounter issues with your faucet, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact VIGO customer support.

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

VIGO provides a limited lifetime warranty for bathroom faucets, ensuring customer satisfaction through guaranteed product quality. This warranty covers defects in material and workmanship under normal use and service.

For warranty claims, technical assistance, or any questions regarding your VIGO Ruxton faucet, please contact VIGO customer support:

• Webсайт: www.vigoindustries.com
• электронная пошта: Refer to VIGO's official webсайт для бягучага кантактнага адраса электроннай пошты.
• тэлефон: Refer to VIGO's official website for current customer support phone number.

Please have your model number (VG03033BN) and proof of purchase available when contacting support.
