FIFISH V6 Expert M100 Underwater Drone Instruction Manual

1. Уводзіны

The FIFISH V6 Expert M100 is a high-performance, multi-functional underwater drone designed for professionals and enthusiasts. It offers advanced features such as AI Vision Lock, 4K UHD camera capabilities, and omnidirectional movement, making it an ideal tool for underwater exploration, inspection, and photography. This manual provides essential information for setting up, operating, and maintaining your FIFISH V6 Expert M100.

2. Змесціва ўпакоўкі

The standard FIFISH V6 Expert M100 package includes the following items:

• FIFISH V6 Expert ROV
• Tether Reel (330ft)
• Пульт дыстанцыйнага кіравання
• ROV & Controller Charger
• Spare Propellers (x2)
• EPP Box Packaging

Image: FIFISH V6 Expert M100 package contents, showing the ROV, remote controller, 100M tether & spool, spare propellers, and chargers, all within a portable EPP case.

3. Кіраўніцтва па наладцы

3.1 Зарадка прылады

Ensure both the FIFISH V6 Expert ROV and the remote controller are fully charged before use. Connect the provided chargers to a power source and the respective devices. The ROV's 14400mAh battery can reach 90% charge in approximately 1 hour.

3.2 Connecting the Tether

Unwind the tether from the tether reel. Securely connect one end of the tether to the FIFISH V6 Expert ROV and the other end to the remote controller. Ensure all connections are firm to prevent disconnections during operation.

3.3 Першапачатковае ўключэнне

Power on the remote controller, then the FIFISH V6 Expert ROV. Follow the on-screen instructions on your connected smart device (via the FIFISH APP) to establish a connection and perform any necessary firmware updates.

4. Інструкцыя па эксплуатацыі

4.1 Movement and Maneuverability

The FIFISH V6 Expert features patented omnidirectional movement and 360° maneuverability. Use the remote controller's joysticks to control the ROV's pitch, roll, yaw, and depth. The upgraded motor system provides enhanced stability for smooth operation.

4.2 AI Vision Lock

Utilize the AI Vision Lock feature for precise focus and real-time tracking of underwater subjects. Activate this function via the FIFISH APP to adaptively lock onto targets, ensuring clear and stable footage.

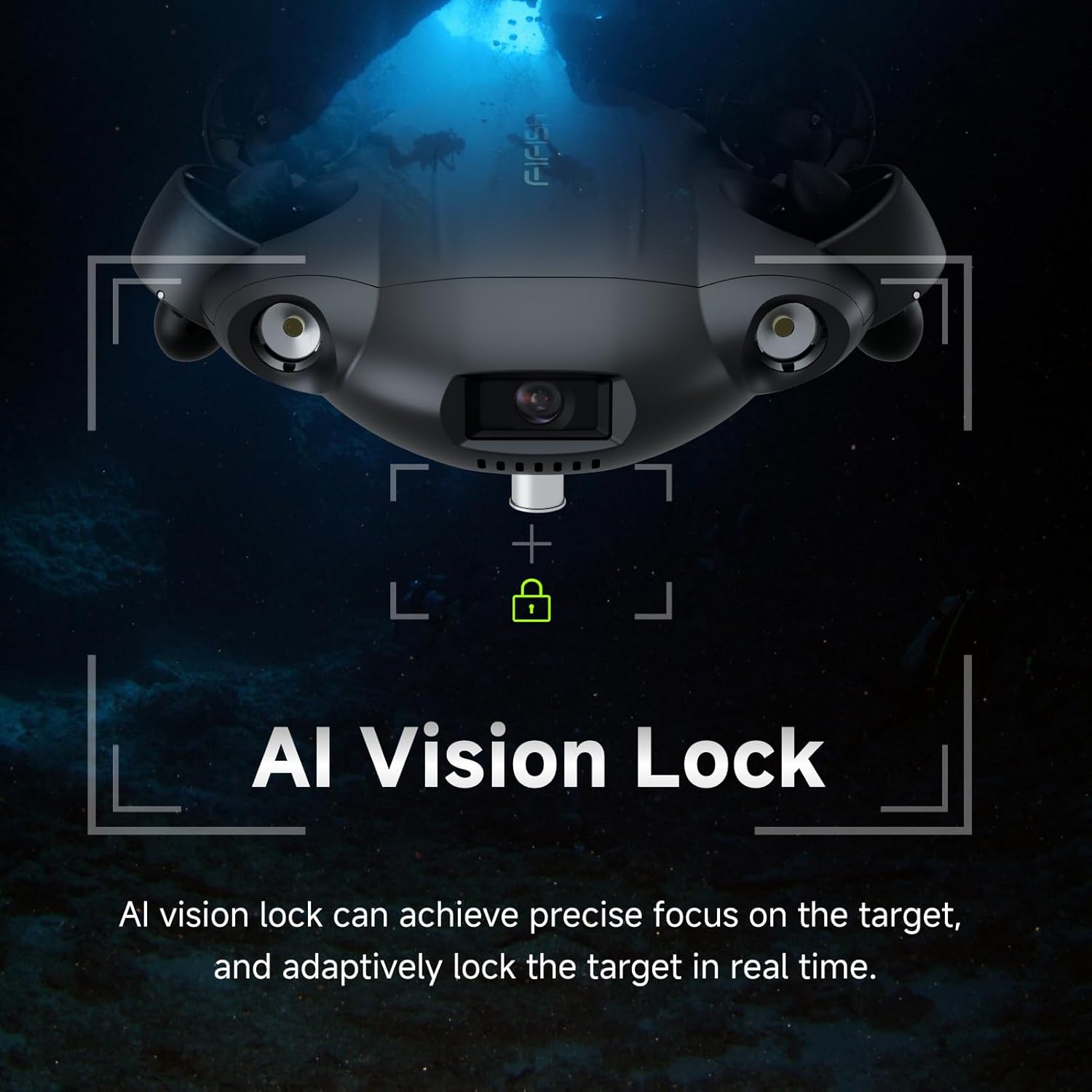

Image: The FIFISH V6 Expert underwater drone demonstrating its AI Vision Lock capability, adaptively focusing on a target in real-time.

4.3 Праца камеры

The ROV is equipped with a 4K UHD camera. Control recording and photo capture through the FIFISH APP. The 166° FOV wide-angle lens and 6000 lumen LED lights ensure high-quality imaging even in challenging underwater conditions.

5. Асноўныя магчымасці

• Павялічаны тэрмін службы батарэі: 14400mAh battery provides up to 6 hours of working time.
• Upgraded Motor System: Enhanced protection against corrosion and improved stability.
• Seamless Data Transfer: Built-in quick plug compartment for Micro SD card (128GB included) for easy film and image transfer.
• Q-interface: Supports various professional-grade tools for inspection, navigation, sampling, and grappling needs.

Image: The FIFISH V6 Expert showcasing its Q-interface, allowing for the attachment of various optional accessories to expand its functionality.

6. Тэхнічнае абслугоўванне

To ensure the longevity and optimal performance of your FIFISH V6 Expert M100, follow these maintenance guidelines:

• After each use, rinse the ROV, tether, and remote controller with fresh water.
• Inspect propellers for any damage or entanglement and replace spare propellers as needed.
• Store the device in its EPP case in a cool, dry place away from direct sunlight.
• Regularly check all ports and connectors for corrosion or debris.

7. Выпраўленне непаладак

If you encounter any operational problems or have questions regarding your FIFISH V6 Expert M100, please refer to the following:

• Ensure all connections (tether, power) are secure.
• Verify that both the ROV and controller are fully charged.
• Check the FIFISH APP for any error messages or diagnostic information.
• For complex issues, contact customer service for assistance.

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

For any product-related issues, technical support, or warranty claims, please contact FIFISH customer service. We are committed to providing solutions and will respond to your inquiries within 24 hours. The product has high operational requirements, so do not hesitate to reach out for assistance.

10. Афіцыйныя відэа пра прадукт

11. Выявы прадуктаў

Image: The main product image of the FIFISH V6 Expert M100 underwater drone.

Image: The FIFISH V6 Expert M100 with icons highlighting its 4K UHD Camera, 12 Megapixel Resolution, 6000 Lumen LED Lights, Posture Lock, 360° Omnidirectional Movement, and 166° FOV Wide-Angle Lens.

Image: Close-up of the FIFISH V6 Expert M100 camera, detailing its 4K UHD, F/2.5 Aperture, 240 FPS SloMo Capture, and 166° FOV Wide-Angle Lens.

Image: The FIFISH V6 Expert underwater drone in action, showcasing its sleek design and underwater capabilities.

Image: Collage showing various applications and scenarios for the FIFISH V6 Expert M100, including aquaculture, structural inspections, emergency search & rescue, and offshore & underwater engineering.

Image: The FIFISH Expert logo alongside an image of the V6 Expert M100 drone.

Image: The FIFISH V6 Expert M100 highlighting its high-performance and multi-functional capabilities with various feature icons.

Image: The FIFISH V6 Expert M100 shown underwater, emphasizing its operational environment.
