1. Уводзіны
This manual provides instructions for the proper installation, operation, and maintenance of your Kolink RGB Extension Cable. Please read this manual thoroughly before use to ensure safe and efficient operation.
The Kolink RGB Extension Cable is designed to extend the reach of your 4-pin RGB lighting connections within your PC system, offering greater flexibility for component placement and aesthetic customization.
2. Інфармацыя па бяспецы
- Ensure your PC system is powered off and unplugged from the wall outlet before installing or removing any components.
- Handle the cable by its connectors, not by the wires, to prevent damage.
- Do not expose the cable to excessive force, sharp objects, or extreme temperatures.
- This product is intended for indoor use within a computer chassis.
- Verify that the connector type (4-pin RGB) matches your devices before connection. Incorrect connection may cause damage.
3. Змесціва ўпакоўкі
У вашай пасылцы павінен быць наступны прадмет:
- 1x Kolink RGB Extension Cable (50cm)

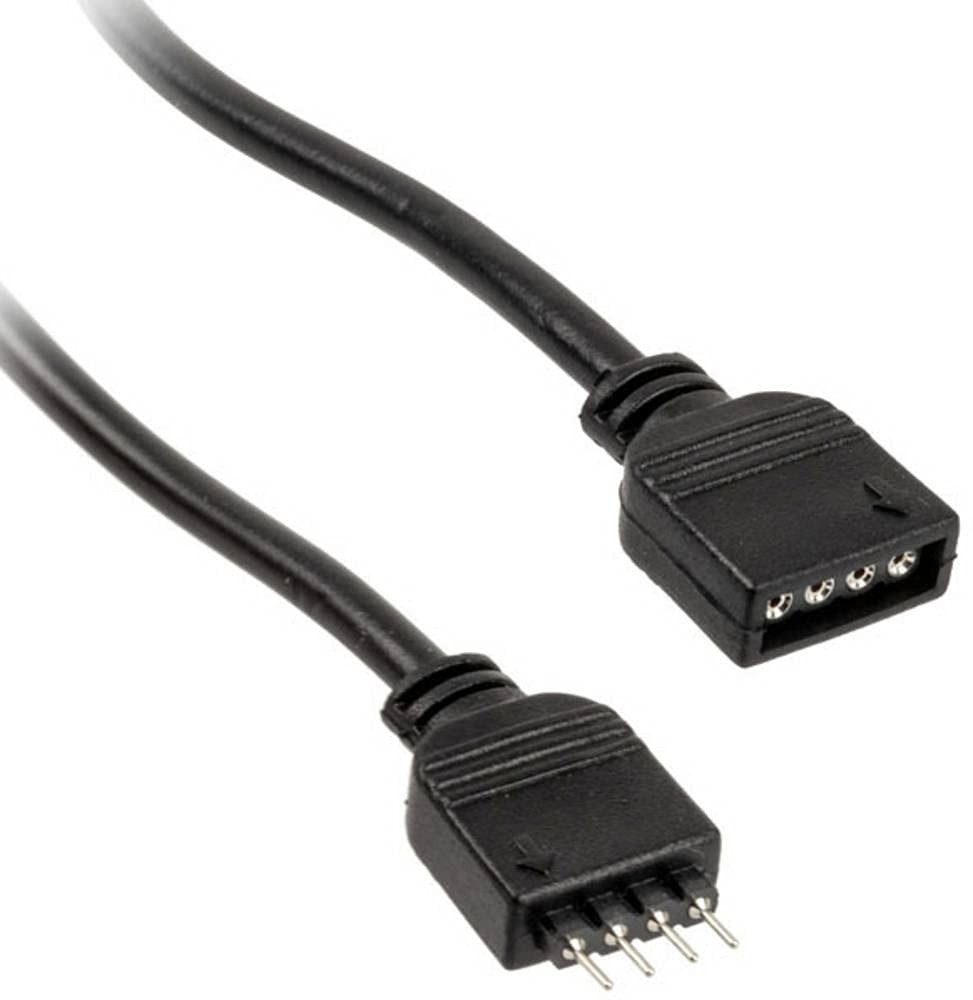

Малюнак 1: Kolink RGB Extension Cable. This image shows the 50cm black extension cable with its 4-pin male and female connectors, designed for extending RGB lighting connections within a PC.
4. Настройка і ўстаноўка
- Сістэма адключэння харчавання: Ensure your computer is completely powered off and disconnected from the main power supply.
- Вызначыць злучальнікі: Locate the 4-pin RGB header on your motherboard or existing RGB controller, and the 4-pin RGB connector on the device you wish to extend (e.g., an RGB fan or LED strip).
- Connect Extension Cable: Carefully connect the мужчынскі end of the Kolink RGB Extension Cable to the жаночы 4-pin RGB header on your motherboard or controller. Ensure the pins align correctly and the connection is secure.
- Падключыць прыладу: Падключыце жаночы end of the Kolink RGB Extension Cable to the мужчынскі 4-pin RGB connector of your RGB device. Again, ensure correct pin alignment and a secure connection.
- Кабельнае кіраванне: Route the cable neatly within your PC case, ensuring it does not obstruct airflow or interfere with moving parts like fans. The tangle-free design assists with this.
- Сістэма ўключэння: Once all connections are secure, close your PC case, reconnect the power supply, and power on your system.
5. Аперацыя
The Kolink RGB Extension Cable functions as a passive extension for your 4-pin RGB signals. Once connected, the RGB device will operate as if it were directly connected to the motherboard or controller, allowing you to control its lighting effects through your system's existing RGB software or hardware controls.
No additional software or drivers are required for the cable itself.
6. Тэхнічнае абслугоўванне
- Уборка: If necessary, gently wipe the cable with a dry, lint-free cloth to remove dust. Do not use liquid cleaners.
- агляд: Periodically inspect the cable for any signs of wear, fraying, or damage to the connectors. If damage is observed, discontinue use and replace the cable.
- захоўванне: When not in use, store the cable in a cool, dry place, away from direct sunlight and extreme temperatures. Avoid sharp bends or kinks.
7. Выпраўленне непаладак
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| RGB device not lighting up. | Loose connection, incorrect pin alignment, or faulty RGB device/controller. | Ensure all 4-pin connections are secure and correctly aligned. Verify the RGB device works when connected directly. Check motherboard/controller settings. |
| Incorrect colors or flickering. | Loose connection, software issue, or incompatible RGB standard. | Check connections. Update or reinstall RGB control software. Ensure your device uses the 4-pin 12V RGB standard (not 3-pin 5V ARGB). |
| Здаецца, кабель пашкоджаны. | Фізічная шкода. | Неадкладна спыніце выкарыстанне. Заменіце кабель. |
8. Тэхнічныя характарыстыкі
- Марка: КАЛЕКЦЫЯ
- мадэль: PGW-AC-KOL-042
- Тып кабеля: RGB Extension Cable
- Тып раздыма: 4-pin RGB (Male-to-Female)
- Даўжыня: 50 см
- Колькасць шпілек: 4
- Максімальны аб'ёмtage: 5 В (пастаянны ток) (Note: Standard 4-pin RGB is typically 12V. Users should verify their device's voltage requirement to ensure compatibility.)
- асаблівасць: Блытанне бясплатна
- Рэкамендуемае выкарыстанне: PC fan extension, RGB lighting extension
- колер: Чорны
- Адпаведнасць: RoHS
9. Гарантыя і падтрымка
Kolink products are manufactured to high-quality standards. For warranty information and technical support, please refer to the official Kolink webсайт або звярніцеся да прадаўца. Захоўвайце пацвярджэнне пакупкі для прэтэнзій па гарантыі.
EU Spare Part Availability Duration: 1 Year (as per product specifications).
