Diablo X-Ray Gaming Chair User Manual

Уводзіны

The Diablo X-Ray Gaming Chair is engineered to deliver superior seating comfort and ergonomic support for individuals who spend extended periods at a computer, whether for gaming or professional tasks. This chair combines a distinctive design with advanced ergonomic features and high-quality materials to enhance your overall experience. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure optimal use of your gaming chair.

The Diablo X-Ray Gaming Chair in a home office setting, showcasinяго дызайн і прысутнасць.

Інфармацыя па бяспецы

• Максімальная грузападымальнасць: Do not exceed the recommended maximum load of 150 kilograms (330 lbs). Exceeding this limit may cause damage to the chair or personal injury.
• зборка: Ensure all components are securely fastened before use. Refer to the assembly instructions carefully.
• дзеці: Keep small parts away from children during assembly. This chair is designed for adult and adolescent use.
• Стабільнасць: Avoid standing on the chair or using it for purposes other than seating.
• Рух: Exercise caution when reclining or adjusting the chair to prevent tipping or injury.

Змест пакета

Калі ласка, пераканайцеся, што ўсе наступныя кампаненты прысутнічаюць у вашай упакоўцы:

• спінка
• База сядзення
• Падлакотнікі (2)
• Зорная база
• Ролікі (5)
• Газліфтны цыліндр
• Крышка газліфта
• Mechanism (Tilttech Butterfly System)
• Lumbar Pillow (ProSpine Support)
• Headrest Pillow (Magnetic Memory Foam)
• Бакавыя накладкі (2)
• Камплект фурнітуры (шрубы, шайбы, шасцігранны ключ)

Усталёўка (інструкцыя па зборцы)

Follow these steps to assemble your Diablo X-Ray Gaming Chair:

1. Прымацуйце колы да зорнай асновы: Устаўце пяць колаў у адтуліны на канцы кожнай ножкі зорчатай асновы. Моцна націсніце, пакуль яны не зафіксуюцца са шчоўкам.
2. Усталяваць газавы ліфт: Змесціце цыліндр газавага пад'ёмніка ў цэнтральную адтуліну зоркападобнай асновы. Накрыйце яго вечкам газавага пад'ёмніка.
3. Прымацуйце механізм да асновы сядзення: Align the mechanism with the screw holes on the underside of the seat base. Ensure the front of the mechanism faces the front of the seat. Secure with screws from the hardware kit.
4. Прымацуйце падлакотнікі да асновы сядзення: Secure the armrests to the designated holes on the underside of the seat base using the provided screws.
5. Connect Backrest to Seat Base: Attach the backrest to the seat base using the side brackets. Secure with screws, then cover the brackets with the plastic side covers.
6. Усталюйце сабранае сядзенне на газавы пад'ёмнік: Акуратна ўсталюйце сабранае сядзенне і спінку на газавы ліфт, пераканаўшыся, што яны знаходзяцца па цэнтры і ўстойлівыя.
7. Прымацаваць падушкі: Position the lumbar pillow against the lower backrest and the magnetic headrest pillow at the top of the backrest.

Diagram illustrating the dimensions of the Diablo X-Ray Gaming Chair: 130cm height, 71cm width, and 52cm depth.

Інструкцыя па эксплуатацыі (рэгуляванне)

Your Diablo X-Ray Gaming Chair offers multiple adjustment options for personalized comfort:

• Seat Height Adjustment (Tilttech Butterfly System): Pull the lever located on the right side of the seat upwards to raise or lower the seat. Release the lever at your desired height.
• Backrest Recline (Tilttech Gear): Pull the lever on the left side of the seat upwards to unlock the backrest. Lean back to your desired angle and release the lever to lock it in place.
• Rocking Function (Tilttech Swing): Pull the right lever outwards to enable the rocking function. Push it inwards to lock the chair in an upright position. The tension of the rocking can be adjusted by turning the knob underneath the seat.
• 4D Armrest Adjustment (Armtech Quatro SoftTouch): The armrests can be adjusted in four dimensions: height, forward/backward, left/right, and pivot. Use the buttons and levers on the armrests to make these adjustments.
• Lumbar Support (ProSpine Support): The integrated lumbar support can be adjusted by turning the knob on the side of the backrest.
• Magnetic Headrest: The memory foam headrest pillow is magnetically attached and can be easily repositioned vertically along the top of the backrest for optimal neck support.

Буйны план view of the Armtech Quatro SoftTouch 4D armrests, demonstrating their multi-directional adjustability.

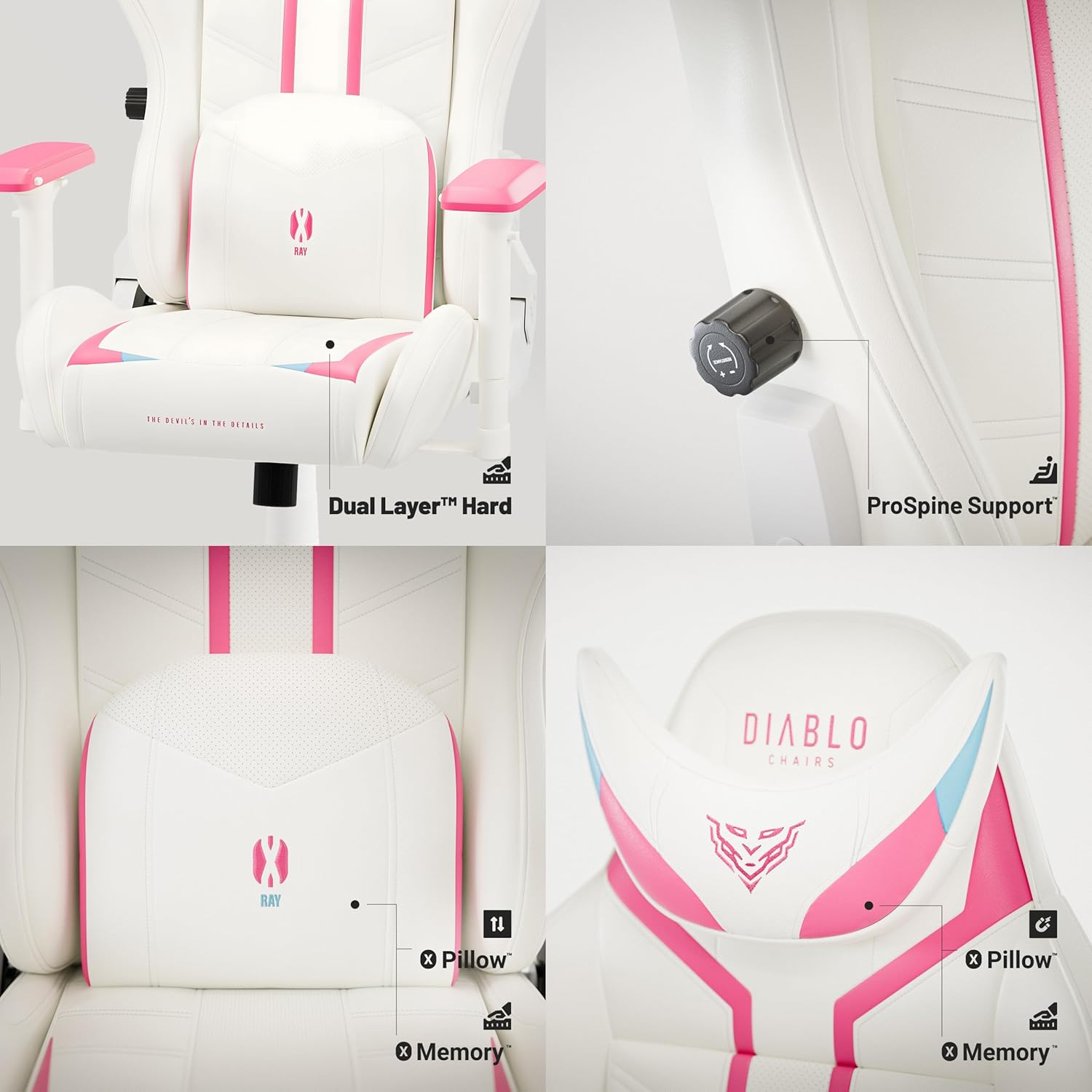

Падрабязны view of the ergonomic features: Dual Layer seat cushion, ProSpine Support knob for lumbar adjustment, and magnetic memory foam headrest pillow.

Illustration of the Tilttech Swing mechanism, demonstrating the chair's rocking and recline function.

Тэхнічнае абслугоўванне

• Уборка: Для агульнай уборкі выкарыстоўвайце мяккую,amp cloth. For spot cleaning, use a mild soap solution and gently wipe the affected area. Avoid harsh chemicals or abrasive cleaners, as they may damage the synthetic leather.
• Сыход за матэрыялам: The chair is made of synthetic leather and perforated synthetic leather (HDS Air). To maintain its appearance and durability, avoid prolonged exposure to direct sunlight and extreme temperatures.
• Ролікі: Periodically check the PFC 360 rubber casters for hair or debris that may hinder smooth movement. Clean as needed.
• Зашпількі: Occasionally check all screws and bolts to ensure they are tight. Retighten if necessary to maintain stability.

Close-up of the HDS Air perforated synthetic leather material used on the Diablo X-Ray Gaming Chair, designed for enhanced breathability.

Detail of the PFC 360 rubber casters on the chair's base, designed for smooth and quiet movement on hard surfaces.

Ліквідацыю непаладак

Тэхнічныя характарыстыкі

Гарантыя і падтрымка

For warranty information and customer support, please refer to the documentation included with your purchase or contact the manufacturer directly. Keep your proof of purchase for any warranty claims.

Manufacturer: Diablo
