MACHSWON MGH844308J Universal Motorcycle LCD Digital Speedometer User Manual

Уводзіны

This manual provides detailed instructions for the installation, operation, and maintenance of your MACHSWON Universal Motorcycle LCD Digital Speedometer. This multi-functional unit integrates a speedometer, tachometer, and odometer, featuring a 7-color adjustable backlight and is designed for universal fitment on 12V DC motorcycles.

Тэхніка бяспекі

Please read and understand all safety information before installing or operating the device.

• Ensure the motorcycle's power is disconnected before installation to prevent electrical shock or damage.
• All wiring connections must be secure and properly insulated to avoid short circuits.
• Калі вы не ўпэўненыя ў якіх-небудзь этапах усталёўкі, звярніцеся да кваліфікаванага спецыяліста.
• Do not attempt to disassemble or modify the unit, as this may void the warranty and cause malfunction.
• Ensure the unit is securely mounted and does not obstruct your view або перашкаджаць кіраванню матацыклам.

Змест пакета

Праверце наяўнасць усіх прадметаў у камплекце:

• 1 x LCD Digital Speedometer Unit
• 1 x Speed Sensor
• 1 х Жгут правадоў
• Mounting Hardware (clips, screws)

Асаблівасці прадукту

• Multi-Functional Display: Integrates tachometer, speedometer, gear indicator, time display, and total travel distance.
• Adjustable Units: Kilometers and miles can be adjusted.
• Speed Sensor Included: Comes with a dedicated speed sensor for precise readings.
• Трывалая канструкцыя: Robust ABS shell with a clear lens, waterproof, and impact-resistant.
• 7-каляровая падсветка: Digital LCD screen features 7 adjustable backlight colors for enhanced visibility in various lighting conditions.
• Дысплей з антыблікавым пакрыццём: Designed for clear viewпад усімі кутамі.
• Універсальная ўстаноўка: Compatible with most DC 12V motorcycles, including 1, 2, and 4-cylinder (4-stroke motorcycle disc-brake front tire) models.
• Зручныя элементы кіравання: Two buttons for switching between total odometer, trip distance, and water temperature display.
• Engine Trouble Light: Includes an engine trouble light reminder.

Тэхнічныя характарыстыкі

Настройка і ўстаноўка

1. Праверка перад устаноўкай

Before beginning installation, ensure your motorcycle's battery is disconnected. Verify all components listed in the "Package Contents" section are present and undamaged.

2. Mounting the Speedometer Unit

Select a suitable location on your motorcycle's dashboard or handlebar where the speedometer is clearly visible and does not obstruct controls. Secure the unit using the provided mounting hardware.

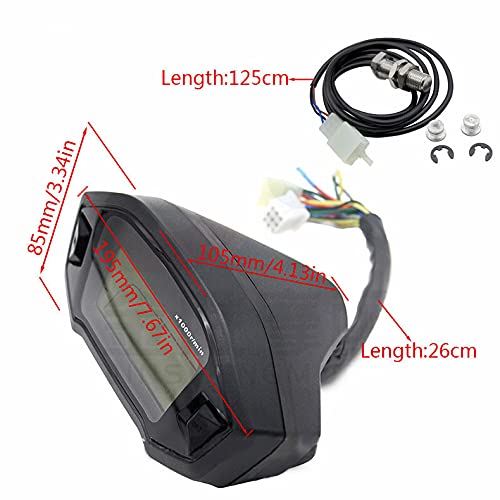

Image: The speedometer unit showing its dimensions (approximately 19cm length, 8.5cm height, 10.5cm width) and the attached wiring harness (26cm length) and speed sensor cable (125cm length).

3. Падключэнне правадоў

The speedometer unit comes with a multi-pin wiring harness. Connect the wires according to your motorcycle's electrical system. Refer to your motorcycle's service manual for specific wiring diagrams if needed. Common connections include:

• Positive (+) 12V: Падключыце да імпульснай крыніцы харчавання 12 В (напрыклад, замка запальвання).
• Ground (-): Connect to the motorcycle's chassis ground.
• Сігнал запальвання: For RPM readings (tachometer).
• Speed Sensor Input: Connect the included speed sensor.
• Turn Signals (Left/Right): For indicator lights.
• High Beam Indicator: For high beam light.
• Neutral Gear Indicator: For neutral light.
• Датчык ўзроўню паліва: Калі дастасавальна.

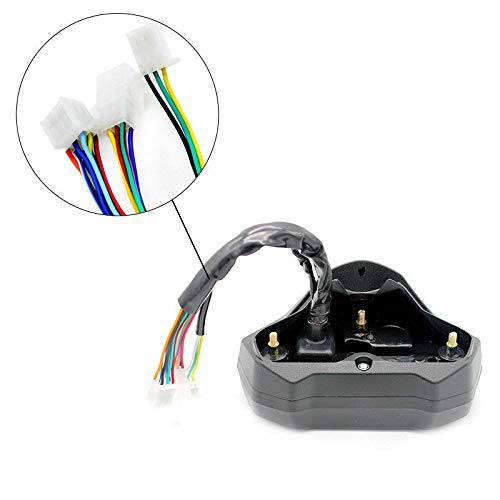

Выява: Крупны план view of the multi-pin connectors on the wiring harness, showing various colored wires for different electrical connections.

4. Усталёўка датчыка хуткасці

Install the provided speed sensor on your motorcycle's front wheel, typically near the brake rotor or sprocket, ensuring it can accurately detect wheel rotation. The sensor cable length is approximately 125cm.

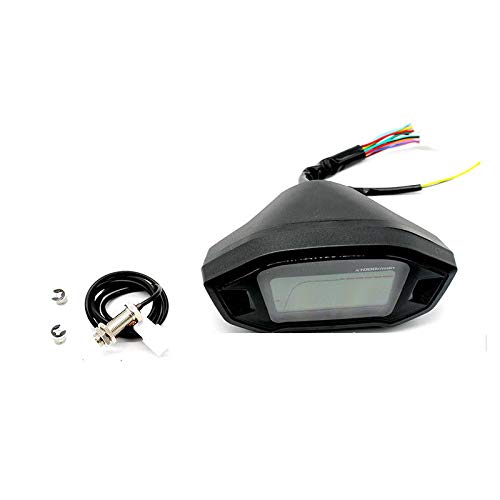

Image: The main speedometer unit displayed alongside the speed sensor, its cable, and two small mounting clips.

5. Initial Power-Up and Calibration

After all connections are made, reconnect the motorcycle's battery. Turn on the ignition. The speedometer should power on. You may need to calibrate the speedometer for accurate speed readings based on your wheel size and cylinder configuration. Refer to the operating instructions for calibration procedures.

Інструкцыя па эксплуатацыі

1. Уключэнне

Upon turning the motorcycle's ignition key to the ON position, the speedometer will power on and display the current readings.

2. Рэжымы адлюстравання

The unit displays various information including speed, engine RPM, total odometer, trip odometer, time, and gear indicator. The engine trouble light will illuminate if a fault is detected.

3. Adjusting Backlight Color

The speedometer features 7 adjustable backlight colors. Use the buttons on the unit to cycle through the available colors and select your preferred option.

Image: A collage showing the speedometer display with different backlight colors, including blue, green, yellow, red, and light blue.

4. Switching Odometer and Temperature Displays

The unit has two buttons, typically located on the left and right sides. Press these buttons to switch between the total travel distance (odometer), trip distance (subtotal), and water temperature display (if connected and supported by your motorcycle).

5. Unit Adjustment (Kilometer/Mile)

The display units for distance (kilometer/mile) can be adjusted. Consult the specific button combination or menu option for this setting, usually involving a long press or sequence of presses on one of the control buttons.

6. Cylinder Setting

The speedometer supports 1, 2, and 4-cylinder engines. Ensure the correct cylinder setting is configured for accurate RPM readings. This setting is typically accessed through a specific button sequence during initial setup or calibration.

Тэхнічнае абслугоўванне

• Уборка: Выкарыстоўвайце мяккі, damp cloth to clean the display and housing. Avoid abrasive cleaners or solvents that could damage the plastic.
• агляд: Перыядычна правярайце ўсе злучэнні правадоў на надзейнасць і наяўнасць прыкмет зносу або карозіі.
• Праверка датчыка: Ensure the speed sensor is clean and properly positioned for accurate readings.
• захоўванне: If storing the motorcycle for an extended period, ensure the unit is protected from extreme temperatures and moisture.

Ліквідацыю непаладак

Гарантыя і падтрымка

MACHSWON is committed to providing high-quality products. All products are subject to strict quality control. If you encounter any quality problems or are not satisfied with the product, please contact our customer service for assistance. We are dedicated to offering the best possible solution.

For support, please refer to the contact information provided with your purchase or visit the official MACHSWON store online.
