Airiton AR-152 Ham Radio User Manual

1. Уводзіны

This manual provides detailed instructions for the safe and effective operation of your Airiton AR-152 Ham Radio. Please read this manual thoroughly before using the device and retain it for future reference. The Airiton AR-152 is a powerful, military-grade handheld two-way radio designed for long-range communication, featuring a 12000mAh battery and dual-band capabilities.

Figure 1: Airiton AR-152 Ham Radio displaying frequency and power settings.

2. Змесціва ўпакоўкі

Праверце, ці ёсць у вашай упакоўцы ўсе пералічаныя ніжэй прадметы:

• Airiton AR-152 Radio Unit (Host)
• 12000mAh Li-ion Battery (Model: BL-152)
• Antenna (SMA-Female connector)
• Зарадная прылада
• Кіраўніцтва карыстальніка
• Шнурок

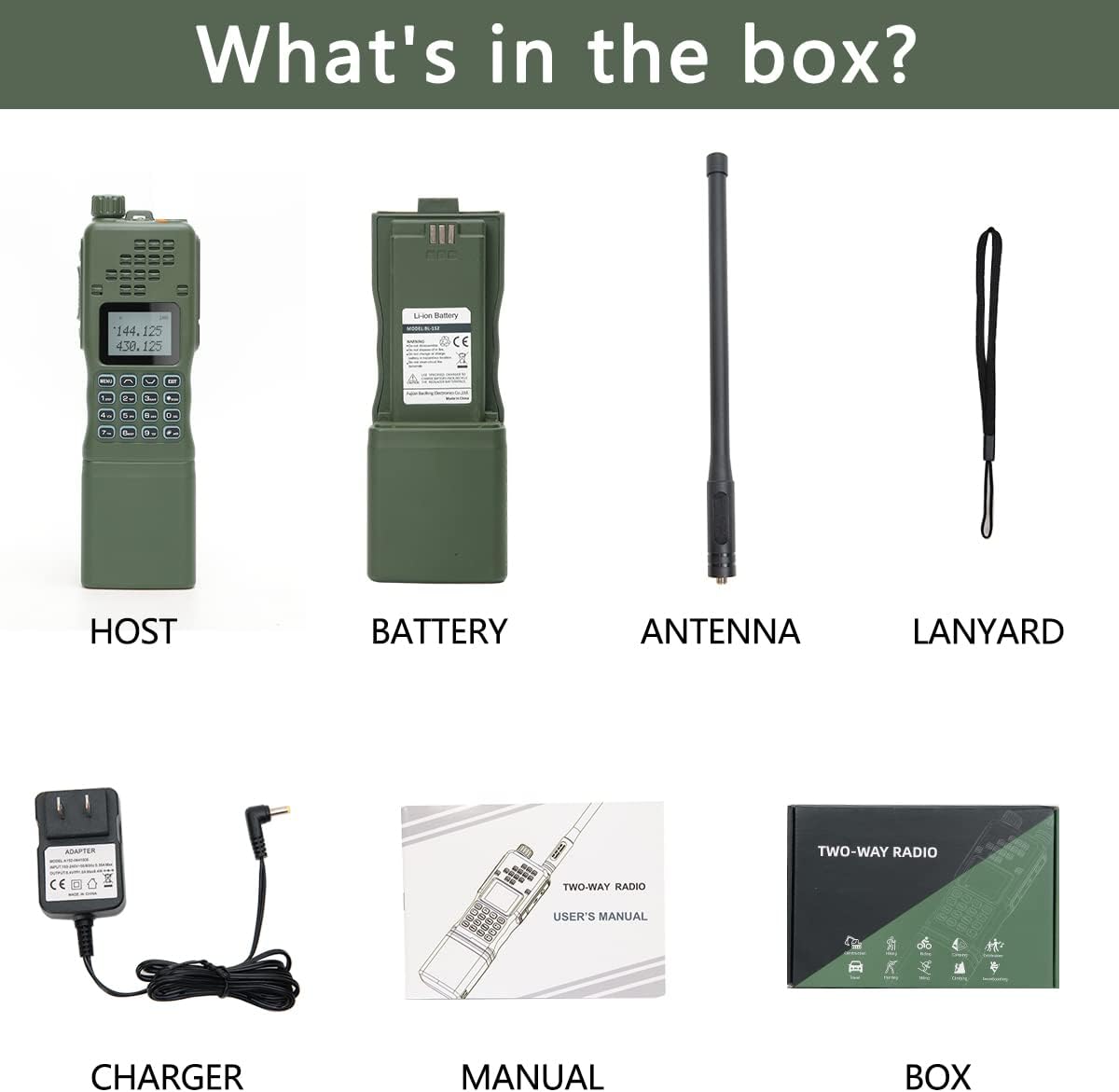

Figure 2: Included items in the Airiton AR-152 package.

3. Настройка

3.1 Устаноўка батарэі

1. Align the 12000mAh Li-ion battery with the battery compartment on the back of the radio unit.
2. Устаўце батарэю на месца да надзейнага пстрычкі.

Figure 3: Battery installation process for the AR-152 radio.

3.2 Мацаванне антэны

1. Locate the SMA-Female connector on the top of the radio.
2. Screw the provided antenna clockwise onto the connector until it is finger-tight. Do not overtighten.

Figure 4: Attaching the SMA-Female antenna to the radio unit.

3.3 Protective Film Removal

Remove the protective film from the display screen for optimal visibility.

4. Інструкцыя па эксплуатацыі

4.1 Уключэнне/выключэнне харчавання і рэгуляванне гучнасці

The power knob is located at the top of the radio. Rotate it clockwise to power on the device and adjust the volume. Rotate counter-clockwise to decrease volume and power off.

4.2 Keypad and Side Buttons

The radio features a clear keypad for frequency input and menu navigation. Side buttons include a Push-to-Talk (PTT) button, mode changing buttons, and a flashlight button.

4.3 Operating Modes (Walkie-Talkie and FM Radio)

The AR-152 operates in two primary modes: Walkie-Talkie (default) and FM Radio. Press the Рэжым button to switch between these modes. In Walkie-Talkie mode, you can easily navigate between different frequencies or stored channels. The radio supports two main types of frequency modes: Рэжым частоты for direct frequency input and Рэжым канала for selecting pre-stored channels. Use the up/down arrow keys to toggle between frequencies or channels.

4.4 Power Transmission Modes

The radio offers three power transmission modes: High (H), Medium (M), and Low (L). Press the # button to cycle through these power levels. The current power level is indicated on the display.

Figure 5: Display indicating different power transmission modes (High, Mid, Low).

4.5 Flashlight and Alarm Functions

A dedicated button on the side activates the built-in LED flashlight. A single press turns it on, a second press makes it flash, and a third press turns it off. The radio also includes an alarm function; press and hold the designated button to activate it in case of emergency.

5. Зарадка

The Airiton AR-152 supports multiple charging methods:

• Зарадная прылада: Use the standard wall charger provided in the package.
• Зарадная прылада USB: Compatible with USB charging cables for convenient charging via USB ports.
• Аўтамабільная зарадная прылада: A car charger can be used for charging on the go (sold separately).

Figure 6: Various charging options for the AR-152 radio.

6. Знешнія аксэсуары

The radio features a K-port (2 Pin) on the side, protected by a rubber flap. This port is compatible with external headsets, speaker microphones, and programming cables, allowing for enhanced functionality and hands-free operation.

7. Тэхнічныя характарыстыкі

Figure 7: Physical dimensions of the AR-152 radio.

8. Тэхнічнае абслугоўванне

• Падтрымлівайце радыё ў чысціні, праціраючы яго мяккай тканінайamp тканіна. Пазбягайце рэзкіх хімікатаў.
• Ensure the battery charging port is covered when not in use to prevent moisture and dust ingress.
• Захоўвайце радыёпрыёмнік у прахалодным, сухім месцы, удалечыні ад прамых сонечных прамянёў і экстрэмальных тэмператур.
• Рэгулярна правярайце шчыльнасць злучэння антэны.

9. Выпраўленне непаладак

• Няма харчавання: Ensure the battery is correctly installed and fully charged. Check the power/volume knob.
• Слабы прыём/перадача: Verify the antenna is securely attached. Check the selected frequency or channel. Ensure you are within range. Adjust power transmission mode (High, Medium, Low).
• Праблемы з аўдыя: Adjust the volume knob. Ensure no external headset is improperly connected.
• Дысплей не працуе: Check power. If issues persist, contact customer support.

10. Safety and Licensing Information

Важна: In the United States, an amateur radio license is required to transmit with this high-power walkie-talkie. While listening to frequencies is generally permitted without a license, transmitting without proper authorization is illegal and can result in penalties. Always ensure compliance with local regulations and licensing requirements for radio operation.

Avoid transmitting on frequencies not licensed or authorized to prevent interference with licensed users. The FCC may pursue action against individuals who cause interference.

The product is designed to be dust and splash-proof, but it is not fully waterproof. Avoid submerging the device in water.

11. Гарантыя і падтрымка

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Airiton webсайт. Захоўвайце пацвярджэнне пакупкі для прэтэнзій па гарантыі.
