Уводзіны
This manual provides essential information for the safe and effective use of your Sun Joe 24V-X2-16LM 48-Volt IONMAX Cordless Brushless Lawn Mower Kit. Please read these instructions thoroughly before assembly, operation, or maintenance. Keep this manual for future reference.
Інфармацыя па бяспецы
Заўсёды надавайце прыярытэт бяспецы пры працы з электраінструментамі. Невыкананне інструкцый па тэхніцы бяспекі можа прывесці да сур'ёзных траўмаў або пашкоджання маёмасці.
Агульныя правілы бяспекі
- Read and understand all instructions before operating the appliance.
- Трымайце дзяцей і навакольных далей ад працоўнай зоны.
- Карыстайцеся адпаведнымі сродкамі індывідуальнай абароны (СІЗ), у тым ліку ахоўнымі акулярамі, ахоўнымі слыхавымі апаратамі і трывалым абуткам.
- Inspect the work area for objects that could be thrown by the blade. Remove all debris.
- Не выкарыстоўвайце газонакасілку ў мокрай траве або пад дажджом.
- Перад выкарыстаннем пераканайцеся, што акумулятар цалкам зараджаны, і выміце яго, калі ён не выкарыстоўваецца або падчас тэхнічнага абслугоўвання.
- Never attempt to bypass safety features.
Змест пакета
Пераканайцеся, што ўсе прадметы наяўныя пры распакаванні:
- Sun Joe 24V-X2-16LM Lawn Mower Unit
- 2 x 4.0-Ah IONMAX Lithium-Ion Batteries
- Dual-Port Charger
- 12-Gallon Grass Collection Bag
- Upper and Lower Handle Frames
- Assembly Hardware (latches, washers, nuts)
- Кіраўніцтва па эксплуатацыі

Выява: Зверхуview of the Sun Joe 24V-X2-16LM Lawn Mower Kit, showing the mower, batteries, charger, and grass collection bag.
Настройка
1. Ручка ў зборы
- Lift the lower handle to the desired height.
- Turn the latch clockwise and flip it up to lock the lower handle frame in position.
- Connect the upper frame and lower frame handles.
- Insert latches into aligned holes. Attach with provided washers and nuts. Flip latches to secure.
2. Насадка для збору травы
- To use with the grass collection bag, first remove the mulching plug (if installed).
- With the ejector flap lifted, hook the grass collection bag into place.

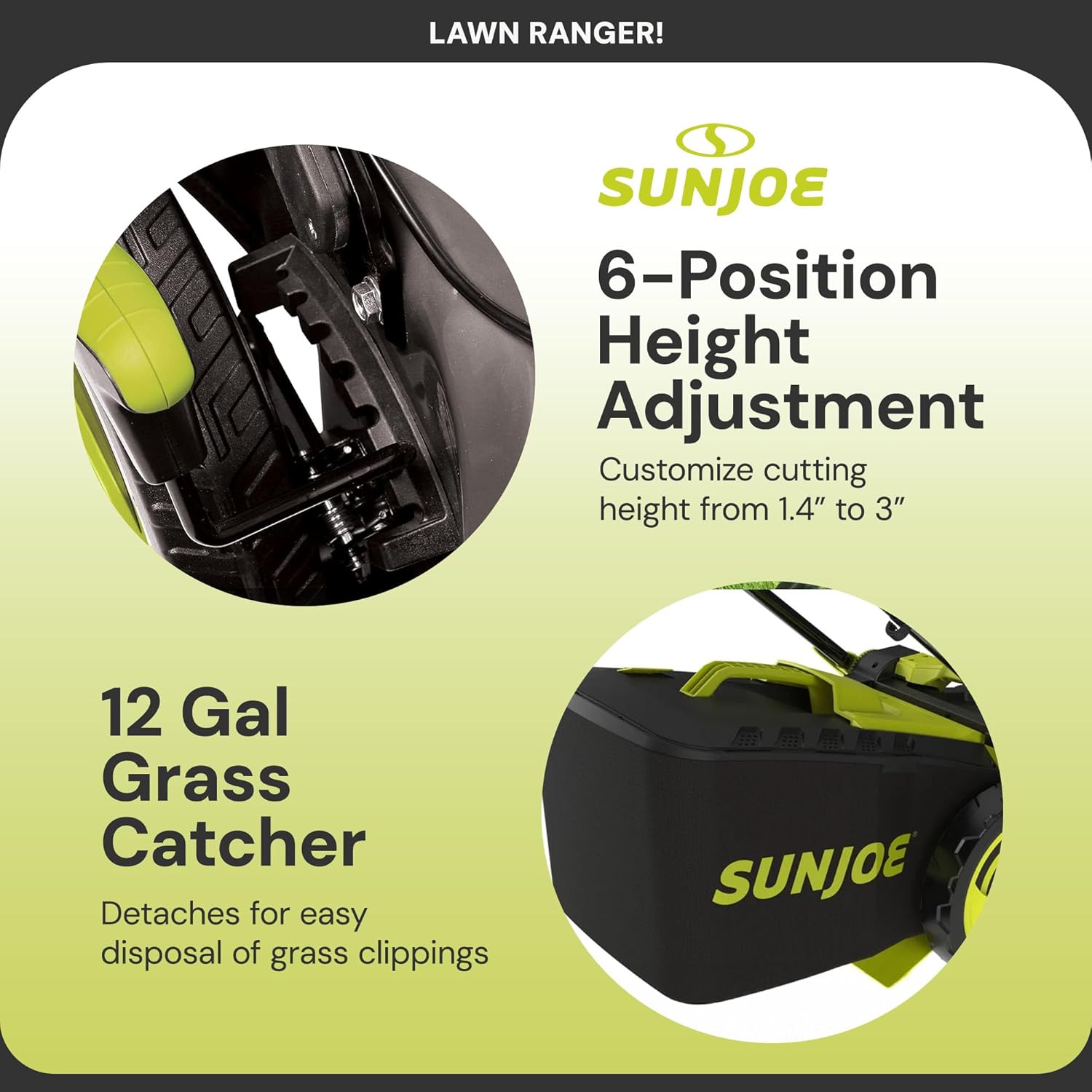

Выява: Крупны план view of the mower's height adjustment lever and the grass catcher attachment point.
3. Зарадка і ўстаноўка акумулятара
- Insert the 4.0-Ah lithium-ion batteries into the dual-port charger.
- Allow approximately 1 hour and 50 minutes for a full charge of both batteries.
- Once charged, insert the batteries into the designated battery compartments on the mower. Ensure they click securely into place.

Image: The Sun Joe lawn mower with its two 48V 4.0 Ah batteries inserted into the battery compartment.
Відэа зборкі
Video: Quick assembly guide for the Sun Joe 24V-X2-16LM Cordless Walk-Behind Brushless Mower, demonstrating handle setup and grass bag attachment.
Аперацыя
1. Запуск касілкі
- Ensure batteries are fully charged and correctly installed.
- Press and hold the safety button, then pull the bail switch towards the handle. The mower will start.
- Адпусціце кнопку бяспекі, як толькі газонакасілка запрацуе.
2. Рэгуляванне вышыні скосу
- The mower features a 6-position manual height-adjustment lever.
- Adjust the lever to select a cutting height between 1.4 inches and 3 inches.
- Для дасягнення найлепшых вынікаў не скошвайце больш за адну траціну даўжыні травы за раз.
3. Тэхніка касьбы
- Mow in overlapping rows to ensure even coverage.
- For thick or tall grass, consider making two passes, raising the cutting height for the first pass.
- Always push the mower forward; do not pull it towards you.

Image: The Sun Joe lawn mower cutting grass in a residential lawn, demonstrating its 16-inch cutting width.
Тэхнічнае абслугоўванне
Рэгулярнае тэхнічнае абслугоўванне забяспечвае аптымальную прадукцыйнасць і падаўжае тэрмін службы вашай газонакасілкі.
1. Уборка
- Заўсёды вымайце батарэйкі перад чысткай.
- Clean the mower deck and blade area after each use to prevent grass buildup. Use a brush or cloth; do not use water directly on electrical components.
- Працярыце знешні выгляд рэкламайamp тканіна.
2. Сыход за лязом
- Рэгулярна правярайце лязо на наяўнасць вострасці і пашкоджанняў. Тупое лязо можа парваць траву, што прыводзіць да нездаровага выгляду газона.
- If the blade is damaged or excessively dull, it should be sharpened or replaced by a qualified service technician.
3. Захоўванне батарэі
- Захоўвайце батарэі ў прахалодным, сухім месцы, удалечыні ад прамых сонечных прамянёў і экстрэмальных тэмператур.
- Для працяглага захоўвання зараджайце акумулятары прыблізна да 50% ёмістасці.
Ліквідацыю непаладак
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Касілка не запускаецца | Batteries not charged or improperly installed; Safety key not inserted; Bail switch not engaged. | Charge and properly install batteries; Insert safety key; Engage bail switch. |
| Касілка спыняецца падчас працы | Batteries depleted; Overload protection activated (e.g., very thick grass). | Recharge batteries; Reduce load by raising cutting height or taking smaller passes. |
| Няроўны зрэз | Dull or damaged blade; Uneven terrain; Incorrect cutting height. | Sharpen or replace blade; Mow on level ground; Adjust cutting height. |
| Празмерная вібрацыя | Пагнутае або незбалансаванае лязо; аслабленыя кампаненты. | Inspect and replace blade if bent; Tighten all fasteners. |
Тэхнічныя характарыстыкі
| Асаблівасць | Дэталь |
|---|---|
| Марка | Сан Джо |
| Нумар мадэлі | 24V-X2-16LM |
| Крыніца харчавання | Battery Powered (2x 4.0 Ah Lithium-Ion) |
| тtage | 48-Volt (2x 24V) |
| Тып рухавіка | Brushless (800-watt) |
| Шырыня рэзкі | 16 цаляў |
| Рэгуляванне вышыні | 6-position manual (1.4 inches to 3 inches) |
| Ёмістасць мяшка для збору травы | 12 галонаў |
| Вага прадмета | 18.9 Pounds (without batteries) |
| Памеры прадукту | 32.7" Г x 18.9" Ш x 13.8" У |
| Матэрыял | Легаваная сталь |
| Колер | Зялёны |

Image: The Sun Joe lawn mower with key dimensions (length, width, height, weight) highlighted.
Гарантыя і падтрымка
Інфармацыя аб гарантыі
This product includes a 2-year manufacturer's warranty. Please refer to the warranty card included in your package for full terms and conditions.
Падтрымка кліентаў
For technical assistance, replacement parts, or warranty claims, please contact Sun Joe customer service. Contact details can typically be found on the manufacturer's webсайце або на ўпакоўцы прадукту.
