Vonets VAR11N-300 WiFi Bridge, Repeater, and Router User Manual

1. Прадукт скончыўсяview

The Vonets VAR11N-300 is a compact and versatile 2.4GHz mini WiFi device designed to function as a WiFi Bridge, Wireless Repeater, and Mini Router. It provides solutions for converting WiFi to wired Ethernet or wired Ethernet to WiFi, catering to various networking needs such as connecting IP printers, medical devices, or extending WiFi coverage in hotels and homes.

Асноўныя функцыі ўключаюць у сябе:

• WiFi Bridge Mode: Connects wired devices to a wireless network.
• Рэжым паўтаральніка Wi-Fi: Extends the range of an existing WiFi signal.
• Mini Router Mode: Provides internet access via a WAN connection, suitable for hotel environments.

The device supports WiFi 802.11b/g/n standards with a data rate of up to 300Mbps, offering a point-to-point transmission distance of up to 50 meters without obstacles.

2. Змесціва ўпакоўкі

Upon unboxing your Vonets VAR11N-300, please ensure all items are present:

• Vonets VAR11N-300 Device
• USB кабель харчавання
• Кабель Ethernet
• Інструкцыя па эксплуатацыі (гэты дакумент)

Image: The Vonets VAR11N-300 device, a small white square, connected to a USB power cable and an Ethernet cable, illustrating the components included in the package.

3. Парты і індыкатары прылады

Familiarize yourself with the device's physical layout:

• Парты WAN/LAN: Two RJ45 ports that can be interchanged depending on the operating mode.
• Уваходнае харчаванне DC5V: Для падключэння кабеля харчавання USB.
• Кнопка скіду: Выкарыстоўваецца для аднаўлення заводскіх налад.
• Святлодыёдныя індыкатары: Provide status information (e.g., power, network activity).

Выява: Падрабязны view of the Vonets VAR11N-300's side, highlighting the Reset button, DC5V LAN port, and WAN port for easy identification.

4. Налада і канфігурацыя

The VAR11N-300 can be configured via a web interface. Follow these steps for initial setup:

4.1 Пачатковае падключэнне

1. Connect the VAR11N-300 to your computer using the provided Ethernet cable.
2. Power on the device by connecting the USB power cable to a 5V/1A power source (e.g., computer USB port, USB power adapter). Ensure the LED lights flash normally.

Image: A visual guide illustrating the three-step wireless quick configuration process, including connecting to the device's SSID, accessing the web interface, and selecting a WiFi network.

4.2 Доступ да Web Інтэрфейс

1. Адкрыйце a web браўзер на падлучаным кампутары.
2. In the address bar, enter either the configured domain http://vonets.cfg or the default IP address 192.168.253.254.
3. Log in using the default User ID and Password, both typically admin.

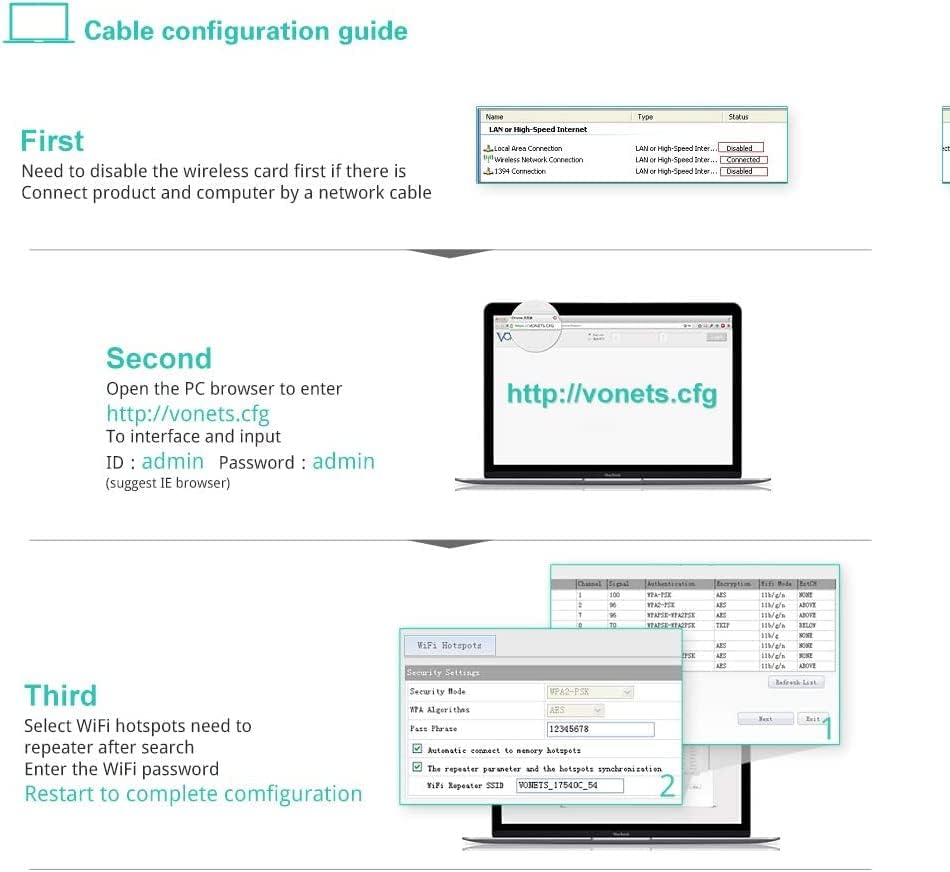

Image: A step-by-step cable configuration guide, detailing how to disable wireless, connect the device via Ethernet, access the web interface, log in, and configure WiFi settings.

4.3 Configuration Video Guide

For a visual walkthrough of the configuration process, including setting up bridge and repeater modes, please watch the official video below:

5. Рэжымы працы

The VAR11N-300 supports three primary operating modes:

5.1 WiFi Router Mode

In Router Mode, the device connects to a broadband modem via its WAN port and provides internet access to connected devices, both wired and wireless. This mode is ideal for creating a local network in environments like hotels.

Image: A diagram showing the setup for WiFi Router Mode (connecting to a modem and providing WiFi/Ethernet) and WiFi Bridge Mode (converting WiFi to wired Ethernet for devices like TVs).

5.2 WiFi Bridge Mode (AP Client)

Bridge Mode allows wired network devices (e.g., IP cameras, network printers, smart TVs) to connect to a wireless network. The VAR11N-300 converts the WiFi signal into a wired Ethernet connection.

5.3 WiFi Repeater Mode (Signal Extender)

Repeater Mode extends the coverage of an existing WiFi network. The VAR11N-300 receives the WiFi signal and re-broadcasts it, effectively increasing the wireless range. It also features a channel idle algorithm to automatically select the best WiFi channel, minimizing interference.

Image: A diagram demonstrating the WiFi Repeater mode, showing how the device extends WiFi coverage, and an illustration of the channel idle algorithm selecting an optimal channel.

6. Тэхнічныя характарыстыкі

Image: A graphic illustrating the benefits of 802.11n technology, highlighting the 300Mbps WiFi transmission rate of the VAR11N-300 compared to older, slower standards.

7. Тэхнічнае абслугоўванне

To ensure optimal performance and security of your VAR11N-300, regular maintenance is recommended:

• Абнаўленні прашыўкі: Periodically check the Vonets official website for new firmware versions. Updating the firmware can improve performance, add new features, and fix bugs.
• Скід да заводскіх налад: If the device experiences persistent issues or you forget your login credentials, you can perform a factory reset by pressing and holding the Reset button for approximately 5-10 seconds while the device is powered on. This will revert all settings to their default values.
• Фізічны догляд: Keep the device in a well-ventilated area, away from direct sunlight, moisture, and extreme temperatures.

8. Выпраўленне непаладак

If you encounter issues with your Vonets VAR11N-300, consider the following troubleshooting steps:

• Немагчыма атрымаць доступ Web інтэрфейс:
  • Ensure the device is properly powered and connected to your computer via Ethernet.
  • Verify your computer's network adapter is set to obtain an IP address automatically (DHCP).
  • Try both http://vonets.cfg і 192.168.253.254 у вашым браўзеры.
  • Disable any VPN or proxy settings on your computer.
• No Internet Connection in Bridge/Repeater Mode:
  • Confirm the VAR11N-300 is successfully connected to the source WiFi hotspot. Check the signal strength in the web інтэрфейс.
  • Ensure the correct WiFi password for the source hotspot was entered during configuration.
  • Reboot both the VAR11N-300 and your main router.
• Павольная хуткасць злучэння:
  • Relocate the VAR11N-300 closer to the main router or the device needing connection to improve signal strength.
  • Праверце на наяўнасць перашкод ад іншых прылад, якія працуюць на частаце 2.4 ГГц (напрыклад, бесправадных тэлефонаў, мікрахвалевых печаў).
  • Ensure the main router is operating on an optimal channel (the VAR11N-300 has an auto-channel selection feature in Repeater mode).

9. Гарантыя і падтрымка

The Vonets VAR11N-300 comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package or the official Vonets webсайт для канкрэтных умоў.

For technical assistance, troubleshooting, or any product-related inquiries, please contact Vonets customer support:

• электронная пошта: support@vonets.com
• Webсайт: Visit the official Vonets webсайт з часта задаванымі пытаннямі, абноўленымі інструкцыямі і загрузкай драйвераў.
