BLACK DIAMOND Cosmo 350 Headlamp Кіраўніцтва па эксплуатацыі

1. Уводзіны

The BLACK DIAMOND Cosmo 350 Headlamp is a versatile and durable lighting solution designed for outdoor activities such as camping, hiking, and trail running. It provides up to 350 lumens of bright, reliable illumination and features dual fuel compatibility, allowing it to run on either standard AAA batteries or an optional rechargeable BD 1500 Li-ion battery. Its waterproof design ensures performance in various weather conditions.

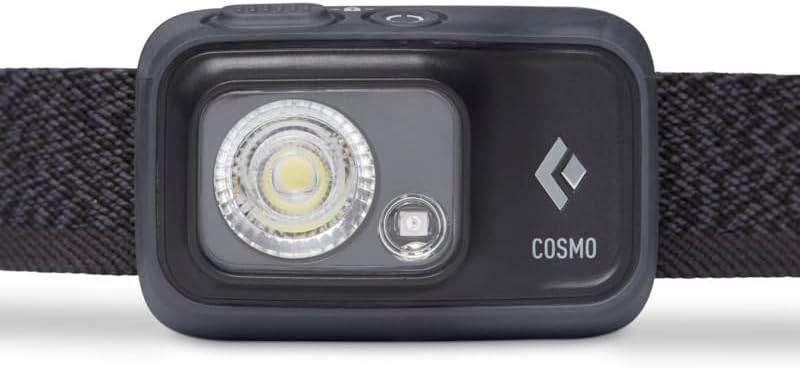

Малюнак 1: Спераду view of the BLACK DIAMOND Cosmo 350 Headlamp, showing the main LED and smaller auxiliary light.

Асноўныя характарыстыкі:

• Bright & Reliable Illumination: Produces up to 350 lumens of powerful, even light.
• Dual Fuel Compatibility: Operates with 3x AAA batteries (included) or the rechargeable BD 1500 Li-ion battery (sold separately).
• Некалькі рэжымаў асвятлення: Includes dimming, strobe, and red night-vision settings.
• Воданепранікальны (IPX8): Tested to operate at least 1.1 meters underwater for 30 minutes. Ensure to dry completely after use in wet conditions.
• Трывалы і ўстойлівы да надвор'я: Built for reliability in various outdoor conditions.

2. Настройка

2.1. Устаноўка батарэі

The Cosmo 350 Headlamp is designed for dual fuel use. It comes with 3x AAA batteries. You can also use a rechargeable BD 1500 Li-ion battery (sold separately).

1. Знайдзіце батарэйны адсек на задняй частцы галоўкіamp адзінка.
2. Gently pull the clip to open the battery compartment cover.
3. Insert three AAA batteries, ensuring correct polarity (+/-) as indicated inside the compartment. If using the BD 1500 Li-ion battery, insert it according to its specific instructions.
4. Шчыльна зачыніце вечка батарэйнага адсека, пакуль яно не зафіксуецца пачуйце пстрычку.

Figure 2: The battery compartment of the Cosmo 350 Headlamp, showing the placement of three AAA batteries.

2.2. Рэгуляванне абадка

The elastic headband is adjustable to fit various head sizes or to wear over a helmet. Use the buckles on either side of the strap to tighten or loosen for a comfortable and secure fit.

3. Інструкцыя па эксплуатацыі

3.1. Асноўныя элементы кіравання

The Cosmo 350 features two buttons on the top of the unit for easy control.

Малюнак 3: Верх view галавыamp, highlighting the two control buttons for power and mode selection.

• Power Button (Larger, textured button):
  • Press once to turn the headlamp ВКЛ/ВЫКЛ.
  • Hold to cycle through brightness levels (dimming).
  • Double-press for strobe mode.
• Mode Button (Smaller, circular button):
  • Press to switch between white light and red night-vision mode.

3.2. Light Modes and Brightness

Хэдлamp offers various light settings to suit different needs:

• Белае святло: Provides general illumination. Adjustable brightness from low to 350 lumens.
• Red Night-Vision: Preserves night vision and is ideal for close-up tasks without disturbing others.
• Рэжым строб: Для сігналізацыі або ў надзвычайных сітуацыях.
• Рэжым блакіроўкі: Prevents accidental activation and battery drain during transport. To activate/deactivate, hold both buttons simultaneously for 3 seconds until the light blinks.

3.3. Adjusting Beam Angle

Хэдлamp unit can be tilted up or down to direct the light beam precisely where needed. This allows for optimal visibility whether you are looking straight ahead or at your feet.

Малюнак 4: бок view галавыamp, demonstrating the adjustable tilt feature for directing the light.

3.4. Official Product Video: Overview of Black Diamond Head Lamp

4. Тэхнічнае абслугоўванне

4.1. Уборка

Каб ачысціць галавуamp, працярыце яго рэкламайamp cloth. Do not use harsh chemicals or abrasive cleaners, as these can damage the unit. Ensure the battery compartment is sealed before cleaning.

4.2. Уздзеянне вады

The Cosmo 350 is IPX8 waterproof. If submerged, water may enter the battery compartment, but the unit will still operate. It is crucial to completely dry out the headlamp, especially the battery compartment, after use in wet conditions to prevent corrosion and ensure longevity.

4.3. Сыход за батарэяй

Выміце батарэі, калі галаваamp will not be used for an extended period to prevent leakage. Store the headlamp у прахалодным, сухім месцы.

5. Выпраўленне непаладак

• Хэдлamp не ўключаецца:
  • Праверце, ці правільна ўстаўлены батарэйкі з захаваннем палярнасці.
  • Заменіце старыя батарэі на новыя.
  • Забяспечце галamp is not in Lock Mode (hold both buttons for 3 seconds to toggle).
• Святло цьмянае або мігціць:
  • Магчыма, батарэйкі разраджаныя; заменіце іх.
  • Пераканайцеся, што кантакты акумулятара чыстыя і без карозіі.
• Difficulty changing modes:
  • Familiarize yourself with the button functions (single press, double press, hold) as described in the Operating Instructions.

6. Тэхнічныя характарыстыкі

7. Гарантыя і падтрымка

The BLACK DIAMOND Cosmo 350 Headlamp пастаўляецца з a Гарантыя вытворцы. For specific details regarding the warranty coverage and duration, please refer to the documentation included with your product or visit the official Black Diamond Equipment webсайт.

For technical support, troubleshooting assistance, or warranty claims, please contact Black Diamond Equipment directly through their official customer service channels.

вытворца: Абсталяванне Black Diamond
