1. Уводзіны
Thank you for choosing the PROFLO PFUC108A6 Plomosa 16" Square Stainless Steel Undermount Bar Sink. This manual provides essential information for the safe installation, operation, and maintenance of your new sink. Please read these instructions thoroughly before beginning installation and retain them for future reference.

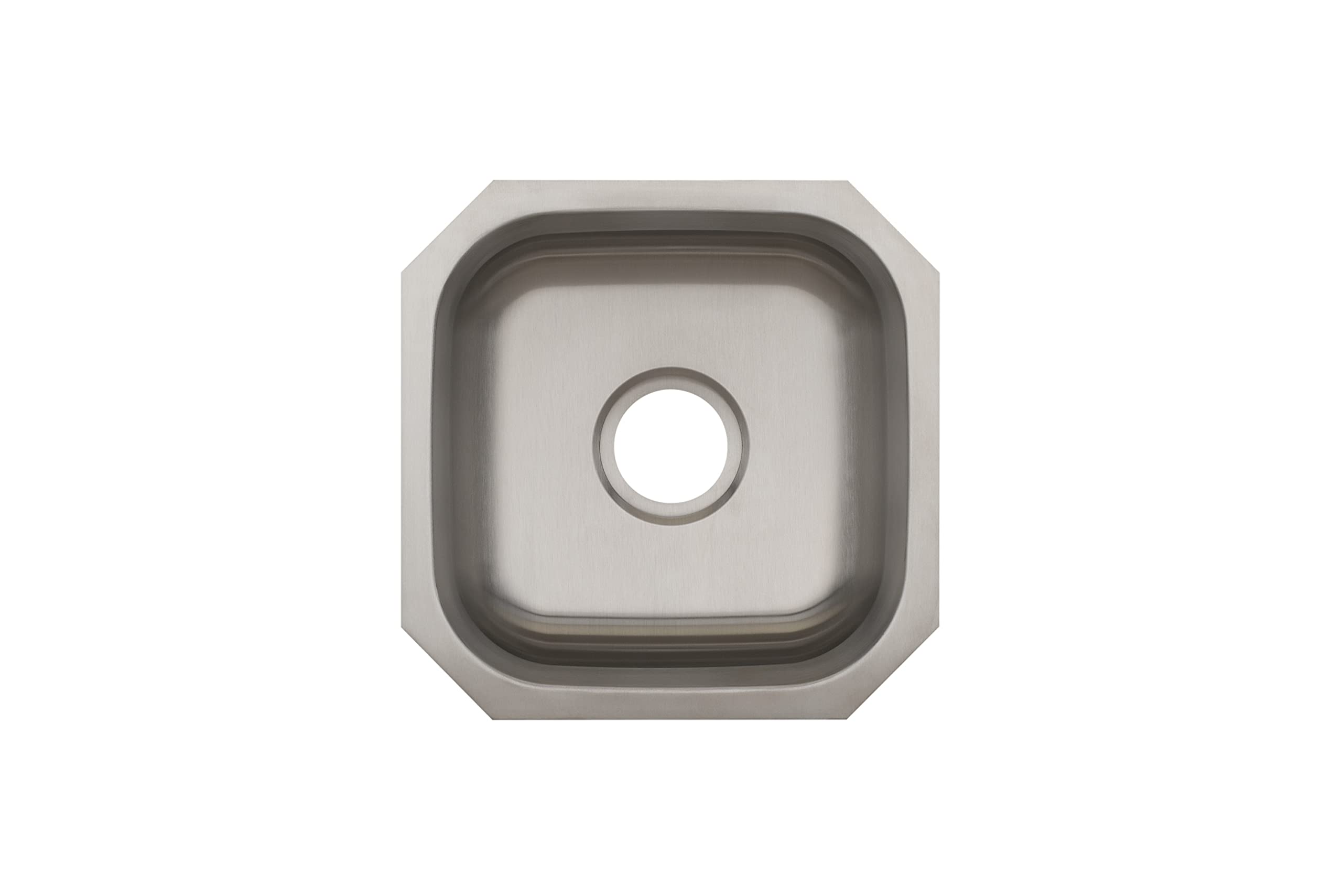

Image 1.1: The PROFLO PFUC108A6 Plomosa 16" Square Stainless Steel Undermount Bar Sink.
2. Інфармацыя па бяспецы
Always follow basic safety precautions when installing or using this product to reduce the risk of injury or property damage.
- Прачытайце ўсе інструкцыі перад устаноўкай і выкарыстаннем.
- Падчас усталёўкі выкарыстоўвайце адпаведныя сродкі індывідуальнай абароны, такія як ахоўныя акуляры і пальчаткі.
- Ensure all local plumbing and building codes are met during installation.
- Turn off the main water supply before beginning any plumbing work.
- Асцярожна звяртайцеся з ракавінай, каб пазбегнуць драпін або пашкоджанняў.
- Do not use harsh chemicals or abrasive cleaners on the sink surface.
3. Усталёўка і налада
3.1 Змест пакета
Перад пачаткам усталёўкі пераканайцеся, што ўсе кампаненты наяўныя:
- PROFLO PFUC108A6 Bar Sink (1)
- Mounting Hardware (clips, screws)
- Шаблон усталёўкі (калі ўключаны)
3.2 Неабходныя інструменты
Для ўстаноўкі звычайна патрабуюцца наступныя інструменты:
- Ахоўныя акуляры
- Пальчаткі
- Дрыль
- Лобзік або адпаведны рэжучы інструмент для матэрыялу стальніцы
- Silicone sealant (kitchen and bath grade)
- Вымяральная стужка
- Аловак
- Разводны ключ
- Адвёртка
3.3 Undermount Sink Installation Steps
Follow these steps for proper undermount installation:
- Падрыхтуйце стальніцу: Use the provided template (if applicable) to mark the cutout area on the underside of your countertop. Ensure the cutout dimensions are appropriate for a 16" square sink. Carefully cut the opening using a jigsaw or suitable cutting tool. Smooth any rough edges.
- Нанесці герметык: Apply a continuous bead of silicone sealant around the perimeter of the sink opening on the underside of the countertop.
- Размяшчэнне ракавіны: Carefully lift the sink and align it with the countertop opening from below. Press firmly to ensure good contact with the sealant.
- Замацуйце ракавіну: Attach the mounting clips and screws to the underside of the countertop, engaging the sink rim. Tighten the screws evenly until the sink is securely fastened and the sealant creates a watertight seal. Do not overtighten.
- Падключыць сантэхніку: Install the drain assembly (grid type) into the sink opening according to the manufacturer's instructions. Connect the P-trap and other plumbing components to the drain. Ensure all connections are tight and leak-free.
- Тэст на ўцечкі: Once all connections are made, turn on the water supply and fill the sink. Check thoroughly for any leaks around the drain, connections, and the sink's perimeter. Tighten any leaking connections as needed.
Малюнак 3.1: Прыкладample of a kitchen sink installation, demonstrating the context for undermount sink placement.
4. Інструкцыя па эксплуатацыі
The PROFLO PFUC108A6 bar sink is designed for general kitchen and bar use. Its grid drain type allows for efficient water drainage while preventing larger debris from entering the plumbing system.
- Паток вады: Use with a compatible faucet to control water flow and temperature.
- Дрэнаж: The integrated grid drain helps prevent clogs by catching food particles and other debris. Regularly clear any accumulated debris from the grid.
- тэмпература: The stainless steel construction is suitable for a wide range of water temperatures typically found in kitchen environments.
5. Тэхнічнае абслугоўванне
Proper care and maintenance will ensure the longevity and appearance of your stainless steel sink.
5.1 Інструкцыі па ачыстцы
- Штодзённая ўборка: Пасля кожнага выкарыстання працірайце ракавіну сухой мяккай анучай, каб прадухіліць плямы ад вады і назапашванне мінеральных рэчываў.
- Рэгулярная ўборка: For general cleaning, use a mild soap or detergent with warm water and a soft cloth or sponge. Rinse thoroughly and dry immediately.
- Устойлівыя плямы: For more stubborn stains, a non-abrasive stainless steel cleaner can be used. Always follow the cleaner manufacturer's instructions and rinse thoroughly.
5.2 What to Avoid
- Абразіўныя ачышчальнікі: Do not use steel wool, abrasive pads, or harsh scouring powders, as these can scratch the stainless steel surface.
- Chlorine Bleach: Avoid cleaners containing chlorine bleach, as it can cause pitting and corrosion on stainless steel.
- Acidic Foods/Liquids: Prolonged contact with highly acidic foods (e.g., citrus juices, vinegar) or liquids can stain or damage the finish. Rinse the sink promptly after contact.
- Металічныя прадметы: Avoid leaving metal objects (e.g., cast iron pots, steel utensils) in the sink for extended periods, as they can cause rust spots.
Image 5.1: A clean kitchen faucet and sink area, demonstrating the desired outcome of proper maintenance.
6. Выпраўленне непаладак
This section addresses common issues you might encounter with your bar sink.
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Water leaks around the sink rim | Improperly sealed or tightened mounting clips. | Ensure mounting clips are tightened evenly. Reapply silicone sealant if necessary. |
| Павольны дрэнаж | Debris in the grid drain or P-trap. | Clear any debris from the grid drain. Inspect and clean the P-trap if the issue persists. |
| Water spots or discoloration | Mineral deposits from hard water; improper drying. | Wipe the sink dry after each use. Use a stainless steel cleaner for mineral buildup. |
| Драпіны на паверхні | Abrasive cleaning materials or sharp objects. | Use only soft cloths and non-abrasive cleaners. Avoid dropping sharp objects into the sink. Minor scratches can sometimes be blended with a stainless steel scratch removal kit. |
7. Тэхнічныя характарыстыкі
Key specifications for the PROFLO PFUC108A6 Plomosa Bar Sink:
| Асаблівасць | Дэталь |
|---|---|
| Марка | ПРАФЛО |
| Нумар мадэлі | PFUC108A6 |
| Матэрыял | Нержавеючая сталь |
| Колер | Нержавеючая сталь |
| Памеры прадукту (Д х Ш х У) | 16" Г x 16" Ш x 6" У |
| Вага прадмета | 7.8 фунта |
| Тып ўстаноўкі | Падрыў |
| Тып зліву | Сетка |
| Інструкцыя па догляду за прадуктам | Працярыце сухой тканінай |
| UPC | 781889342442 |
8. Інфармацыя аб гарантыі
The PROFLO PFUC108A6 Plomosa Bar Sink is covered under PROFLO's limited warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the official PROFLO website or contact PROFLO customer service directly. Keep your proof of purchase for warranty claims.
9. Падтрымка кліентаў
If you have any questions, require assistance with installation, or need to troubleshoot an issue not covered in this manual, please contact PROFLO customer support.
- Інтэрнэт-рэсурсы: Visit the official PROFLO webсайт для атрымання дадатковай інфармацыі аб прадукце, часта задаваных пытанняў і дакументаў падтрымкі.
- Кантактная інфармацыя: Refer to the PROFLO website or product packaging for the most current customer service contact details.
- PROFLO Store: Вы таксама можаце наведаць в Крама PROFLO на Amazon каб атрымаць больш прадуктаў і інфармацыі.
