Aigostar Portable Electric Barbecue 2000W Instruction Manual

1. Важныя інструкцыі па бяспецы

Please read all instructions carefully before using the appliance and retain them for future reference. Incorrect operation can cause personal injury and property damage.

• Заўсёды пераканайцеся, што прылада размешчана на ўстойлівай, цеплаўстойлівай паверхні.
• Do not immerse the heating element, cord, or plug in water or other liquids.
• Трымайце дзяцей і хатніх жывёл далей ад прыбора падчас працы.
• Не дакранайцеся да гарачых паверхняў. Выкарыстоўвайце ручкі або рукавіцы.
• Unplug from the outlet when not in use and before cleaning. Allow to cool before handling or cleaning parts.
• Не выкарыстоўвайце прыбор з пашкоджаным шнуром або вілкай, а таксама пасля таго, як прыбор няспраўны або быў пашкоджаны якім-небудзь чынам.
• Ensure the drip tray is filled with water before use to reduce smoke and facilitate cleaning.
• This appliance is for household use only. Do not use outdoors without proper protection from elements.
• Do not use abrasive cleaners or scouring pads on the non-stick grill surface.
• The appliance features a safety micro-switch; ensure all components are correctly assembled for operation.

2. Прадукт скончыўсяview і кампаненты

The Aigostar Portable Electric Barbecue is designed for convenient grilling with adjustable temperature and easy-to-clean components.

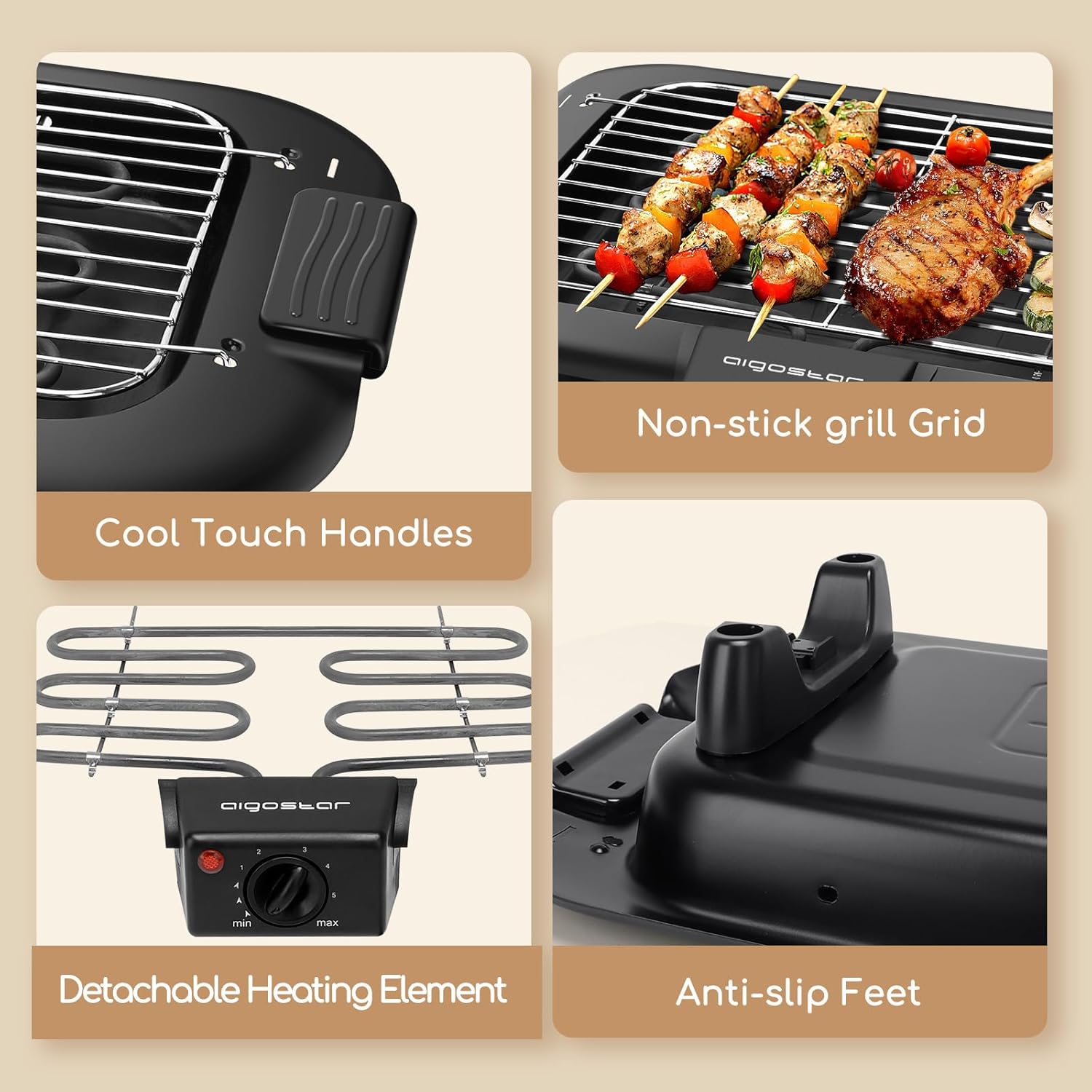

Ключавыя кампаненты:

• Стэлаж для грылю: Stainless steel, non-stick surface for cooking.
• Награвальны элемент: 2000W U-shaped heating tube, removable for cleaning.
• Паддон для капель: Removable tray to collect grease and hold water for smoke reduction.
• Temperature Control Unit: Features a dial for 5-level temperature adjustment and an indicator light.
• Ручкі Cool-Touch: Integrated handles for safe handling.
• Механізм рэгулявання вышыні: Allows for two cooking positions (fast or slow).
• Safety Micro-switch: Ensures the appliance only operates when correctly assembled.
• Ножкі супраць слізгацення: Забяспечвае стабільнасць падчас выкарыстання.

3. Налада і зборка

The barbecue requires minimal assembly. Follow these steps before first use:

1. Place the main body of the barbecue on a flat, stable, and heat-resistant surface.
2. Insert the removable drip tray into the base of the barbecue. Ensure it is correctly seated.
3. Fill the drip tray with approximately 700-800ml of water. This helps reduce smoke and makes cleaning easier.
4. Attach the heating element unit to the main body. Ensure it clicks securely into place, activating the safety micro-switch.
5. Place the stainless steel grill rack onto the heating element supports. You can choose between two height levels for different cooking intensities.

4. Інструкцыя па эксплуатацыі

Follow these steps for safe and effective grilling:

1. Падрыхтоўка: Ensure the barbecue is assembled correctly with water in the drip tray.
2. Падключыць: Connect the power cord to a suitable 240V electrical outlet.
3. Задаць тэмпературу: Turn the temperature control dial to your desired setting (1-5). The indicator light will illuminate, signaling that the heating element is active.
4. Разагрэць: Allow the grill to preheat for 5-10 minutes until the grill rack is hot. The indicator light will turn off when the set temperature is reached, and cycle on/off during cooking to maintain heat.
5. Месца для ежы: Carefully place food onto the hot grill rack.
6. Рэгуляванне вышыні (неабавязкова): For faster cooking or searing, use the higher grill position. For slower cooking or keeping food warm, use the lower position.
7. Манітор гатавання: Turn food as needed for even cooking.
8. Скончыць гатаванне: Once food is cooked, turn the temperature dial to "OFF" and unplug the appliance.

5. Чыстка і тэхнічнае абслугоўванне

Regular cleaning ensures optimal performance and extends the life of your barbecue.

1. Адключыце і астудзіце: Заўсёды адключайце прыладу ад электрычнай разеткі і дайце ёй цалкам астыць перад чысткай.
2. разабраць: Carefully remove the grill rack and the heating element unit.
3. Clean Grill Rack: Wash the stainless steel grill rack with warm, soapy water. For stubborn residue, soak it before cleaning. Avoid abrasive scrubbers to protect the non-stick properties.
4. Чысты паддон для капель: Empty any remaining water and grease from the drip tray. Wash it with warm, soapy water.
5. Чысты награвальны элемент: DO NOT IMMERSE THE HEATING ELEMENT UNIT IN WATER. Wipe the heating element and the control unit with a damp cloth. Ensure it is completely dry before reassembly or storage.
6. Чыстая база: Wipe the exterior of the barbecue base with a damp тканіна.
7. Сушыць і захоўваць: Ensure all parts are thoroughly dry before reassembling and storing the barbecue in a cool, dry place.

6. Выпраўленне непаладак

If you encounter issues with your Aigostar Electric Barbecue, refer to the following common problems and solutions:

7. Тэхнічныя характарыстыкі

• мадэль: SF20250917B09X5QG2RL
• Марка: Айгостар
• Магутнасць: 2000 Вт
• тtage: 240В
• Памеры варачнай паверхні: 36 x 21 cm (756 cm²)
• Габарытныя памеры (Д х Ш х У): Approximately 50 x 35 x 15 cm (Note: 150cm height from specifications seems to be an error or refers to an optional stand not included in the main product images. The product is designed to be portable and compact.)
• Вага: 1.96 кг
• Узроўні тэмпературы: 5 наладжвальных налад
• матэрыял: Stainless steel grill, heat-resistant handles, non-stick finish.
• Кампаненты: Removable grill rack, heating element, drip tray.
• Асаблівасці: Safety micro-switch, indicator light, adjustable height (2 positions), portable design.

8. Гарантыя і падтрымка

For warranty information or technical support, please refer to the documentation included with your purchase or contact Aigostar customer service directly. Keep your proof of purchase for any warranty claims.

You can often find contact details on the official Aigostar webна сайце або праз вашага прадаўца.
