Minno A10Z03001

Minno Maverick A10 Rugged 10-inch Android 10 Tablet User Manual

Model: A10Z03001

1. Уводзіны

This manual provides detailed instructions for the Minno Maverick A10 Rugged 10-inch Android 10 Tablet. It covers initial setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device. Please read this manual thoroughly before using the tablet.

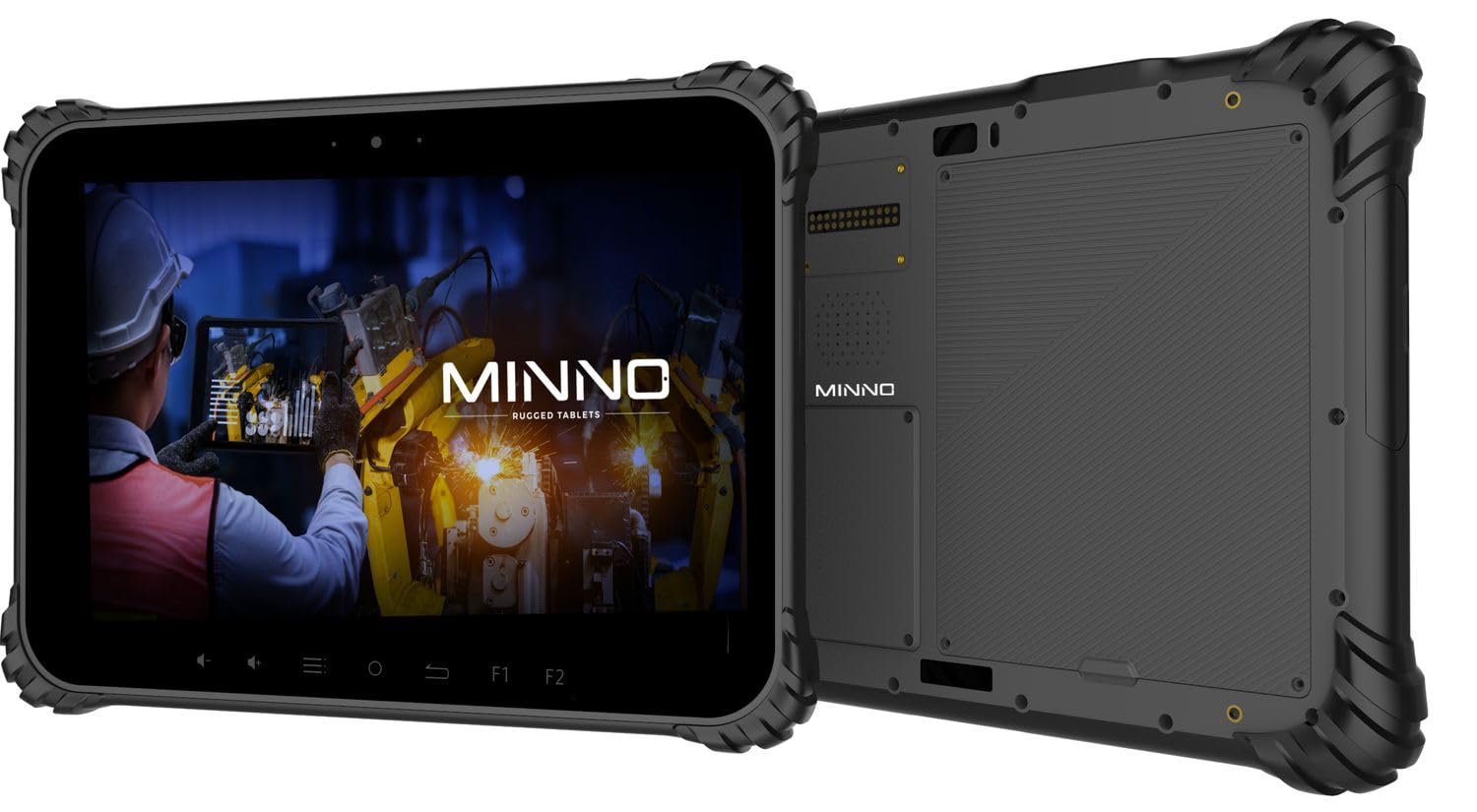

Minno Maverick A10 Rugged Tablet front view

Figure 1.1: Minno Maverick A10 Rugged Tablet

2. Змесціва ўпакоўкі

Праверце наяўнасць усіх прадметаў у камплекце:

  • Minno Maverick A10 Rugged Android Tablet
  • Адаптар сілкавання
  • Ручка партфеля
  • Hand Strap (pre-installed)

3. Прылада скончанаview

3.1 Асноўныя магчымасці

  • Трывалы дызайн: IP67 dust and waterproof, MIL-STD-810H certified for drop, shock, and vibration resistance.
  • Дысплей: 10-inch sunlight-readable touchscreen.
  • Прадукцыйнасць: Android 10 operating system, 4GB RAM, 64GB internal storage.
  • Падключэнне: LTE (unlocked for AT&T & T-Mobile), Wi-Fi, Bluetooth, NFC, GPS.
  • акумулятар: 11,700 mAh swappable battery for extended use.
  • Камеры: 13 MP rear camera, 5 MP front camera.
  • Фізічныя кнопкі: Dedicated buttons for easy access to functions.
Minno Maverick A10 tablet with key specifications listed

Figure 3.1: Minno Maverick A10 with core specifications

3.2 Фізічныя кнопкі і парты

The tablet features physical buttons for common functions and easy access, even in demanding environments.

Minno Maverick A10 tablet showing front and back cameras and physical buttons

Figure 3.2: Tablet cameras and easy access buttons

  • Кнопка харчавання: Размешчаны збоку, выкарыстоўваецца для ўключэння/выключэння або абуджэння/пераводу прылады ў рэжым сну.
  • Павялічыць/паменшыць гучнасць: Рэгулюе гучнасць гуку.
  • Function Buttons (F1, F2): Customizable buttons for quick access to specific applications or features.
  • Кнопка вяртання: Вяртаецца да папярэдняга экрана.
  • Кнопка дадому: Вяртаецца на галоўны экран.
  • Кнопка меню: Accesses application options or recent apps.
  • Парты USB: Для зарадкі і перадачы дадзеных.
  • Закрытыя парты: Designed to protect against dust and water ingress.

4. Пачатковая налада

4.1 Зарадка акумулятара

Before first use, fully charge the tablet battery. Connect the provided power adapter to the tablet's charging port and plug it into a power outlet. The charging indicator will show the charging status.

4.2 Уключэнне/выключэнне

  • Каб уключыць: Press and hold the Power button until the Minno logo appears on the screen.
  • Каб выключыць: Націсніце і ўтрымлівайце кнопку харчавання, пакуль не з'явіцца меню параметраў харчавання. Выберыце «Выключыць харчаванне» і пацвердзіце.
  • Каб заснуць/прачнуцца: Briefly press the Power button to put the tablet into sleep mode or wake it up.

4.3 Пачатковая канфігурацыя

Upon first power-on, follow the on-screen prompts to complete the initial setup, including:

  • Выбар мовы
  • Падключэнне да сеткі Wi-Fi
  • Google account setup
  • Налады даты і часу

4.4 Installing SIM/SD Card

The tablet supports a SIM card for LTE connectivity and an SD card for expanded storage. Locate the covered slot on the side of the tablet. Carefully open the cover, insert the SIM card and/or SD card into their respective slots, ensuring correct orientation. Close the cover securely to maintain IP67 rating.

5. Асноўная аперацыя

5.1 Навігацыя па сэнсарным экране

The 10-inch display is a multi-touch screen. Use standard Android gestures:

  • Націсніце: Выберыце элемент або адкрыйце праграму.
  • Націсніце і ўтрымлівайце: Доступ да кантэкстных меню або перамяшчэнне значкоў.
  • Правядзіце пальцам: Пракручвайце спісы або пераключайцеся паміж экранамі.
  • Звядзенне пальцамі для павелічэння: Павялічваць або памяншаць маштаб малюнкаў і web старонкі.

5.2 Падключэнне

  • Wi-Fi: Каб падключыцца да даступных сетак, перайдзіце ў Налады > Сетка і інтэрнэт > Wi-Fi.
  • LTE: Ensure a valid SIM card is installed. Go to Settings > Network & internet > Mobile network to enable mobile data.
  • Bluetooth: Перайдзіце ў Налады > Падлучаныя прылады > Bluetooth, каб падключыцца да аксесуараў Bluetooth.

6. Пашыраныя магчымасці

6.1 Выкарыстанне камеры

The tablet is equipped with a 13 MP rear camera and a 5 MP front camera. Open the Camera application to capture photos and videos. Adjust settings such as flash, timer, and mode within the app.

6.2 GPS-навігацыя

The integrated GPS module allows for location tracking and navigation. Ensure location services are enabled in Settings > Location for optimal performance with mapping applications.

6.3 Функцыянальнасць NFC

NFC (Near Field Communication) allows for short-range wireless communication. Enable NFC in Settings > Connected devices > Connection preferences > NFC to use features like contactless payments or quick data sharing with compatible devices.

7. Догляд і абслугоўванне

7.1 Ачыстка планшэта

Use a soft, lint-free cloth to clean the screen and body of the tablet. For stubborn marks, slightly dampПрацярыце тканіну вадой або растворам для чысткі экрана. Пазбягайце выкарыстання агрэсіўных хімічных рэчываў або абразіўных матэрыялаў.

7.2 Сыход за акумулятарам

The tablet features a swappable 11,700 mAh battery. To maximize battery life:

  • Пазбягайце экстрэмальных тэмператур.
  • Нельга рэгулярна цалкам разраджаць акумулятар.
  • Выкарыстоўвайце толькі адаптар сілкавання, які ўваходзіць у камплект.
  • If replacing the battery, ensure it is an official Minno replacement part.

7.3 Ахова навакольнага асяроддзя

The Minno Maverick A10 is designed for harsh environments with IP67 and MIL-STD-810H certifications.

Diagram showing IP67 protection for dust and water resistance

Figure 7.1: IP67 Dustproof and Spillproof Protection

Diagram showing MIL-STD-810H certification for drop, vibration, and temperature resistance

Figure 7.2: MIL-STD-810H Certified Durability

  • Рэйтынг IP67: Provides protection against dust ingress and immersion in water up to 1 meter for 30 minutes. Ensure all port covers are securely closed.
  • MIL-STD-810H: Certified to resist drops up to 4 feet, withstand prolonged intense vibrations, and operate in extreme temperatures from -4°F to 150°F.

8. Выпраўленне непаладак

If you encounter issues with your Minno Maverick A10, refer to the following common solutions:

праблемаМагчымае рашэнне
Планшэт не ўключаеццаEnsure the battery is charged. Connect the power adapter and try again. If the battery is swappable, ensure it is correctly seated.
Сэнсарны экран не рэагуеRestart the tablet by holding the power button. If the issue persists, perform a factory reset (data will be lost).
Немагчыма падключыцца да Wi-FiCheck if Wi-Fi is enabled in settings. Restart your router. Ensure you are entering the correct password.
LTE/Mobile data not workingEnsure a valid SIM card is properly inserted. Check mobile data settings and APN configurations. Contact your service provider.
Applications are crashingClear the cache of the problematic application (Settings > Apps > [App Name] > Storage & cache). Update the app or the Android system.

9. Тэхнічныя характарыстыкі

Detailed technical specifications for the Minno Maverick A10 Rugged Tablet:

АсаблівасцьСпецыфікацыя
Нумар мадэліA10Z03001
Аперацыйная сістэмаAndroid 10
Памер экрана10 цалі
Дазвол экрана1280x800 (Max: 1920x1200 Pixels)
АЗП4 ГБ
Унутраная памяць64 ГБ
Марка працэсараMediaTek
Бесправадны тып802.11ac (Wi-Fi), Bluetooth, NFC, GPS, 4G LTE
Тыл WebДазвол камеры13 МП
Раздзяленне франтальнай камеры5 МП
акумулятар11,700 mAh Lithium-ion polymer (swappable)
Вага прадмета3.89 фунта
Памеры прадукту10 х 1 х 8 цалі
КолерЧорны
Сертыфікаты трываласціIP67, MIL-STD-810H

10. Гарантыя і падтрымка

10.1 Інфармацыя аб гарантыі

Minno warrants its products to be free from material and workmanship defects for 2 гады з даты пакупкі. Гэтая гарантыя распаўсюджваецца на вытворчыя дэфекты пры нармальным выкарыстанні. Яна не распаўсюджваецца на пашкоджанні, выкліканыя няправільным выкарыстаннем, няшчаснымі выпадкамі, несанкцыянаванымі мадыфікацыямі або стыхійнымі бедствамі.

10.2 Падтрымка кліентаў

For technical assistance, warranty claims, or further inquiries, please contact Minno customer support through the official Minno website or your point of purchase. Have your model number (A10Z03001) and purchase date ready when contacting support.
