1. Уводзіны
This manual provides instructions for the safe and effective use of the HYDROTECHNIK Type 010-300 Portable Water Level Meter. This device is designed for accurate measurement of water levels in various industrial applications, featuring a 300-meter water reel and an integrated whistle lamp for indication. Please read this manual thoroughly before operating the device and retain it for future reference.
2. Інфармацыя па бяспецы
Выконвайце наступныя меры бяспекі, каб пазбегнуць траўмаў і пашкоджання прылады:
- Always inspect the device for damage before use. Do not operate if damaged.
- Ensure the measuring probe and cable are clean and free from debris before deployment.
- Не падвяргайце прыладу ўздзеянню экстрэмальных тэмператур або прамых сонечных прамянёў на працягу доўгага часу.
- Do not immerse the main unit in water. Only the probe and cable are designed for submersion.
- Трымайце прыладу далей ад моцных магнітных палёў.
- Выкарыстоўвайце толькі пазначаную крыніцу харчавання або батарэйкі.
- Не спрабуйце разбіраць або рамантаваць прыладу самастойна. Звярніцеся да кваліфікаванага абслугоўваючага персаналу.
- Калі прылада не выкарыстоўваецца, захоўвайце яе ў сухім прахалодным месцы.
3. Змесціва ўпакоўкі
Праверце наяўнасць усіх прадметаў у камплекце:
- HYDROTECHNIK Type 010-300 Water Level Meter (main unit with reel)
- Water Level Probe (attached to cable)
- 300-meter Measuring Cable
- Кіраўніцтва карыстальніка
- Battery (if included, or specify battery type)
4. Прадукт скончыўсяview
The HYDROTECHNIK Type 010-300 is a robust and reliable instrument for precise water level measurements. It features a durable reel for easy cable management and a sensitive probe that activates an audible whistle and visual lamp upon contact with water.

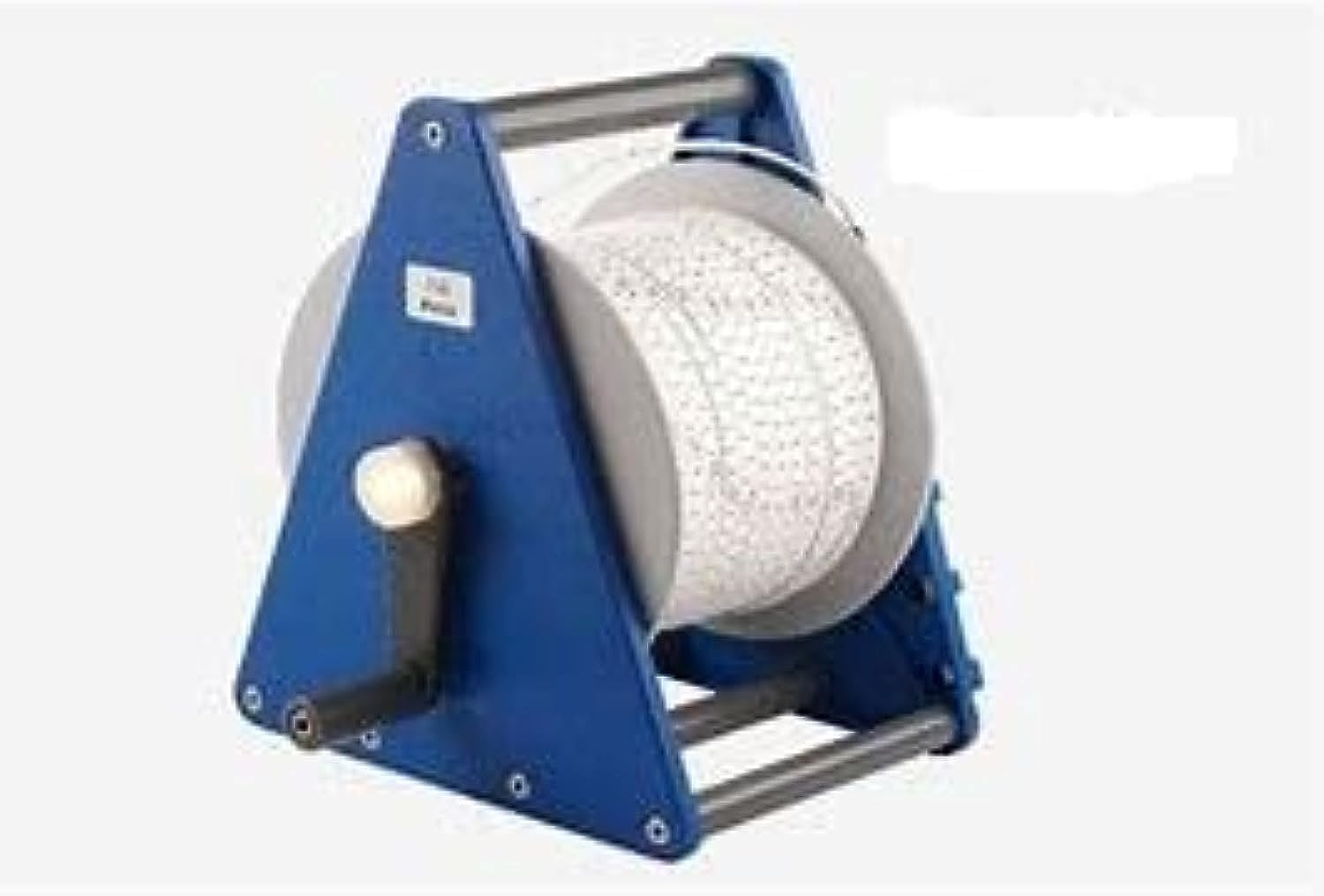

Малюнак 1: Main unit of the HYDROTECHNIK Type 010-300 Water Level Meter. This image shows the portable reel housing the 300-meter measuring cable, with the water level probe visible at the end of the cable. The control panel and indicator lights are also visible on the main unit.
Ключавыя кампаненты:
- Measuring Probe: Detects water contact.
- Measuring Cable: 300-meter length, marked for depth readings.
- Cable Reel: For winding and unwinding the cable.
- Whistle Lamp Індыкатар: Provides audible and visual alerts upon water contact.
- Батарэйны адсек: Houses the power source.
- Панэль кіравання: Includes power switch and possibly sensitivity adjustments (if applicable).
5. Настройка
- Усталюйце батарэі: Open the battery compartment (usually located on the side or back of the main unit) and insert the required batteries, observing correct polarity. Close the compartment securely.
- Inspect Cable and Probe: Unwind a small section of the cable and inspect the probe and cable for any signs of damage or wear. Ensure the probe tip is clean.
- Размясціце прыладу: Place the water level meter on a stable, flat surface near the measurement point. Ensure the reel can rotate freely.
6. Інструкцыя па эксплуатацыі
- Уключэнне: Turn on the device using the power switch. A brief indicator light or sound may confirm it is active.
- Lower the Probe: Slowly lower the measuring probe into the well, borehole, or tank. Ensure the cable unwinds smoothly from the reel.
- Detect Water Level: Continue lowering the probe until the whistle sounds and the lamp illuminates, indicating the probe has made contact with water.
- Вымярэнне зчытаных дадзеных: Carefully note the depth reading from the markings on the cable at the point where it enters the well casing or reference point.
- Retract Probe: Once the measurement is recorded, slowly reel the cable back onto the spool, ensuring it winds evenly.
- Выключэнне: Выключайце прыладу пасля выкарыстання, каб падоўжыць тэрмін службы батарэі.
Note: For accurate readings, ensure the cable is taut and the measurement is taken from a consistent reference point.
7. Тэхнічнае абслугоўванне
- Ачыстка зонда: After each use, especially in contaminated water, clean the probe with a soft cloth and fresh water. Dry thoroughly before storage.
- Праверка кабеля: Regularly inspect the entire length of the cable for cuts, abrasions, or kinks. Replace if significant damage is found.
- Замена батарэі: Replace batteries when the indicator light dims or the whistle becomes weak. Always use the recommended battery type.
- захоўванне: Store the device in its original packaging or a protective case in a dry, dust-free environment.
8. Выпраўленне непаладак
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| No whistle/lamp activation upon water contact. | Dead or low batteries; dirty probe; faulty connection. | Replace batteries; clean probe tip; check cable connections. |
| Intermittent whistle/lamp актывацыя. | Loose connection; partially dirty probe; low battery. | Check connections; thoroughly clean probe; replace batteries. |
| Cable does not unwind/rewind smoothly. | Cable tangled; reel mechanism obstructed. | Carefully untangle cable; inspect reel for obstructions. |
Калі праблема не знікне пасля спробы гэтых рашэнняў, звярніцеся ў службу падтрымкі кліентаў.
9. Тэхнічныя характарыстыкі
- Марка: ГІДРАТЭХНІК
- мадэль: Тып 010-300
- Тып злучэння: Bluetooth (for data logging, if applicable, otherwise for general connectivity)
- Даўжыня кабеля: 300 метраў
- Індыкатар: Whistle and Lamp
- Першая даступная дата: 31 мая 2022 г
- ASIN: B0B2SJFQ98
10. Гарантыя і падтрымка
Specific warranty information is not provided in the product details. Please refer to the warranty card included with your purchase or contact the manufacturer directly for details regarding warranty coverage and technical support.
For technical assistance or service inquiries, please contact HYDROTECHNIK customer support through their official webсайт або кантактную інфармацыю, указаную ў дакументацыі да прадукту.
