Blue Square Manufacturing 200043-P

Blue Square Spectrum 360 Multi-Color LED Pool Light

Мадэль: 200043-P

1. Уводзіны

This manual provides instructions for the installation, operation, and maintenance of the Blue Square Spectrum 360 Multi-Color LED Pool Light, Model 200043-P. This LED light is designed to replace Pentair style pool lights, offering multi-color options and various preprogrammed scroll and flash modes for your pool environment.

Please read this manual thoroughly before installation and operation to ensure safe and correct usage.

2. Важная інфармацыя па бяспецы

ПАПЯРЭДЖАННЕ: Risk of electrical shock. Always disconnect power to the pool light circuit at the circuit breaker before attempting any installation, service, or maintenance.

  • Installation must be performed by a qualified electrician or a certified pool professional in accordance with all applicable local and national electrical codes.
  • Ensure the light fixture is properly grounded and bonded.
  • Не выкарыстоўвайце лямпу па-за вадой працяглы час, бо гэта можа прывесці да перагрэву і пашкоджання.
  • Трымайце дзяцей далей ад месца ўстаноўкі.
  • Use only genuine Blue Square Manufacturing replacement parts.

3. Змесціва ўпакоўкі

Перад пачаткам усталёўкі пераканайцеся, што ўсе кампаненты наяўныя:

  • Blue Square Spectrum 360 Multi-Color LED Pool Light (Model 200043-P)
  • Кіраўніцтва карыстальніка (гэты дакумент)

Note: The power cord for this LED light is NOT included and must be purchased separately or reused from an existing installation.

4. Настройка і ўстаноўка

This LED light is designed to replace existing Pentair style pool lights. Professional installation is highly recommended.

4.1 Этапы перад устаноўкай

  1. Выключыць харчаванне: Locate the circuit breaker for your pool light and turn off the power completely. Verify power is off using a voltagэлектронны тэстар.
  2. Зліць ваду (пры неабходнасці): For some installations, it may be necessary to lower the pool water level below the light fixture.
  3. Remove Existing Light: Carefully remove the existing pool light fixture from its niche. Disconnect the old wiring.

4.2 Installing the Spectrum 360 LED Light

  1. Падключэнне правадоў: Connect the new Spectrum 360 LED light to the existing power cord wiring. Ensure all connections are secure, waterproof, and comply with local electrical codes. Use appropriate waterproof connectors.
  2. Ушчыльненне і выпрабаванне: Before fully seating the light, place it in the water and turn on the power briefly to test its functionality. Ensure there are no leaks around the seal.
  3. Secure Light: Carefully coil any excess cord behind the light fixture and secure the light into its niche. Ensure the light is properly seated and sealed to prevent water intrusion.
  4. Refill Pool (if drained): If the pool water level was lowered, refill it to the appropriate level.
Blue Square Spectrum 360 LED Pool Light installed in a pool niche

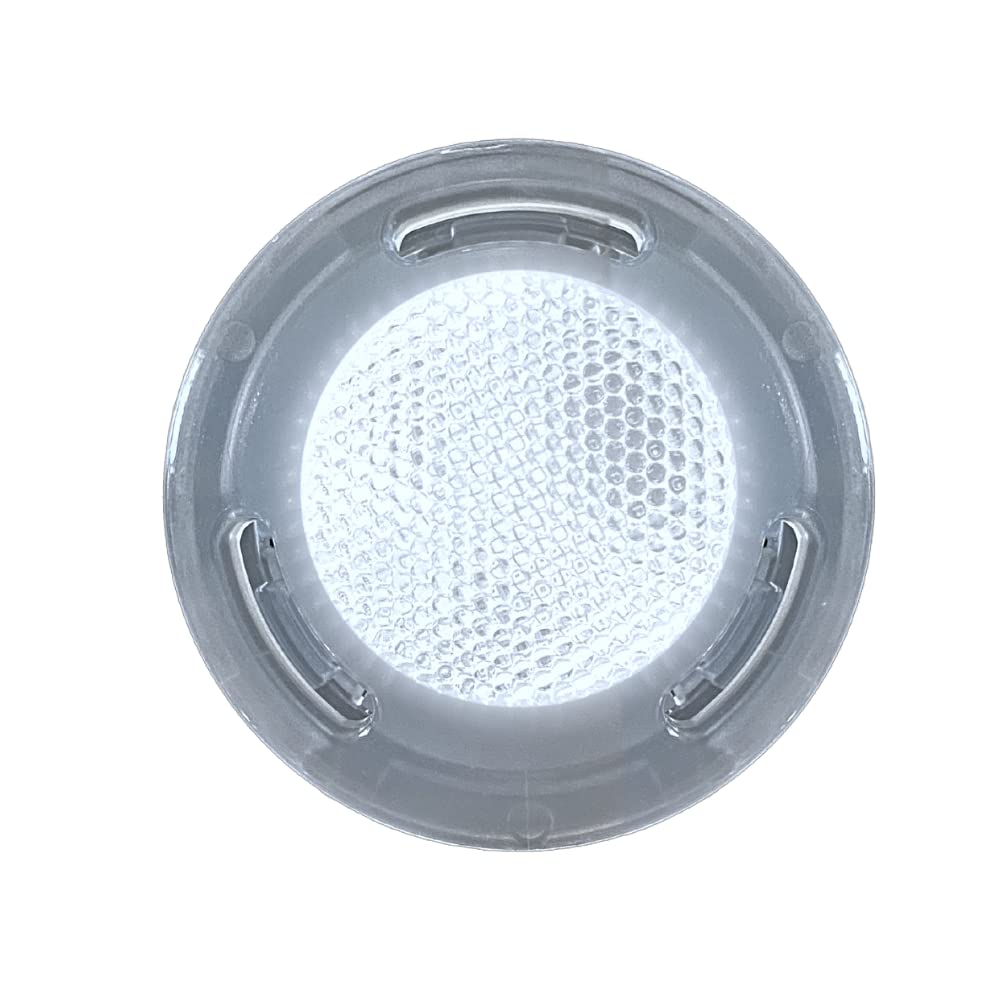

Image 1: Blue Square Spectrum 360 LED Pool Light. This image shows the light fixture, which is designed to fit into a standard pool light niche.

5. Інструкцыя па эксплуатацыі

The Blue Square Spectrum 360 Multi-Color LED Pool Light offers a variety of color options and preprogrammed modes. The light is controlled by cycling the power switch.

5.1 Changing Colors and Modes

To change the light's color or mode, simply turn the pool light switch OFF and then ON again within 5 seconds. Each power cycle will advance the light to the next available color or mode in its sequence. If the light is off for more than 5 seconds, it will typically revert to the first mode in its sequence when turned back on.

Experiment with cycling the power to discover all the available fixed colors, scrolling effects, and flash modes.

6. Тэхнічнае абслугоўванне

The Blue Square Spectrum 360 LED Pool Light requires minimal maintenance.

  • Рэгулярны агляд: Periodically inspect the light fixture and its cord for any signs of damage, wear, or leaks. Address any issues promptly.
  • Уборка: If the lens becomes dirty or covered with algae, gently clean it with a soft brush or cloth and mild pool-safe cleaner. Do not use abrasive cleaners or tools that could scratch the lens.
  • Зімоўка: Follow standard pool winterization procedures for your region. Ensure the light is properly protected if the pool is drained below the light level.

7. Выпраўленне непаладак

праблема Магчымая прычына Рашэнне
Святло не ўключаецца. No power to the circuit; faulty wiring connection; damaged light. Check circuit breaker. Verify all wiring connections are secure. If problem persists, consult a qualified electrician.
Light is stuck on one color or mode. Incorrect power cycling; internal fault. Ensure you are cycling the power switch OFF and ON within 5 seconds. If issue continues, contact customer support.
Святло міргае або цьмянее. Loose connection; voltage fluctuation; internal component issue. Check all electrical connections. Ensure stable power supply. If problem persists, professional inspection is recommended.

8. Тэхнічныя характарыстыкі

  • Нумар мадэлі: 200043-П
  • Памеры прадукту: 6.5 х 6.5 х 2.07 цалі
  • Вага прадмета: 2 фунта
  • Тып святла: Святлодыёдны ліхтар для басейна
  • Эквівалент Ватtage: Equivalent to 140 Watt Incandescent Light
  • Каляровая тэмпература: 400 тыс
  • Выхад у люменах: 800 люмен
  • вытворца: Blue Square Manufacturing

9. Гарантыя і падтрымка кліентаў

For warranty information or technical assistance, please contact Blue Square Manufacturing customer support. Keep your purchase receipt as proof of purchase.

Кантактную інфармацыю звычайна можна знайсці на афіцыйным сайце вытворцы webсайце або на ўпакоўцы вашага прадукту.
