1. Уводзіны
Thank you for choosing the YULED S1-B 1-Channel Wireless AC Triac Dimmer. This compact dimmer is designed for precise brightness control of single-color LED light sources. It operates on a reliable 2.4GHz wireless frequency and features a convenient Push-DIM function for easy operation. The Triac dimming technology ensures smooth, flicker-free light adjustment. This manual provides essential information for safe installation, operation, and maintenance of your device.

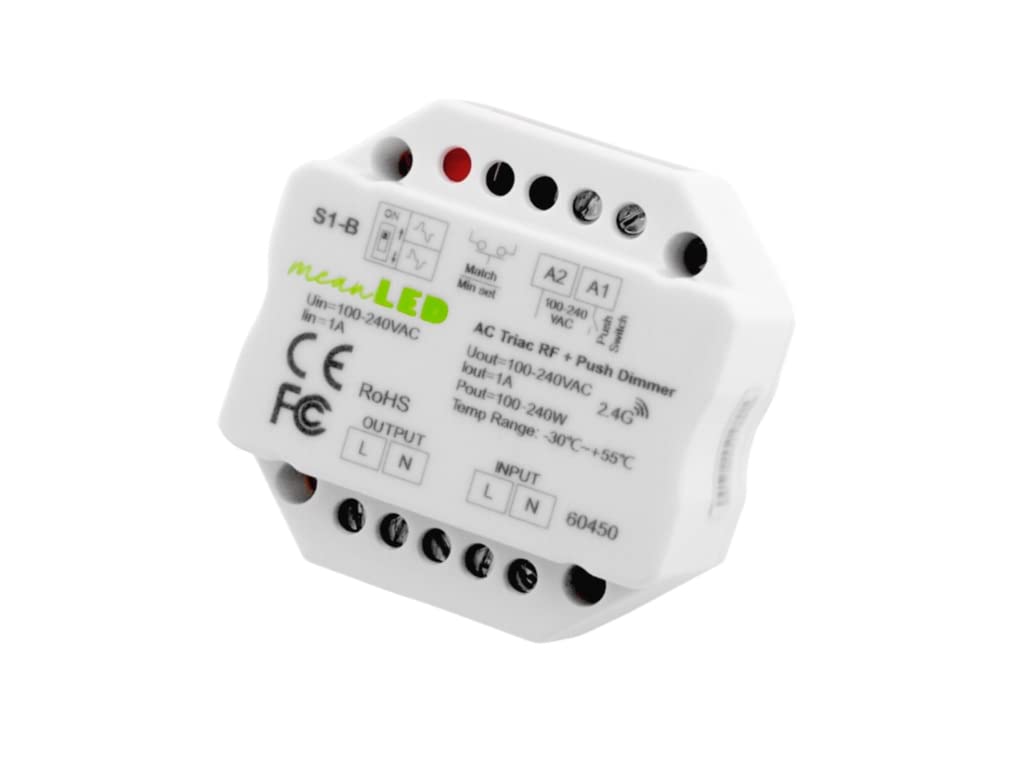

Выява 1.1: Спераду view of the YULED S1-B 1-Channel Wireless AC Triac Dimmer, showing input/output terminals and control switches.
2. Інфармацыя па бяспецы
Please read this section carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- Усталёўку павінен выконваць толькі кваліфікаваны электрык.
- Перад любымі мантажнымі або рамонтнымі работамі пераканайцеся, што электрасілкаванне адключана.
- Не падвяргайце прыладу ўздзеянню вільгаці або экстрэмальных тэмператур.
- Пераканайцеся, што ўвод voltage and load current are within the specified limits.
- Гэта прылада прызначана толькі для выкарыстання ў памяшканні.
- Не спрабуйце рамантаваць або мадыфікаваць прыладу самастойна. Звярніцеся да кваліфікаванага персаналу для абслугоўвання.
3. Прадукт скончыўсяview
3.1 Асноўныя магчымасці
- Compact 1-Channel Dimmer: Specifically designed for single-color light sources, allowing precise brightness control.
- 2.4GHz Wireless Frequency: Ensures stable and secure communication with compatible devices.
- Push-DIM Function: Enables easy on/off switching and brightness adjustment with a simple button press.
- Triac Dimmable: Utilizes Triac dimming technology for smooth, flicker-free dimming without unwanted effects.
- Высокая сумяшчальнасць: Compatible with all meanLED R-series remote controls for seamless integration into existing lighting systems.
3.2 Кампаненты
The YULED S1-B dimmer features input and output terminals, a match button, and a minimum dimming level adjustment switch.
Малюнак 3.1: Верх view of the YULED S1-B Dimmer, highlighting the input (L, N) and output (L, N) terminals, Match button, and Min Set switch.
Малюнак 3.2: Збоку view of the YULED S1-B Dimmer, illustrating the wiring connections for input and output.
4. Тэхнічныя характарыстыкі
| Асаблівасць | Спецыфікацыя |
|---|---|
| Марка | YULED |
| Нумар мадэлі | S1-B (60450) |
| Уваходны кнtage | 100-240V AC |
| Выхад Voltage | 100-240V AC |
| Выхадны ток | Макс. 1 А |
| Выходная магутнасць | Макс. 240 Вт |
| зацямненне Тып | Triac (Phase-cut) |
| Бесправадная частата | 2.4 ГГц |
| Метад кантролю | RF Wireless, Push-DIM |
| Працоўная тэмпература | -30°C да +55°C |
| Памеры (Д х Ш х У) | 5.2 х 5.2 х 2.6 см |
| Вага | 90 г |
| Тып мацавання | Насценнае мацаванне |
5. Усталёўка (налада)
Важна: Ensure the main power supply is switched off before commencing any wiring. Incorrect wiring can cause damage to the device or connected lighting.
5.1 Электрычная схема
The S1-B dimmer can be wired in two primary configurations: directly to a dimmable LED light or to a dimmable LED power supply (driver) which then connects to the LED light.
Image 5.1: Wiring diagrams for the S1-B dimmer. The left diagram shows direct connection to a dimmable LED light. The right diagram shows connection to a dimmable LED power supply (driver) which then connects to the LED light. Both diagrams illustrate input (L, N) and output (L, N) connections, as well as connections for external push switches (A1, A2).
5.2 Этапы падключэння
- Адключыць харчаванне: Turn off the main power supply at the circuit breaker before starting.
- Уваходная праводка: Connect the AC power input (Live 'L' and Neutral 'N') to the "INPUT" terminals of the S1-B dimmer.
- Выходная праводка: Connect the dimmable LED light or dimmable LED power supply to the "OUTPUT" terminals (Live 'L' and Neutral 'N') of the S1-B dimmer.
- Push Switch (Optional): If using an external push switch for Push-DIM functionality, connect it to the A1 and A2 terminals.
- Бяспечныя злучэнні: Пераканайцеся, што ўсе правадныя злучэнні надзейныя і належным чынам ізаляваныя.
- Аднавіць сілу: Пасля праверкі ўсіх злучэнняў аднавіце падачу электраэнергіі на ланцуг.
6. Аперацыя
6.1 Push-DIM Function
The Push-DIM function allows for basic control using a standard momentary push switch connected to the A1 and A2 terminals.
- Кароткі націск: A quick press and release of the push switch will turn the light ON or OFF.
- Доўгі націск: Press and hold the push switch to gradually increase or decrease the brightness. Release the switch to set the desired brightness level.
6.2 Wireless Control (2.4GHz RF)
The S1-B dimmer can be paired with compatible meanLED R-series 2.4GHz RF remote controls for wireless dimming.
6.2.1 Pairing with a Remote Control
- Цыкл харчавання: Turn off the power to the S1-B dimmer.
- Аднавіць сілу: Зноў уключыце харчаванне.
- Пачаць спалучэнне: Within 5 seconds of restoring power, quickly press the "Match" button on the S1-B dimmer (or the corresponding ON/OFF button on your meanLED R-series remote control) 3 times.
- Пацверджанне: The connected light will flash 3 times to indicate successful pairing.
6.2.2 Unpairing from a Remote Control
- Цыкл харчавання: Turn off the power to the S1-B dimmer.
- Аднавіць сілу: Зноў уключыце харчаванне.
- Initiate Unpairing: Within 5 seconds of restoring power, quickly press the "Match" button on the S1-B dimmer (or the corresponding ON/OFF button on your meanLED R-series remote control) 5 times.
- Пацверджанне: The connected light will flash 5 times to indicate successful unpairing.
6.3 Minimum Dimming Level Adjustment
The S1-B dimmer includes a "Min Set" switch (often a small potentiometer or switch) to adjust the minimum dimming level. This can help prevent flickering or instability at very low brightness settings, especially with certain types of LED lights.
- Рэгуляванне: Use a small screwdriver to carefully turn the "Min Set" adjustment. Test the dimming range after each adjustment until the desired stable minimum brightness is achieved.
7. Тэхнічнае абслугоўванне
The YULED S1-B dimmer requires minimal maintenance.
- Уборка: Ensure power is off before cleaning. Wipe the device with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- агляд: Перыядычна правярайце злучэнні правадоў на надзейнасць і наяўнасць прыкмет зносу або пашкоджанняў.
- Асяроддзе: Keep the device in a dry environment, away from direct sunlight and heat sources.
8. Выпраўленне непаладак
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Святло не ўключаецца. | No power supply, incorrect wiring, faulty light source, dimmer not paired. | Check power connections. Verify wiring according to diagram. Test light source. Attempt to re-pair the dimmer with the remote. |
| Light flickers or dims unevenly. | Incompatible light source, minimum dimming level too low, loose connection. | Ensure light source is Triac dimmable. Adjust the "Min Set" switch. Check all wiring connections. |
| Пульт дыстанцыйнага кіравання не працуе. | Remote not paired, remote battery low, remote out of range. | Re-pair the remote control. Replace remote battery. Ensure remote is within 30m range of the dimmer. |
| Push-DIM function not working. | Incorrect push switch wiring, faulty push switch. | Verify push switch wiring to A1/A2 terminals. Test the push switch for functionality. |
9. Recycling and Disposal Information
This product contains electronic components and should not be disposed of with general household waste. Please follow local regulations for the recycling of electronic waste. Proper disposal helps prevent potential negative consequences for the environment and human health.
For information on recycling lampі ўтылізацыя зламаных або пашкоджаных лamps, please refer to local guidelines or contact your municipal waste management authority.
10. Гарантыя і падтрымка
Каб атрымаць інфармацыю аб гарантыі або тэхнічнай падтрымцы, звярніцеся непасрэдна да прадаўца або вытворцы. Захоўвайце чэк аб куплі як пацверджанне пакупкі.
Manufacturer: YULED
