1. Уводзіны
The CLEYVER Meeting Track Bar is a high-definition 4K video conferencing solution designed for professional communication. It integrates an 8MP camera, advanced AI features for voice and body tracking, and a 5-microphone array with intelligent noise suppression. This device delivers full duplex HD audio and a wide 118° field of view, making it suitable for various meeting environments. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your Meeting Track Bar.

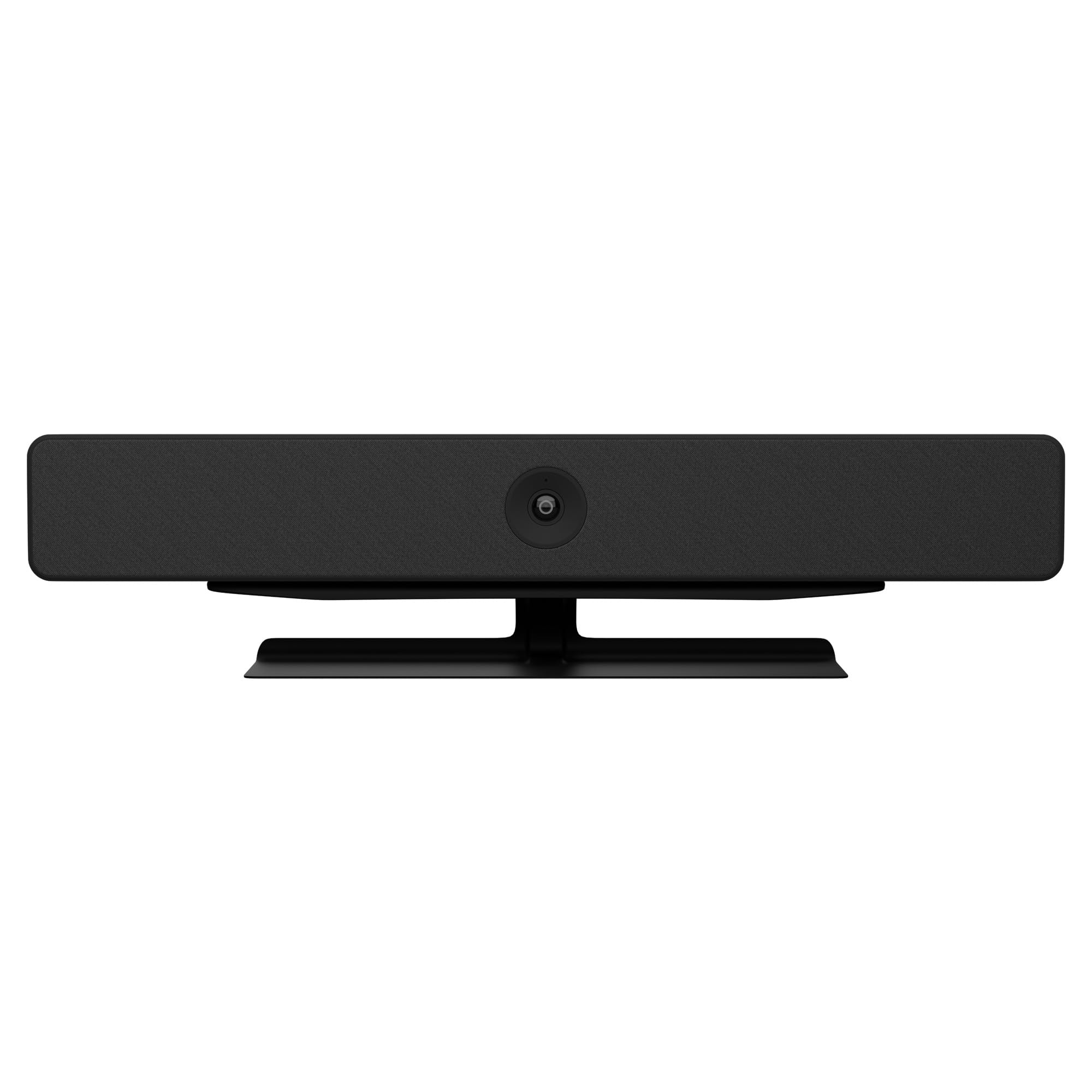

Image: The CLEYVER Meeting Track Bar, a sleek black video conferencing device with an integrated camera and speaker grille.
2. Змесціва ўпакоўкі
Калі ласка, пераканайцеся, што ўсе наступныя прадметы ўваходзяць у ваш пакет:
- CLEYVER Meeting Track Bar (Model: ODWCAMBAR60)
- Tiltable Base
- Пульт дыстанцыйнага кіравання
- Кабель USB-A да USB-C
- Адаптар сілкавання
- Кіраўніцтва карыстальніка (гэты дакумент)
3. Настройка
The CLEYVER Meeting Track Bar is designed for quick and simple Plug & Play installation. No specific drivers are required for most operating systems.
3.1 Варыянты размяшчэння
The device can be placed in various configurations to suit your meeting room setup:
- Размяшчэнне на працоўным стале: Position the bar on a flat surface, such as a table or desk, in front of your display.
- Under-Screen Mounting: Utilize the tiltable base to mount the bar directly below your meeting room display.
- Насценны мантаж: The bar can be securely mounted to a wall, typically above or below the main display.
Image: Diagram illustrating desktop, wall mount, and hanging placement options for the video conferencing bar in a meeting room setting.
3.2 Падключэнне прылады
- Падключыце харчаванне: Plug the power adapter into the power input port on the back of the Meeting Track Bar, then connect it to a 220V power outlet.
- Падключыцеся да кампутара: Use the provided USB-A to USB-C cable to connect the USB-C port on the Meeting Track Bar to an available USB-A port on your PC or Mac.
- Распазнаванне сістэмы: Your computer should automatically recognize the device. It will appear as a camera, microphone, and speaker option in your operating system's sound and video settings, as well as in your video conferencing software.
Выява: буйны план view of the CLEYVER Meeting Track Bar mounted beneath a television screen, showing its integration into a meeting setup.
3.3 Сумяшчальнасць праграмнага забеспячэння
The CLEYVER Meeting Track Bar is compatible with all major softphones and video conferencing platforms, including but not limited to Skype for Business, GoToMeeting, and Zoom.
4. Інструкцыя па эксплуатацыі
The Meeting Track Bar offers advanced features to enhance your conferencing experience.
4.1 Асаблівасці камеры
- 4K HD-відэа: Delivers excellent 4K resolution at up to 30 frames per second for clear visuals.
- Шырокае поле в View: The 118° super wide-angle 8 MP lens captures a broad area, ensuring all participants are visible.
- Automatic Image Adjustment: Contrast, brightness, and white balance are automatically managed by the system for optimal video quality in varying lighting conditions.
- AI Tracking Technology: The camera utilizes AI for voice tracking and automatic participant framing, ensuring the active speaker or group is always in focus.
Image: A split image demonstrating the AI features: one panel shows speaker tracking focusing on an individual, and another shows close-up framing of multiple participants.
Image: A visual representation of the auto-framing feature, showing how the camera adjusts to include all participants within the frame.
4.2 Функцыі гуку
- Full Duplex HD Sound: Integrated 5W HQ speakers provide clear audio output.
- 5 Noise-Canceling Microphones: An array of five microphones offers intelligent noise reduction, echo cancellation, and automatic voice enhancement.
- 360° галасавы захоп: The microphones can capture voices from up to 5 meters away in a 360° radius.
Image: A close-up diagram highlighting the five omnidirectional microphones integrated into the conferencing bar, designed for clear sound capture.
4.3 Функцыі дыстанцыйнага кіравання
The included remote control allows for convenient management of the Meeting Track Bar's functions:
- Кіраванне званкамі: Адказваць і завяршаць выклікі.
- Рэгулятар гучнасці: Adjust speaker volume up or down.
- Адключэнне гуку: Выключыць або ўключыць мікрафон.
- Кіраванне камерай: Уключыце або выключыце камеру.
- Маштаб: Manually zoom in or out of the camera view.
- Адсочванне AI: Activate or deactivate the AI voice and body tracking feature.
- Частата налады: Switch between 50/60Hz to prevent screen flickering.
5. Тэхнічнае абслугоўванне
To ensure the longevity and optimal performance of your CLEYVER Meeting Track Bar, follow these maintenance guidelines:
- Уборка: Use a soft, dry cloth to clean the exterior of the device. For the camera lens, use a specialized lens cleaning cloth. Avoid abrasive cleaners or solvents.
- захоўванне: Калі прылада не выкарыстоўваецца працяглы час, захоўвайце яе ў прахалодным, сухім месцы, удалечыні ад прамых сонечных прамянёў і экстрэмальных тэмператур.
- Апрацоўка: Handle the device with care to avoid physical damage. Do not drop or expose it to excessive vibration.
6. Выпраўленне непаладак
If you encounter issues with your Meeting Track Bar, refer to the following common problems and solutions:
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Няма відэавыхаду | USB cable not connected properly; Camera not selected in software; Power issue. | Ensure USB cable is securely connected to both the bar and the computer. Verify the power adapter is connected and the device is powered on. Select the CLEYVER Meeting Track Bar as the video source in your conferencing application. |
| No audio (microphone or speaker) | Microphone/speaker not selected in software; Volume too low; Mute activated. | Select the CLEYVER Meeting Track Bar as the audio input/output device in your conferencing application and operating system settings. Check the volume levels and ensure the microphone is not muted (via remote or software). |
| Адсочванне штучным інтэлектам не працуе | Feature deactivated; Insufficient lighting; Participants too far or too many. | Ensure AI tracking is enabled via the remote control. Optimize room lighting. Ensure participants are within the recommended 5-meter range and the room size is appropriate (up to 6 participants). |
| Пульт дыстанцыйнага кіравання не рэагуе | Batteries depleted; Obstruction between remote and bar. | Replace the batteries in the remote control. Ensure there is a clear line of sight between the remote and the Meeting Track Bar. |
| Sound only from one side (e.g., left) | Audio settings misconfigured; Device characteristic. | Check your computer's audio balance settings. While the device features integrated speakers, some users have noted a preference for external audio solutions for stereo sound. This may be a characteristic of the device's internal speaker configuration. |
7. Тэхнічныя характарыстыкі
Detailed technical specifications for the CLEYVER Meeting Track Bar:
| Асаблівасць | Дэталь |
|---|---|
| Марка | Cleyver |
| Назва мадэлі | Cleyver Meeting Track Bar |
| Нумар мадэлі | ODWCAMBAR60 |
| Колер | Чорны |
| Тып прадукту | Video Conferencing Bar / Webкамера |
| Тэхналогія падлучэння | USB |
| Дазвол відэа | 4K |
| Эфектыўнае рашэнне | 8 мегапікселяў |
| Поле в View | 118° |
| Дыяфрагма | f/2 |
| Мікрафоны | 5 omnidirectional, noise-canceling microphones |
| Адлегласць галасавога прыёму | Up to 5 meters (360°) |
| Выступоўцы | Integrated HQ 5W speakers |
| Асаблівасці | AI Voice & Body Tracking, Automatic Framing, Noise Suppression, Echo Cancellation, Microphone Input, USB Port |
| Памеры прадукту (Д х Ш х У) | 57 х 7.7 х 8.1 см |
| Вага прадукту | 3.41 кг |
| Уключаныя кампаненты | Tiltable base, remote control |
| Стабілізацыя выявы | няма |
8. Гарантыя і падтрымка
8.1 Гарантыя вытворцы
The CLEYVER Meeting Track Bar comes with a 2-гадовая гарантыя вытворцыГэтая гарантыя распаўсюджваецца на дэфекты матэрыялаў і вырабу пры нармальным выкарыстанні. Калі ласка, захавайце пацвярджэнне пакупкі для прэтэнзій па гарантыі.
8.2 Тэхнічная падтрымка
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact CLEYVER customer support through their official website or the retailer where the product was purchased. Have your model number (ODWCAMBAR60) and purchase date ready when contacting support.
