Coolado tPump X Wireless Tire Inflator and Mini Compressor User Manual

Уводзіны

The Coolado tPump X is a compact, portable, and wireless tire inflator designed for various applications, including car, motorcycle, bicycle, and sports ball inflation. This manual provides essential information for safe and efficient operation, setup, maintenance, and troubleshooting of your tPump X device.

Інфармацыя па бяспецы

Прачытайце ўсе інструкцыі перад выкарыстаннем.
Захоўваць у месцах, недаступных дзецям.
Не працуйце ў вільготных умовах або побач з лёгкаўзгаральнымі вадкасцямі/газамі.
Avoid prolonged continuous operation to prevent overheating. Allow the device to cool down between uses.
Ensure the correct pressure setting for the item being inflated to prevent over-inflation and potential damage or injury.
Выкарыстоўвайце толькі прадастаўлены кабель для зарадкі і адаптары.
Не разбірайце і не мадыфікуйце прыладу.

Змест пакета

The Coolado tPump X package includes the following items:

Coolado tPump X Wireless Tire Inflator
Air hose with Schrader valve adapter
Адаптар клапана Presta
Адаптар для шарыкавай іголкі
Plastic nozzle adapter for various inflatables
Кабель для зарадкі USB-C
Protective transport case

Coolado tPump X package contents including the inflator, various adapters, charging cable, and protective case. — Image: Contents of the Coolado tPump X package, showing the main unit, air hose, multiple valve adapters, USB-C cable, and a protective carrying case.

Асаблівасці прадукту

Лёгкі дызайн: Важыць прыблізна 480 г для зручнай транспарціроўкі.
Wireless USB-C Charging: Convenient and modern charging solution.
Універсальныя адаптары: Includes 4 adapters compatible with 5 different valve types.
Магчымасць высокага ціску: Inflates up to 150 PSI / 10.3 BAR.
Працяглая батарэя: Equipped with a 2600 mAh battery.
Intuitive LCD Touchscreen: Easy to read and operate display.
Убудаваны святлодыёдны святло: Features a bright LED light with an SOS mode for emergencies.
Automatic Tire Pressure Measurement: Accurately detects current pressure.
Трывалая канструкцыя: Body made from high-quality aluminum.

Coolado tPump X highlighting its features: 480g lightweight, wireless USB-C, 4 adapters for 5 valves, 150 PSI / 10.3 BAR, 2600 mAh battery, LCD touchscreen, LED with SOS light, and tire pressure measurement. — Image: The Coolado tPump X device with a list of its key features, including its lightweight design, wireless charging, pressure capabilities, and integrated lighting.

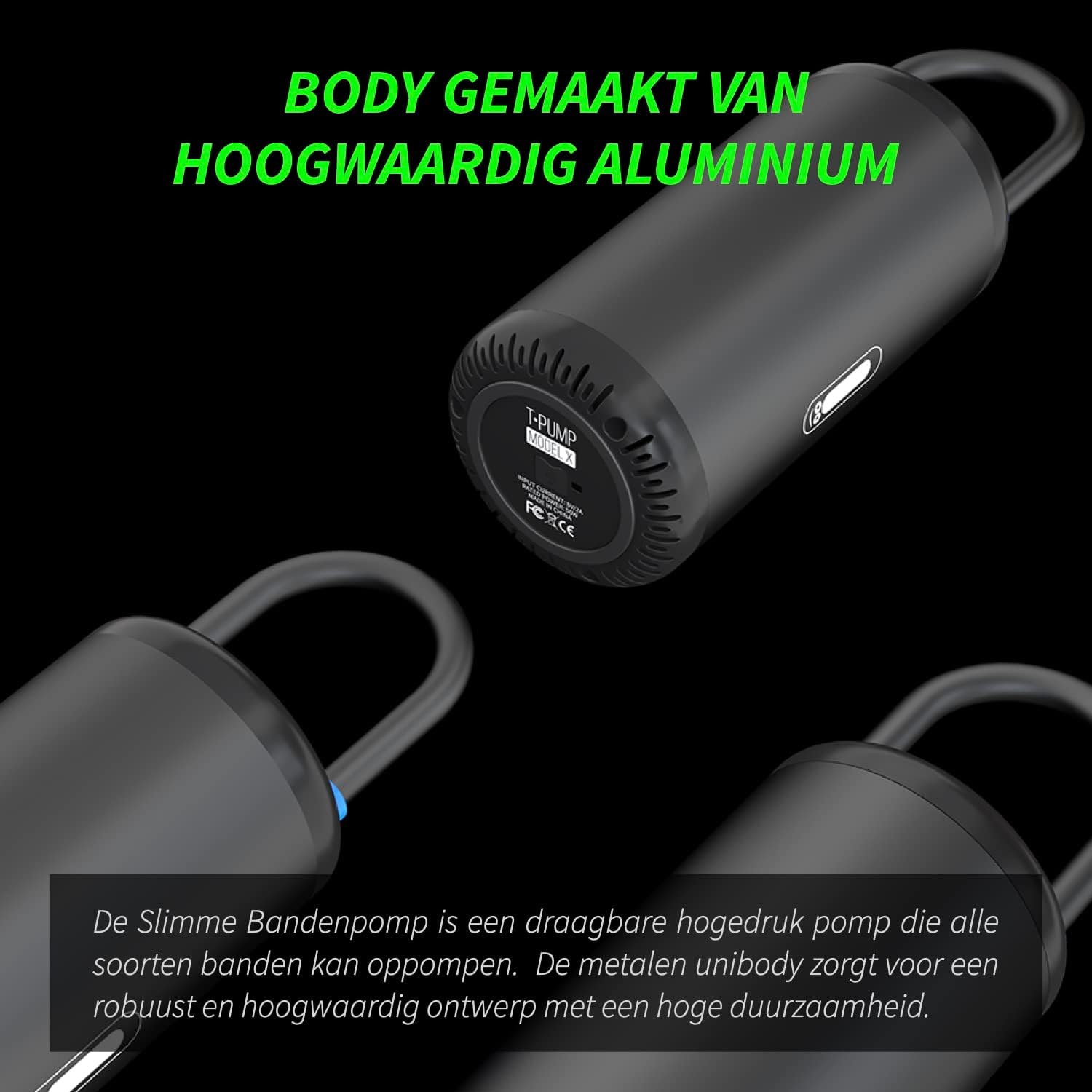

Coolado tPump X showing its high-quality aluminum body. — Image: Close-up of the Coolado tPump X, emphasizing its robust body constructed from high-quality aluminum.

Настройка

1. Зарадка прылады

Before first use, fully charge the tPump X. Connect the provided USB-C cable to the charging port on the device and to a compatible USB power source (e.g., wall adapter, power bank). The display will indicate charging status. A full charge allows for up to 30 minutes of continuous pumping.

Coolado tPump X being charged via USB-C cable. — Image: The Coolado tPump X connected to a USB-C charging cable, illustrating the charging process.

2. Падключэнне паветранага шланга і адаптараў

Screw the air hose securely onto the tPump X's air outlet.
Выберыце адпаведны адаптар клапана для прадмета, які вы хочаце напампаваць.
Attach the chosen adapter to the end of the air hose.

Various valve types: Presta, Dunlop, and Schrader valves. — Малюнак: Examples of different valve types (Presta, Dunlop, Schrader) for which adapters are provided.

Coolado tPump X adapters for different inflation needs. — Image: A selection of adapters for the Coolado tPump X, designed to fit various valve types and inflatables.

Інструкцыя па эксплуатацыі

1. Уключэнне/выключэнне харчавання

Націсніце і ўтрымлівайце кнопку харчавання (U) on the touchscreen to turn the device on or off.

2. Выбар рэжыму напампоўкі

The tPump X features 5 smart modes with pre-programmed pressure settings. Press the mode selection button (gear icon) to cycle through modes for car, motorcycle, bicycle, and sports balls. You can also manually adjust the pressure.

Coolado tPump X display showing 5 smart modes and user-friendly touch controls. — Image: The touchscreen display of the Coolado tPump X, illustrating the 5 smart modes and controls for setting pressure and units.

Coolado tPump X being used for various applications: 4x4/Auto, Camper Caravan, Motorcycle, Bicycle/MTB, MTB, Scooter, and Sports Balls. — Image: A collage demonstrating the wide range of applications for the tPump X, including vehicles and sports equipment.

3. Устаноўка патрэбнага ціску

After selecting a mode, the display will show a default pressure.
Use the '+' and '-' buttons to adjust the target pressure.
Press the unit button (often represented by a 'BAR' or 'PSI' icon) to switch between PSI and BAR units.

4. Пачатак інфляцыі

Connect the air hose with the correct adapter to the valve of the item you want to inflate. The device will automatically detect the current pressure.
Націсніце кнопку харчавання (U) briefly to start inflation. The pump will automatically stop once the preset pressure is reached.
Disconnect the hose from the valve and the device.

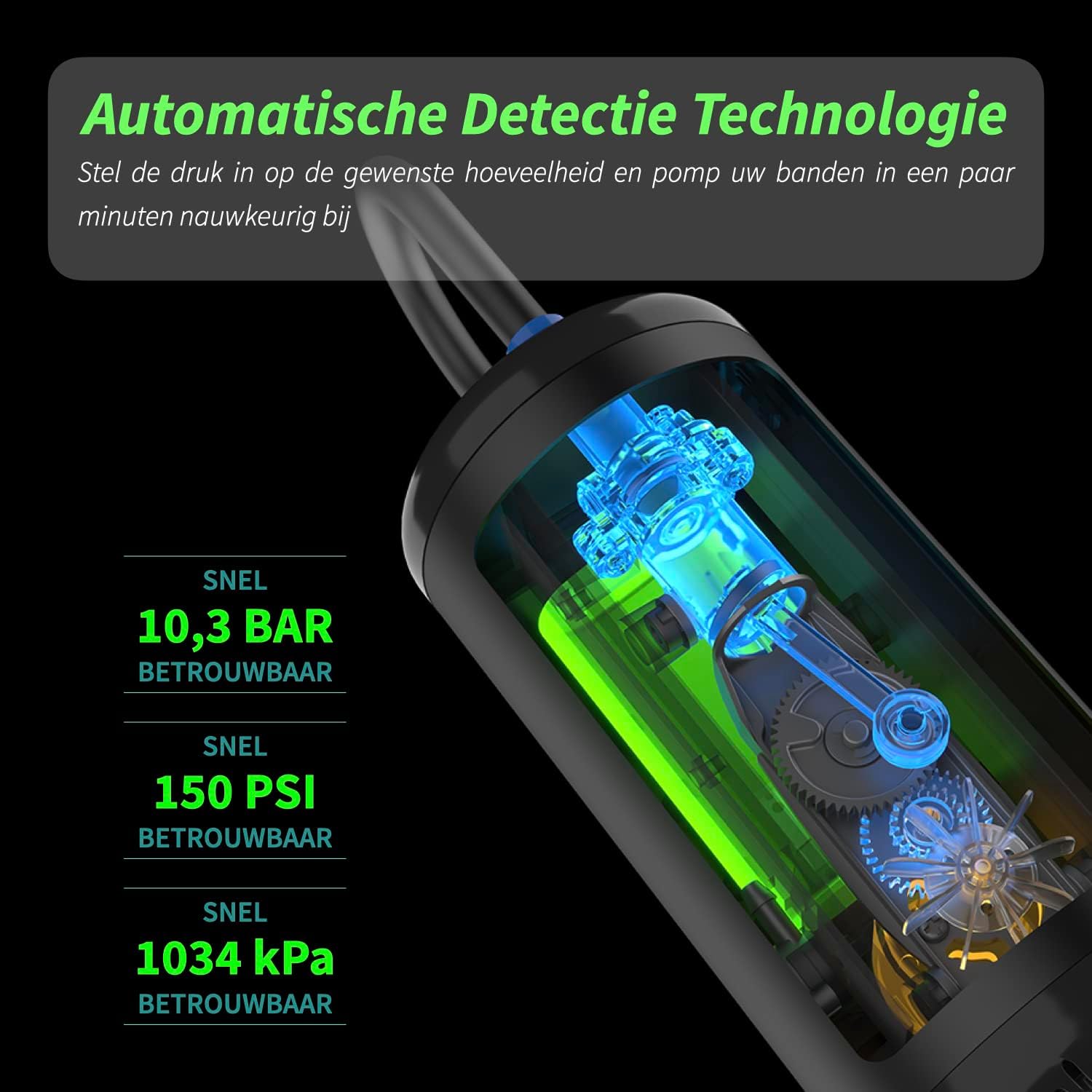

Coolado tPump X demonstrating automatic detection technology and precise inflation up to 10.3 BAR / 150 PSI. — Выява: Унутраная view of the tPump X, highlighting its automatic detection technology for precise and reliable inflation up to 10.3 BAR or 150 PSI.

5. Выкарыстанне святлодыёднай лямпы

The tPump X includes a multifunctional LED light for visibility in low-light conditions or emergencies.

Press the light button (lightbulb icon) once for a steady light.
Press again for a flashing SOS light mode.
Націсніце трэці раз, каб выключыць святло.

Coolado tPump X with its LED light illuminated, demonstrating its use for safety and visibility during night-time inflation or emergencies. — Image: The Coolado tPump X with its integrated LED light active, useful for illuminating the work area or signaling in emergency situations.

Тэхнічнае абслугоўванне

Уборка: Працірайце прыладу мяккай сухой тканінай. Не выкарыстоўвайце агрэсіўныя хімічныя рэчывы і не апускайце яе ў ваду.
захоўванне: Store the tPump X in its protective transport case in a cool, dry place, away from direct sunlight and extreme temperatures.
Сыход за батарэяй: Для аптымальнага тэрміну службы батарэі зараджайце прыладу не радзей за адзін раз на тры месяцы, калі яна не выкарыстоўваецца рэгулярна.
Шланг і адаптары: Inspect the air hose and adapters regularly for any signs of wear or damage. Replace if necessary.

Coolado tPump X and its accessories stored neatly in a portable, water-repellent protective case. — Image: The Coolado tPump X and its various accessories, including adapters and charging cable, neatly organized within its water-repellent protective case.

Ліквідацыю непаладак

праблема	Магчымая прычына	Рашэнне
Прылада не ўключаецца	Нізкі зарад батарэі або адсутнасць зарада.	Цалкам зарадзіце прыладу з дапамогай кабеля USB-C, які ўваходзіць у камплект.
Pump does not start inflating	Hose not securely attached or adapter not properly connected.	Ensure the air hose is tightly screwed onto the device and the adapter is firmly connected to the valve.
Недакладныя паказанні ціску	Loose connection or faulty valve.	Check all connections for tightness. Ensure the valve of the item being inflated is not damaged.
Device overheats and shuts off	Працяглае бесперапыннае выкарыстанне.	Дайце прыладзе астыць не менш за 15-20 хвілін, перш чым аднавіць працу.

Тэхнічныя характарыстыкі

Асаблівасць	Дэталь
Марка	Coolado
Нумар мадэлі	TPUMPX
Памеры прадукту	14 х 7 х 7 см
Вага прадмета	440 г
Максімальны ціск	10.3 БАР / 150 PSI
акумулятар	1 літый-іённы акумулятар (у камплекце)
Матэрыял	Пластык, метал
Патрабуецца зборка	няма

Гарантыя і падтрымка

For warranty information, technical support, or further inquiries, please visit the official Coolado website or contact their customer service. You can find more information about the tPump X at www.coolado.com/discover-tpump-x.
