ThermoPro TX-2J Outdoor Sensor Instruction Manual

1. Уводзіны

Thank you for choosing the ThermoPro TX-2J Outdoor Sensor. This sensor is an accessory designed to expand the monitoring capabilities of your compatible ThermoPro thermometer/hygrometer main unit (models TP60S, TP63, TP65). It provides accurate, real-time temperature and humidity data from an outdoor or remote location, transmitting it wirelessly to your main display unit.

2. Прадукт скончыўсяview

The ThermoPro TX-2J Outdoor Sensor is a compact, wireless unit built to withstand outdoor conditions. It features a robust design and is equipped with a red indicator light for signal transmission. The sensor operates on AAA batteries, which are included for your convenience.

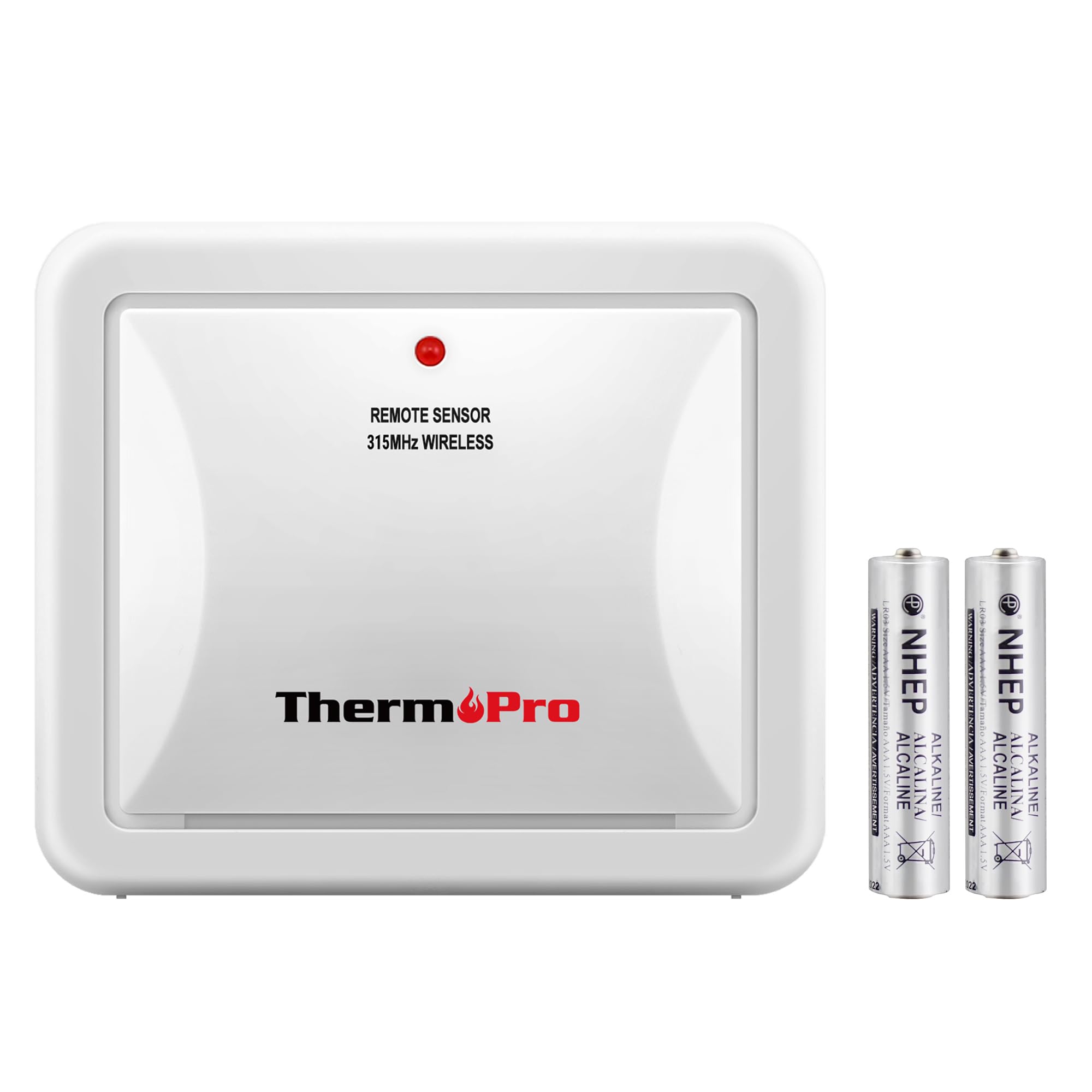

Image: ThermoPro TX-2J Outdoor Sensor with included AAA batteries.

The sensor is designed to be placed in an outdoor environment or any remote location where you wish to monitor temperature and humidity, transmitting data back to your main ThermoPro display unit.

3. Настройка

3.1 Устаноўка батарэі

1. Locate the battery compartment on the back of the TX-2J sensor.
2. Адкрыйце крышку батарэйнага адсека.
3. Insert the two AAA batteries (included) into the compartment, ensuring correct polarity (+ and -).
4. Надзейна зачыніце крышку батарэйнага адсека.

3.2 Pairing with Main Unit

The TX-2J sensor is designed to automatically pair with compatible ThermoPro main units (TP60S, TP63, TP65). Ensure your main unit is powered on and within range. The sensor will typically establish a connection automatically upon battery installation.

3.3 Размяшчэнне датчыка

Proper placement is crucial for accurate readings and sensor longevity:

• Пазбягайце прамых сонечных прамянёў: Do not place the remote unit under direct sunlight. Sunlight will heat the remote sensor, leading to temperature readings higher than the actual ambient temperature.
• Upward Orientation: The remote sensor must always be positioned upwards to prevent rain from entering the sensor through the ventilation holes at the bottom. This allows the remote sensor to detect environmental temperature and humidity more accurately and quickly.
• Аптымальны дыяпазон: Place the sensor within the specified wireless range of your main unit. Obstructions like thick walls or electronic devices can affect signal strength.

4. Інструкцыя па эксплуатацыі

Once paired and properly placed, the ThermoPro TX-2J sensor operates automatically. It continuously measures temperature and humidity and transmits this data wirelessly to your compatible ThermoPro main unit. The main unit will then display the readings from both its internal sensor and the TX-2J outdoor sensor.

The sensor is specifically designed for use with ThermoPro TP60S, TP63, and TP65 models. Note: This sub-unit sensor is NOT compatible with the TP50 model. Although the TP50 and TP60S may appear similar, they are different devices and use different communication protocols.

5. Тэхнічнае абслугоўванне

5.1 Замена батарэі

When the battery indicator on your main unit shows low power for the outdoor sensor, it's time to replace the batteries. Follow the battery installation steps in Section 3.1.

5.2 Ачыстка

Wipe the sensor with a soft, damp тканінай. Не выкарыстоўвайце абразіўныя ачышчальныя сродкі і не апускайце прыладу ў ваду.

5.3 Ахова навакольнага асяроддзя

While designed for outdoor use, extreme weather conditions can impact the sensor's performance and lifespan. Ensure the sensor is placed in a location that offers some protection from heavy rain, snow, and direct, prolonged sunlight.

6. Выпраўленне непаладак

• No Reading on Main Unit:
  • Check if batteries are correctly installed in the TX-2J sensor and the main unit.
  • Ensure the sensor is within the wireless range of the main unit.
  • Remove any major obstructions between the sensor and the main unit.
  • Try re-pairing by removing and reinserting batteries in both units, then placing them close together.
• Няправільныя паказанні:
  • Verify the sensor's placement. Ensure it is not in direct sunlight or near heat sources/vents.
  • Confirm the sensor is positioned upright to allow proper ventilation and prevent water ingress.
  • Compare readings with another known accurate thermometer/hygrometer in the same location.

7. Тэхнічныя характарыстыкі

8. Гарантыя і падтрымка

ThermoPro products are designed for quality and reliability. This product comes with a Гарантыя 1 год from the date of purchase. For any questions, concerns, or technical assistance, please contact ThermoPro customer support. Our friendly customer support team is available to assist you.

For more information and support, please visit the official ThermoPro website or refer to the contact information provided with your main unit.
