Кіраўніцтва карыстальніка гібрыднага сонечнага інвертара SAKO

1. Прадукт скончыўсяview

The SAKO Hybrid Solar Inverter is a high-performance device designed for home solar power systems. It integrates advanced MPPT solar charging technology, a pure sine wave inverter, and a UPS function in a compact unit. This inverter ensures efficient power conversion and reliable operation for various household applications.

This diagram illustrates the main features of the inverter, including 100A MPPT, photovoltaic input range, compatibility with LiFePO4 batteries, USB/RS232/RS485 communication, WiFi, large LCD display, and support for operation without a battery.

Асноўныя характарыстыкі:

• Перадавыя тэхналогіі: Utilizes advanced MPPT technology for charging with up to 99.9% efficiency and DC to AC SPWM technology for pure sine wave power output.
• High-Level Configuration: Features an LCD screen and 3 LED indicators for dynamic display of system data and operating status. Equipped with an intelligent variable-speed fan for efficient heat dissipation.
• Некалькі рэжымаў: Offers various charging modes (solar only, utility priority, solar energy priority, hybrid utility charging) and output modes (inverter and utility).
• Комплексныя функцыі абароны: Includes protection against short circuits, overvoltagе, undervoltage, overload, and reverse polarity.
• Аддалены маніторынг: Supports WiFi remote monitoring for convenient use and improved work efficiency.

2. Ўстаноўка і налада

Proper installation is crucial for the safe and efficient operation of your SAKO Hybrid Solar Inverter. Please follow these guidelines carefully.

2.1 Змест пакета:

• 1 x Hybrid Solar Inverter
• 1 х кабель падключэння
• 1 х Інструкцыя па эксплуатацыі

2.2 Злучэнне скончанаview:

The inverter features clearly labeled ports for AC input/output, battery connection, and solar input. Ensure all connections are secure and correctly polarized.

This composite image shows the front and side panels of the inverter, labeling key components such as the LCD display, status indicator, charging indicator, fault indicator, operation keys, AC input/output, battery input, solar input, overcurrent protection, USB communication interface, RS232 communication interface, and the main power switch.

2.3 System Diagram:

Refer to the system diagram below for a typical setup connecting solar panels, battery, and household loads to the inverter.

A schematic diagram illustrating a complete solar power system. It shows 300W/30V solar panels connected to a lithium battery power bank, which then connects to the hybrid solar inverter. The inverter powers various household appliances like a 200L refrigerator, 25W LED light, 50in LED TV, and a fan.

2.4 Пачатковае ўключэнне:

1. Ensure all connections (solar, battery, AC input/output) are correctly made and secure.
2. Turn on the battery breaker first, then the solar array breaker (if applicable).
3. Finally, turn on the AC input breaker (if applicable) and the inverter's main power switch.
4. Observe the LCD display and LED indicators for normal operation.

3. Інструкцыя па эксплуатацыі

The SAKO Hybrid Solar Inverter offers flexible operating modes to suit various energy needs. Use the control panel and LCD display to configure settings.

3.1 Control Panel and Display:

The inverter features an intuitive control panel with an LCD screen and three LED indicators (AC/INV, CHG, FAULT) to provide real-time system status and data.

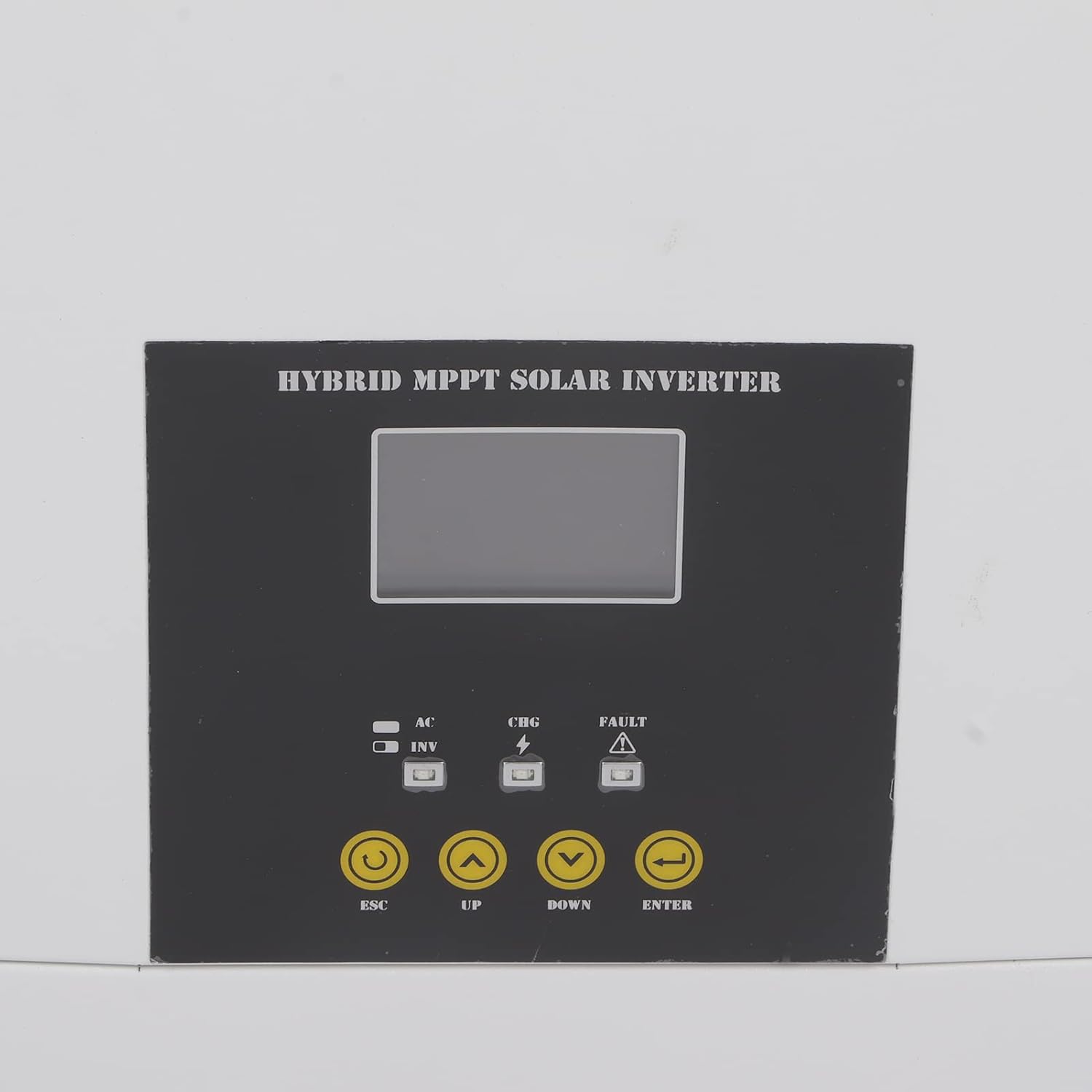

Буйны план view of the inverter's control panel, featuring the LCD screen, LED indicators (AC/INV, CHG, FAULT), and operation buttons (ESC, UP, DOWN, ENTER) for system management.

3.2 рэжымаў працы:

You can select from various charging and output modes to optimize energy usage:

• Рэжымы зарадкі:
  • Толькі сонечная
  • Прыярытэт камунальных паслуг
  • Solar Energy Priority
  • Hybrid Utility Charging
• Рэжымы вываду:
  • Inverter (Battery/Solar)
  • Utility (Bypass)

3.3 Remote Monitoring (WiFi):

The inverter supports WiFi remote monitoring, allowing you to view system data and adjust settings from a distance. Refer to the dedicated WiFi module instruction manual for setup and application details.

A detailed shot of the communication ports on the inverter, specifically showing the Ethernet (COMM PORT) and USB ports for data transfer and remote monitoring.

4. Тэхнічнае абслугоўванне

Regular maintenance ensures the longevity and optimal performance of your hybrid solar inverter.

• Уборка: Periodically clean the exterior of the inverter with a soft, dry cloth. Ensure ventilation openings are free from dust and debris to prevent overheating.
• Праверка злучэння: Annually inspect all electrical connections for tightness and signs of corrosion. Loose connections can lead to power loss or overheating.
• Умовы навакольнага асяроддзя: Ensure the inverter is operating within its specified temperature range (-10-50℃) and in a well-ventilated area, free from excessive humidity or direct sunlight.
• Абнаўленні прашыўкі: Праверце вытворцы webсайт для атрымання даступных абнаўленняў прашыўкі, каб пераканацца, што ваш інвертар мае найноўшыя функцыі і выпраўленні памылак.

5. Выпраўленне непаладак

У гэтым раздзеле прыведзены рэкамендацыі па вырашэнні распаўсюджаных праблем, з якімі вы можаце сутыкнуцца. У выпадку складаных праблем звярніцеся ў службу тэхнічнай падтрымкі.

5.1 Распаўсюджаныя праблемы і рашэнні:

• Няма магутнасці:
  • Check if the inverter is powered on and all breakers are engaged.
  • Праверце аб'ём батарэіtage знаходзіцца ў працоўным дыяпазоне.
  • Check for any fault indicators on the LCD or LED display.
• Спрацавала абарона ад перагрузкі:
  • Reduce the connected load. The inverter has overload protection to prevent damage.
  • Restart the inverter after reducing the load.
• Індыкатар няспраўнасці ўключаны:
  • Refer to the specific error code displayed on the LCD (if any) in the detailed instruction manual for diagnosis.
  • Common faults include overvoltagе, undervoltage, short circuit, or reverse polarity.
• WiFi Remote Monitoring Issues:
  • Ensure the WiFi module is correctly installed and connected.
  • Праверце падключэнне да сеткі і налады маршрутызатара.
  • Verify the monitoring application is up to date.

6. Тэхнічныя характарыстыкі

Detailed specifications for the SAKO Hybrid Solar Inverter.

7. Гарантыя і падтрымка

For warranty information, technical support, or service inquiries, please contact the manufacturer, Tefola, or your authorized dealer. Keep your purchase receipt as proof of purchase.

The included instruction manual provides more detailed information on specific error codes and advanced settings.
