NICOR DGC43120SRDWH 4-inch Selectable Canless Adjustable Gimbal LED Recessed Downlight User Manual

1. Уводзіны

This manual provides detailed instructions for the installation, operation, and maintenance of your NICOR DGC43120SRDWH 4-inch selectable canless adjustable gimbal LED recessed downlight. Please read these instructions carefully before beginning installation and retain them for future reference.

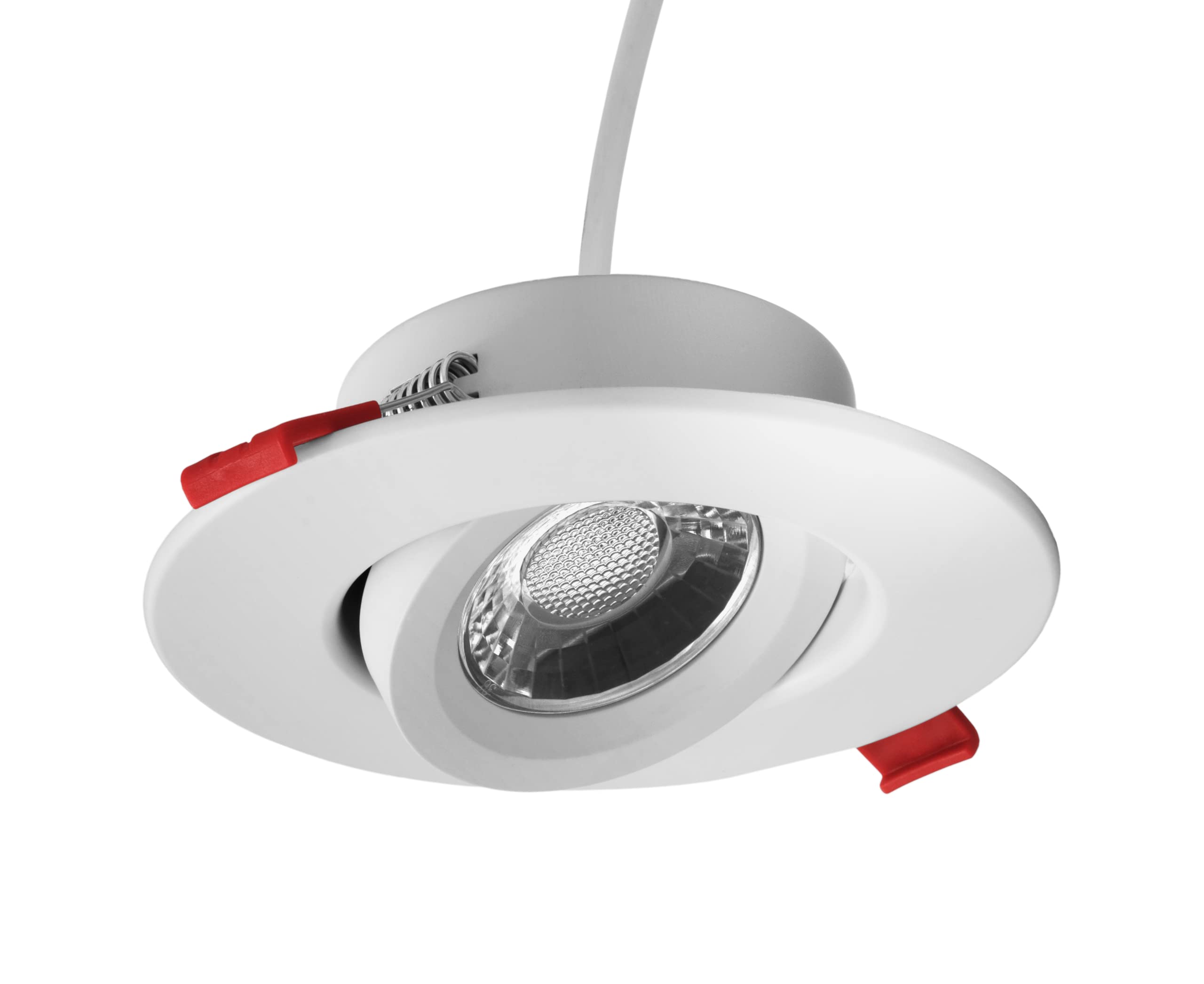

Image 1: NICOR DGC43120SRDWH 4-inch LED Recessed Downlight. This image shows the complete downlight unit with its white finish and adjustable gimbal.

2. Інфармацыя па бяспецы

ПАПЯРЭДЖАННЕ: Рызыка паражэння электрычным токам. Адключыце сілкаванне з дапамогай засцерагальніка або аўтаматычнага выключальніка перад устаноўкай або абслугоўваннем.

• Усе электрычныя падключэнні павінны адпавядаць мясцовым стандартам і стандартам Нацыянальнага электрычнага кодэкса (NEC).
• Consult a qualified electrician if you are unsure about proper installation.
• Do not install in locations where the operating temperature exceeds the fixture's rated temperature.
• Пераканайцеся, што свяцільня правільна зазямлены.
• This product is suitable for indoor use only. Not water resistant.
• Для ўстаноўкі, дзе магчымы скачок напругі, NICOR рэкамендуе ўсталяваць дадатковую абарону ад перанапружання на размеркавальнай панэлі.

3. Змесціва ўпакоўкі

Перад пачаткам усталёўкі пераканайцеся, што ўсе кампаненты наяўныя:

• Selectable LED Downlight (DGC43120SRDWH)
• Plenum-rated cable
• Off-board driver / Remote Junction Box

4. Асаблівасці

The NICOR DGC43120SRDWH downlight offers advanced features for versatile lighting:

• Безрамная канструкцыя: Installs directly into the ceiling; no traditional recessed housing or junction box is required.
• Adjustable Directional Lighting: Features 25° tilt and 360° rotation for precise light direction.
• Selectable Color Temperature (CCT): Choose from 5 color temperatures (2700K, 3000K, 3500K, 4000K, 5000K) using a switch on the junction box.
• Высокая прадукцыйнасць: Produces over 715 Lumens at 9-Watts (equivalent to a 65W incandescent bulb) with an impressive 97 CRI (Color Rendering Index) and R9 value over 70.
• Зацямненне: Fully dimmable to less than 5% using standard TRIAC LED Dimmers.
• Нізкі-Profile: Designed for installation into ceilings up to 1-inch thick.
• Трывалая канструкцыя: Fully enclosed aluminum housing protects electrical components and provides a wet location rating.

Image 2: Key specifications and selectable color temperature feature of the downlight.

Image 3: Illustration of the 25° tilt and 360° rotation capabilities of the gimbal.

Image 4: Visual representation of the 33° beam angle, showing focused illumination.

Малюнак 5: Збоку view ілюструючы нізкапрафесійныяfile design, suitable for thin ceilings.

Малюнак 6: Зверху ўніз view of the fully enclosed aluminum housing, highlighting its protective features.

5. Настройка і ўстаноўка

Неабходныя інструменты: Hole saw, measuring tape, pencil, wire strippers, screwdriver.

1. Выключыць харчаванне: Before starting any electrical work, ensure the power is turned off at the circuit breaker or fuse box to prevent electric shock.
2. Mark and Cut Hole: Use the provided 3.75-inch template (or measure 3.75 inches) to mark the desired location on the ceiling. Use a hole saw to cut the opening.
3. Падключэнне правадоў: Open the remote junction box. Connect the building's electrical wires (hot, neutral, ground) to the corresponding wires inside the junction box using appropriate wire connectors. Ensure all connections are secure.
4. Выберыце каляровую тэмпературу: Before closing the junction box, use the switch located inside to select your desired color temperature (2700K, 3000K, 3500K, 4000K, or 5000K).
5. Бяспечная размеркавальная скрынка: Close the junction box and place it above the ceiling, ensuring it is securely positioned and not resting on the downlight.
6. Падключыце свяцільню да размеркавальнай скрынкі: Connect the plenum-rated cable from the downlight to the remote junction box. Ensure the connection is firm.
7. Усталяваць свяцільню: Push the spring-loaded retention clips on the downlight upwards and insert the downlight into the ceiling opening. Release the clips to secure the fixture against the ceiling.
8. Аднавіць сілу: Пасля таго, як свяцільня будзе надзейна ўсталявана, аднавіце электрасілкаванне з дапамогай аўтаматычнага выключальніка.

Image 7: Diagram showing the remote junction box and spring-loaded retention clips for canless installation.

Image 8: Simplified installation diagram illustrating the connection between the downlight and the driver above the ceiling.

6. Інструкцыя па эксплуатацыі

After successful installation, operate your downlight as follows:

• Уключэнне/выключэнне харчавання: Выкарыстоўвайце звычайны насценны выключальнік, каб уключыць або выключыць свяцільнік.
• Зацямненне: If connected to a compatible TRIAC LED dimmer, adjust the dimmer switch to control the light intensity.
• Adjusting Gimbal: Gently tilt the inner light module up to 25° in any direction or rotate it 360° to direct the light beam as desired.
• Змена каляровай тэмпературы: To change the color temperature, you must first turn off power at the circuit breaker. Then, carefully remove the downlight from the ceiling to access the remote junction box. Open the junction box and adjust the CCT selection switch to your preferred setting. Reinstall the downlight and restore power.

Image 9: Close-up of the selectable color temperature switch located within the remote junction box.

7. Тэхнічнае абслугоўванне

The NICOR DGC43120SRDWH LED downlight requires minimal maintenance.

• Уборка: Перад чысткай пераканайцеся, што электрычнасць адключана. Працярыце прыбор мяккай, сухой або злёгку змочанай тканінай.amp cloth. Do not use harsh chemicals or abrasive cleaners, as they may damage the finish or electrical components.
• Замена лямпачкі: The LED light source is integrated and not user-replaceable. If the LED fails, the entire fixture should be replaced.

8. Выпраўленне непаладак

9. Тэхнічныя характарыстыкі

Image 10: Dimensional drawing showing the measurements of the downlight and its remote junction box.

10. Інфармацыя аб гарантыі

This NICOR DGC43120SRDWH downlight is protected by NICOR’s 5-Year Limited System Warranty.

Важныя заўвагі:

• Для ўстаноўкі, дзе магчымы скачок напругі, NICOR рэкамендуе ўсталяваць дадатковую абарону ад перанапружання на размеркавальнай панэлі.
• Гарантыя не распаўсюджваецца на паломку прадукту з-за перагрузкіtagпадзея (скок напружання).

11. Падтрымка і кантакты

If you have any questions, require technical assistance, or need to report an issue with your NICOR DGC43120SRDWH downlight, please contact NICOR customer support. Refer to the product packaging or the official NICOR webсайт для атрымання самай актуальнай кантактнай інфармацыі.
