Shadowhawk XHP70.2 LED Rechargeable Flashlight User Manual

1. Уводзіны і большview

Thank you for choosing the Shadowhawk XHP70.2 LED Rechargeable Flashlight. This high-performance tactical flashlight is designed for various outdoor activities, emergencies, and daily use, offering exceptional brightness and durability. It features an advanced XHP70.2 LED chip, multiple lighting modes, a zoomable beam, and IP67 waterproof rating.

Малюнак 1.1: The Shadowhawk flashlight demonstrating its extreme brightness and long-range illumination, powered by an improved XHP70.2 LED chip.

2. Інструкцыі па тэхніцы бяспекі

• Не свяціце ліхтарыкам непасрэдна ў вочы, бо інтэнсіўнае святло можа выклікаць часовае пагаршэнне зроку або яго пашкоджанне.
• Захоўвайце ліхтарык у месцах, недаступных дзецям.
• Выкарыстоўвайце толькі пазначаныя тыпы батарэек і пры ўсталёўцы сочыце за правільнай палярнасцю.
• Do not disassemble or modify the flashlight, as this may void the warranty and cause damage.
• Пазбягайце працяглага ўздзеяння экстрэмальных тэмператур або прамых сонечных прамянёў на ліхтарык.
• Нягледзячы на ​​тое, што прылада мае клас воданепранікальнасці IP67, варта пазбягаць працяглага апускання ў ваду.

3. Змесціва ўпакоўкі

Upon opening your Shadowhawk flashlight package, you should find the following items:

• Shadowhawk XHP70.2 LED Flashlight
• 1 x 26700 Rechargeable Lithium-Ion Battery (6000 mAh)
• 1 x AAA Battery Adapter
• 3 x AAA Batteries (Lanen brand)
• 1 х кабель для зарадкі USB-C
• 1 x Tactical Holster with Belt Attachment
• 1 х шнурок
• 1 бірулька
• Кіраўніцтва карыстальніка (гэты дакумент)

4. Настройка

4.1 Устаноўка батарэі

1. Адкруціце хваставую крышку ліхтарыка.
2. Insert the included 26700 Lithium-Ion battery with the positive (+) end facing towards the flashlight head.
3. Alternatively, if using AAA batteries, place three AAA batteries into the provided AAA battery adapter, ensuring correct polarity. Then insert the adapter into the flashlight with the positive (+) end facing towards the flashlight head.
4. Надзейна закруціце хваставую крышку.

Малюнак 4.1: The flashlight is designed to be rechargeable and durable, offering up to 12 hours of runtime. It also supports operation with 3 AAA batteries using the included adapter.

4.2 Зарадка акумулятара

The flashlight features a USB-C charging port for convenient recharging.

1. Locate the USB-C charging port on the flashlight body. It is usually covered by a rubber flap for waterproofing.
2. Open the rubber flap and connect the included USB-C cable to the flashlight.
3. Connect the other end of the USB-C cable to a USB power source (e.g., wall adapter, power bank, computer USB port).
4. The battery indicator lights (four blue LEDs) will illuminate to show the charging progress. Each light represents approximately 25% of the battery capacity. All four lights will be solid when fully charged.
5. Once charging is complete, disconnect the USB-C cable and securely close the rubber flap to maintain the waterproof seal.

Малюнак 4.2: The flashlight features a USB input for charging and a clear battery display, allowing you to always know the current battery level (25%, 50%, 75%, 100%).

5. Інструкцыя па эксплуатацыі

5.1 Уключэнне/выключэнне харчавання і рэжымы асвятлення

Ліхтарык мае адну кнопку харчавання для кіравання магутнасцю і пераключэння рэжымаў асвятлення.

1. Уключэнне: Press the power button once to turn on the flashlight. It will typically start in High mode.
2. Рэжымы цыклу: With the flashlight on, press the power button repeatedly to cycle through the 5 available light modes: High → Medium → Low → Strobe → SOS.
3. Выключэнне: To turn off the flashlight, either cycle through all modes until it turns off, or press and hold the power button for approximately 3 seconds from any mode.

5.2 Функцыя маштабавання

The Shadowhawk flashlight features a zoomable head to adjust the beam from a wide floodlight to a focused spotlight.

• To widen the beam (floodlight), gently push the head of the flashlight forward.
• To narrow the beam (spotlight), gently pull the head of the flashlight backward.

Малюнак 5.1: The flashlight offers 5 distinct light modes (High, Medium, Low, Strobe, SOS) and an adjustable zoom function to control the beam width.

6. Тэхнічнае абслугоўванне

6.1 Ачыстка

• Працярыце корпус ліхтарыка мяккай губкайamp тканіна для выдалення бруду або смецця.
• For the lens, use a lens cleaning cloth to avoid scratches.
• Не выкарыстоўвайце агрэсіўныя хімічныя рэчывы або абразіўныя мыйныя сродкі.

6.2 Захоўванне

• Захоўвайце ліхтарык у прахалодным, сухім месцы, удалечыні ад прамых сонечных прамянёў.
• If storing for an extended period, remove the battery to prevent leakage and ensure the battery is partially charged (around 50%) to prolong its lifespan.

7. Выпраўленне непаладак

If you encounter any issues not listed here or if the problem persists after attempting the solutions, please contact Shadowhawk customer support for assistance.

8. Тэхнічныя характарыстыкі

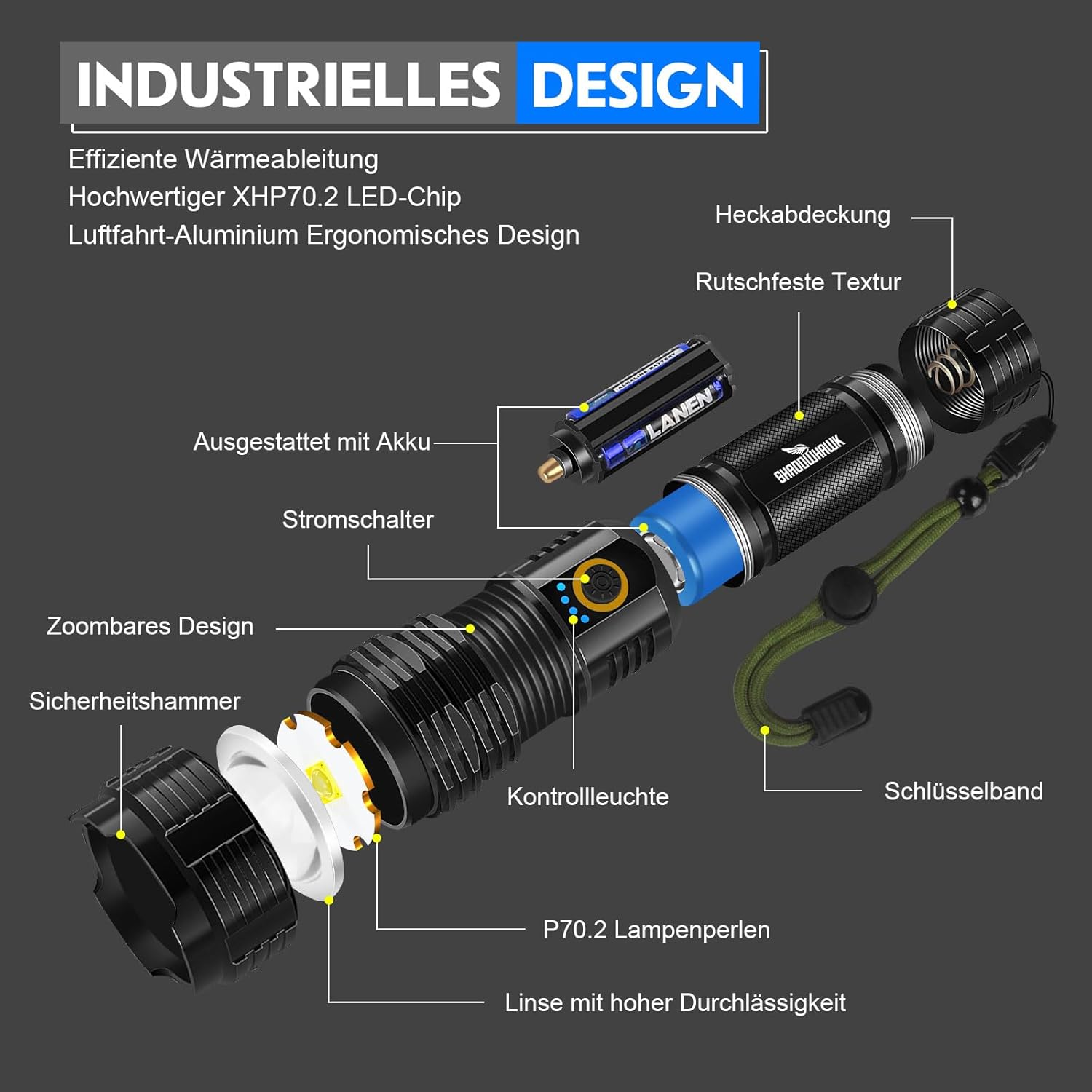

Малюнак 8.1: Выбухнуў view illustrating the industrial design and key components of the Shadowhawk flashlight, including the XHP70.2 LED chip, zoomable design, and robust aluminum body.

Малюнак 8.2: The Shadowhawk flashlight is IP67 waterproof, designed to withstand various adverse weather conditions, featuring a robust sealing ring.

9. Гарантыя і падтрымка

Shadowhawk products are manufactured to high-quality standards. For any warranty claims or technical support, please refer to the contact information provided with your purchase or visit the official Shadowhawk website. Please have your model number (DE-S1915) and purchase details ready when contacting support.
